Steel strip Blast Cleaning System for removes abrasive residue from the upper side of strip
- Category: >>>
- Supplier: Qingdao Xinke Machinery Technology Co. Ltd.
Share on (10000009490858):
Product Overview
Description
2022 New Arrival High Quality Steel strip Blast Cleaning System for removes abrasive residue from the upper side of strip
Name: Steel strip Blast Cleaning System for removes abrasive residue from the upper side of strip
Model: HBQ Series - Customized
Xinke Steel Strip Shot Blasting Equipment is specifically designed to used in hot rolling annealing pickling process for carbon steel, alloy steel, or stainless steel strips, the purpose of this design is to remove the oxide skin from the stripe surface. The addition of its function can greatly improve the pickling efficiency, reduce acid consumption, by optimizing the amount of shot blasting machine, can obtain the best descaling efficiency and descaling effect.
The Steel Strip Shot Blasting Machines are customized for narrow steel belt (650~800 mm), medium steel belt (800~1600 mm) and wide steel belt (1750~2400 mm) according to the needs of users. Shot blasting system can be adjusted to fit specification. The adjustment will be made by regulating the abrasive throughput rate, by varying the abrasive throwing speed or the breadth of abrasive impingement.
Introduction of main systems：
The main component are shot blasting system, Abrasive removal system, Abrasive recycling & pneumatic separation system, and Dust extraction system.
1,Shot blasting system
The shot blasting system is one of the main system. Through the blasting flow formed by high speed rotation of impeller driven by motor to remove iron oxide from strip surface. Exact and automatic adjustment of all 4 blast wheels for a new strip programme permits full exploitation of the blast stream in the entire width range and results in high descaling performance and quality.
2,Abrasive removal system
The abrasive removal room are linked with shot blasting cabinet, a compressed air blower removes abrasive residue from the upper side of the strip after each blast cleaning process.
3,Abrasive recycling & pneumatic separation system
Abrasives cleaned by pneumatic separator returns back to the circulation system form a circulatory system and supplied with the new added abrasive. So, the operating mix and blast power are constantly maintained.
4,Dust extraction system
A large amount of dust will be produced in the whole shot blasting process. blast cleaning cabinet, abrasive removal cabinet and separators are connected with dust collection system.
Remark: The strip roll-out can be straight or run diagonally upwards, depending on the arrangement of the module groups and the subsequent pickling operation.
The Steel Strip Shot Blasting Machines are customized for narrow steel belt (650~800 mm), medium steel belt (800~1600 mm) and wide steel belt (1750~2400 mm) according to the needs of users. Shot blasting system can be adjusted to fit specification. The adjustment will be made by regulating the abrasive throughput rate, by varying the abrasive throwing speed or the breadth of abrasive impingement.
Introduction of main systems：
The main component are shot blasting system, Abrasive removal system, Abrasive recycling & pneumatic separation system, and Dust extraction system.
1,Shot blasting system
The shot blasting system is one of the main system. Through the blasting flow formed by high speed rotation of impeller driven by motor to remove iron oxide from strip surface. Exact and automatic adjustment of all 4 blast wheels for a new strip programme permits full exploitation of the blast stream in the entire width range and results in high descaling performance and quality.
2,Abrasive removal system
The abrasive removal room are linked with shot blasting cabinet, a compressed air blower removes abrasive residue from the upper side of the strip after each blast cleaning process.
3,Abrasive recycling & pneumatic separation system
Abrasives cleaned by pneumatic separator returns back to the circulation system form a circulatory system and supplied with the new added abrasive. So, the operating mix and blast power are constantly maintained.
4,Dust extraction system
A large amount of dust will be produced in the whole shot blasting process. blast cleaning cabinet, abrasive removal cabinet and separators are connected with dust collection system.
Remark: The strip roll-out can be straight or run diagonally upwards, depending on the arrangement of the module groups and the subsequent pickling operation.
Feature & Advantages：
1,High wear-resistant alloy used for protective plate of shot blasting cabinet and lining of blast wheel, enhanced the machine durability and longevity.
2,Reliable and economical operation resulting in a high degree of surface cleanliness.
3,Blast wheel arrangement and concept ensures maximum exploitation of blasting energy and intensity and prevents from blasting interference.
4,High efficiency separator & high power shot blasting device, consistent blast quality and abrasive flow for a better finished product and more efficient operations.
5,Efficient abrasive blow-off, maximum abrasive cleaning and recovery.
6,Efficient dust collection, a good dust collecting and filtering system can reduce the wear of abrasives to the shot blasting machine.
7,Multiple package options to meet your needs (Basic, PLC/Touch Screen, PC based).
High/Low/Variable speed options for flexibility and precision to achieve the best blasting flow and surface treatment effect.
8,Remote connectivity for easier and more efficient trouble shooting and maintenance.
9,Back office integration and data collections for improved operations.
2,Reliable and economical operation resulting in a high degree of surface cleanliness.
3,Blast wheel arrangement and concept ensures maximum exploitation of blasting energy and intensity and prevents from blasting interference.
4,High efficiency separator & high power shot blasting device, consistent blast quality and abrasive flow for a better finished product and more efficient operations.
5,Efficient abrasive blow-off, maximum abrasive cleaning and recovery.
6,Efficient dust collection, a good dust collecting and filtering system can reduce the wear of abrasives to the shot blasting machine.
7,Multiple package options to meet your needs (Basic, PLC/Touch Screen, PC based).
High/Low/Variable speed options for flexibility and precision to achieve the best blasting flow and surface treatment effect.
8,Remote connectivity for easier and more efficient trouble shooting and maintenance.
9,Back office integration and data collections for improved operations.
1,Easy installation.
2,Safe Operation.
3,Simple maintenance.
4,High overall efficiency and reliability.
5,High wear-resistant parts for cost savings.
2,Safe Operation.
3,Simple maintenance.
4,High overall efficiency and reliability.
5,High wear-resistant parts for cost savings.
Professional customizable shot blasting machine manufacturer
Main Specification of Steel strip Blast Cleaning System for removes abrasive residue from the upper side of strip
Item | HBQ850 | HBQ1550 | HBQ2400 |
Strip widths (mm) | 300-850 | 850-1550 | 1550-2400 |
Number of blast wheels | 4 | 4 | 6 |
Power per blast wheel (kw) | 45 | 90 | 90 |
Abrasive throughput rate / wheel (kg/min) | 550 | 1200 | 1200 |
We can design and manufacture all kinds of non-standard shot blasting machines.
Please contact us for more details.
Universal Wheel：

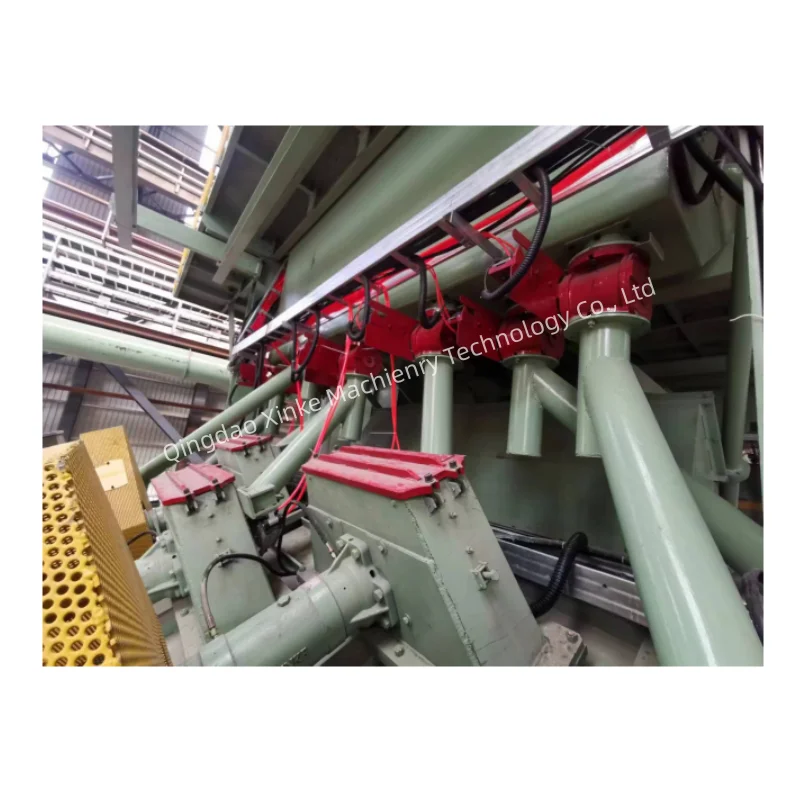

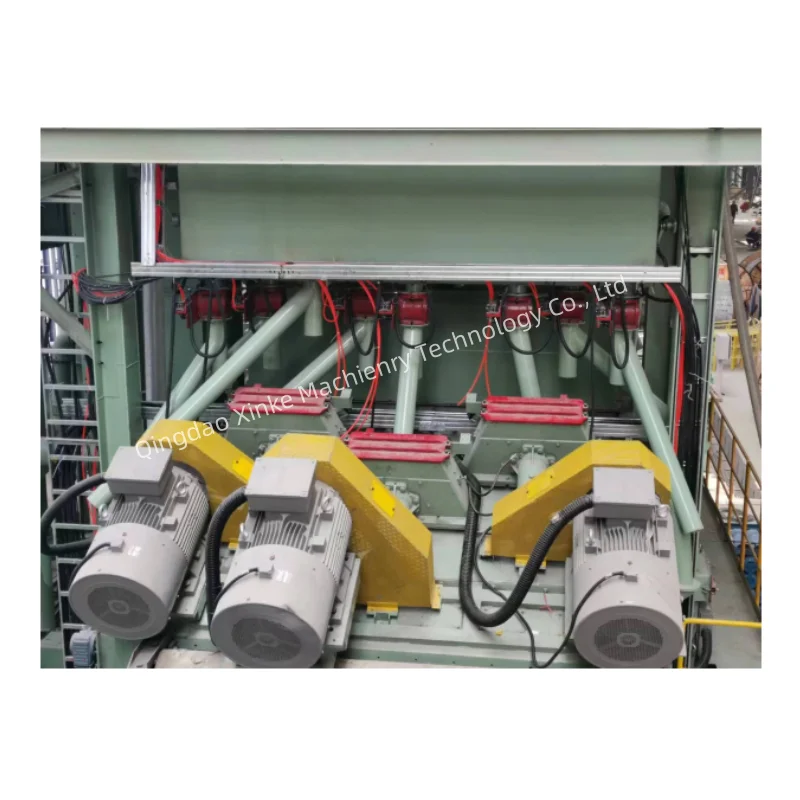

The blast wheel is the heart of the blasting machine, as the choice of blast wheel determines the power output and the economics.
This machine is fitted with Universal shot blast wheels as standard. The Wheels are highly flexible, compact and have rotation in
both directions. They provide perfect blast cleaning results and highly convenient servicing features.
This machine is fitted with Universal shot blast wheels as standard. The Wheels are highly flexible, compact and have rotation in
both directions. They provide perfect blast cleaning results and highly convenient servicing features.
The U Blast Wheels are high capacity blast wheels with maximum energy efficiency. Their rugged design means that maintenance is easy, and the special and highly wear resistant cast alloy liners ensure minimum wear and maximum service life of the blast wheel.
Photographing of Steel strip Blast Cleaning System for removes abrasive residue from the upper side of strip

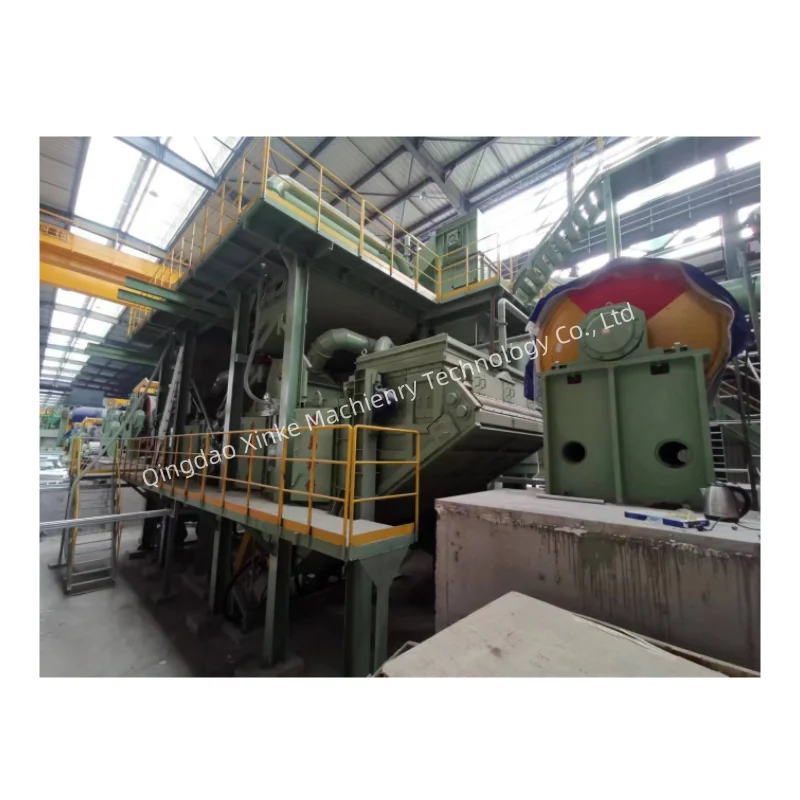

Installation Photographing of Steel strip Blast Cleaning System for removes abrasive residue from the upper side of strip

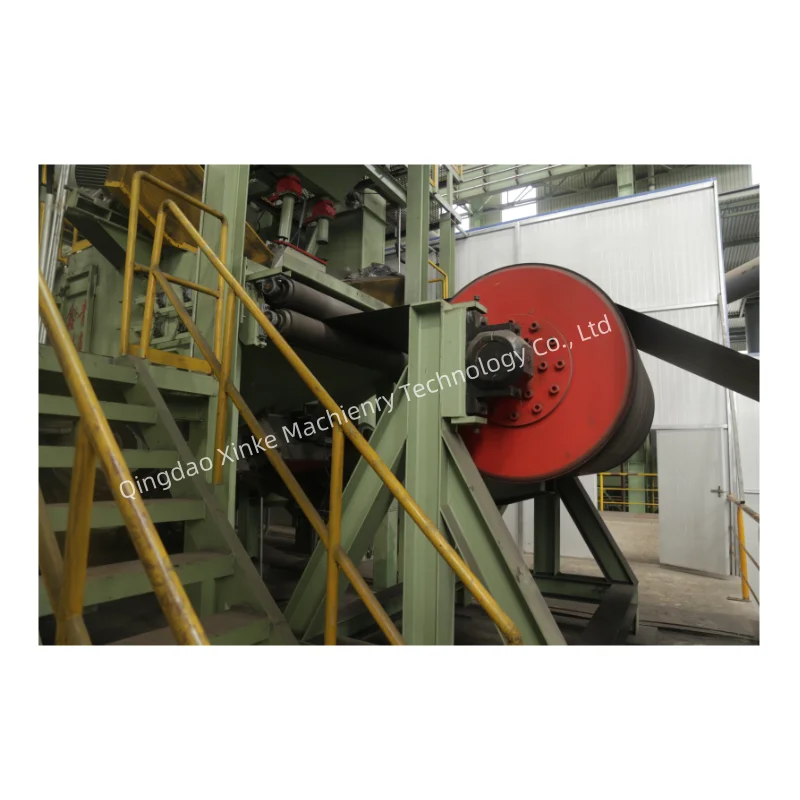

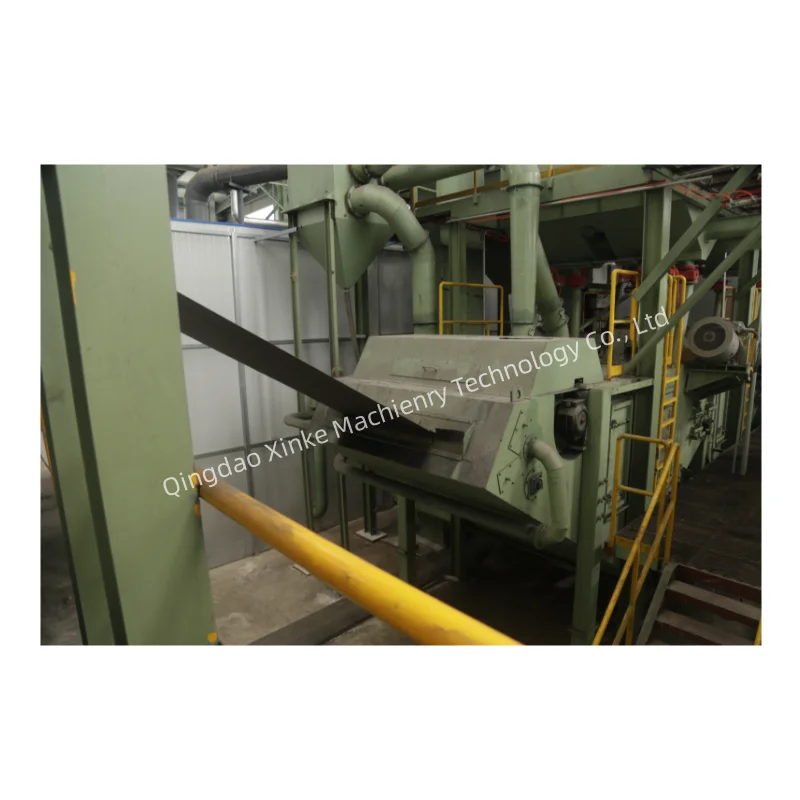

Photographing in Client's factory of Steel strip Blast Cleaning System for removes abrasive residue from the upper side of strip
Rust Removal System for Steel strip Blast Cleaning System for removes abrasive residue from the upper side of strip
Assembly shop of Steel strip Blast Cleaning System for removes abrasive residue from the upper side of strip
1.How many days do you need to produce this machine?
This is our standard machine and we have some in stock,can be delivered right now after your deposit.
2.What does your factory do regarding quality control?
We pay much more importance to quality from the very beginning to the end of production,Every machine will be fully assembled and carefully tested before shipment.
3.What's your machine quality guarantee?
Quality guarantee time is one year,We choose world famous brand components to keep our machine in perfect working condition.
4.Are you able to give installation and commissioning overseas?How long will it takes?
Yes,we supply overseas service, but customers needs to pay for the engineers fight tickets and hotel,food .Small machine usually takes about 20days.
This is our standard machine and we have some in stock,can be delivered right now after your deposit.
2.What does your factory do regarding quality control?
We pay much more importance to quality from the very beginning to the end of production,Every machine will be fully assembled and carefully tested before shipment.
3.What's your machine quality guarantee?
Quality guarantee time is one year,We choose world famous brand components to keep our machine in perfect working condition.
4.Are you able to give installation and commissioning overseas?How long will it takes?
Yes,we supply overseas service, but customers needs to pay for the engineers fight tickets and hotel,food .Small machine usually takes about 20days.
