Brushless permanent magnet sychrounous motor cooling tower exhaust fan poultry farm axial fan
- Category: Motors >>>
- Supplier: Suzhou Dowell Ventilation Technology Co. Ltd
Share on (10000009607139):
Product Overview
Description
Product Overview
EC motor for axial fan in logic control
EC motor can be external signals input controlled by temperature sensor, dust sensor or humidity sensor. it can reach the variable speed control , then to save energy or reduce power consumption. Definately, it will be good for the motor life span and noise level control
FEATURES AT A GLANCE

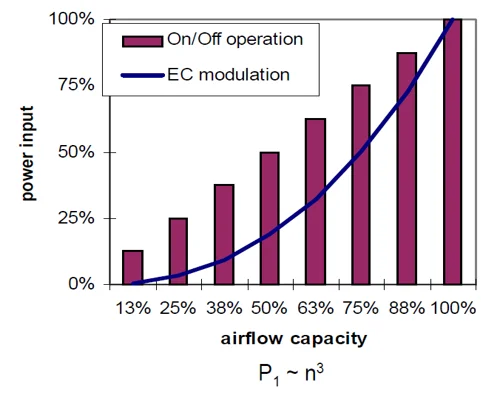

* Why efficiency difference is 8% between EC motor and AC motor but comprehensive system energy saving is 30% above.
* AC motor- On/Off operation to control the air flow capacity.
* EC motor- Control speed to control the air flow capacity.
* EC motor- Control speed to control the air flow capacity.
3D view
Operation curve

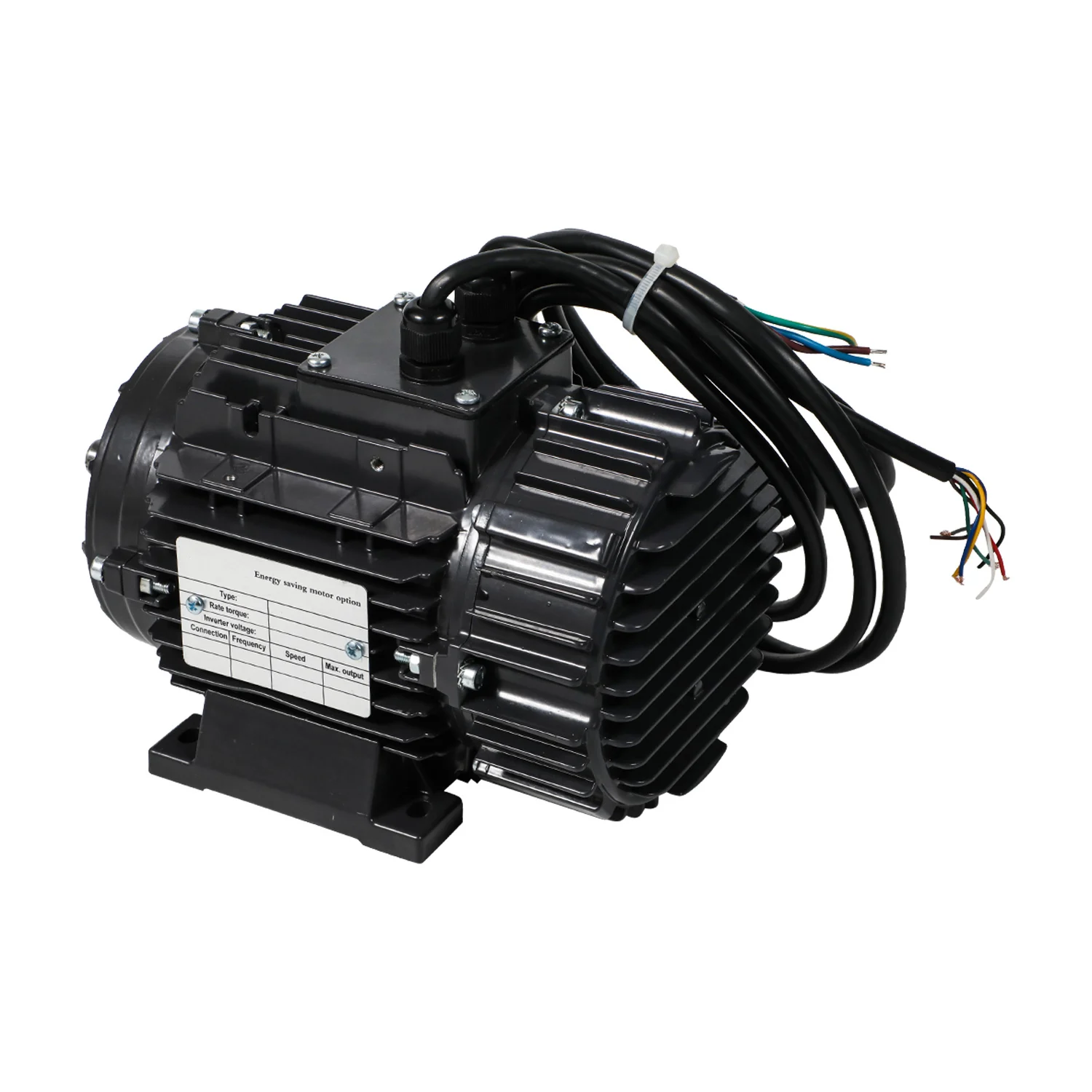

EC motor with cable
PRODUCT SPECIFICATIONS

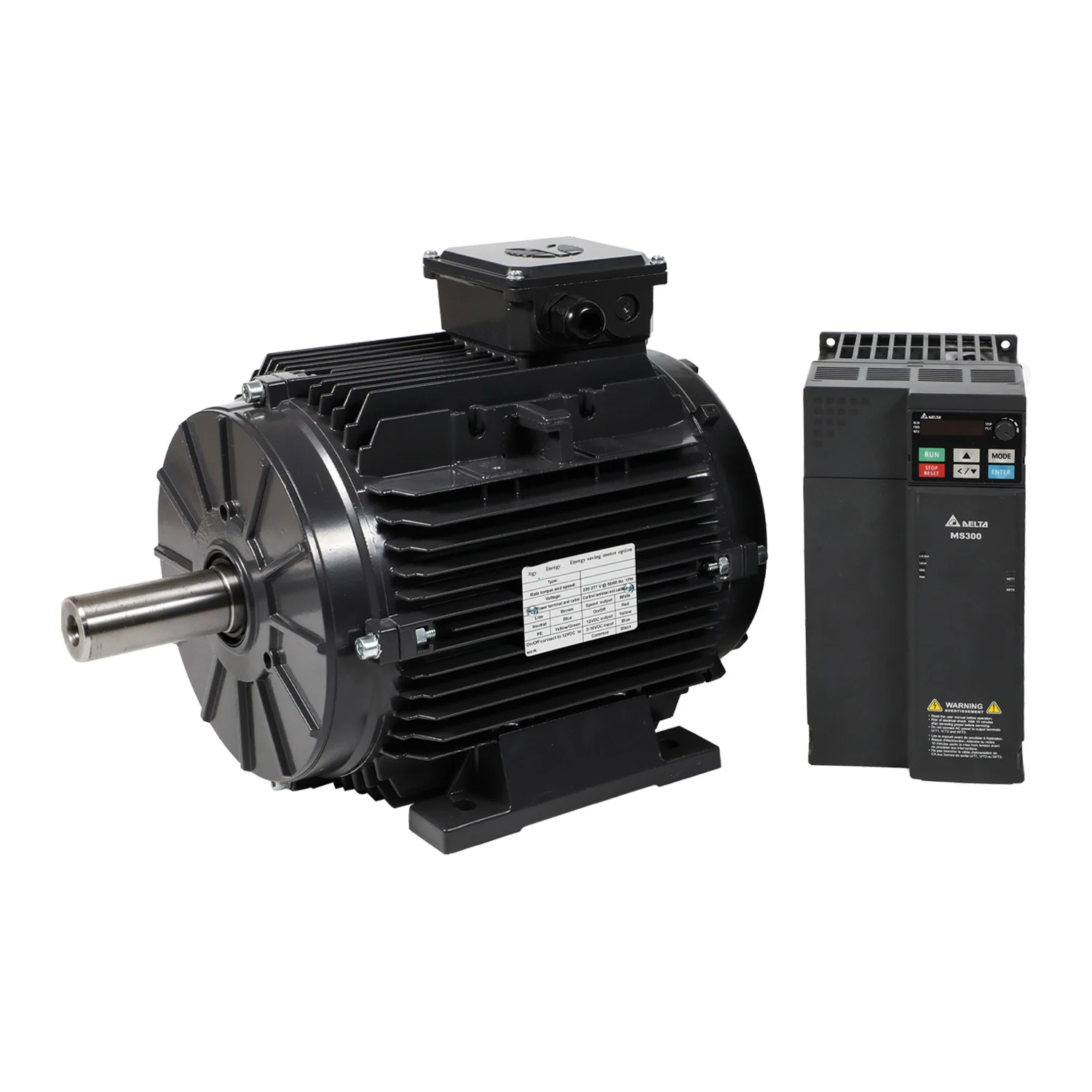

EC motor also can be operated with commercial inverter. Pls follow the below motor parameters for VSD | Item | Data | ||||||
Items | Y | Delta | Unit | Note | ||||
VSD input voltage | 360-440 | 360-440 | V | |||||
Max. speed | 1800 | 3600 | rpm | |||||
Max frequency | 150 | 300 | Hz | |||||
VSD output voltage | 360 | 360 | V | |||||
Rated current | 2.65 | 4.8 | A | |||||
Resistance | 1.45 | 0.49 | Ohm | |||||
Ld | 9.5 | 3.1 | mH | Phase | ||||
Lq | 9.5 | 3.1 | mH | Phase | ||||
Back EMF value | 167 | 90 | Vrms per 1000rpm | |||||
PRODUCT CONFIGURATION
B14 flange with inverter built-in
EC motor with top inverter

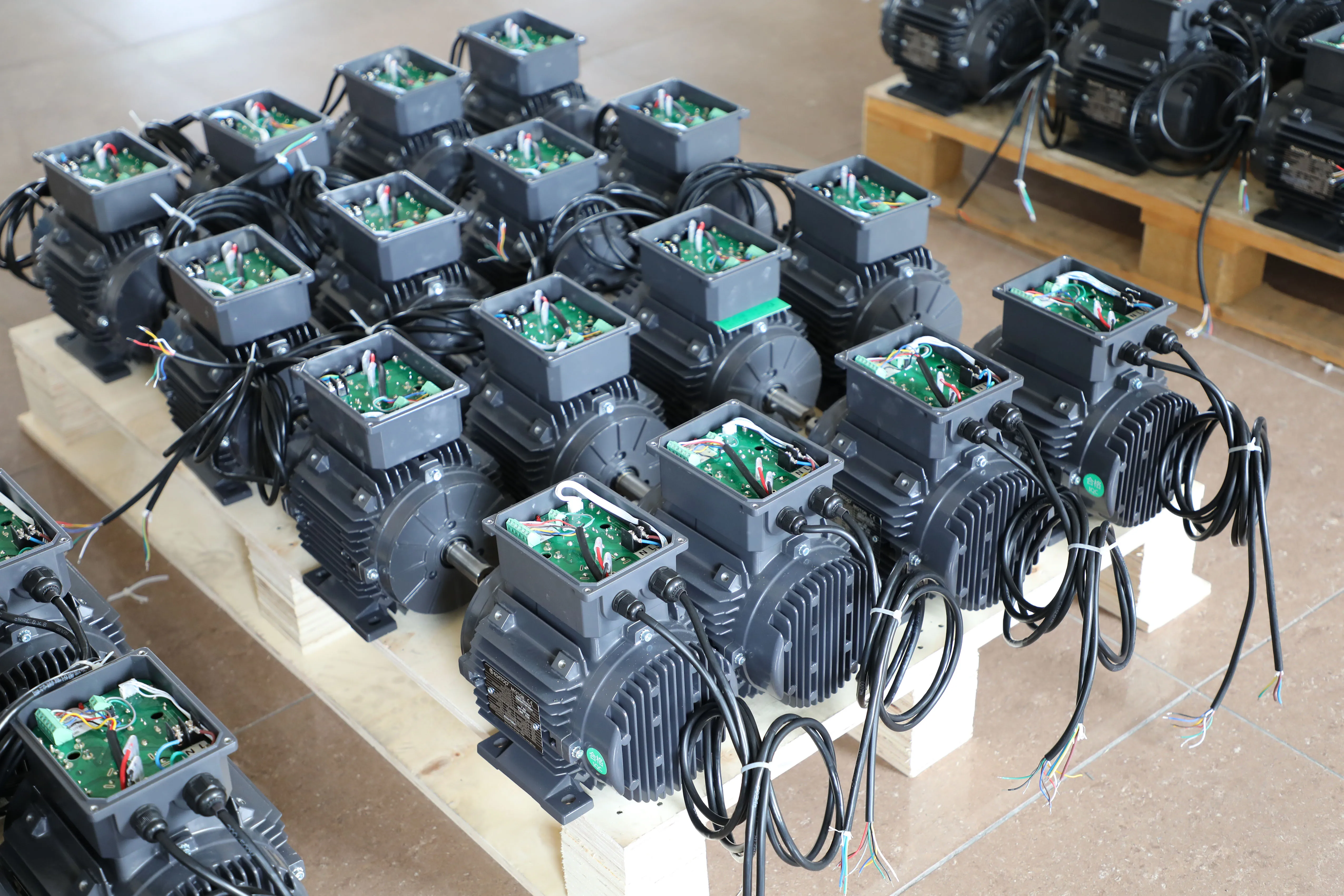

EC motor family
SALES AND SERVICE NETWORK
Successful Project
Livestock circulation fan
Power grid axial fan
EC motor for air conditioner
