Полимер PBT для оптоволоконного кабеля
Полимер PBT для оптоволоконного кабеля
Полимер PBT для оптоволоконного кабеля
Полимер PBT для оптоволоконного кабеля
Полимер PBT для оптоволоконного кабеля

Полимер PBT для оптоволоконного кабеля

Share on (10000009608250):


Price:

Quantity:


Product Overview

Description



Product Description




Specification


item
value
Place of Origin
China
Jiangsu
Brand Name
JinSeng
Model Number
PBT-280
Product name
PBT Resin For Optical Fiber Cable
Application

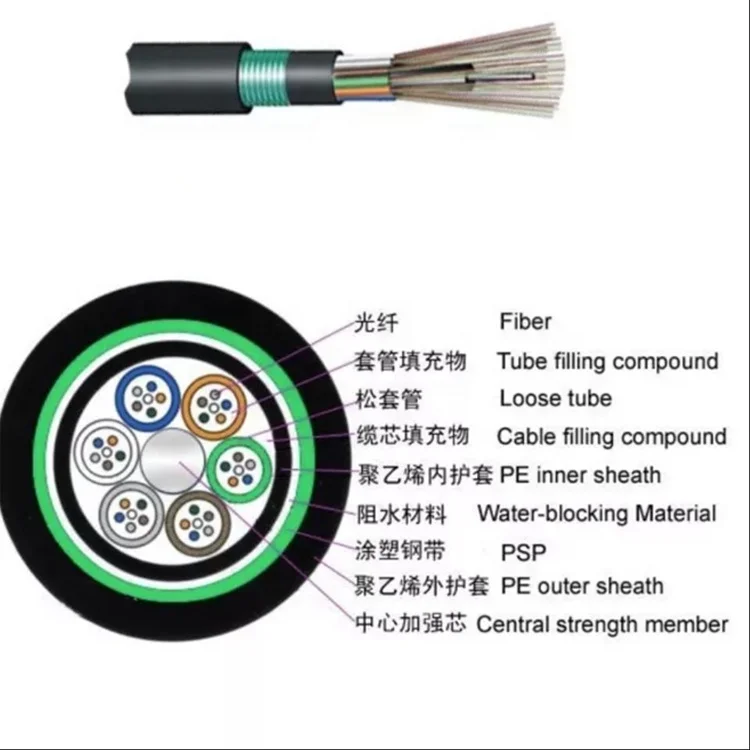

secondary coating production of the optical fiber
Color
White
Shape

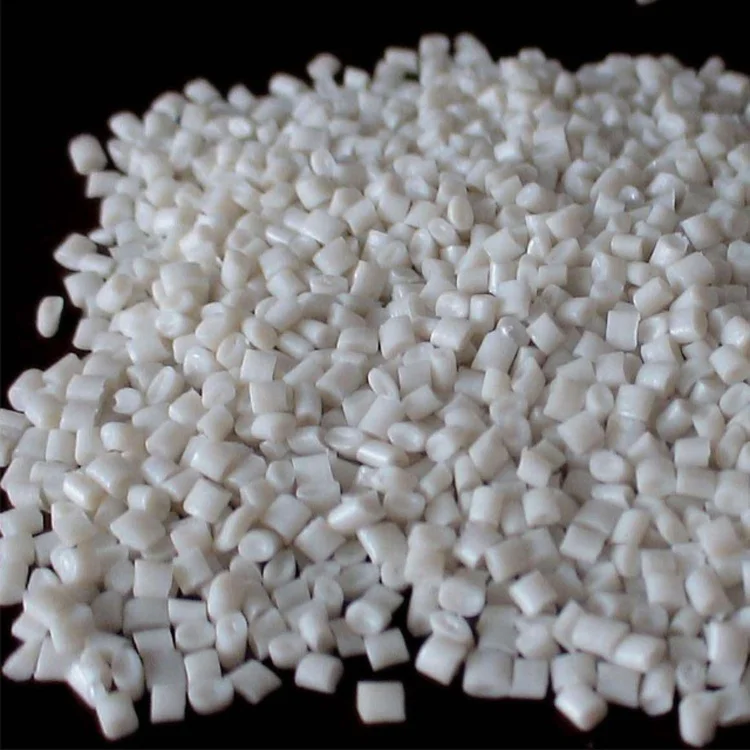

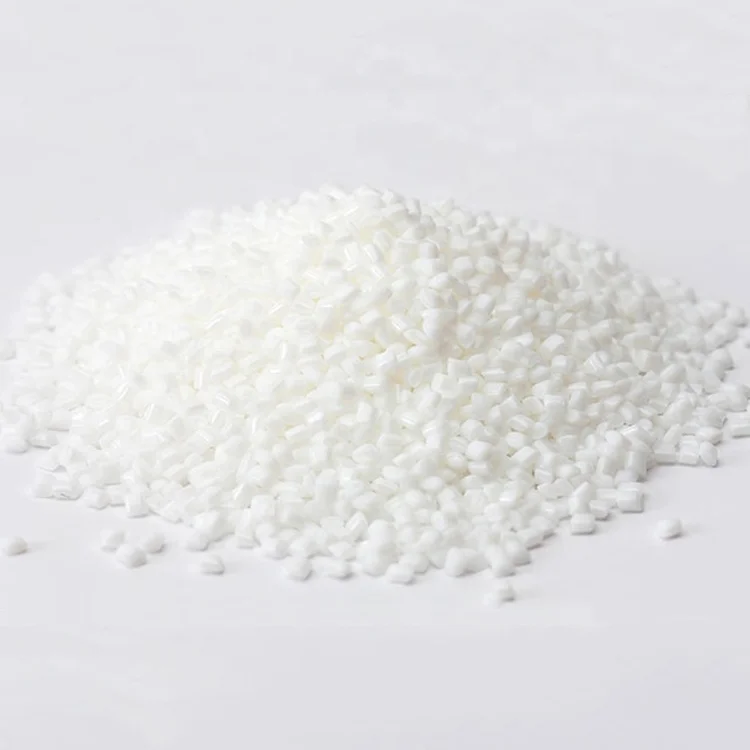

Particle
Type
Virgin


Test Standard (s): GB/T20186.1-2006    YD/T1118.1-2001 ISO
Serial Number
Test Items
Unit
Standard Requirements
Test Results
Test Methods
1
Density
g/cm3
1.25~1.35
1.30~1.33
ISO 1183
GB/T1033
2
Melt flow rate(250℃, 2160g)
g/10min
7.0~15.0
10~13
ISO 1133
GB/T3682
3
Water absorption
%
≤0.5
0.1~0.3
Similar to ISO 62
GB/T1034
4
Tensile strength at yield
MPa
≥50
58~61
ISO 527-1-2
GB/T1040.1
5
Elongation at yield
%
5.0~10
6.0~8.0
ISO 527-1-2
GB/T1040.1
6
Elongation at break
%
≥100
100~150
ISO 527-1-2
GB/T1040.1
7
Tensile Modulus
MPa
≥2100
2400~2600
ISO 527-1-2
GB/T1040.1
5
Flexural Modulus
MPa
≥2200
2400~2600
ISO 178
GB/T9341
6
3.5% Flexural Strength
MPa
≥60
70~75
ISO 178
GB/T9341
6
Melting Temperature
℃
210~230
220~225
ISO 11357-1/-3
DTA Method
7
Shore Hardness (D )
/
≥70
78~80
ISO 7619
GB/T2411
8
Izod impact strength(notched)23℃
KJ/m2
≥5.0
5.0~7.0
ISO 179/1eA
GB/T1843

Izod impact strength(notched)-40℃
KJ/m2
≥4.0
4.0~6.0
ISO 179/1eA
GB/T1843
9
Coefficient of Linear Expansion (23~80℃)
10-4K-1
≤1.5
1.15~1.25
ISO 11359-1/-2
GB/T1036
10
Moisture content
％
≤0.1
0.01~0.03
ISO 15512
GB/20186.1
11
Heat Deflection Temp 1.8 MPa 0.45 MPa
℃
≥55
≥170
58~62
173~180
ISO 75-1:2003
GB/T1634.2
12
Compatibility of material with filling compound-strength method
Tensile Strength at Yield
Mpa
≥50
58~61
ISO 527-1-2
GB/T1040.1
Elongation at Break
％
≥100
100~150
ISO 527-2
GB/T1040.1
13
Volume resistivity
Ω·cm
≥1×1015
2.0~6.0 ×1016
IEC60093
GB/T1410
Note:
1. Please dry the product before using; Suggest to control to 100℃ as predrying TEMP and 120℃ as using drying one. Drying time should be at least two hours, which should be increased for the material with broken or opened package.
2. Please pay attention to the technological parameter adjustment for the control of fiber excess length, according to the specification and dimension requirements of the loose tube.


Packing & Delivery

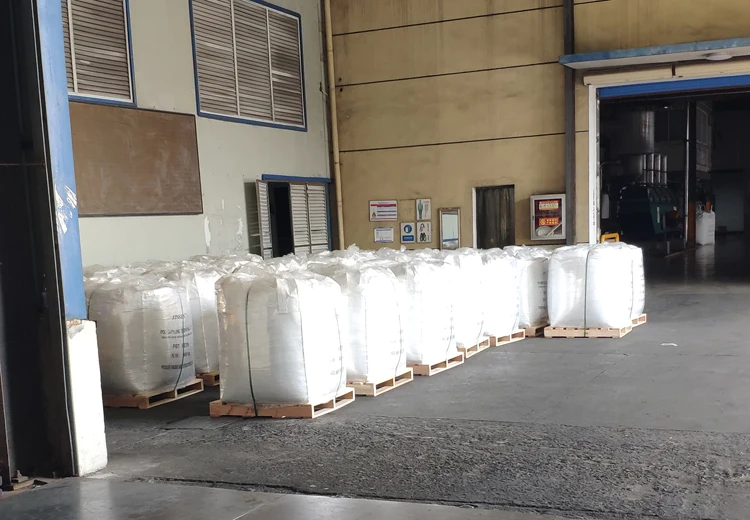

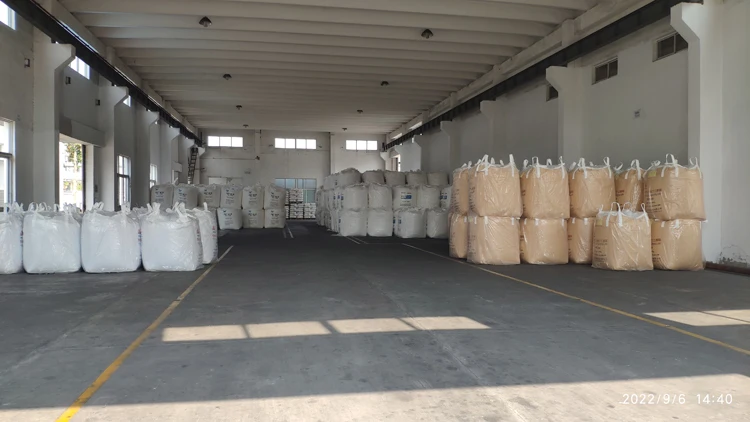

Bag: 1Ton/Bag


FAQ


1. who are we?
We are based in Jiangsu, China, sell to Domestic Market(50.00%),Southeast Asia(20.00%),Africa(10.00%),South Asia(10.00%),Eastern Asia(10.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. why should you buy from us not from other suppliers?
Own factory, with over 20 years production and 10 years foreign trade experience.
Cooperate closely with other manufacturers, with related resource of products.

4. what services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery；
Accepted Payment Currency: USD, CNY;
Accepted Payment Type: T/T, L/C, Money Gram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese
