Product Overview
Description
if you are interested in the camera model as below ,please click the picture to learn more about it.

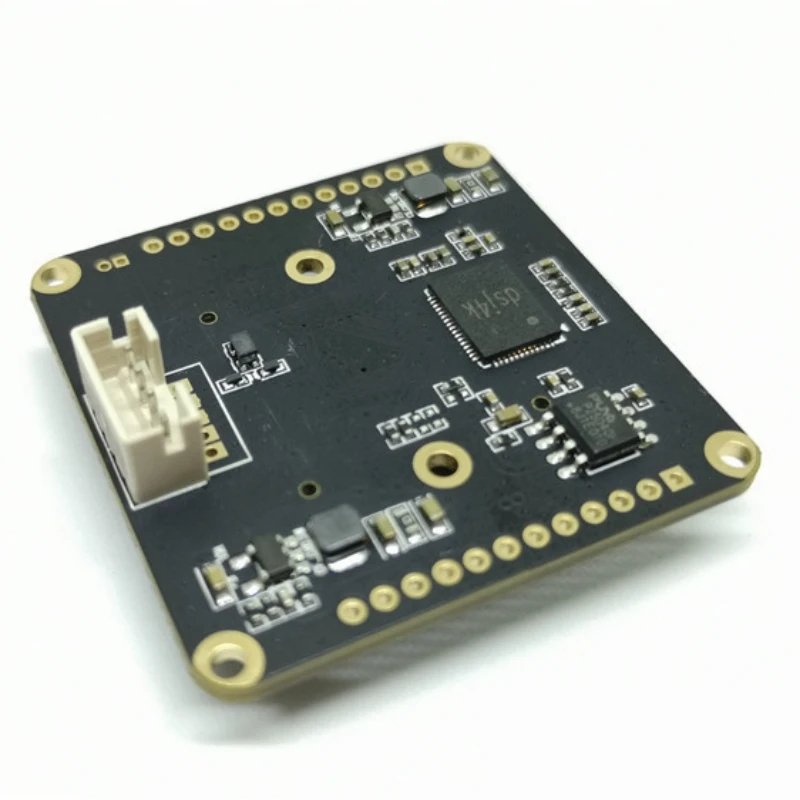

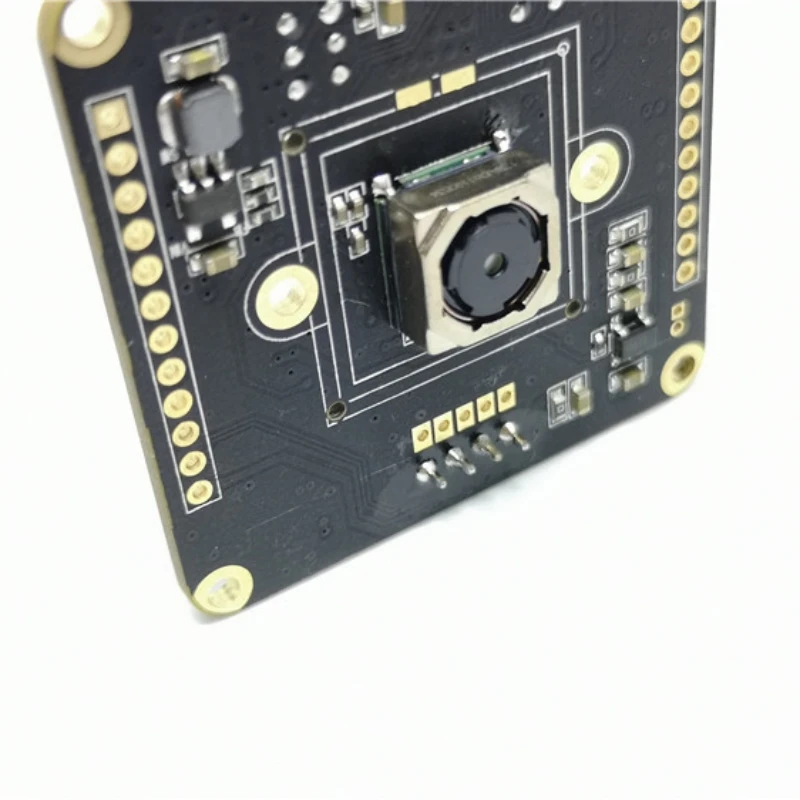

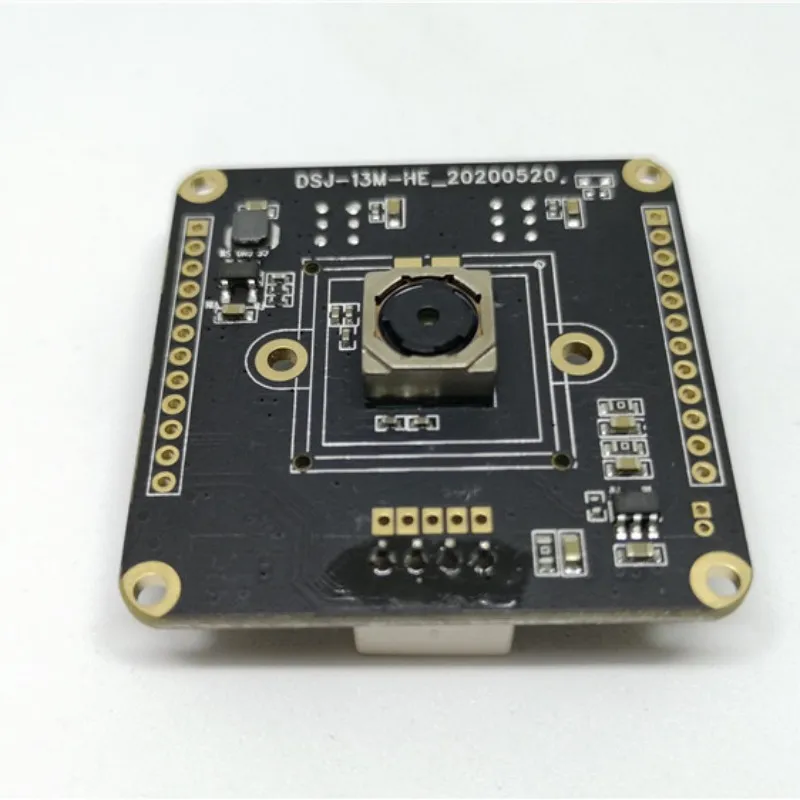

Model | DSJ-13M | ||||||
Sensor | IMX214 | ||||||
Lens Size | 1/3.06inch | ||||||
Most significant pixel | 3840(H) X 2880(V) 11 million pixels | ||||||
Output image format | MJPEG | ||||||
3840X2880 @ 25fps / 2592X1944@ 30fps | |||||||
1920x1080 @ 30fps / 1600X1200@ 30fps | |||||||
1280X720 @ 30fps / 960X540@ 30fps | |||||||
800X600 @ 30fps / 640X480@ 30fps | |||||||
The interface type | USB2.0 High Speed | ||||||
Support displace protocol | USB Video Class（UVC） | ||||||
Support OTG protocol | USB2.0 OTG | ||||||
Brightness contrast color saturation tonal clarity | |||||||
Gain white balance backlight contrast exposure | |||||||
The lens parameters | According to customer needs | ||||||
Supplementary light supply interface | yes 4P-2.0 | ||||||
power supply mode | USB BUS POWER 4P-2.0mm | ||||||
Working voltage | DC5V | ||||||
Working temperature | -10～70℃ | ||||||
Storage temperature | -20～85℃ | ||||||
WinXP/Vista/Win7/Win8 | |||||||
Linux with UVC（above linux-2.6.26） | |||||||
MAC-OS X 10.4.8 or later | |||||||
Wince with UVC | |||||||
Android 4.0 or above with UVC | |||||||
Support Customaization
Pixel Optional : 0.3MP，1MP，2MP，5MP，8MP and 13MP
Wide-angle Optional: 68°，80°，90°，100°, 120°, 150°, 170° or other requirment
FPC Length:According to requirment
Wide-angle Optional: 68°，80°，90°，100°, 120°, 150°, 170° or other requirment
FPC Length:According to requirment
Support with lights and night vision
Support with Microphone
We professional produce 0.3 million,1.3 million,2 million,3 million,5 million,8 million,13 million,16 million pixel camera module.The main application areas:MP4,mobile phone,the board,visual doorbell,industrial imagage recognition system,fingerprint indentification system...we could do according to customers'specific requirment/Custom products are delivered fast,quality assurance,responable price now super-low supply:GC0308 camera,OV7670 camera,OV7725 camera,OV7740 camera,OV9712 camera,OV9650 camera,OV9655 camera,OV9660 camera,OV2710/2715 camera,OV2640 camera,OV2643 camera,OV3640 camera,AR0330 camera,OV5640 camera,OV5648 camera,OV8865 camera,OV13850 camera,IMX214 camera and so on.
About Us
Shenzhen Haoxin KeChuang Technology Co., LTD. is one R&D ,production and sales enterprise, founded in 2016 and headquartered in Shenzhen of China.
We focus on the field of cameras, CMOS camera module, USB camera,automatically zoom camera，wi-fi camera, SENSOR IC, and and other related electronic components,the products are widely used in face recognition, biometrics, biological detection, AI, machinevision, vehicles, drones, kiosks, image transmission, bar code scanning, infrared detection, intelligent household, securitymonitoring, camera motion, industrial and other fields.
At the same time, we have more than 10 years of experience in supporting electronic components, we can provide all kinds ofcomponents, Hall sensors, resistors, capacitors, integrated circuits, sensors, diodes, TVS tubes, etc. Provide BOM matching order service.
We regard our customers as friends and look forward to cooperating with you.
We focus on the field of cameras, CMOS camera module, USB camera,automatically zoom camera，wi-fi camera, SENSOR IC, and and other related electronic components,the products are widely used in face recognition, biometrics, biological detection, AI, machinevision, vehicles, drones, kiosks, image transmission, bar code scanning, infrared detection, intelligent household, securitymonitoring, camera motion, industrial and other fields.
At the same time, we have more than 10 years of experience in supporting electronic components, we can provide all kinds ofcomponents, Hall sensors, resistors, capacitors, integrated circuits, sensors, diodes, TVS tubes, etc. Provide BOM matching order service.
We regard our customers as friends and look forward to cooperating with you.
