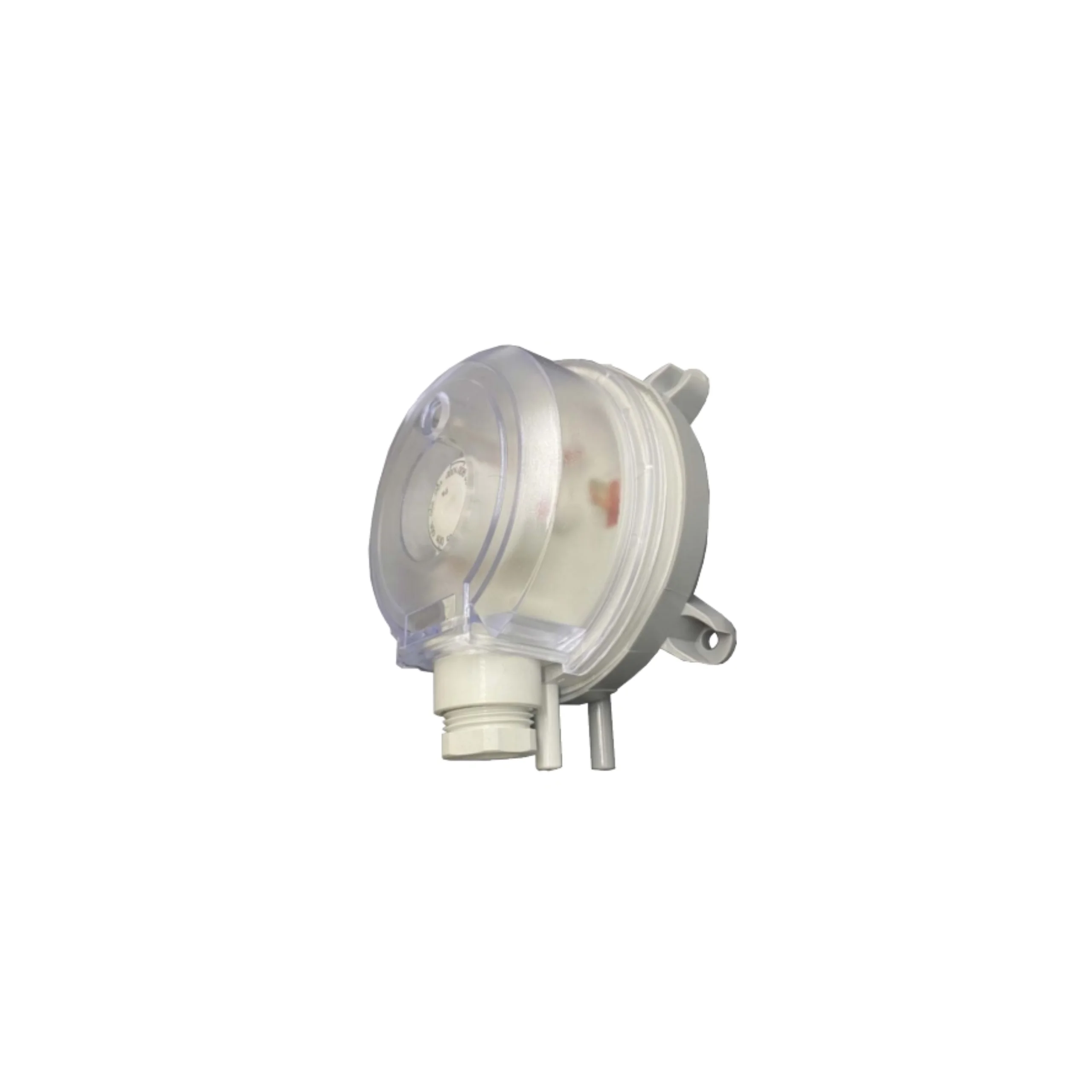

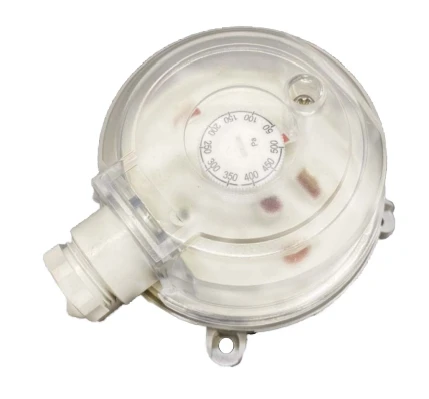

Best Selling Product Air Differential Pressure Switch

Model Number

PS001

Description

It is mainly used for the measurement of pressure/differential pressure/negative pressure of various clean gases. Silicone
diaphragm is used as the measuring element.
It can be easily adjusted to the required working range.

Specifications

Accuracy: ±2% F.S.
Pressure range: 20~1000Pa
Pressure resistance: 7500Pa
Blind zone: <500Pa±10Pa; >500Pa±20Pa

Features

1. Low price, economical and applicable.
2. Reproducibility within 2%
3. Easy installation, standard installation accessories are provided.
4. Visual switch point design
5. Set the scale data display function
6. Standard equipped with pressure guiding pitot tube
7. SPDT gas contact alarm output
8. Silicone pressure sensitive diaphragm is very responsive

Parameters

-
