Product Overview

Description





Products Description

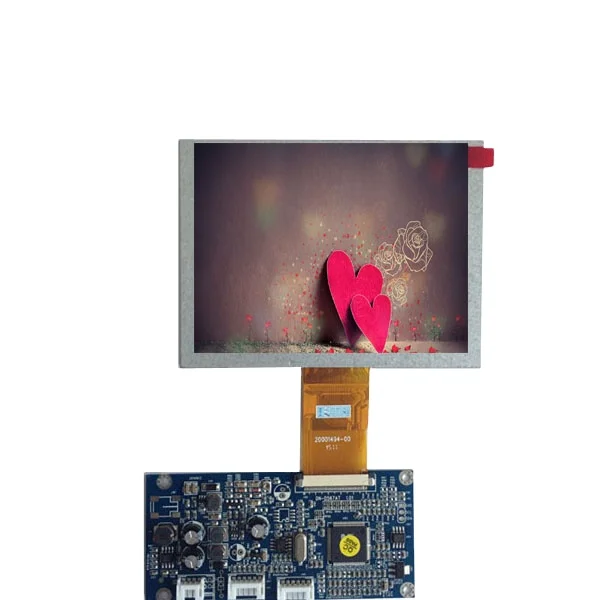

DN-D567ATVER :1.01 colorful digits LCD driver board support CVBS and S-Video and PC-RGB( VGA) Signal input and control OSD Menuvia keyboard ,mainly applied to this field ( visual phone ,security monitor , medical equipment , autombile monitor ,POS and other electronic monitor etc )


Product Parameter
Item NO.
DN-D567AT
Resolution
640*480-800*600
Size
5inch ~9inch
AD Support Signal
CVBS/ PC-RGB \\ 50PIN
AD Board Size
80.0(W)*67.0(H)*9.2(D)
Working Temp
0℃ ~60 ℃
Storage Temp:
-20℃ ~70 ℃




Related driver board information


Item No.
Description
DN-D35TM
1.Applied to 3.5&4 inch LCD (Resolution 320X240)
2.1 channel CVBS Signal input
3.use knob or key-board control
4.interface :54pin
DN-D43AT
1.Applied to 3.5&4&5 inch LCD( Resolution 320X240~640x480
2.1 channel VGA and 2 channels CVBS signal input
3.use knob or key-board control
4.interface :54pin or 40pin
DN-D567AT
1.Applied to 5 ~9 inch LCD( Resolution 640x480~800x600 )
2.1 channel VGA and 2 channels CVBS signal input
3.use knob or key-board control
4.interface :50pin
DN-D102AT
1.Applied to 7~15 inch LCD ( Resolution 640x480~1366x768)
2.1 channel VGA and 2 channels CVBS signal input,Audio input,
Audio output
3.use knob or key-board control
4.interface :( Double 30 pin or 50pin or LVDS )
DN-HD156AU
1.Applied to 5~21.5 inch LCD ( Resolution 640x480~1920x1080)
2.1 channelHDMI and 1 channel VGA signal input,Audio input,
Audio output
3.use knob or key-board control
4.interface :( 40 pin or LVDS )
DN-HD080AT
1.Applied to 5~21.5 inch LCD ( Resolution 640x480~1920x1080)
2.1 channelHDMI and 1 channel VGA and 2 channels CVBS signal input,
Audio input,Audio output
3.use knob or key-board control
4.interface :( 40 pin or 50 pin or LVDS )


More Product






Our Advantages




About US






Exhibition






Certifications




Production Process






FAQ




Q1:Where to get the datasheet before orafter purchase?
Please send amail to"dn-micro@Hotmail",we will reply you in 24hours

Q2:How do you add the extra function,does it need for charge?
just confirm the funsion with seller before your place an order,simple function is free

Q3:Payment terms of customized service and mass order?
Customized Service:
According tp product requirement of charge,100% T/T in advance,we will provide 2~3pcs free sample.
Mass Order: 30% T/T as deposit in advance,the balance will be paid before shipping,we can't accept paypal.
