GYC LASER 100W Fiber Laser Cleaning Machine Laser Rust Removal Trolley Type Handheld Machine

Product Overview

Description

Brief Information:

• Brand: GYC laser


• Model: LC100


• Delivery Cable Length:5m


• Handheld laser head:0.62kg


• Net Weight: 28kg


• Package Dimensions: 75*58*50 CM


• Package Weight: 46kg


• Fast Global Shipping: DHL / FEDEX

Features

• Portable and lightweight, flexible and adjustable parameters, wireless control, etc., which can efficiently remove rust, stains, and oil on the surface of the workpiece. , Plating, etc., can be applied to mechanical processing, cultural relics restoration, mold cleaning, food processing, electronic circuits and other industries. With the characteristics of precise positioning, it can meet the processing of a variety of modeling workpieces and achieve efficient cleaning.


• 100W JPT MOPA M7: The laser adopts the MOPA (Master Oscillator Power Amplifier) structure. The main oscillation uses a semiconductor laser as the seed source. Amplification is realized by a traveling wave fiber amplifier. This MOPA fiber laser has the characteristics of independently adjustable pulse width and frequency, and can still maintain a high and stable peak power output under the condition of changing the pulse width and frequency to adapt to a wider range of cleaning scenarios.

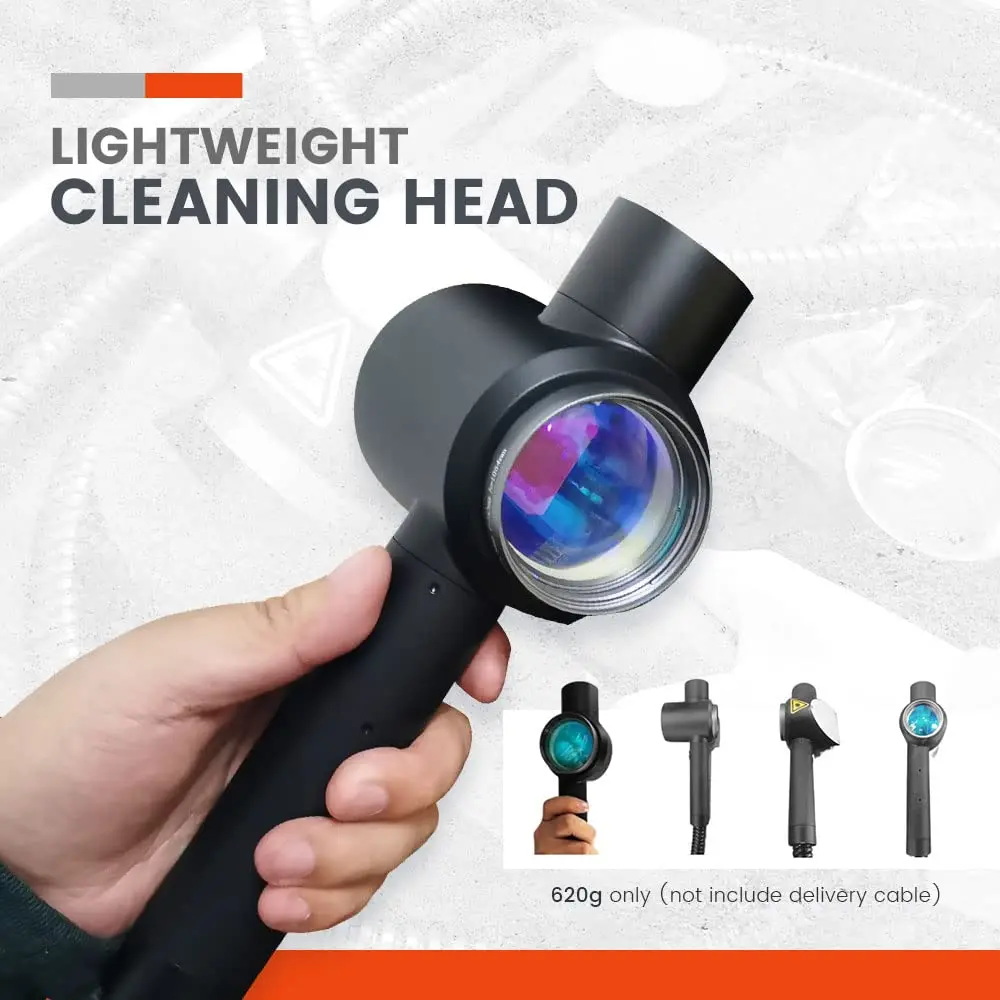

• The cleaning head is extremely lightweight, 620g only (not including delivery cable), and can be operated by hand for a long time.


• Patented red light assisted focus technology, can adjust the focus position according to different focus lenses; Wireless control, can realize parameter setting and emission control remotely, and update parameters at any time

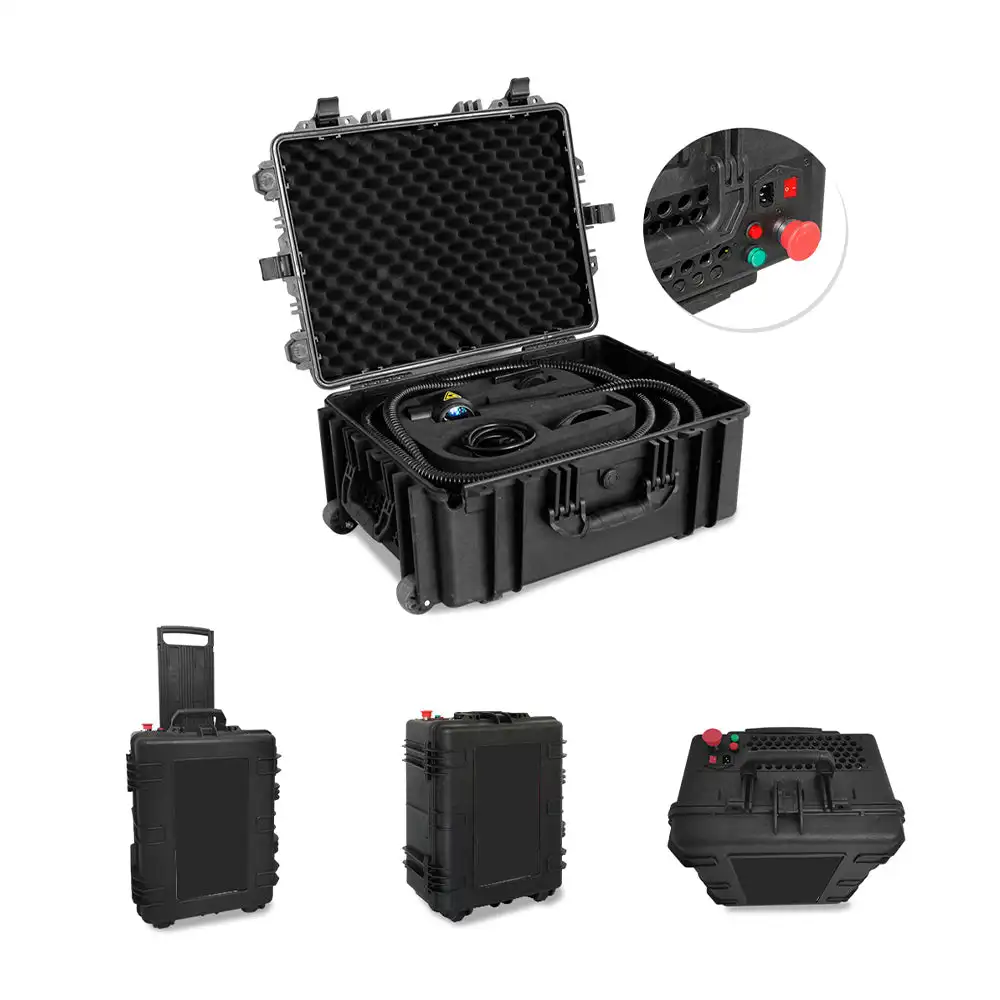

• Trolley-type chassis design, can be carried on high-speed train and flight easily with 28kg full weight. Super integrated injection molding chassis, cushioning design, stable structure, Wearable, shockproof and drop resistance. 2 Years Warranty for whole machine and 1 Year Warranty for Laser Source.

Advantage of the LC-100 laser cleaning machine

1. The laser cleaning machine is a portable integrated design, a super integrated injection molding chassis, a buffer design, compression, drop and wear resistance. Trolley-type chassis can be carried on high-speed train and flight.


2. It can work offline and can be used immediately after power on


3. Collimated laser beam output, beam size customizable (default 4mm).


4. The cleaning head is extremely lightweight, 620g only (not include delivery cable), and can be operated by hand for a long time

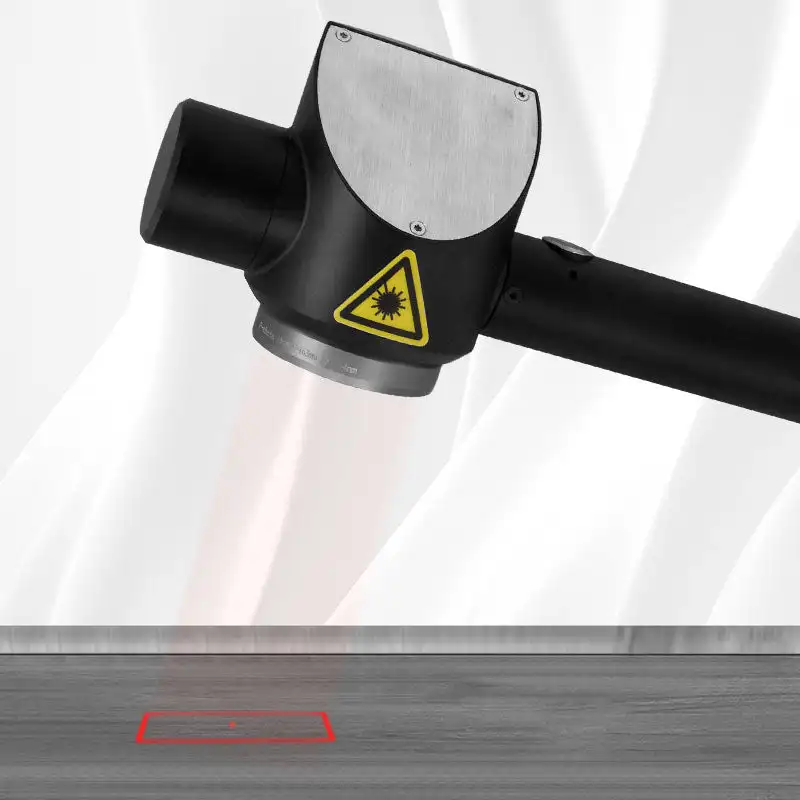

5. Patented red light assisted focus technology, can adjust the focus position according to different focus lenses


6. Wireless control, can realize parameter setting and emission control remotely, and update parameters at any time


7. Trolley-type chassis design, can be carried on high-speed train and flight easily with 28kg full weight.


8. Super integrated injection molding chassis, cushioning design, stable structure, Wearable, shockproof and drop resistance.


9. Pulse laser cleaning machine, in addition to conventional surface cleaning, the machine has obvious effect on high temperature resistant coating and metal coating.

LC-100 Specification



100W JPT MOPA M7 Laser Specification



Application Material

• Portable and lightweight, flexible and adjustable parameters, wireless control, etc., which can efficiently remove rust, stains, and oil on the surface of the workpiece, Plating, etc;


• Can be applied to mechanical processing, cultural relics restoration, mold cleaning, food processing, electronic circuits and other industries;


• With the characteristics of precise positioning, it can meet the processing of a variety of modeling workpieces and achieve efficient cleaning.

Application Area

• Aviation, Electronic Machinery, Rubber Mould, Equipment Manufacturing, Auto Parts, Food Processing...

Packing List

• Fiber Laser


• Laser Safety Goggle


• MicroController(Blooth)


• F-theta lens f=163mm


• F-theta lens f=254mm


• Power cord


• USB Cable


• foot swich
