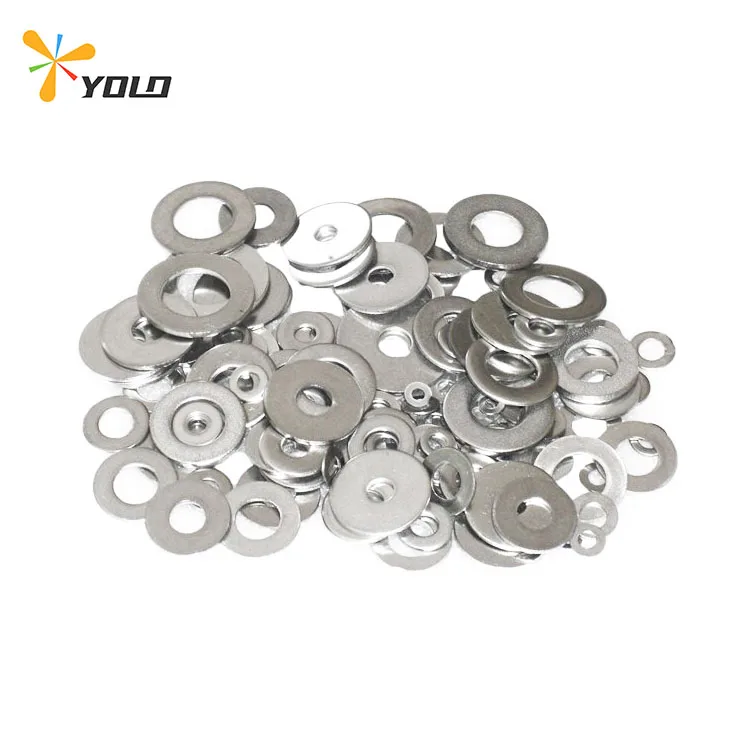

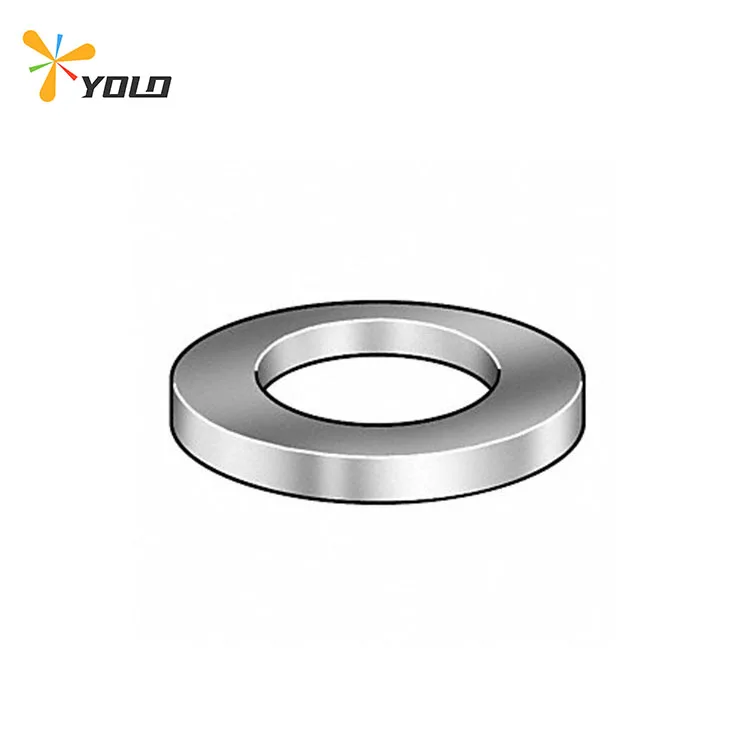

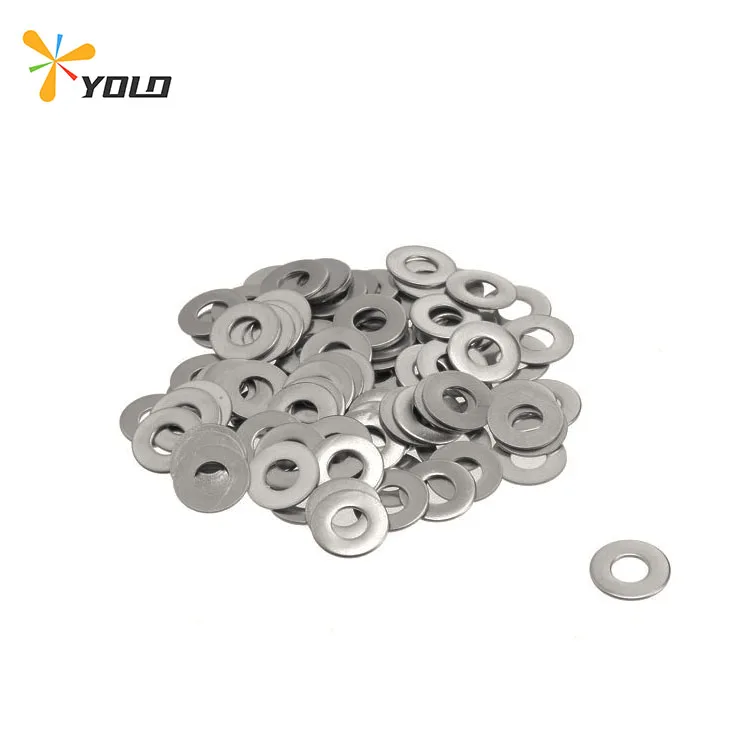

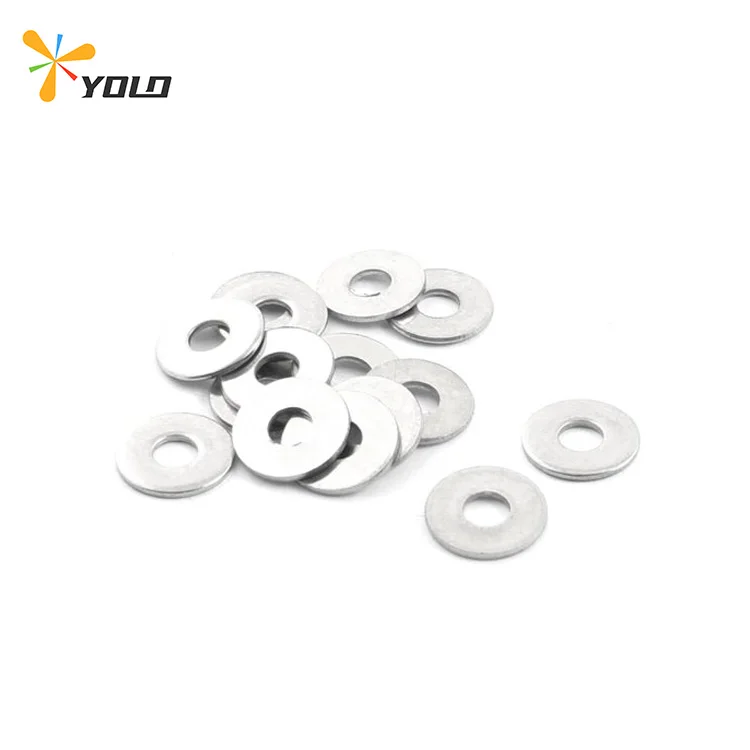

Molybdenum Scrap Washer for Screw Nuts Factory Price Molybdenum Scrap Washer ISO 9001 Standard Molybdenum Scrap Washer Diameter
- Category: >>>
- Supplier: Yolo Materials Industry Co. Ltd.
Share on (10000009719047):
Product Overview
Description
PRODUCT SPECIFICATIONS
Lead Molybdenum Washers Manufacturer from China
Product Name | Molybdenum Scrap Making Gaskets |
Materials | Purity above 99.95% Molybdenum |
Size | 1.0" OD x 13/32" x 0.060" Thick |
Type | Fasteners, fit bolts and nuts |
MOQ | 100pcs |
Price | Factory Direct Price |
Standard | ISO 9001 and AS9100 |
Temperature | 2620 °C |
Our washers come in a variety of sizes. Yolo follows ISO 9001, AS9100 and ITAR compliant.

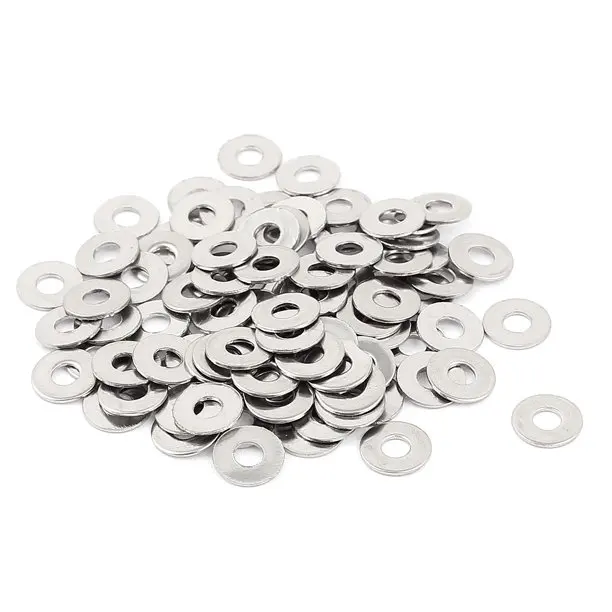

Inch Size Molybdenum Washers
Item # | Item Name | Outer Diameter | Inner Diameter | Thickness | Material Purity | Price |
YL48-1010 | Moly. Washer Flat Std. for #0 screws | 0.187 | 0.063 | 0.015 | Molybdenum 99.95% Pure | |
YL48-1020 | Moly. Washer Flat Std. for # 1 screw | 0.187 | 0.089 | 0.015 | Molybdenum 99.95% Pure | |
YL48-1030 | Moly. Washer Flat Std. for # 2 screw | 0.250 | 0.093 | 0.020 | Molybdenum 99.95% Pure | |
YL48-1040 | Moly. Washer Flat Thin for # 2 screw | 0.250 | 0.093 | 0.010 | Molybdenum 99.95% Pure | |
YL48-1050 | Moly. Washer Flat Std. for # 4 screw | 0.312 | 0.125 | 0.020 | Molybdenum 99.95% Pure | |
YL48-1060 | Moly. Washer Flat Thin for # 4 Screw | 0.312 | 0.125 | 0.010 | Molybdenum 99.95% Pure | |
YL48-1070 | Moly. Washer Flat Std. for # 5 screw | 0.250 | 0.128 | 0.030 | Molybdenum 99.95% Pure | |
YL48-1080 | Moly. Washer Flat Thin for # 5 screw | 0.250 | 0.128 | 0.015 | Molybdenum 99.95% Pure | |
YL48-1090 | Moly. Washer Flat Std. for # 5 screw | 0.312 | 0.128 | 0.030 | Molybdenum 99.95% Pure | |
YL48-1100 | Moly. Washer Flat Thin for # 5 screw | 0.312 | 0.128 | 0.015 | Molybdenum 99.95% Pure |
Can't find the exact size or shape you need? Please email us or click the " Get a quote" button! We welcome custom product and fabrication projects.

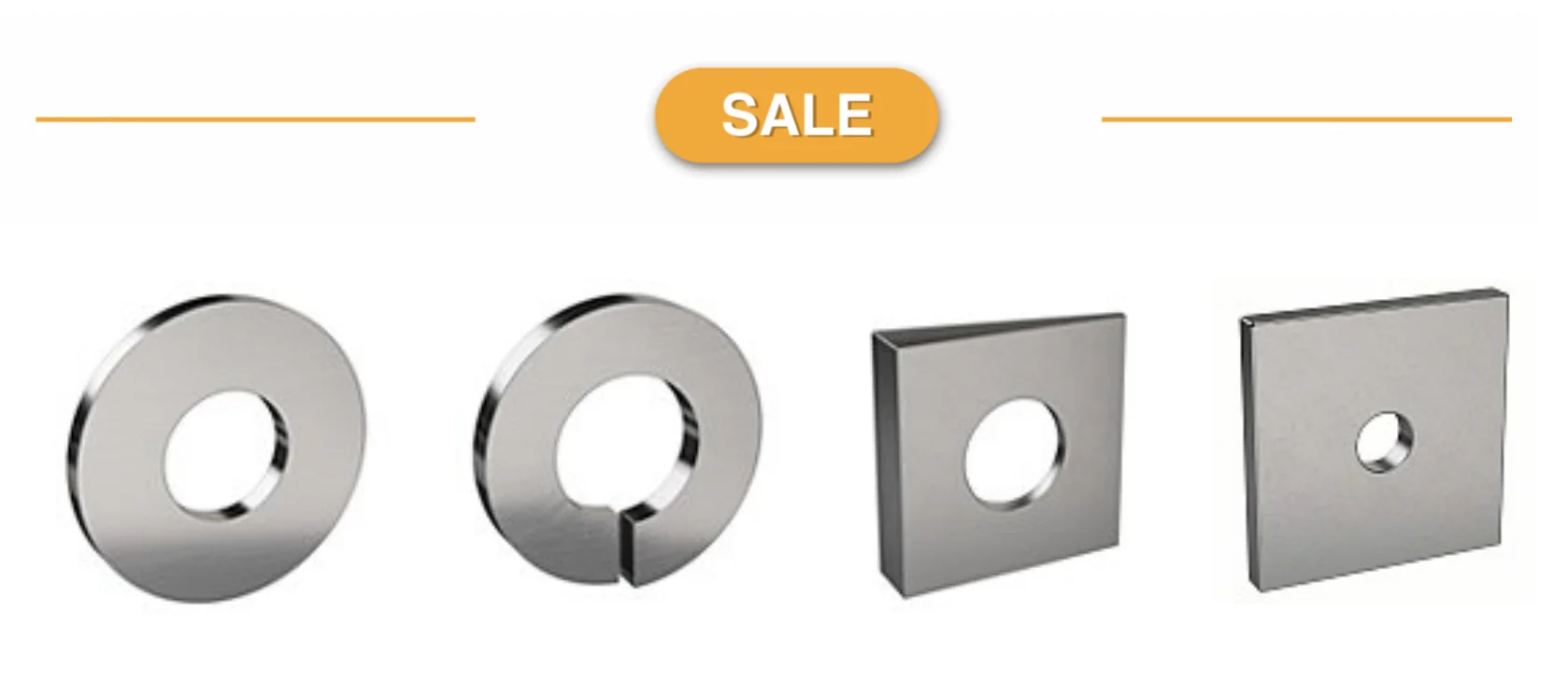

Washer Type | Description | Purpose |

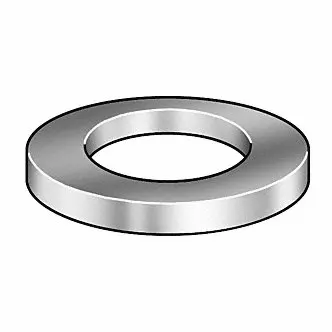

Flat | Flat washers are the most common, with two flat sides. They are circular and come in a variety of sizes and thicknesses. | Flat washers are general purpose, used to distribute force, protect the item to which it's attached and to correct the size of an opening. |
Lock | Lock washers are typically made of some type of metal and come in either a split, coiled or star shape. | Lock washers are used to prevent the bolt or fastener from loosening, effectively "locking" the bolt in place. |
Conical | Also known as a Belleville or spring washers, conical washers are flat washers pressed into a conical shape. | Used in higher-friction applications to absorb vibration and shock, such as in cycling. They can act as a spring when stacked together in different configurations. |
We always have a strong belief in showing "Made in China" to the world! Let us show you something.
Benefits
.Excellent Strength & Stiffness at high temperatures.
. High purity and excellent creep resistance.
. Good machinability and easily fabricated.
. High dimensional stability and excellent corrosion resistance
. Low emissivity and vapor pressure.
. Good electrical conductivity and low thermal expansion
. Ductile and corrosion resistant.
. Excellent Thermal conductivity.
. High purity and excellent creep resistance.
. Good machinability and easily fabricated.
. High dimensional stability and excellent corrosion resistance
. Low emissivity and vapor pressure.
. Good electrical conductivity and low thermal expansion
. Ductile and corrosion resistant.
. Excellent Thermal conductivity.
Applications
. Hot Zones for high-temperature furnaces.
.Sputtering targets for coating solar cells & flat screens.
. Glass melting electrodes
. Heat shields
. Semiconductor base plates.
. Brazing fixtures & Boring bars
. Tools & Contacts
. Pigments and catalysts.
.Sputtering targets for coating solar cells & flat screens.
. Glass melting electrodes
. Heat shields
. Semiconductor base plates.
. Brazing fixtures & Boring bars
. Tools & Contacts
. Pigments and catalysts.

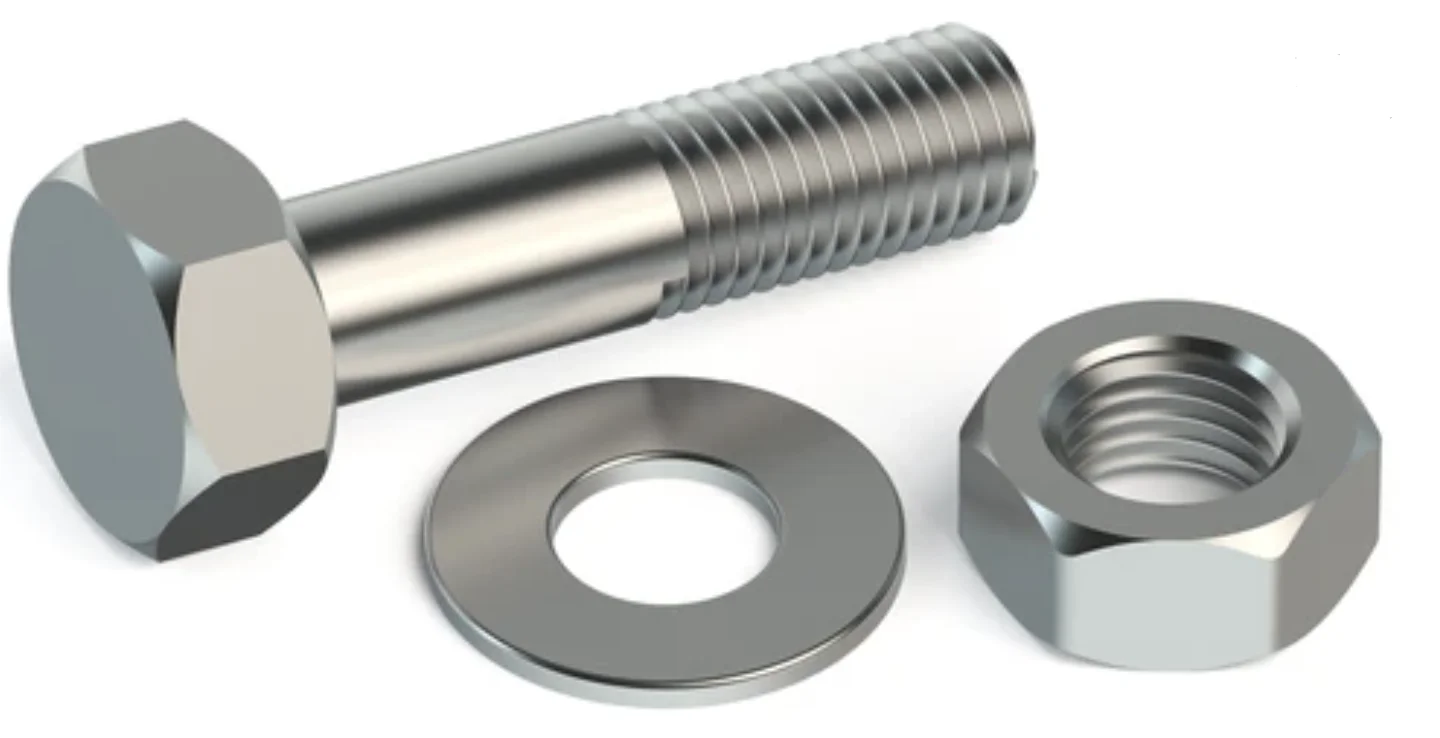

Molybdenum Refractory Fastener Sets Are Available
Inch size refractory molybdenum washers are stocked in both standard and thin thicknesses. We can also produce custom washers.We welcome custom product and fabrication projects. Additionally, Moly nuts are also available.
Raw Materials
manufacturers of tungsten powder raw materials . The overall particle uniformity of APT raw materials we use is better than that
of other companies in the market, which can guarantee the overall quality.
Yolo: Uniform particle size
