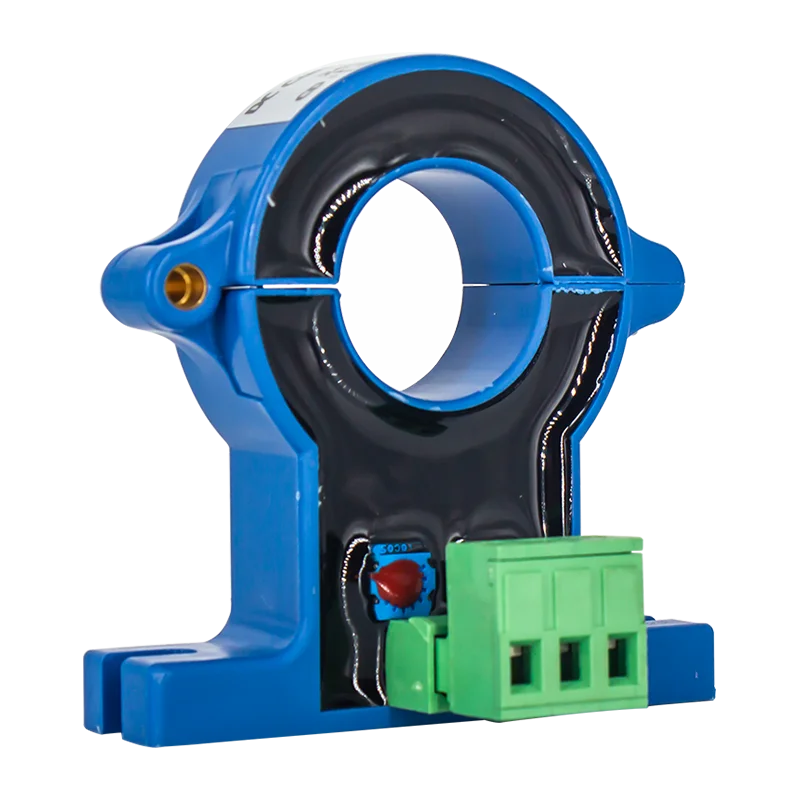

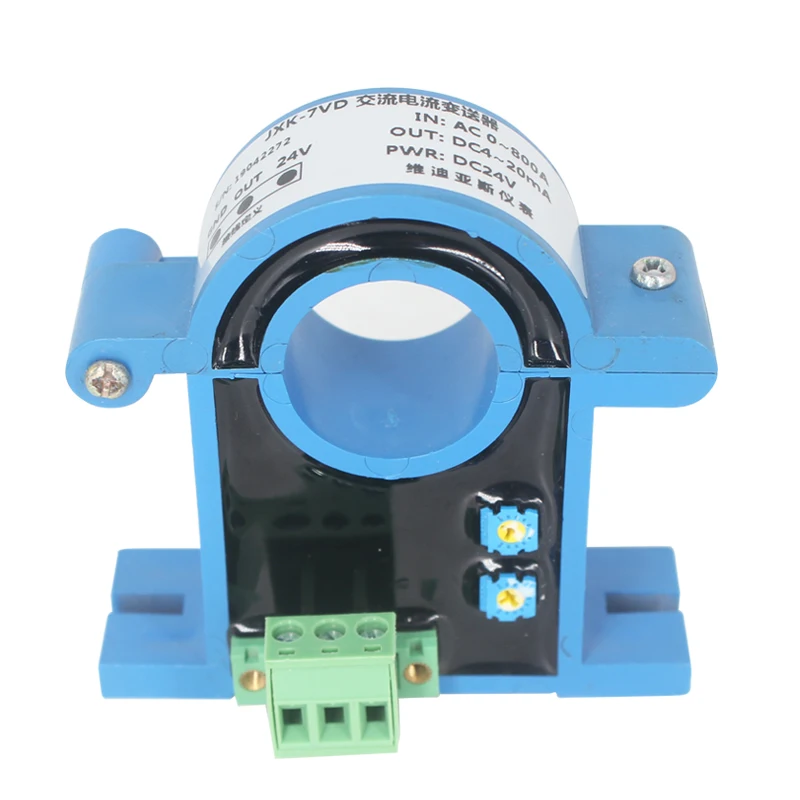

Factory direct sale 4 20ma dc hall current transmitter industrial current sensor 0 500A current sensor 0 10v

Product Overview

Description

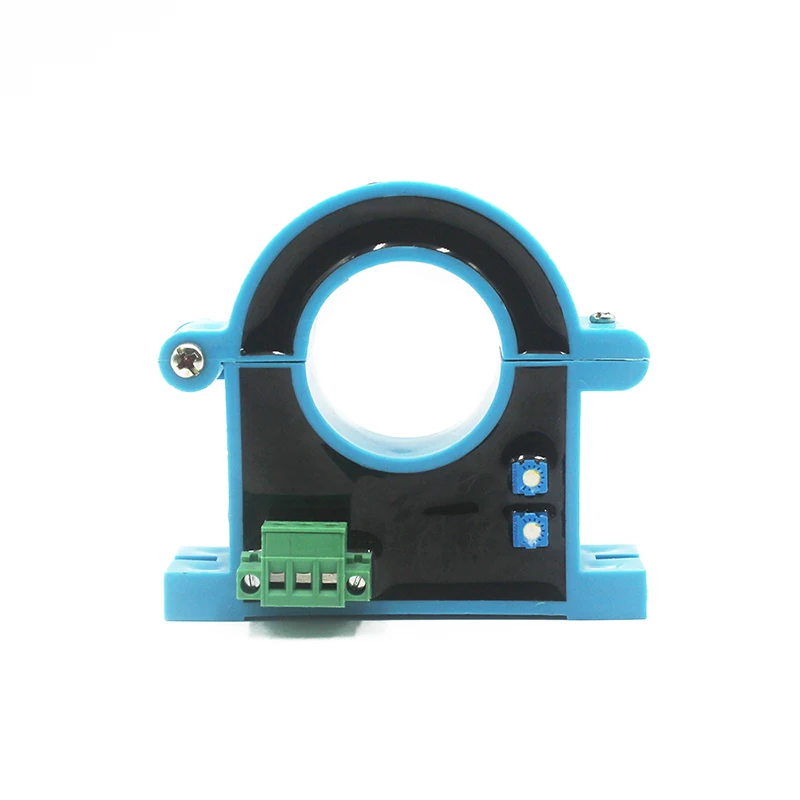

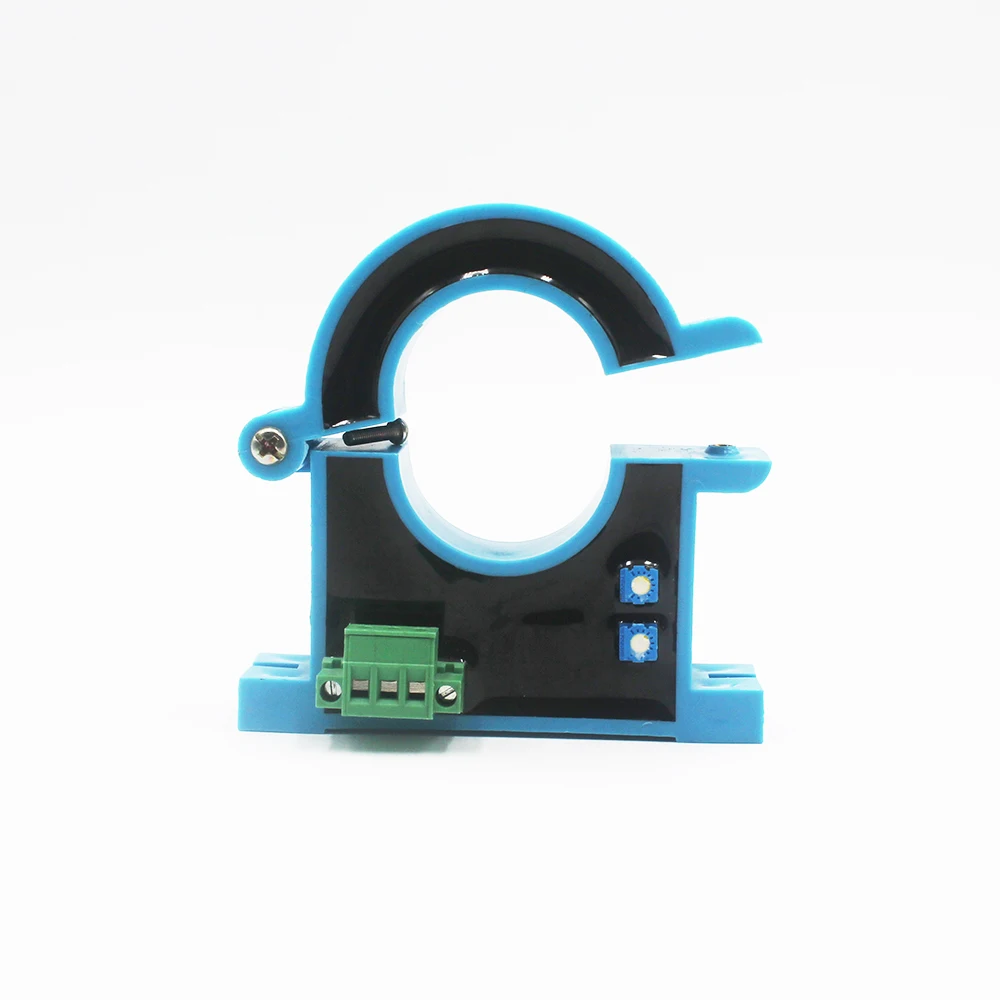

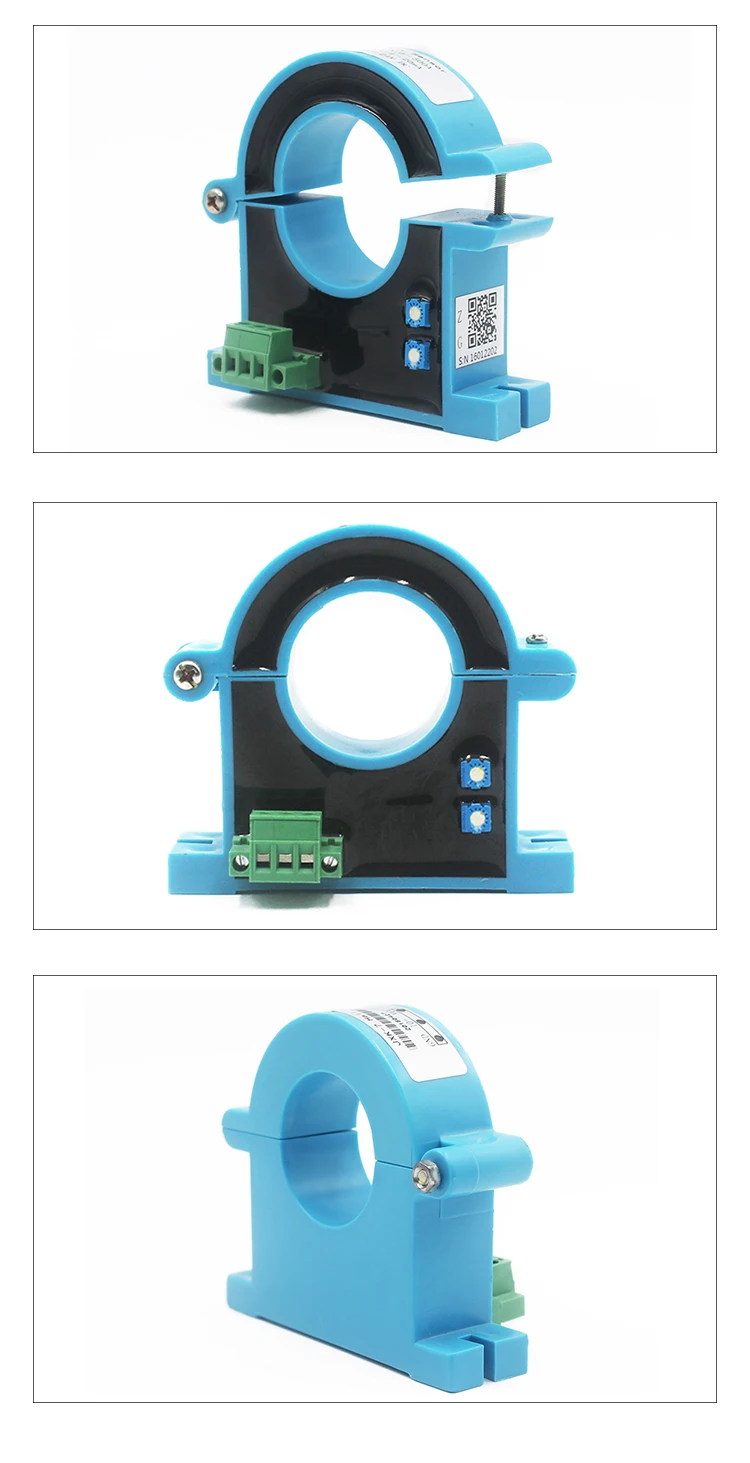

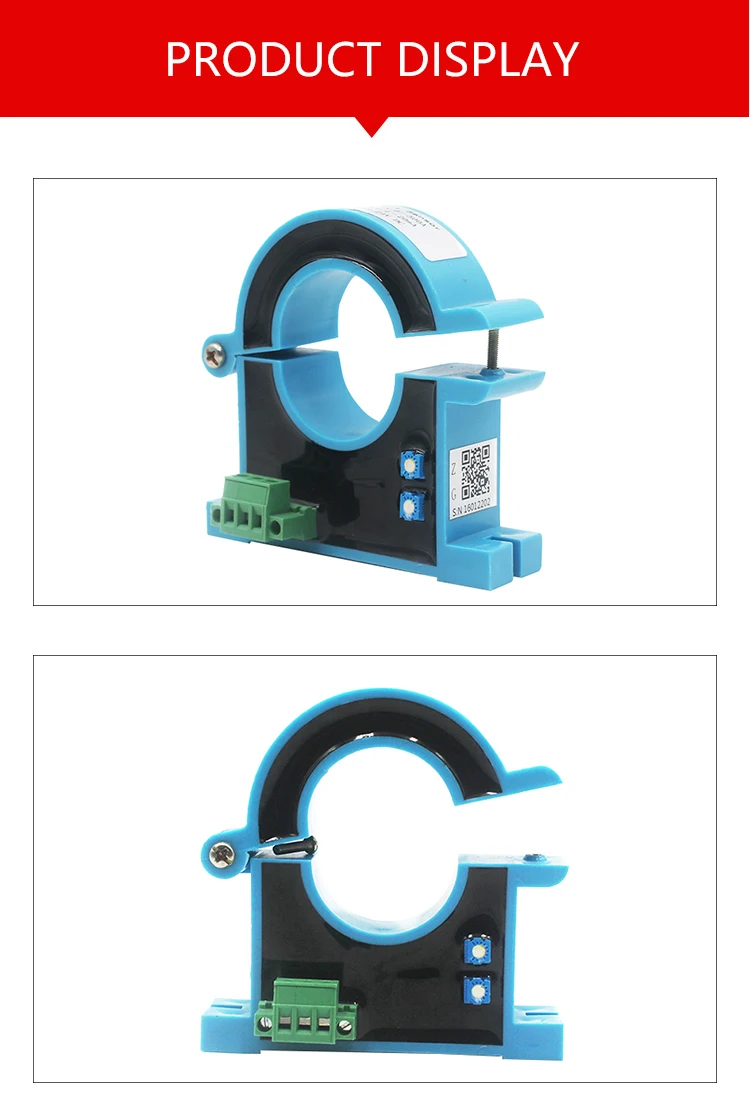

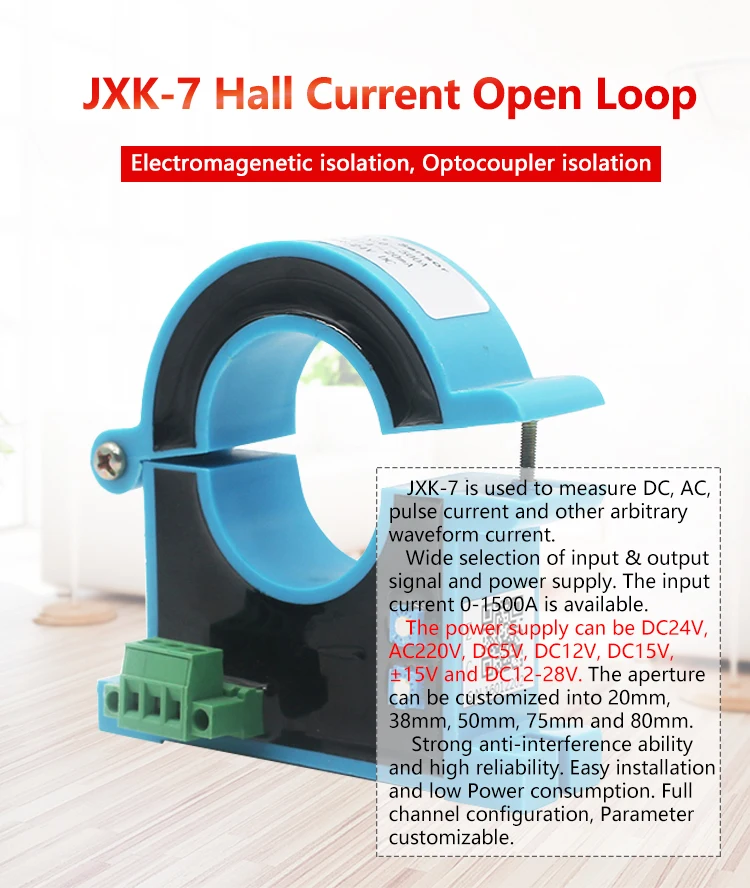

Hot sale JXK-7 AC DC Split Core Sensor Hall Effect Open Loop Current Sensor

Introduction

<1>. Working Principle: Open loop direct measurement.
<2>. Product Usage: Used for measuring DC, AC, pulse current and other arbitrary waveform current.
<3>. Product Advantages: Better cost performance, low power consumption, small volume, light weight, easy installation, perforation input and no insertion loss.
<4>. Product Application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply monitoring, electric locomotive, low level starting protection.
<5>. The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.

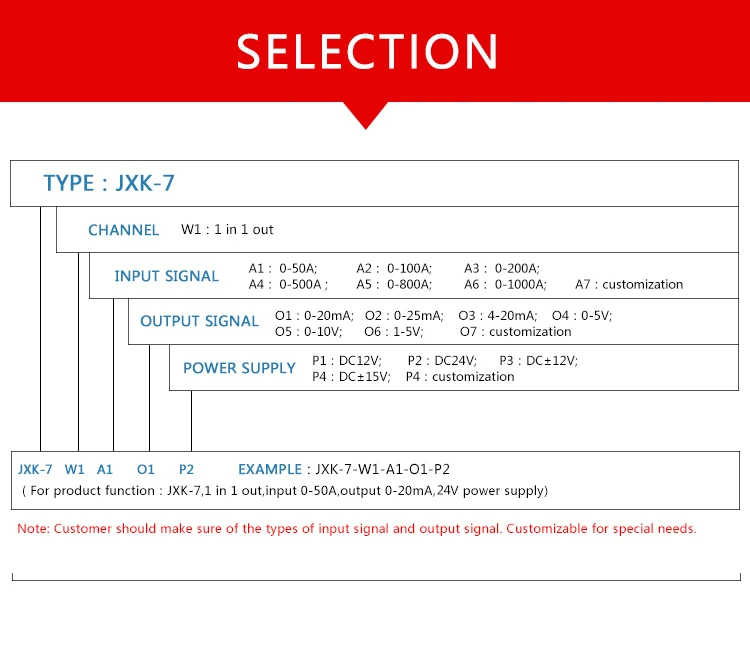

Full channel configuration,Parameter customizable

Technical Specification

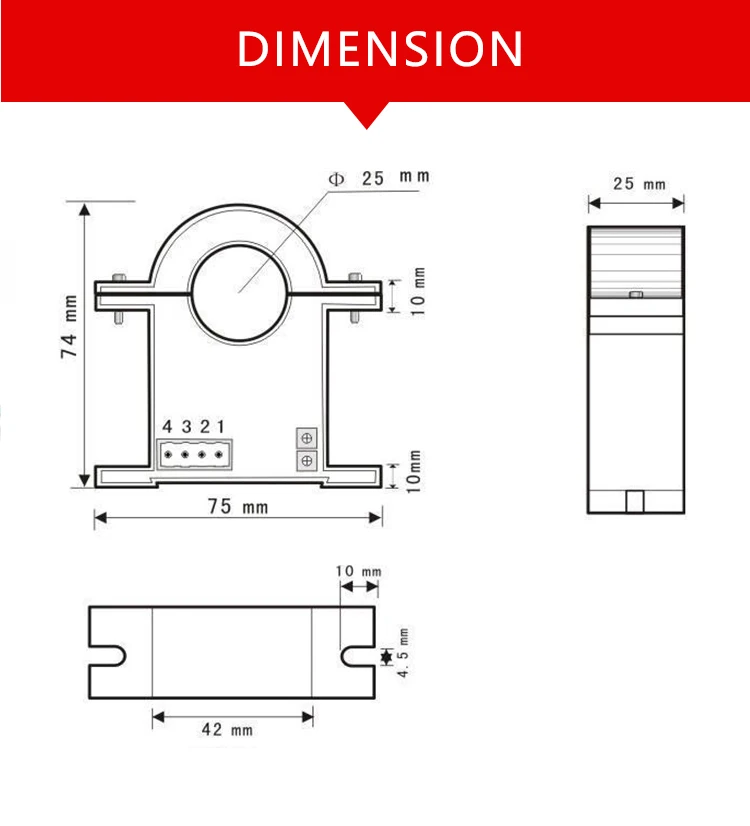

Installation	Plane screw fixation
Original side rated current	50A;100A;200A;500A; 800A;1000A;customization
Original side measurement range	100A-1200A

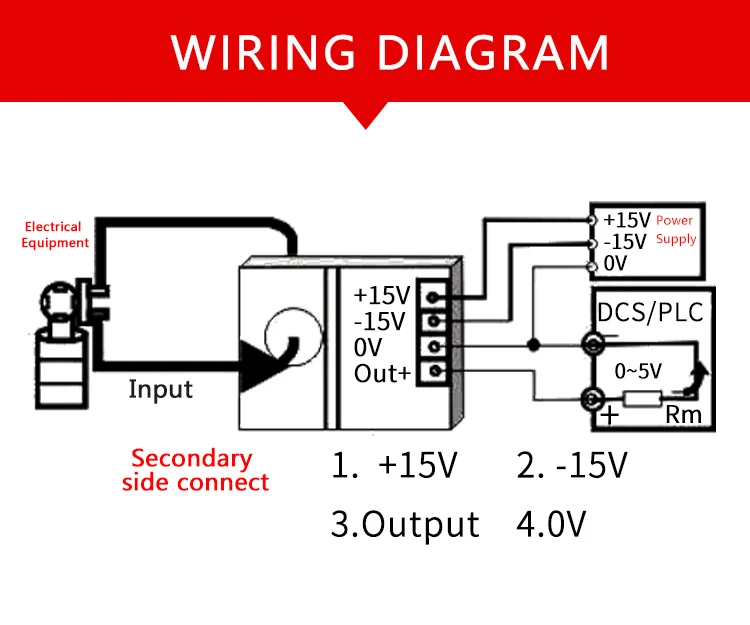

Rated output	5V;DC0~20mA;DC4~20mA;customization
Auxiliary power supply	DC12V,DC24V,DC±12V,DC±15V
Load capacity	Voltage output:5mA; Current output:6V;
Linearity	0.005
Accuracy	0.01
Response time	<200ms
Temperature drift	≤500PPM/℃
Band width	DC~20KHz
Consumption of current	≤25mA
Working temperature	-10℃~+70℃
Storage temperature	-25℃~+85℃
Isolation pressure resistance	2.5kV/50Hz,1Min
Offset voltage	≤20mvV
Zero output	≤0.15mA
di/dt follow	>50A/uS

Certificates

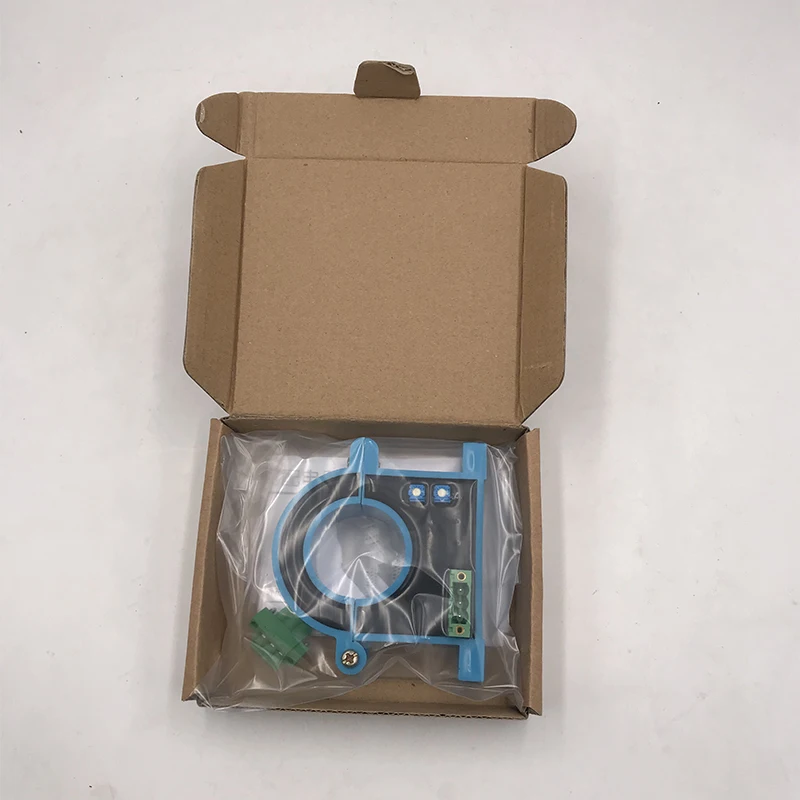

Shipping&Payment

FAQ

OEM and ODM acceptable.

Please don't hesitate to send us an inquiry!
