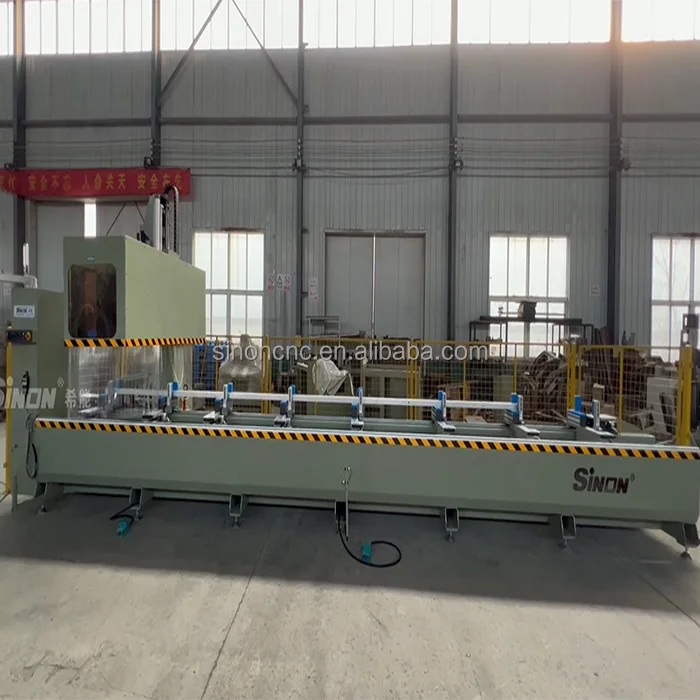

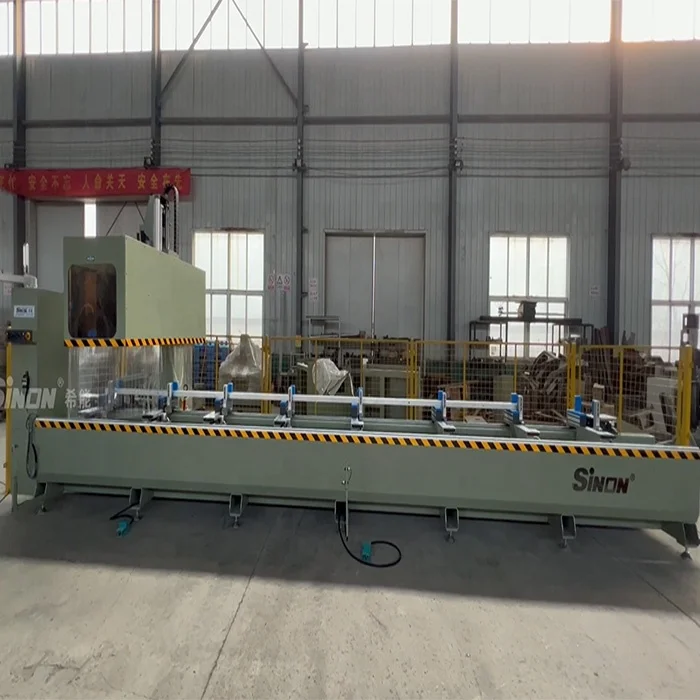

GSGZA CNC 7000 Automatic Aluminum Profile Processing Machinery for All Kinds Processing Duty
- Category: >>>
- Supplier: Jinan Sinon Cnc Machine Co. Ltd.
Share on (10000009762066):
Product Overview
Description
Product Description
Specification
Item | Value |
X-way Range | 7000mm |
Y-way Range | 1300mm |
Z-way Range | 550mm |
X-way Speed | 0-60 m/min |
Y-way Speed | 0-30 m/min |
Z-way Speed | 0-20 m/min |
Main Shaft Rev./Power | 0-18000 rpm/7.5 kw |
Gyrating Range | -90°~0°~+90° |
Cutter Warehouse | 12 cutter positions, automatically change base on program |
Cutter Maximum Length | 165mm |
Saw Blade Diameter | Φ80~Φ150mm |
Air Working Pressure | 0.5~0.8 MPa |
Power Supply | 380V 50Hz 3P or Customization |
Total Power | 13 KW |

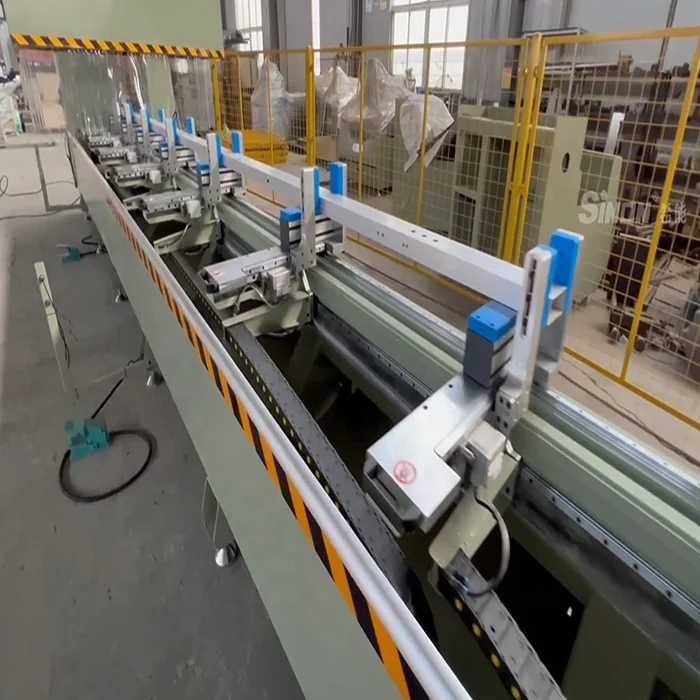

Clamp Station | 8 |
Lubricating and Cooling | Automatic Lubricating and spray cooling |
Work Area (W×H×L) | 600×250×6500mm(top surface), 400×200×6500mm(+90° side surface) |
Contour Dimension (L×W×H) | 11300mm×2350mm×2550mm |
Weight | 4500 kg |
Features

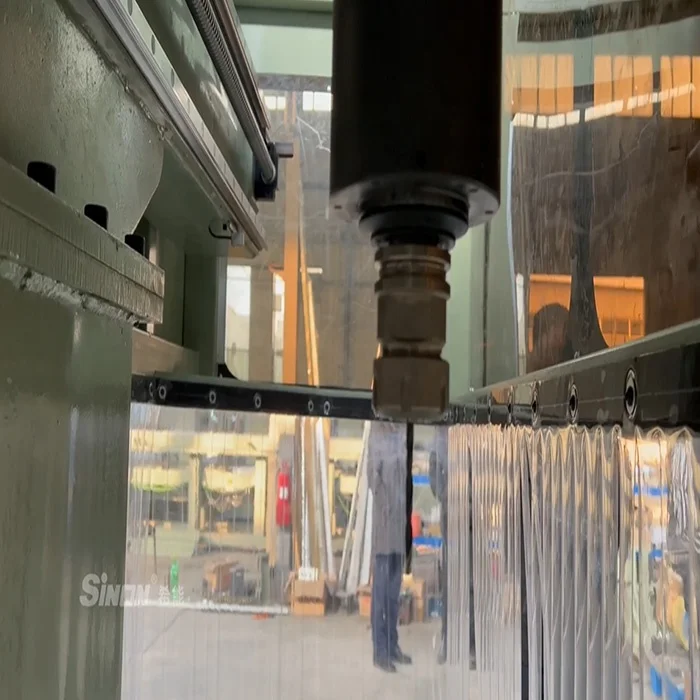

3. Extremely high productivity and efficiency as it adopts with Italy imported high-speed electrical spindle, processes at any angles between -90° and +90°.
4. Extremely high accuracy as it adopts with high-quality ball lead screw, linear guide pair and bearings, and imported servo motor.

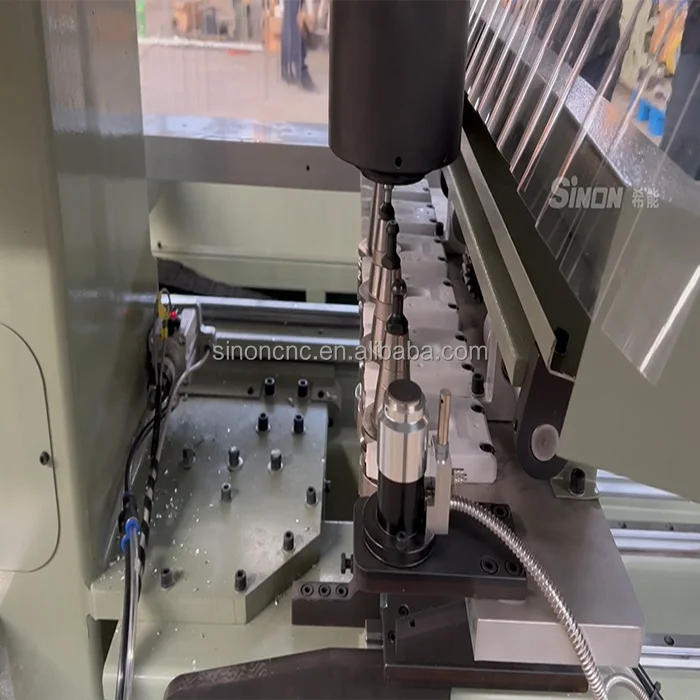

5. Be equipped with 12 tool positions, automatically changing cutters according to the program.

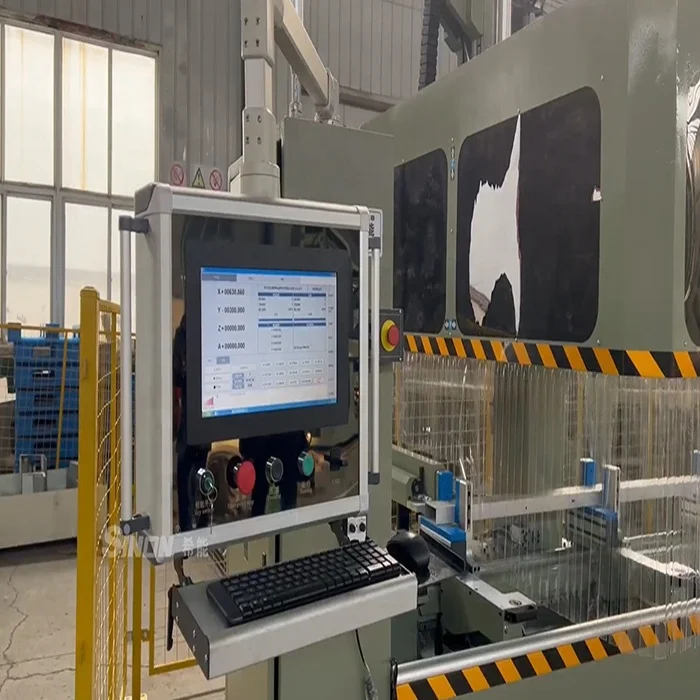

6. Industrial level professional computer control system, easily operation for user processing interface, graphics programming and processing tracing interface.
7. Double worktable can achieve two pieces profiles, or even two types profile processing at the same time.
1. Be suitable for various industrial aluminum profiles, light steel structure profiles, as well as aluminium door, window and curtain wall profiles.

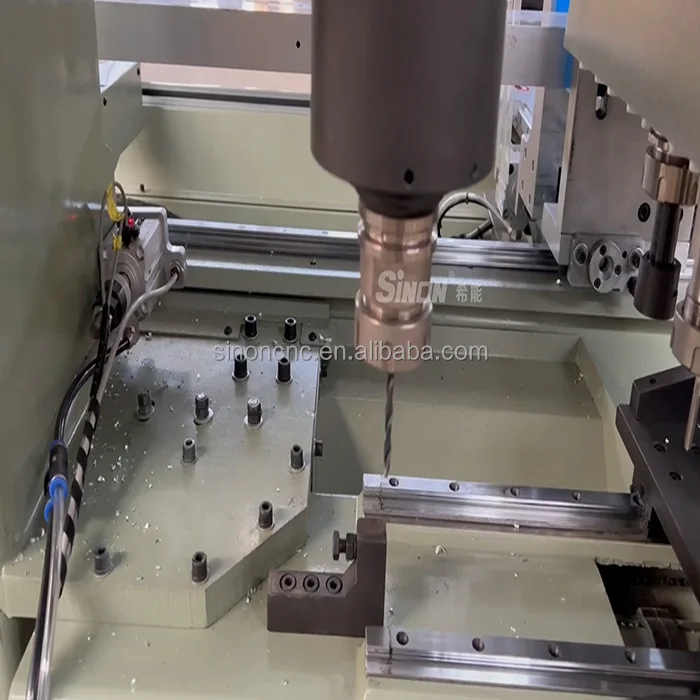

2. Be used for processing mounting hole, drainage channel, lock hole and any other special shape hole and slot.
3. Extremely high productivity and efficiency as it adopts with Italy imported high-speed electrical spindle, processes at any angles between -90° and +90°.
4. Extremely high accuracy as it adopts with high-quality ball lead screw, linear guide pair and bearings, and imported servo motor.
5. Be equipped with 12 tool positions, automatically changing cutters according to the program.
6. Industrial level professional computer control system, easily operation for user processing interface, graphics programming and processing tracing interface.
7. Double worktable can achieve two pieces profiles, or even two types profile processing at the same time.

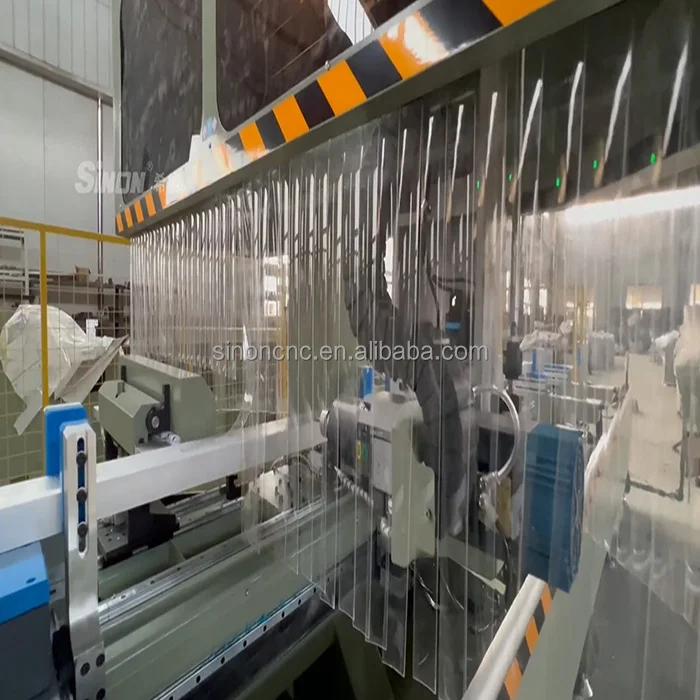

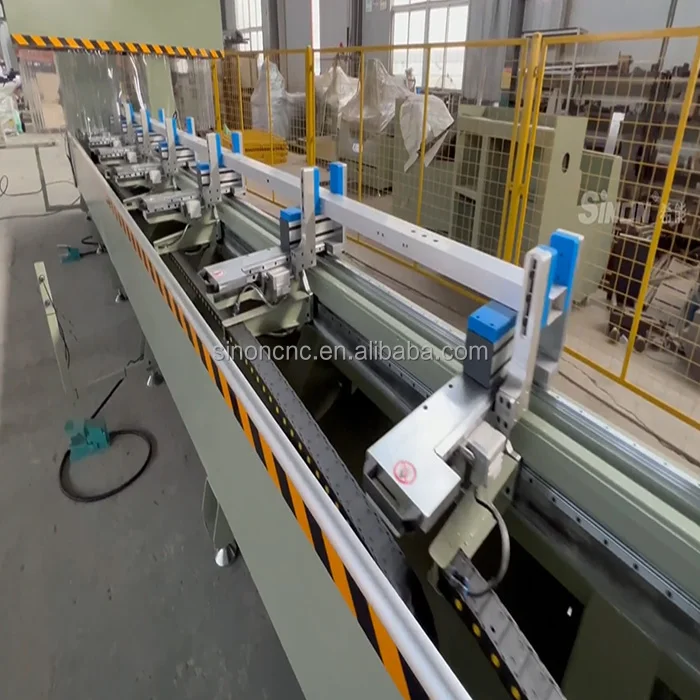

Details Images
Packing & Delivery
Sinon also pay attention to package. Plastic film coating, steel pallet and wood case are provided to package the machinery with high insurance and safety.
