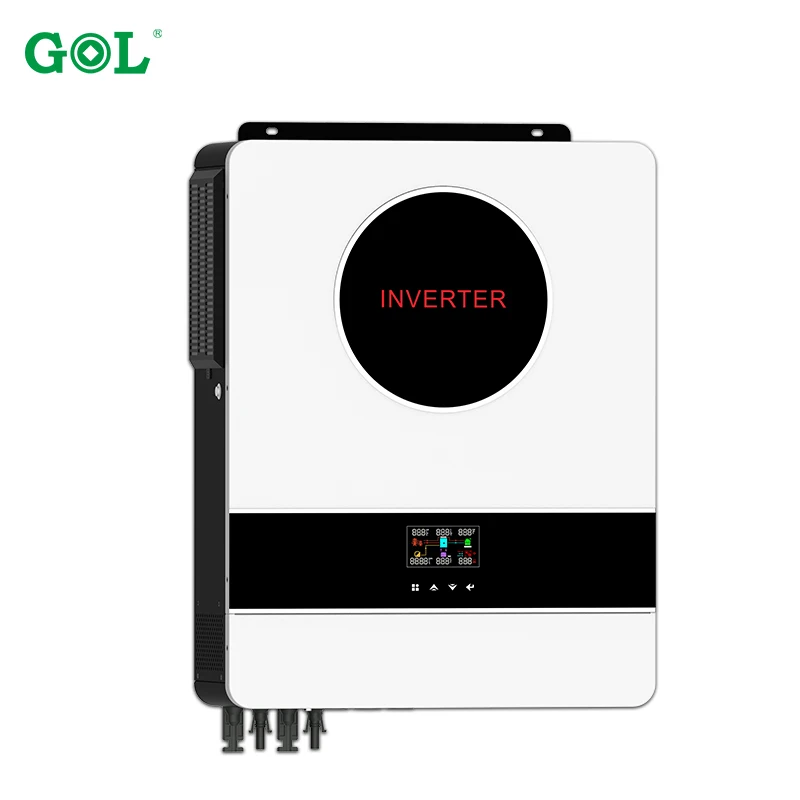

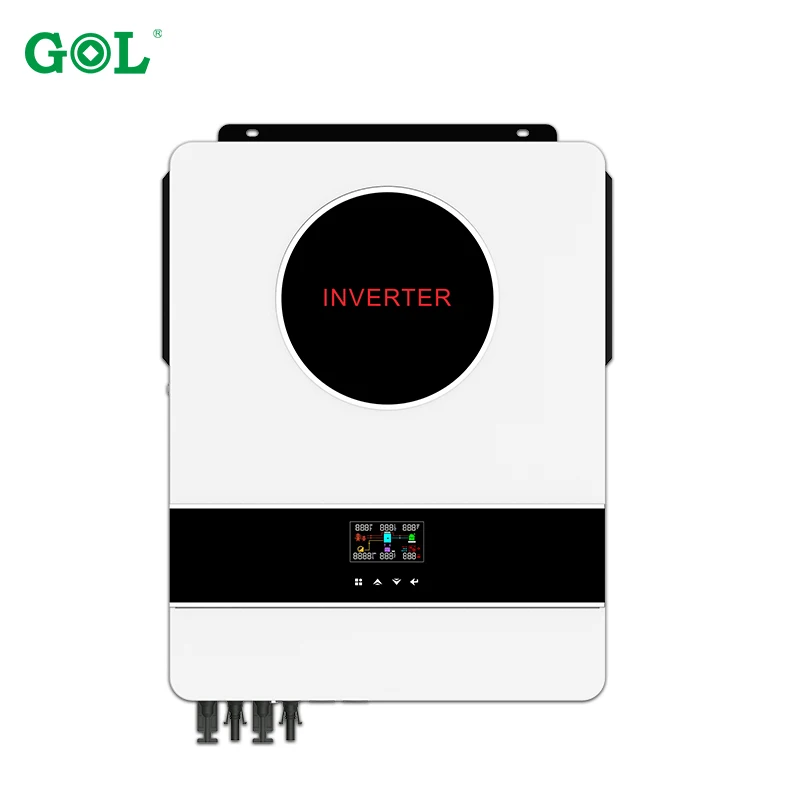

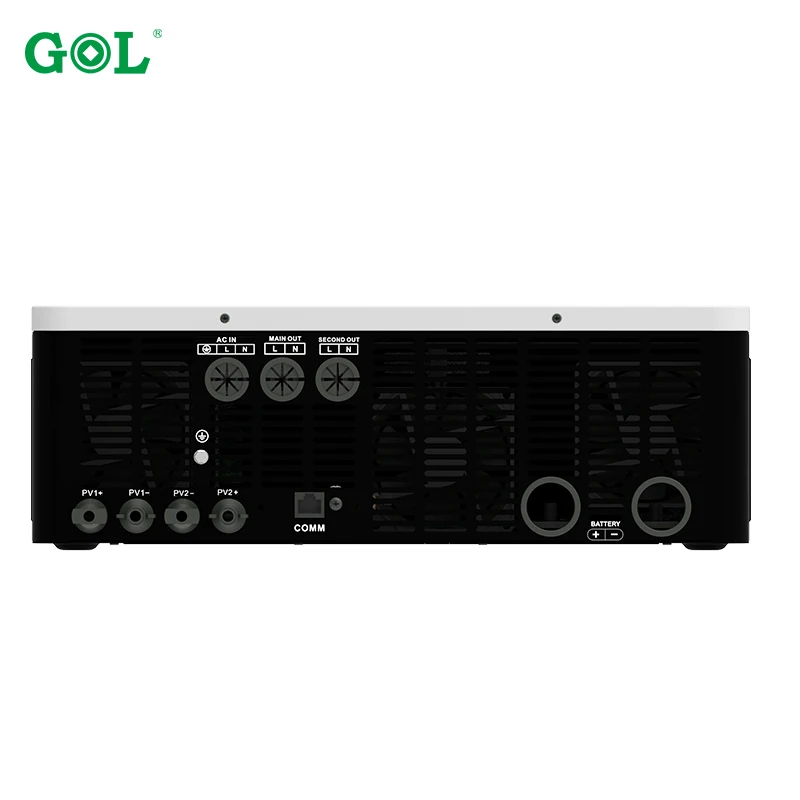

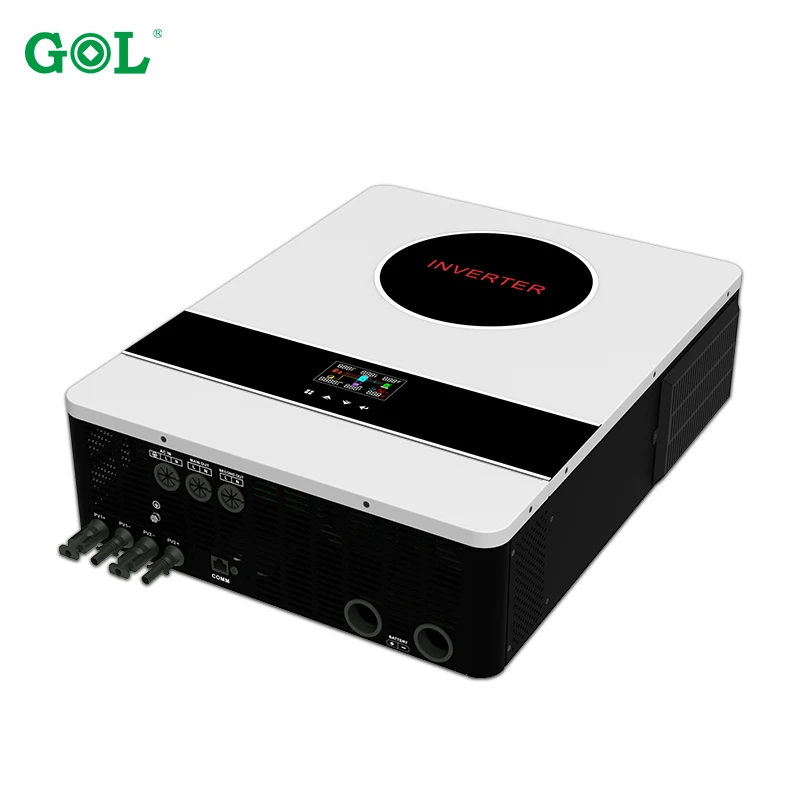

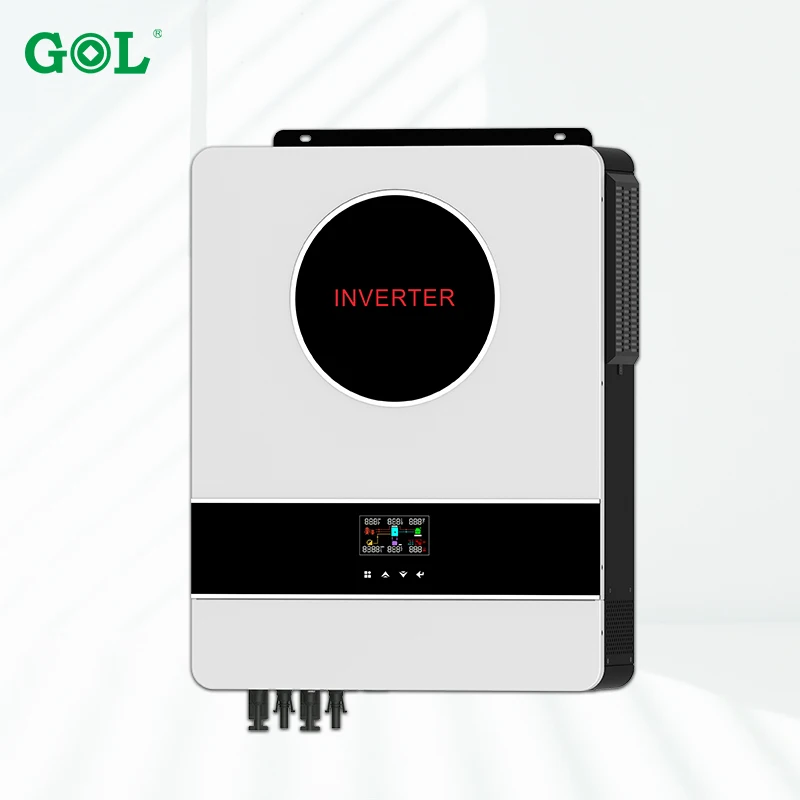

7.2kw 8.2kw 10.2kw Hybrid On/Off Grid Inverter 180a Mppt Solar Charge Controller Inverex Solar Inverter
- Category: >>>
- Supplier: Guolong Electric Co. Ltd.
Share on (10000009789684):
Product Overview
Description
Product Description
Specification
MODEL | MY-INVMAX 7.2KW-48V | MY-INVMAX 8.2KW-48V | MY-INVMAX 10.2KW-48V | |||
Phase | 1-phase | |||||
Maximum PV Input Power | 8200W | 8200W | 10200W | |||
Rated Output Power | 7200W/7200VA | 8200W/8200VA | 10200W/10200VA | |||
Maximum Solar Charging Current | 160A | 160A | 180A | |||
GRID-TIE OPERATION PV lnput(DC) | ||||||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | |||||
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | |||||
MPPT Voltage Range | 90VDC~450VDC | |||||
Number of MPPT Trackers/Maximum Input Current | 1/27A | |||||
GRID OUTPUT AC | ||||||
Nominal Output Voltage | 200/230/240VAC | |||||
Output Voltage Range | 195.5~253VAC | |||||
Nominal Output Current | 31.3A | 35.6A | 44.3A | |||
Power Factor | ＞0.99 | |||||
Feed-in Grid Frequency Range | 49-51士1Hz | |||||
EFFICENCY | ||||||
Maximum Conversion Efficiency(DC/AC) | 98% | |||||
TWO LOAD OUTPUT POWER(V2.0) | ||||||
Full Load | 7200W | 8200W | 10200W | |||
Maximum Main Load | 7200W | 8200W | 10200W | |||
Maximum Second Load(battery mode) | 2400W | 2733W | 3400W | |||
Main Load Cut Off Voltage | 44VDC | 44VDC | 44VDC | |||
Main Load Return Voltage | 48VDC | 48VDC | 48VDC | |||
OFF-GRID OPERATION AC INPUT | ||||||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |||||
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | |||||
Maximum AC Input Current | 40A | 40A | 50A | |||
Nominal operating frequency | 50/60Hz | |||||
Surge power | 14400W | 16400W | 20400W | |||
PV INPUT(DC) | ||||||
Maximum DC Voltage | 500VDC | |||||
MPPT Voltage Range | 90VDC-450VDC | |||||
Number of MPPT Trackers/Maximum Input Current | 1/27A | |||||
BATTERY MODE OUTPUT(AC) | ||||||
Nominal Output Voltage | 24VDC | 48VDC | 48VDC | |||
Output Waveform | Pure sine wave | |||||
Efficiency(DC to AC) | 94% | |||||
BATTERY & CHARGER | ||||||
Nominal DC Voltage | 48VDC | 48VDC | 48VDC | |||
Maximum Solar Charging Current | 160A | 160A | 180A | |||
Maximum AC Charging Current | 140A | 140A | 160A | |||
GENERAL PHYSICAL | ||||||
Dimension,D x W x H(mm) | 420*310*110 | |||||
Net Weight(kgs) | 14.2 | 14.2 | 14.5 | |||
INTERFACE | ||||||
Communication Port | RS232/WIFI/Remove LCD/GPRS | |||||
ENVIRONMENT | ||||||
Humidity | 0~90% | |||||
Operating Temperature | -10 to 50℃ | |||||

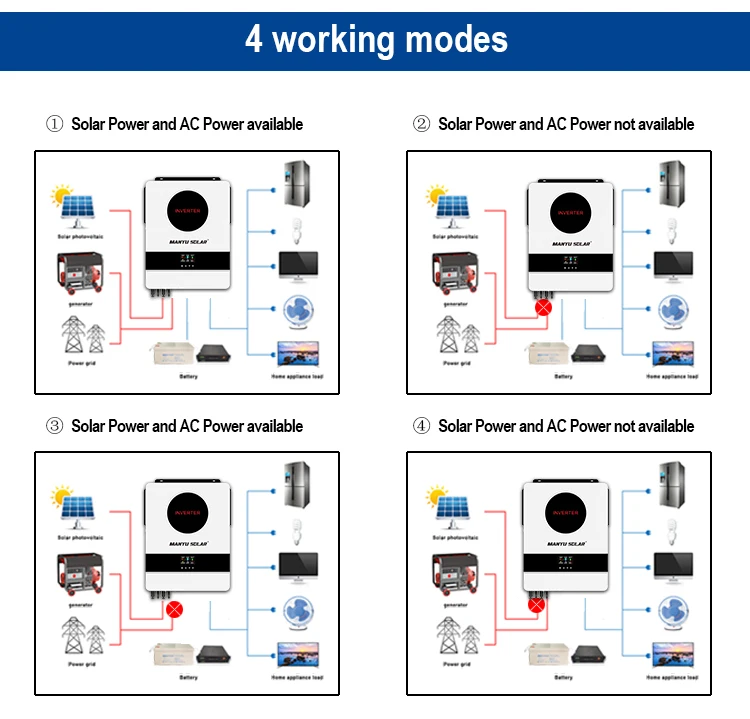

Working Modes Applications

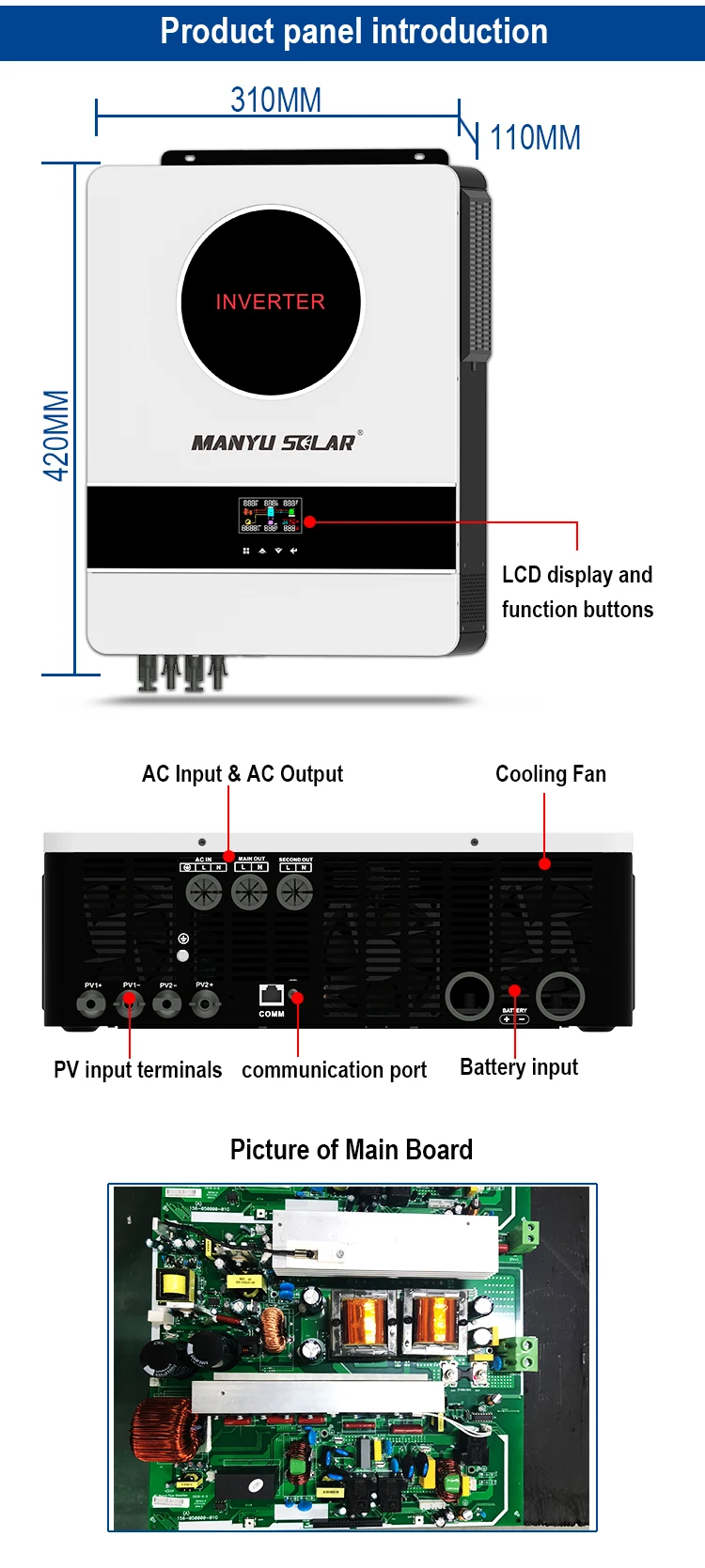

Product Panel Introduction

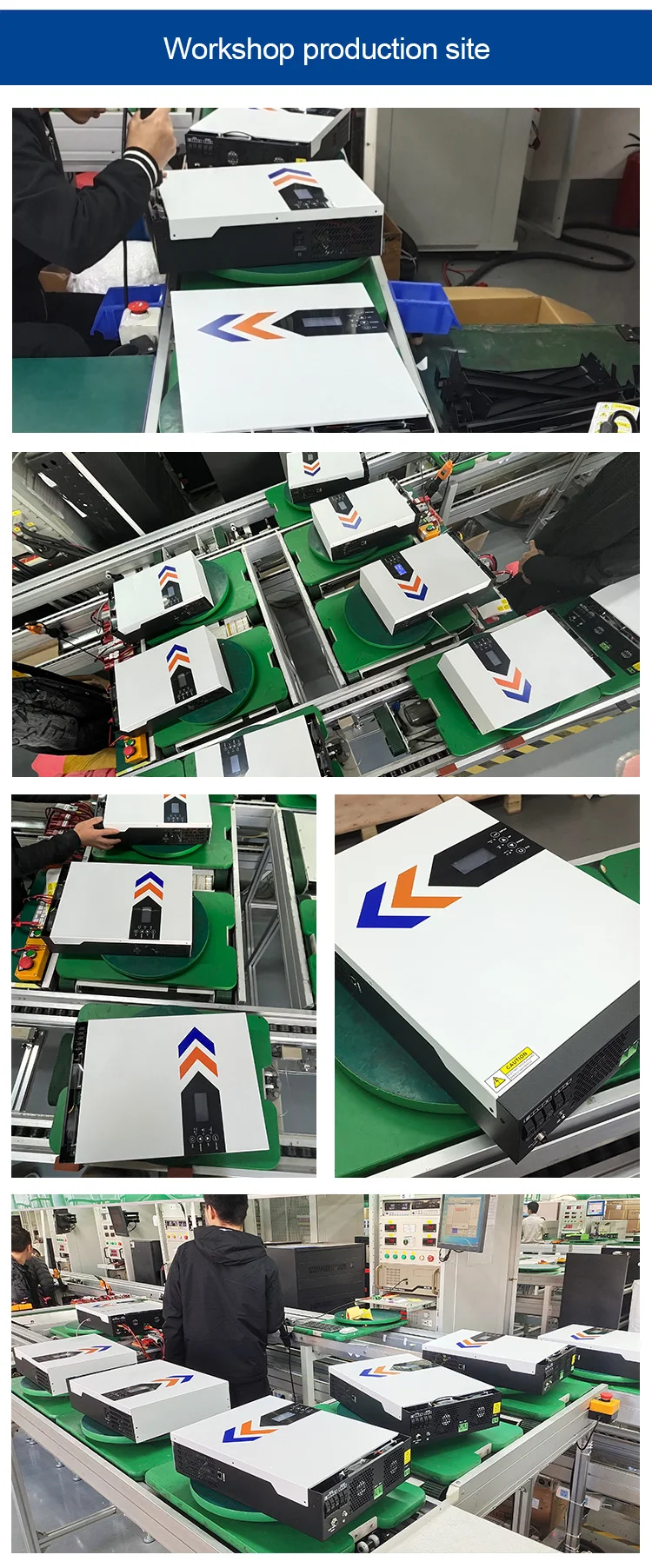

Production Site
