Product Overview
Description
PRODUCT SHOW

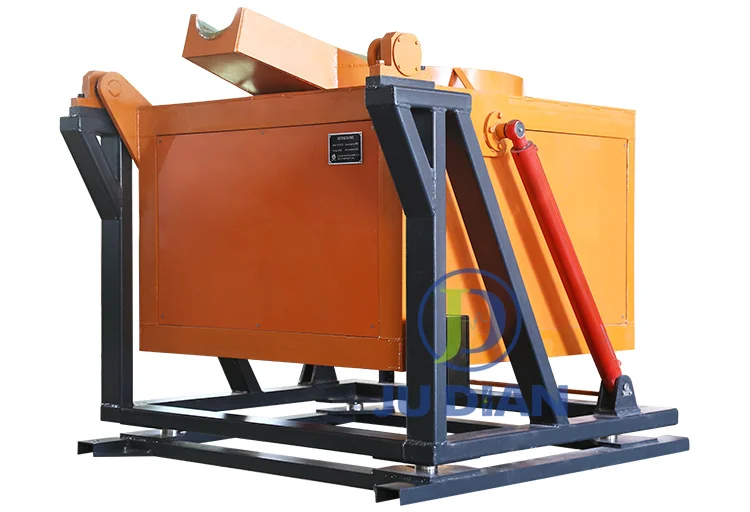

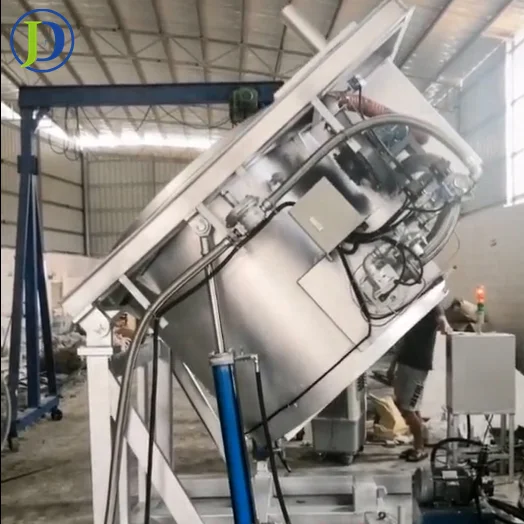

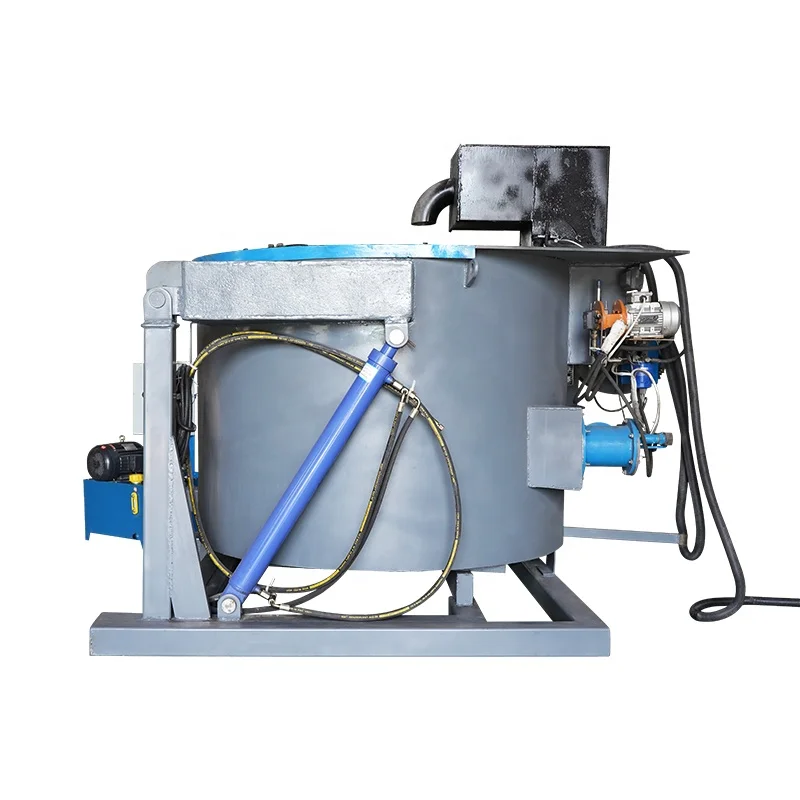

Hydraulic Tilting Aluminum Melting Furnace

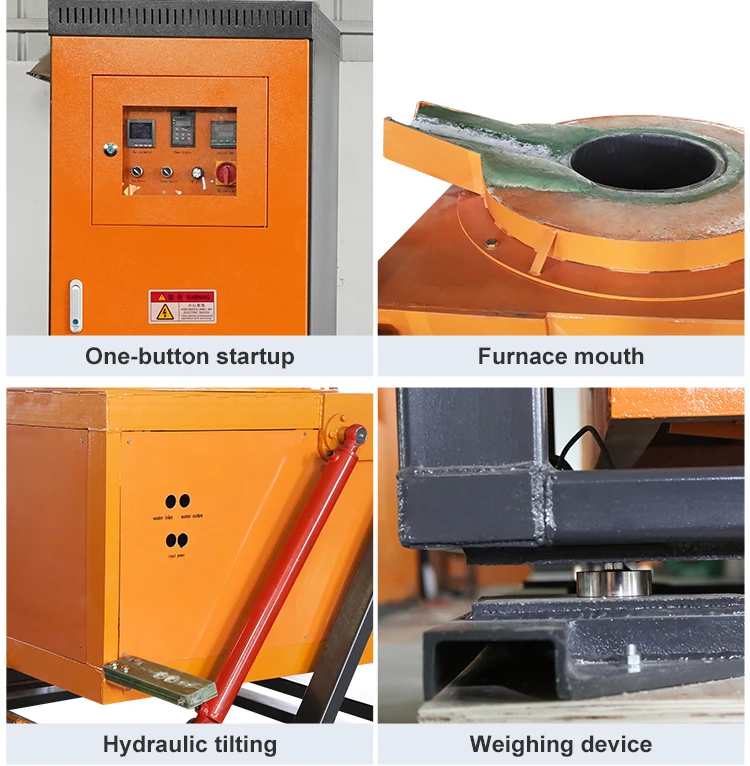

This melting furnace adopts electromagnetic induction melting, with simple structure and no need to make foundation. The cooling method is water cooling. The furnace body is controlled by hydraulic lever tilt, and the operation is more intelligent. The bottom of the furnace body is equipped with a weighing device, which can read the weight of the furnace body at any time. The noise meets the environmental protection standard, less than 60 decibels. Meltable raw materials: aluminum/copper metal, aluminum scrap, aluminum cans, aluminum alloy, etc.

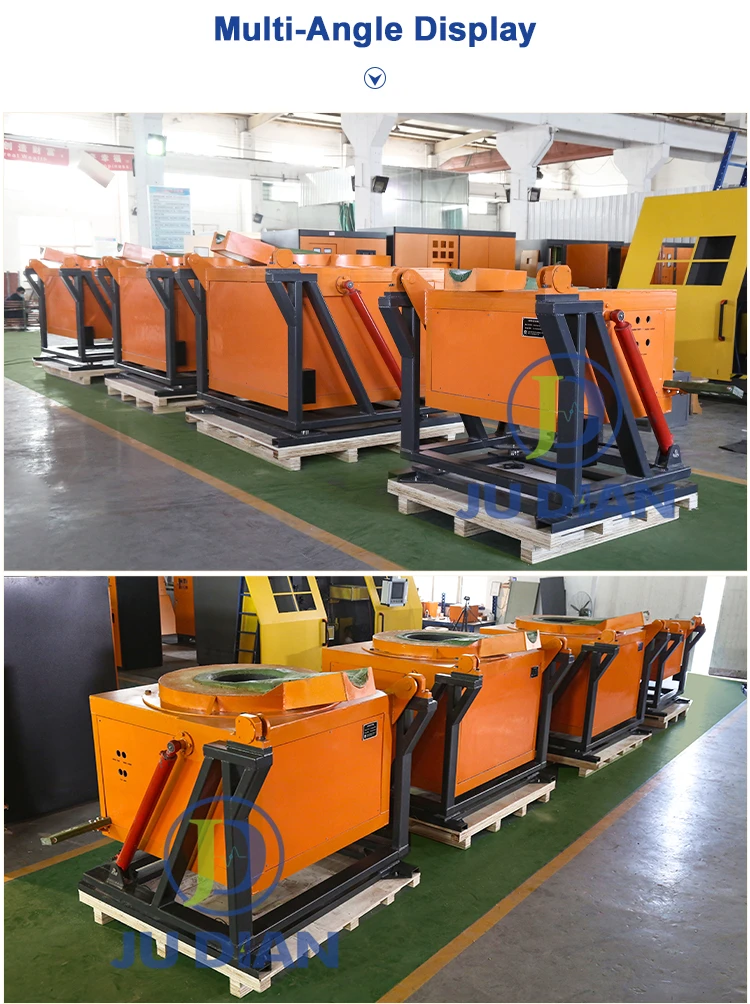

DETAIL DISPLAY
SPECIFICATION
Capacity | Power | Voltage | Cabinet Size | Weight | Crucible size | Transformer |
100KG | 40KW | 3*380v | 800*620*1850 | 0.5T | 385*700 | 50KVA |
150KG | 80KW | 3*380v | 800*620*1850 | 0.6T | 620*470 | 100KVA |
250KG | 120KW | 3*380v | 800*620*1850 | 0.8T | 620*650 | 150KVA |
350KG | 140KW | 3*380v | 800*620*1850 | 0.8T | 620*850 | 175KVA |
500KG | 160KW | 3*380v | 800*620*1850 | 1T | 710*720 | 200KVA |
700KG | 200KW | 3*380v | 1300*850*2000 | 1T | 700*1230 | 250KVA |
1000KG | 320KW | 3*380v | 1300*850*2000 | 1.2T | 780*1400 | 400KVA |
1300KG | 400KW | 3*380v | 1300*850*2000 | 1.2T | 850*1300 | 500KVA |

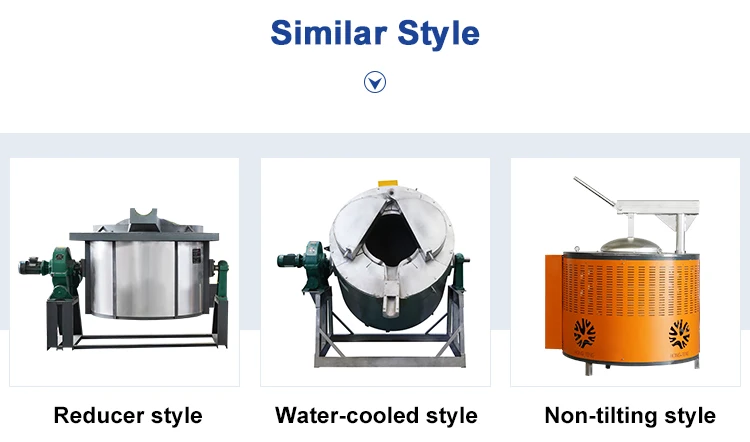

RECOMMEND

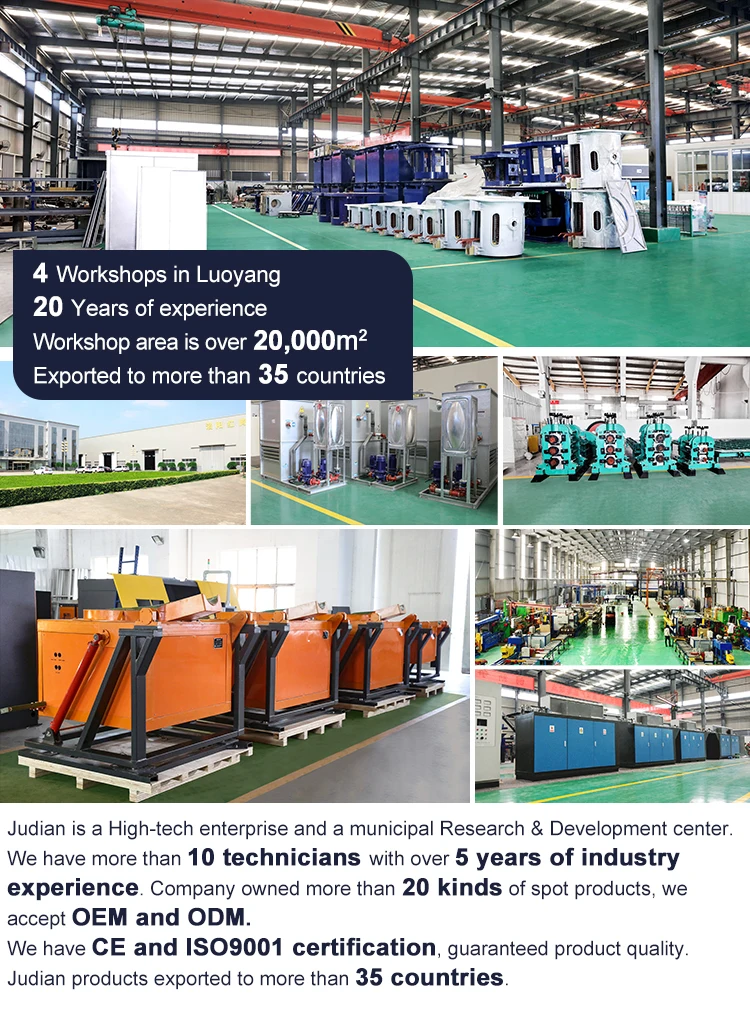

ABOUT US

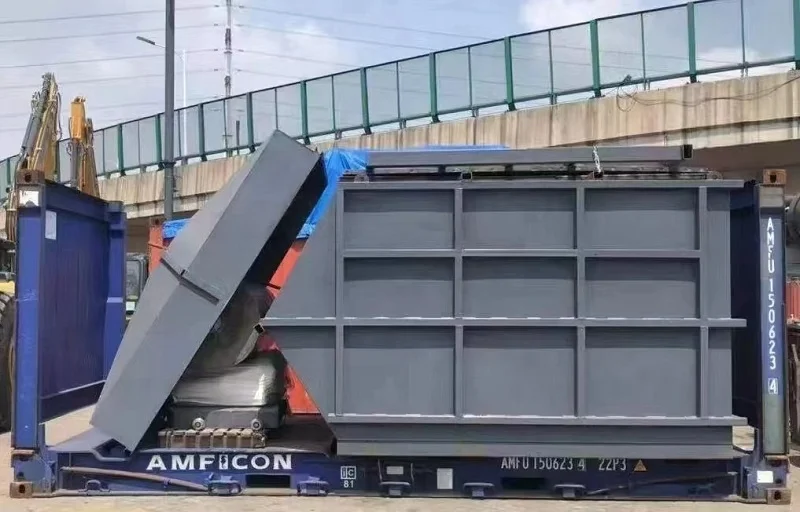

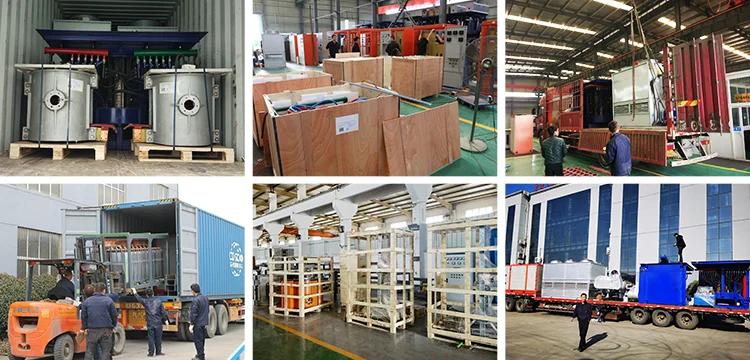

PACKING & DELIVERY

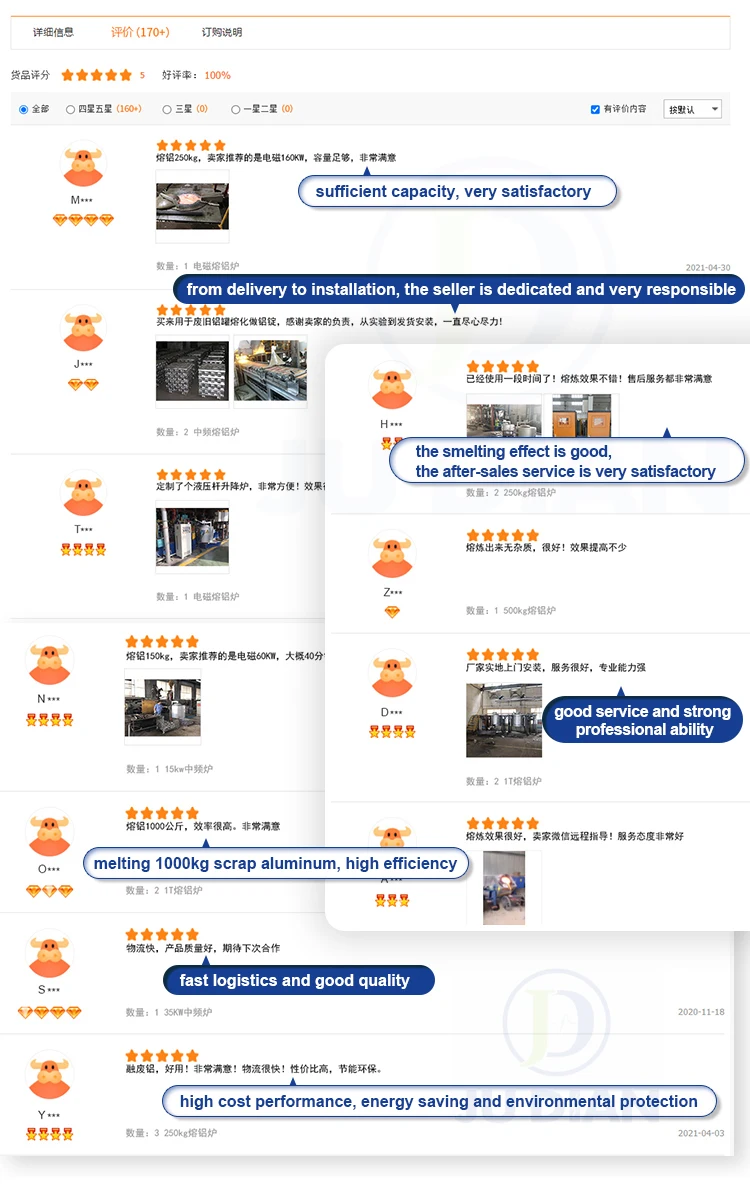

FEEDBACK
