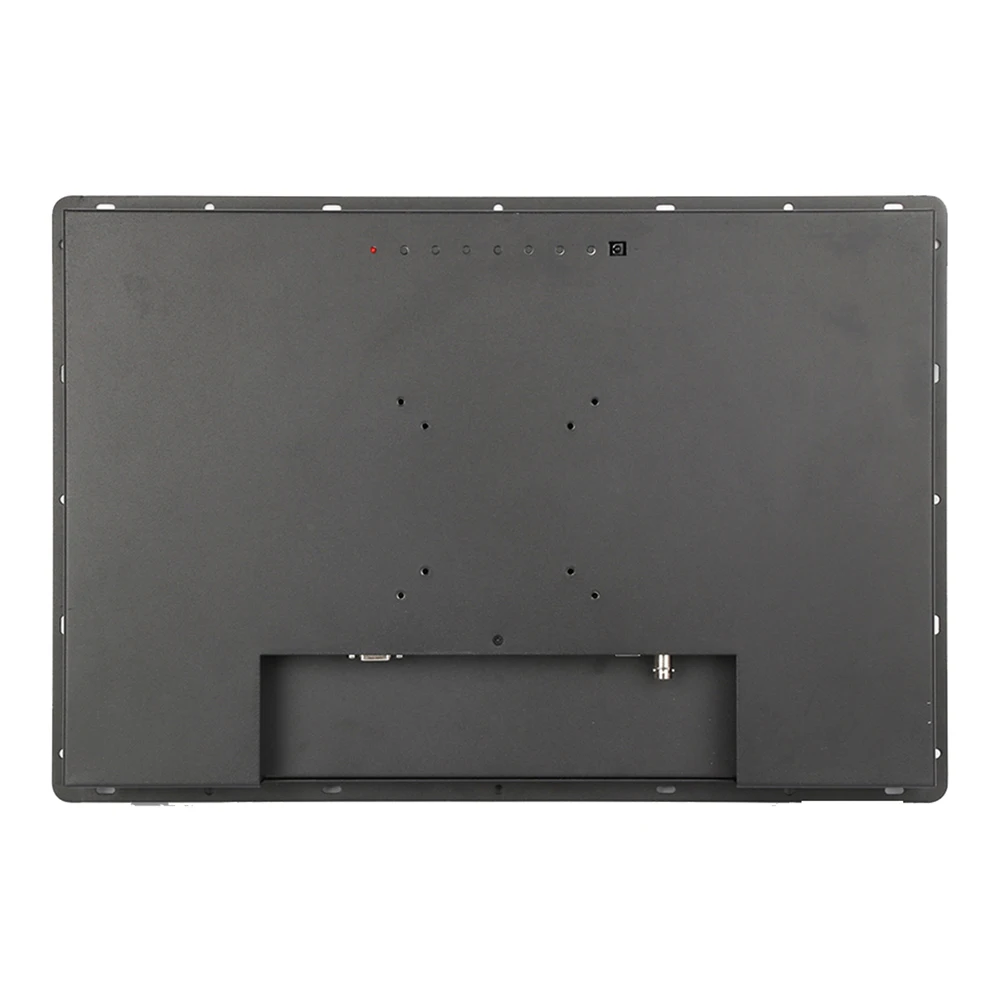

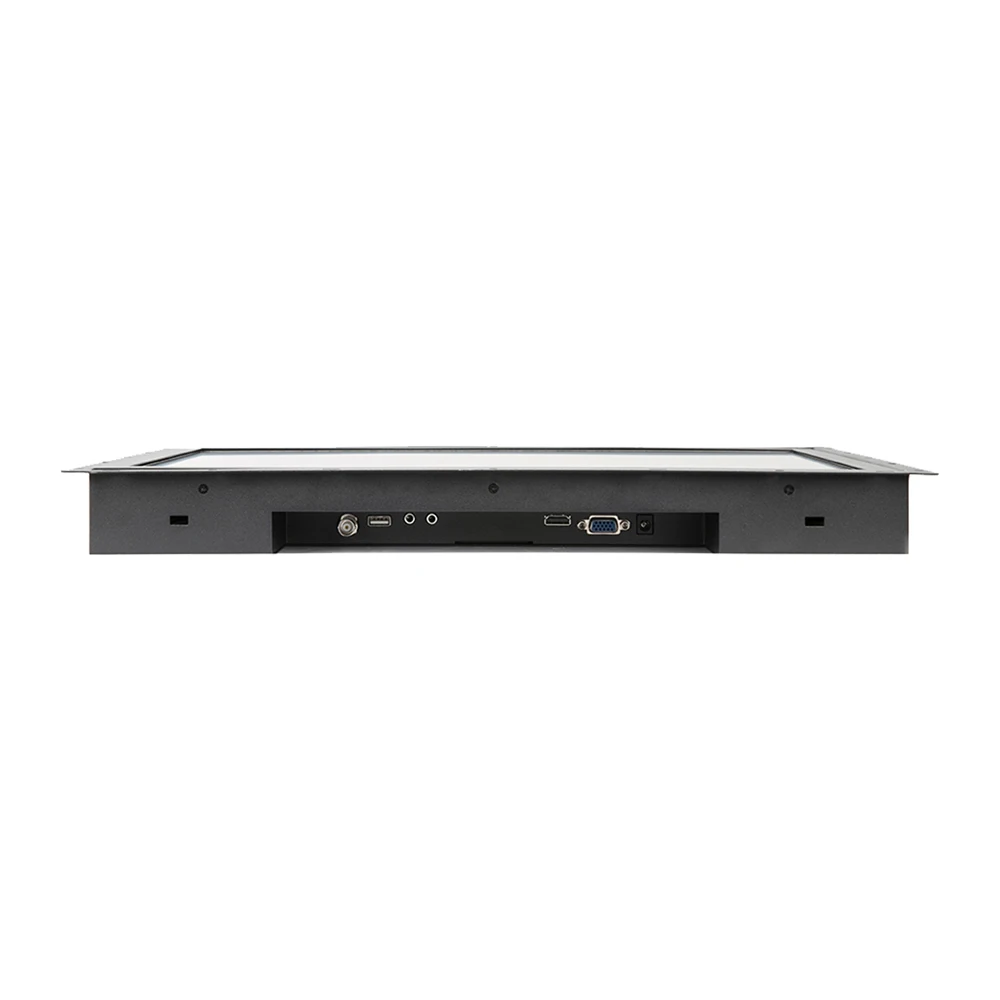

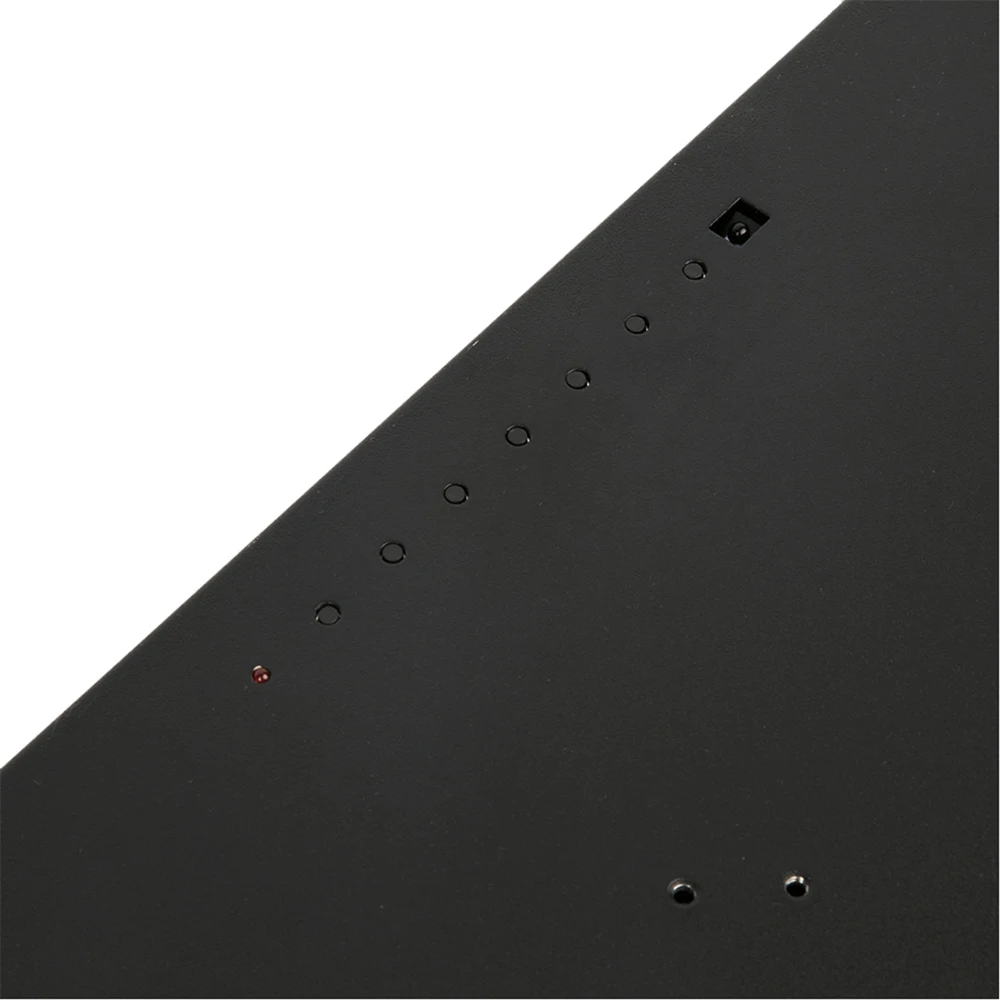

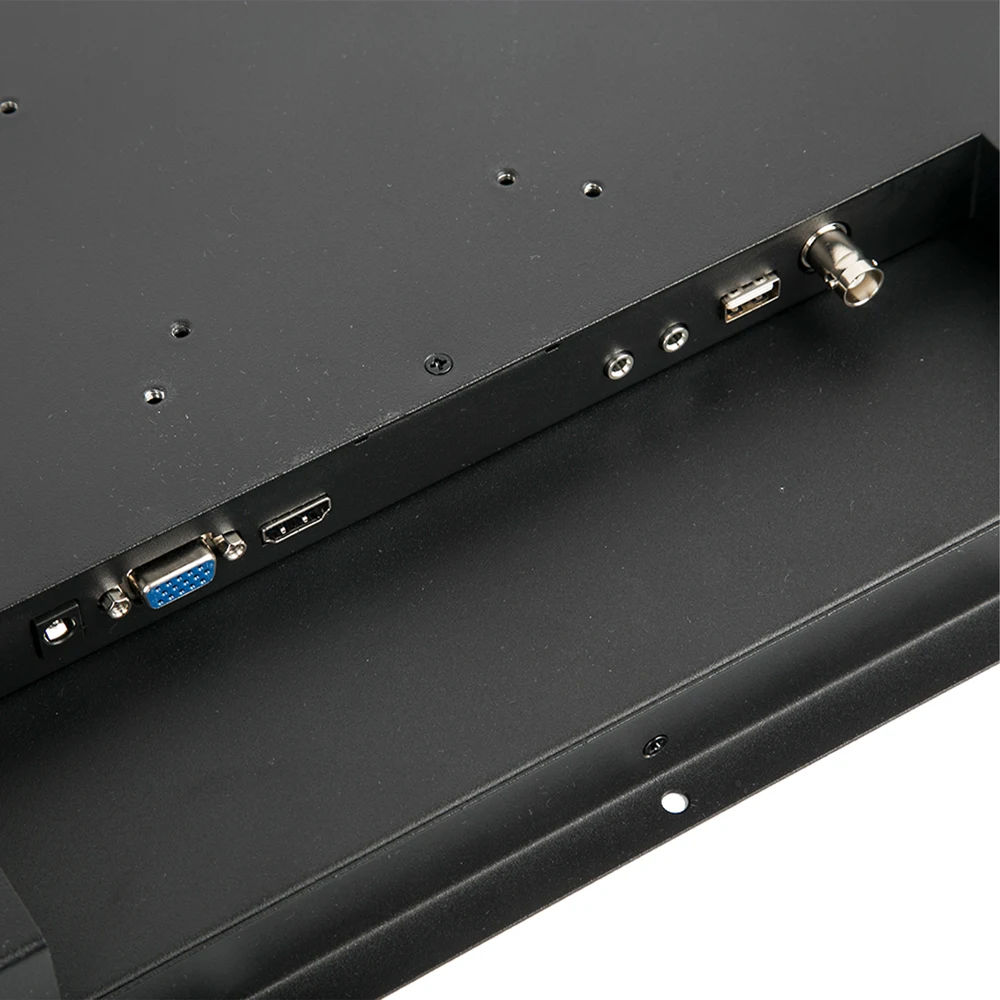

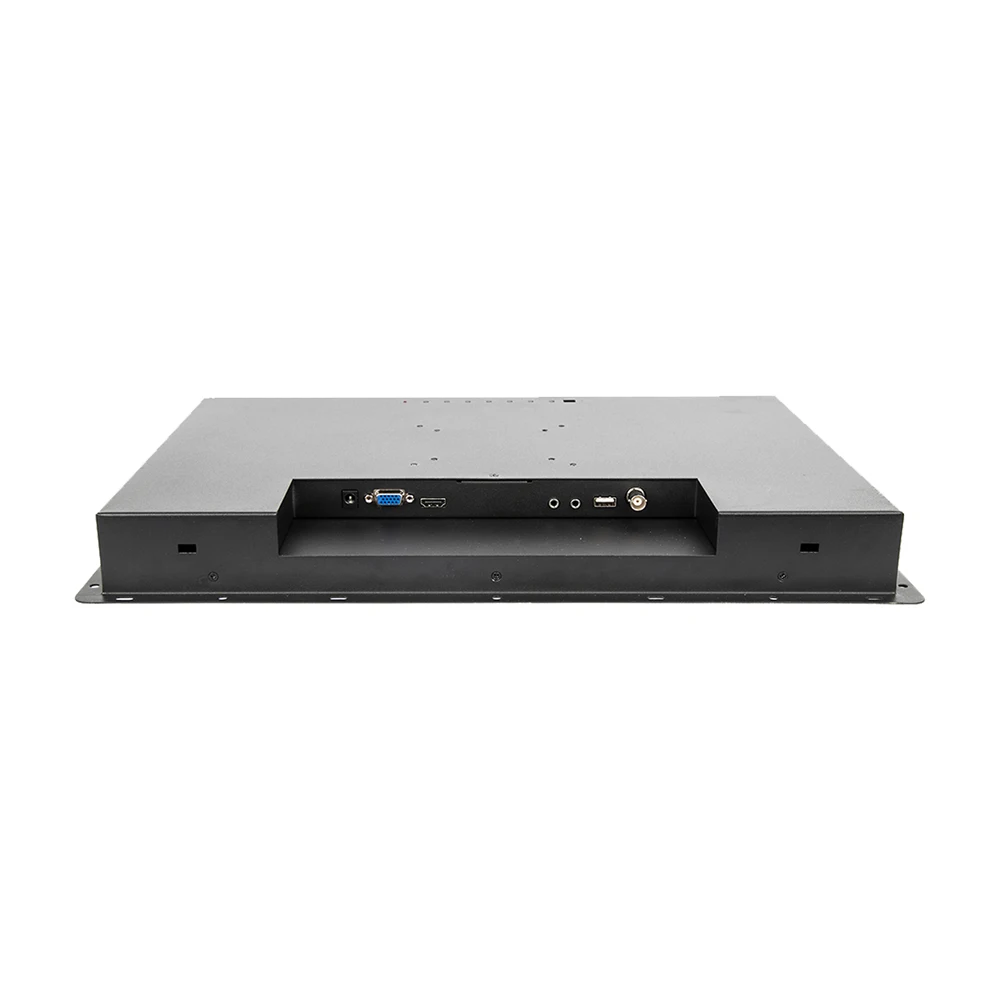

15 Inch Open Frame Touch Screen Monitor Industrial Grade LCD Open Frame Touch Monitor High-Quality All-In-One Touch Screen
| Product Details | |
| Product name | 15 Inch″ Capacitive Open Frame Touch Monitor |
| Model No | ZL15TMCAPOF |
| LCD Panel | |
| IP Rating | IP65 Front / IP40 Back |
| Screen diagonal (Inch/cm) | 15"/38.1cm |
| Display active screen size (cm) | 15"/38.1cm(11.96in*8.979in) |
| Aspect ratio | 4:3 |
| Physical resolution | 1026*768 |
| Maximum showable resolution | 1920×1080 |
| Colours displayed | 16.7M |
| Brightness (cd/m²) | 350 |
| Contrast | 700:1 |
| Typical reaction time Tr/ Tf (ms) | 8/12(ms) |
| Visual Angle horizontal/vertical (°) | 160/160 |
| Backlight / Backlight Lifetime (hours) | LED / 100,000 |
| Touch Panel | |

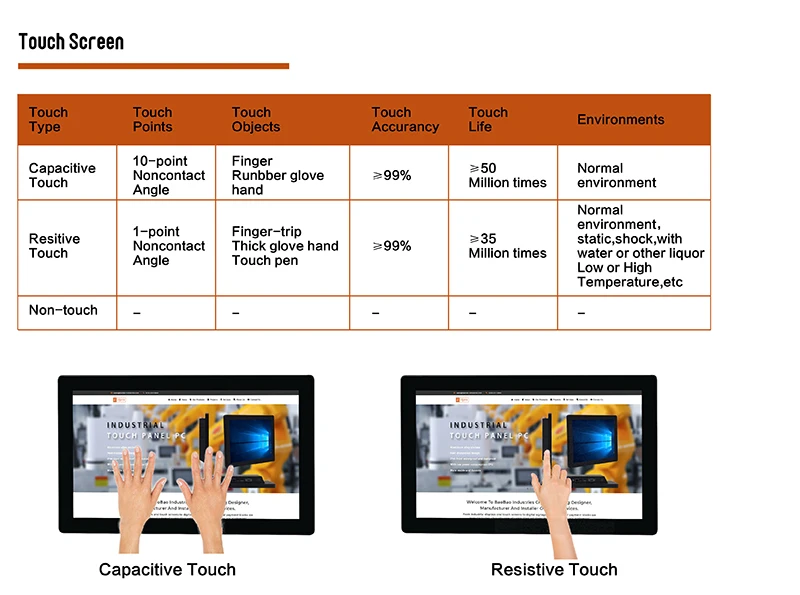

| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare (Optional) |
| Operation/Mechanical | |
| Operating Temperature (°C) | -10 ~ +60 |
| Humidity Range (RH) | 10% – 90% |
| Net weight (kg) | 0.80 |
| Gross weight (kg) | 2.0 (incl. cartonage) |
| Housing material | Aluminum Front/backCase |
| Housing (cm) L × W × H | 54.34 × 33.48 × 4.46 |
| Mounting | VESA 100 |
| Power | |
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC active switching; 12V DC-Out |
| Working Power (V) | 12 |
| Power Consumption (W) | 12 |
| Stand-By Consumption (W) | <1 |
| Included in the Delivery | |
| Power Supply | |
| Short Installation Manual | |
| W-LAN Antenna (RP-SMA female) | |
| Standard Stand | |
