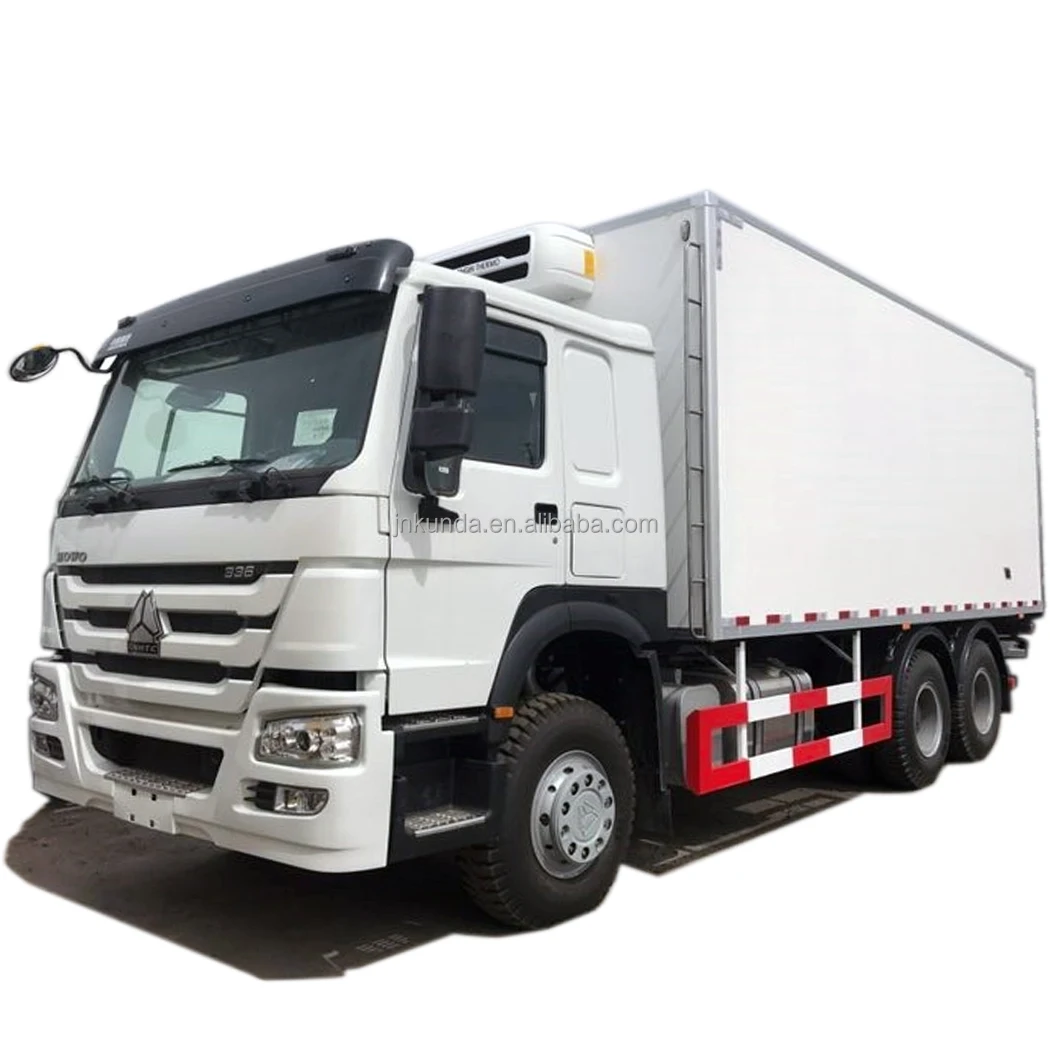

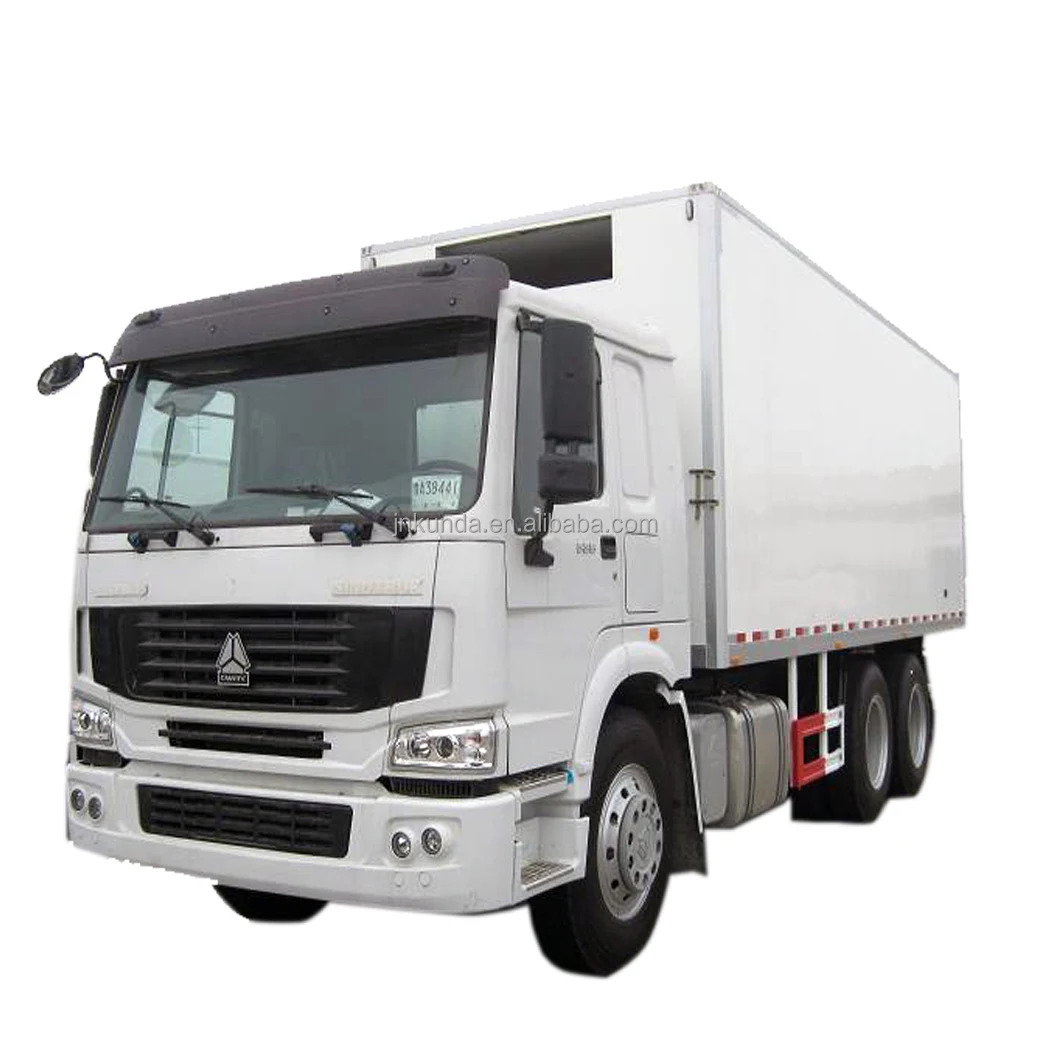

Good Quality Specialized Goods Van

Truck Model

ZZ1167M4617C

Dimension(Lx W xH)(unloaded)(mm)

8400*2496*3048 mm

Cargo body size (L*W*H, mm)(mm)

5600*2300*600mm

Approaching angle/Departure angle(°)

(°)

16/15

Overhang(front/rear) (mm)

1500/2200

Wheel base (mm)

4600

Max speed(km/h)(km/h)

102

Curb weight(kg)

8000

Fuel tanker capacity (L)

300

Fuel consumption(L/km)

20-40 L/100 km

Clutch

Dry single plate with damper springs. Reinforced

diaphragm clutch, diameter 430mm

Engine Model

(Steyr technology, made in China)

Fuel type

Diesel

Horse Power, max(kw/rpm)

266HP

Emission

EURO II

Model

WD615.62

Transmission

Model

HW15710 10 forwards and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Auxiliary brake

Egine exhaust brake

Steering system

Model

ZF8098 hydraulic steering with power assistance

Front axle

HF7

Rear axle

ST16

Color

According to the customer

Tyre

1200R20   7PC

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HOWO76 cab, with air conditioner, one sleeper, all-steel forward control, 55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
