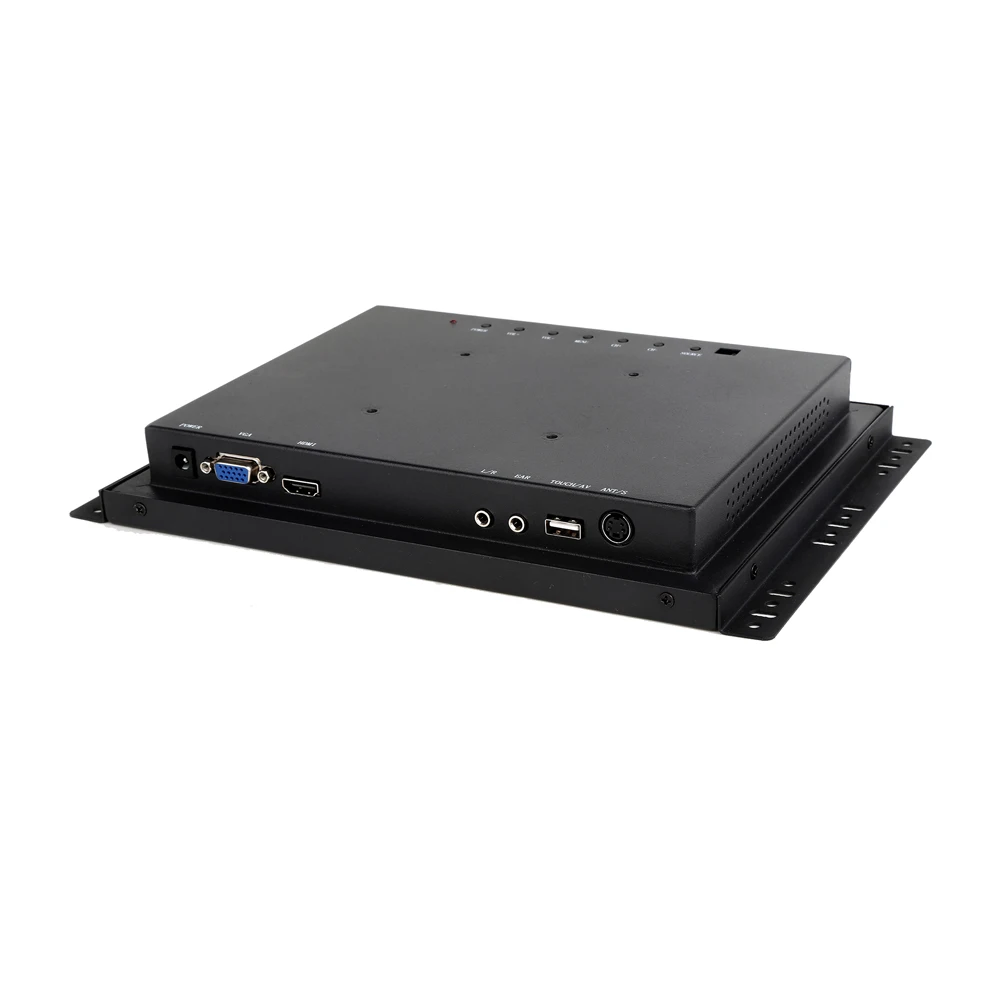

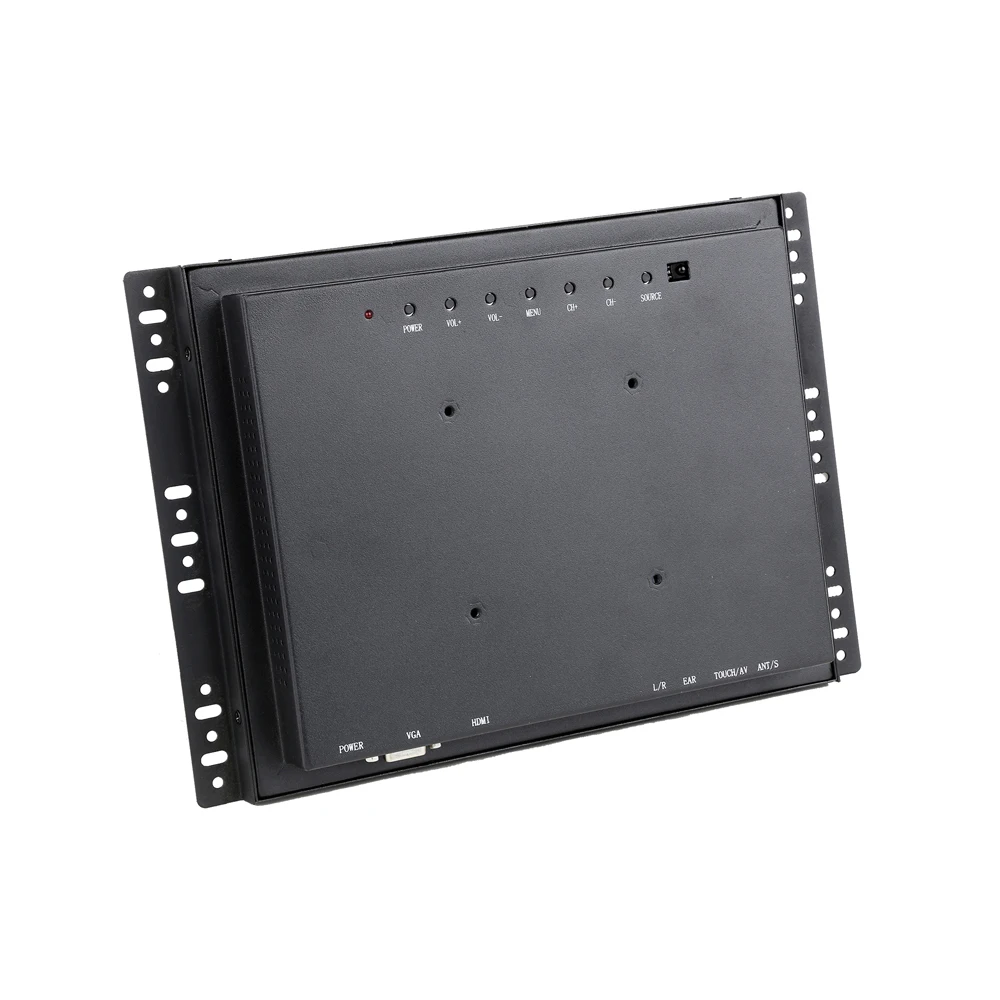

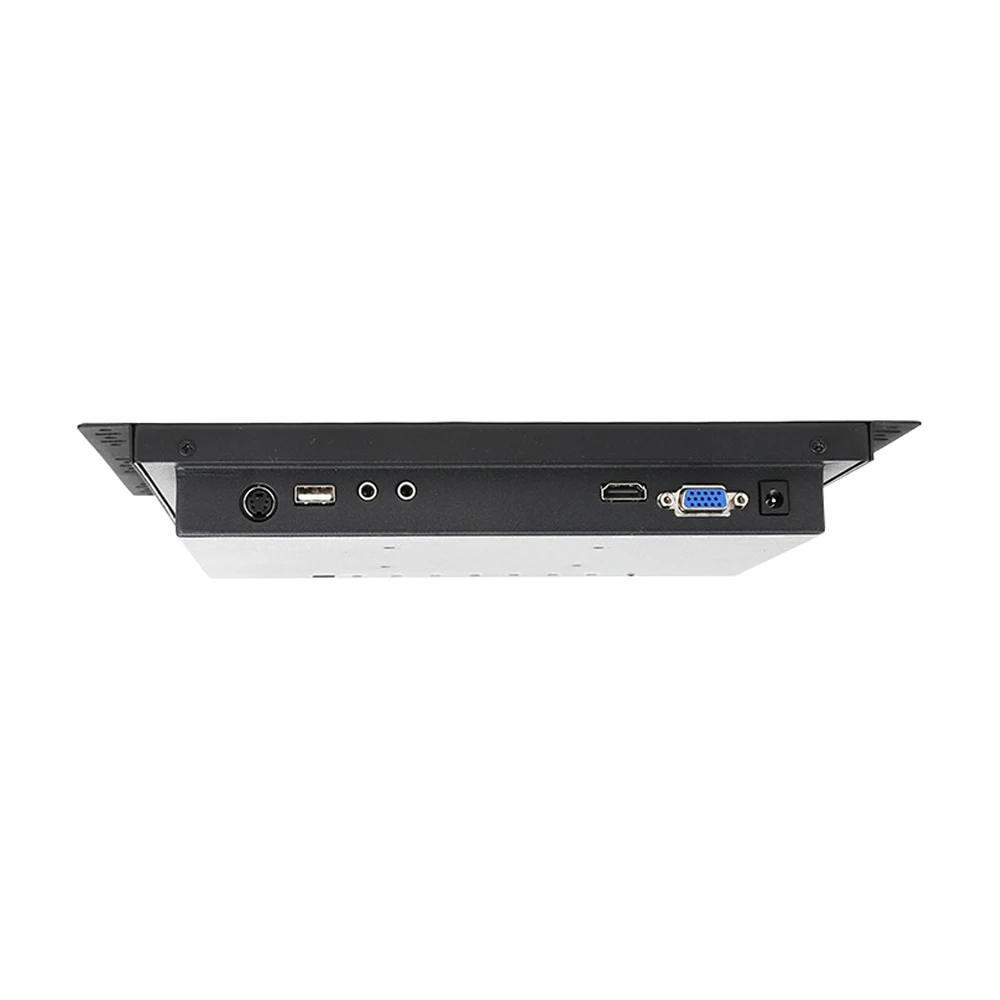

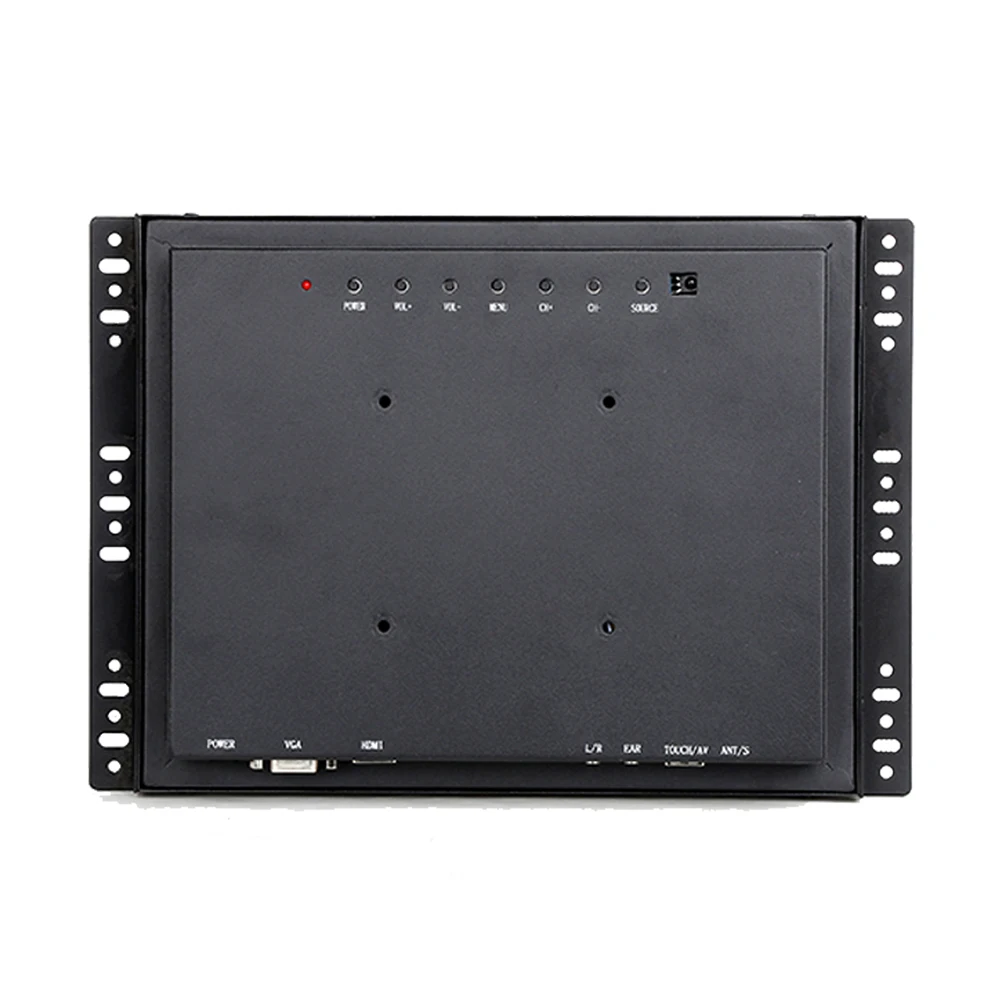

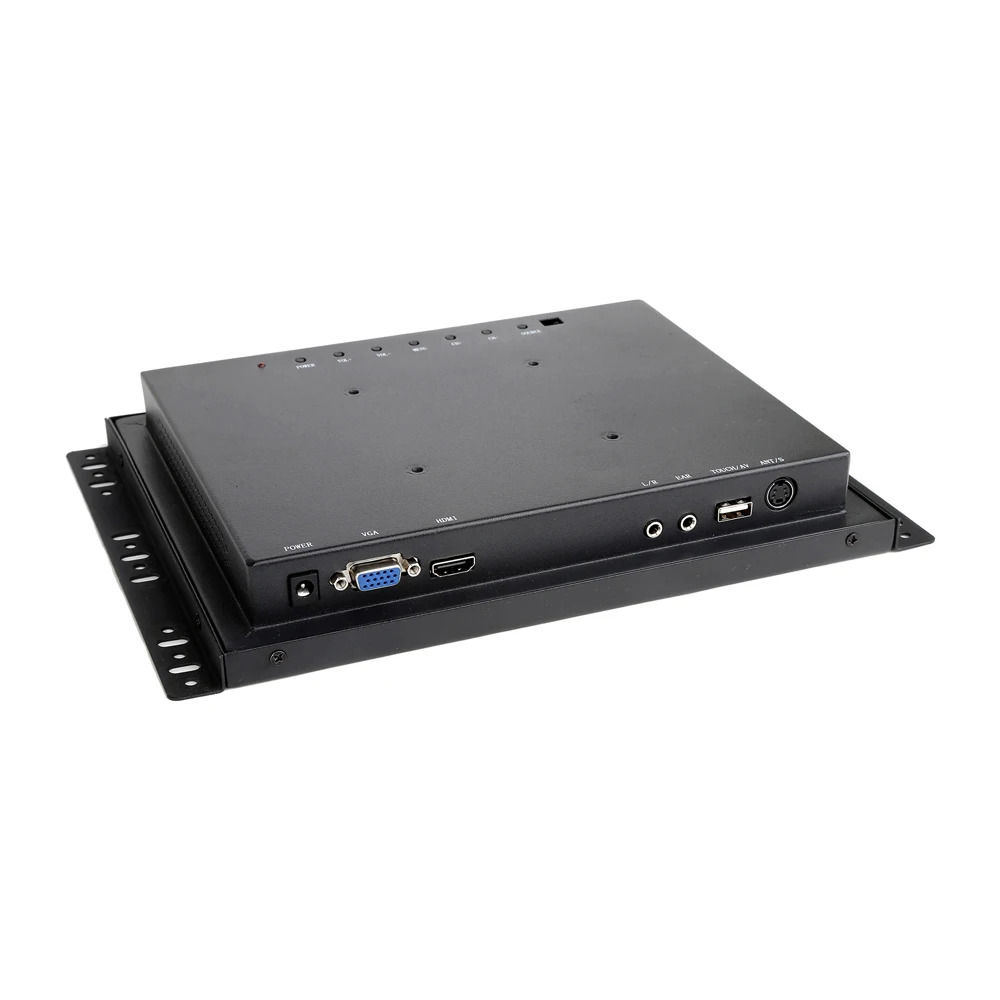

10 inch Open Frame Touch Screen Monitor With IP65 UHD Capacitive Touch Screen Monitor Display
- Category: >>>
- Supplier: Shenzhen BaoBao Industrial Co. Ltd.
Share on (10000009928183):
Product Overview
Description
10 inch Open Frame Touch Screen Monitor With IP65 UHD Capacitive Touch Screen Monitor Display
| Product Details | |
| Product name | 10 Inch Open Frame Touch Screen Monitor |
| Model No | ZL97TMBCAP-OF |
| LCD Panel | |

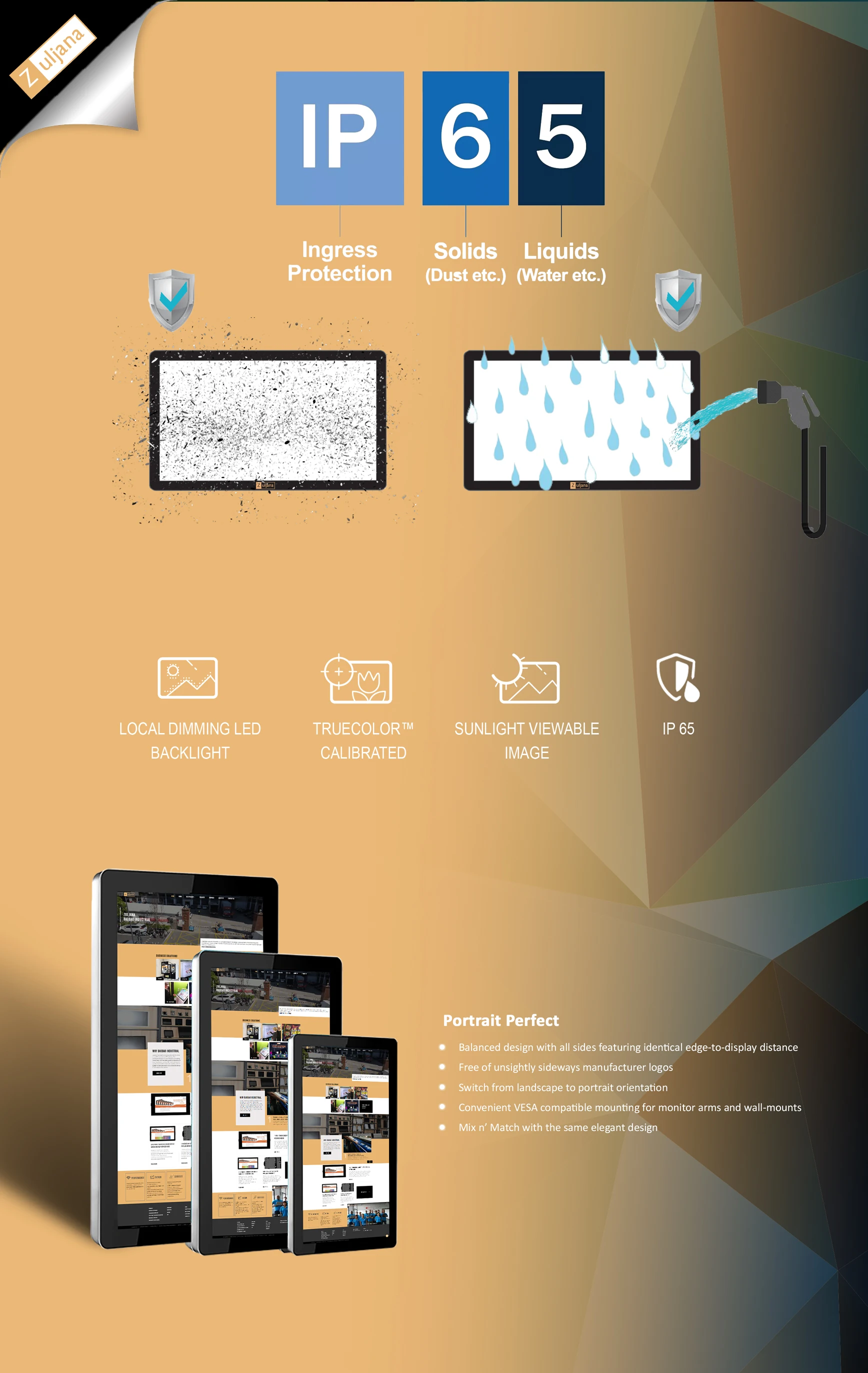

| IP Rating | IP65 Front / IP40 Back |
| Screen diagonal (Inch/cm) | 9.7/ 24.64 |
| Display active screen size (cm) | 19.65*14.80 |
| Aspect ratio | 4:3 |
| Physical resolution | 1024*768 |
| Maximum showable resolution | 1920×1080 |
| Colors displayed | 16.7M |
| Brightness (cd/m²) | 350 |
| Contrast | 800:1 |
| Typical reaction time Tr/ Tf (ms) | 15/15 (MS) |
| Visual Angle horizontal/vertical (°) | 170/170 |
| Backlight / Backlight Lifetime (hours) | LED / 20,000 |
| Touch Panel | |

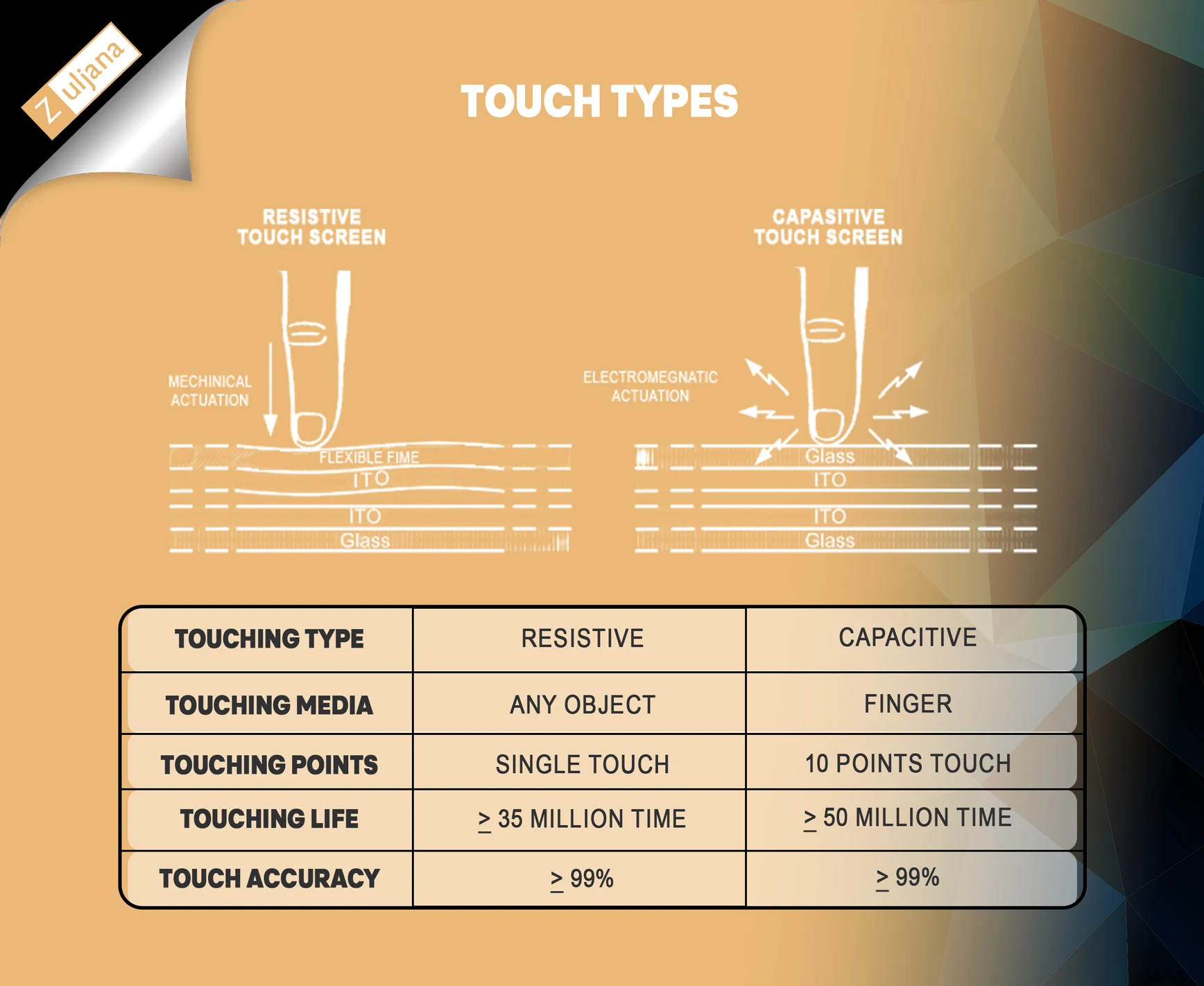

| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |

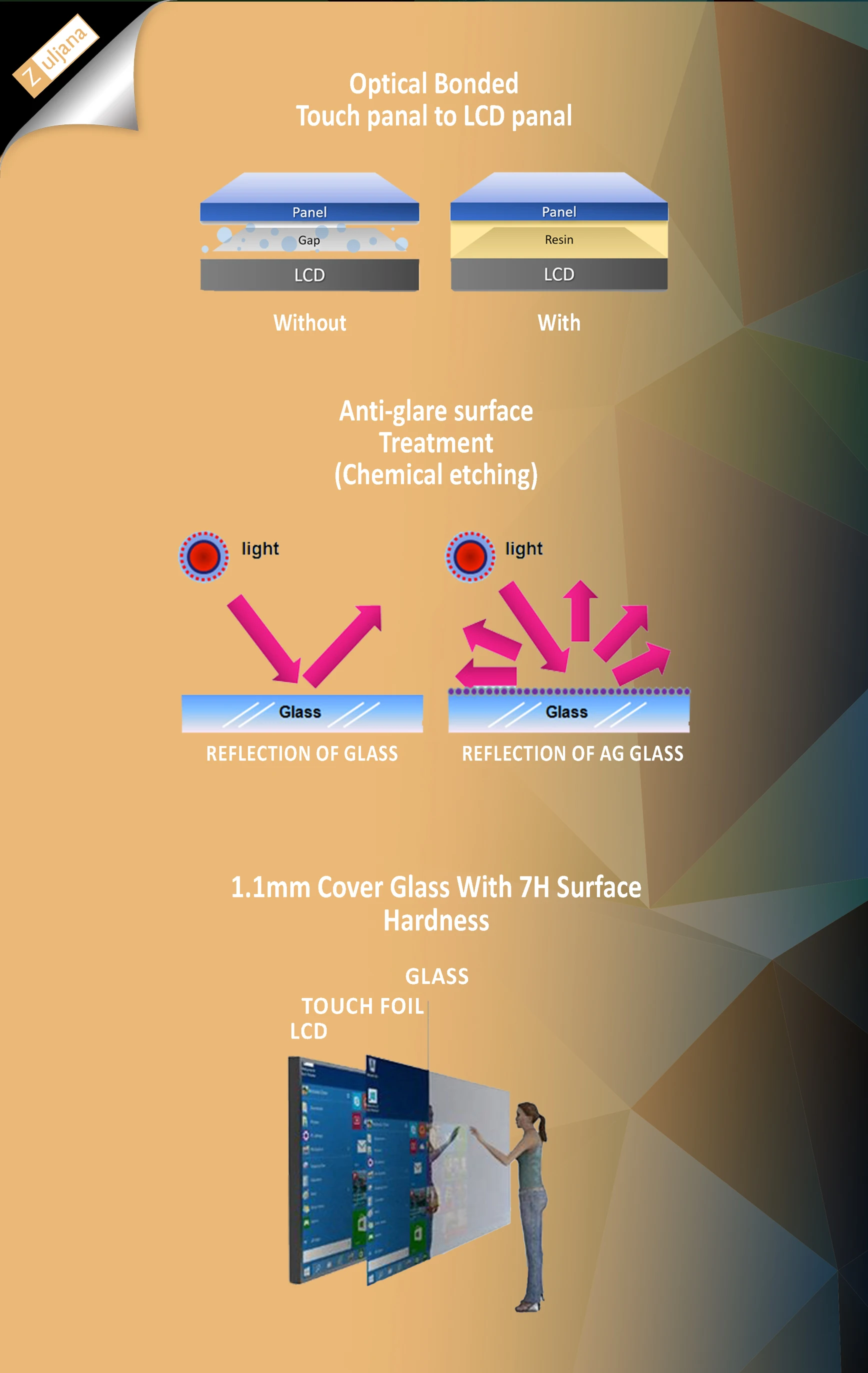

| Surface Treatment | Anti-glare (Optional) |
| Operation/Mechanical | |
| Operating Temperature (°C) | -10 ~ +60 |
| Humidity Range (RH) | 10% – 90% |
| Net weight (kg) | 0.90 kg |
| Gross weight (kg) | 2.2 (incl. cartonnage) |
| Housing material | Aluminum Front/back case |
| Housing (cm) L × W × H | 244.9*195.8* 3.90 |
| Mounting | VESA 75 |
| Power | |
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC active switching; 12V DC-Out |
| Working Power (V) | 12 |
| Power Consumption (W) | 8 |
| Stand-By Consumption (W) | <1 |
| Included in the Delivery | |
| Power Supply | |
| Short Installation Manual | |
| W-LAN Antenna (RP-SMA female) | |
| Standard Stand | |
