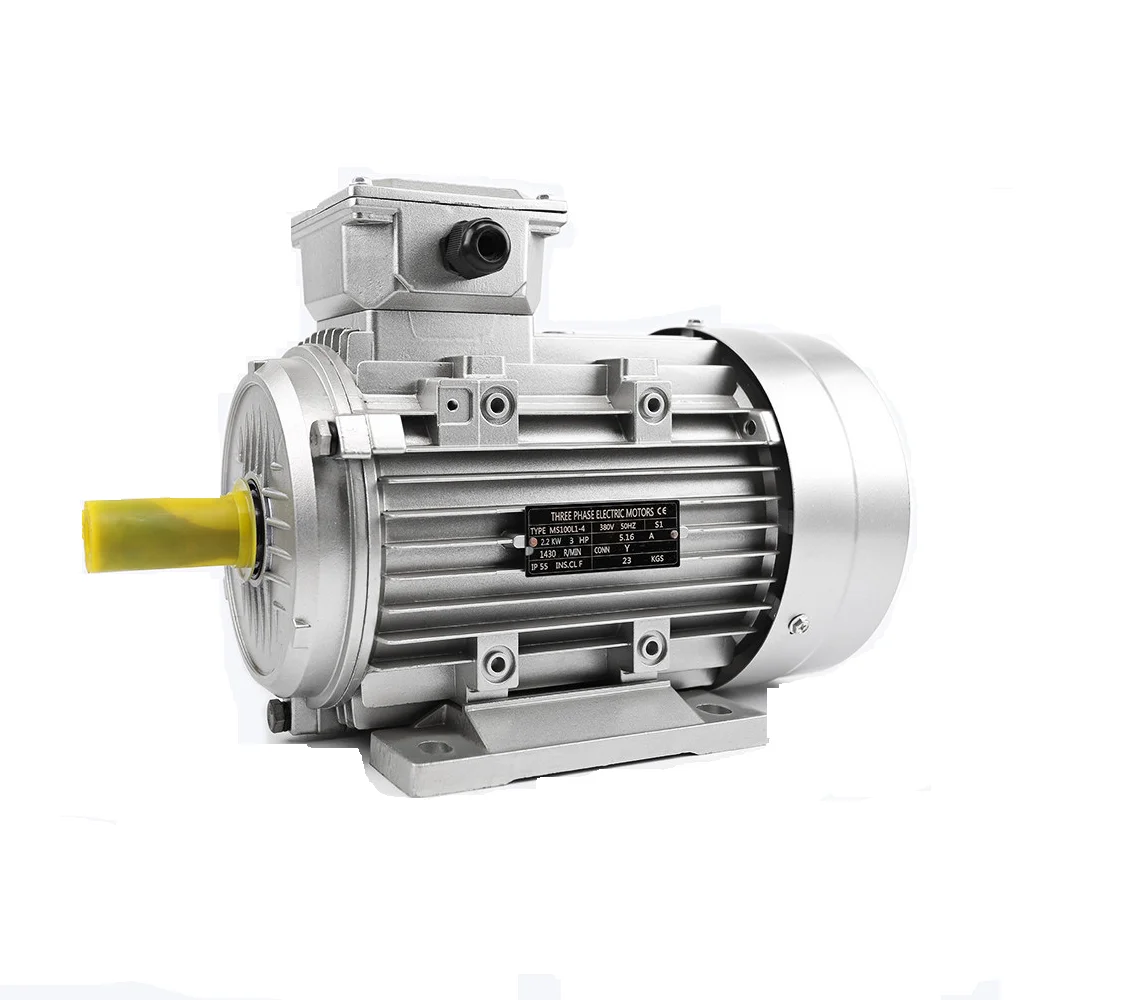

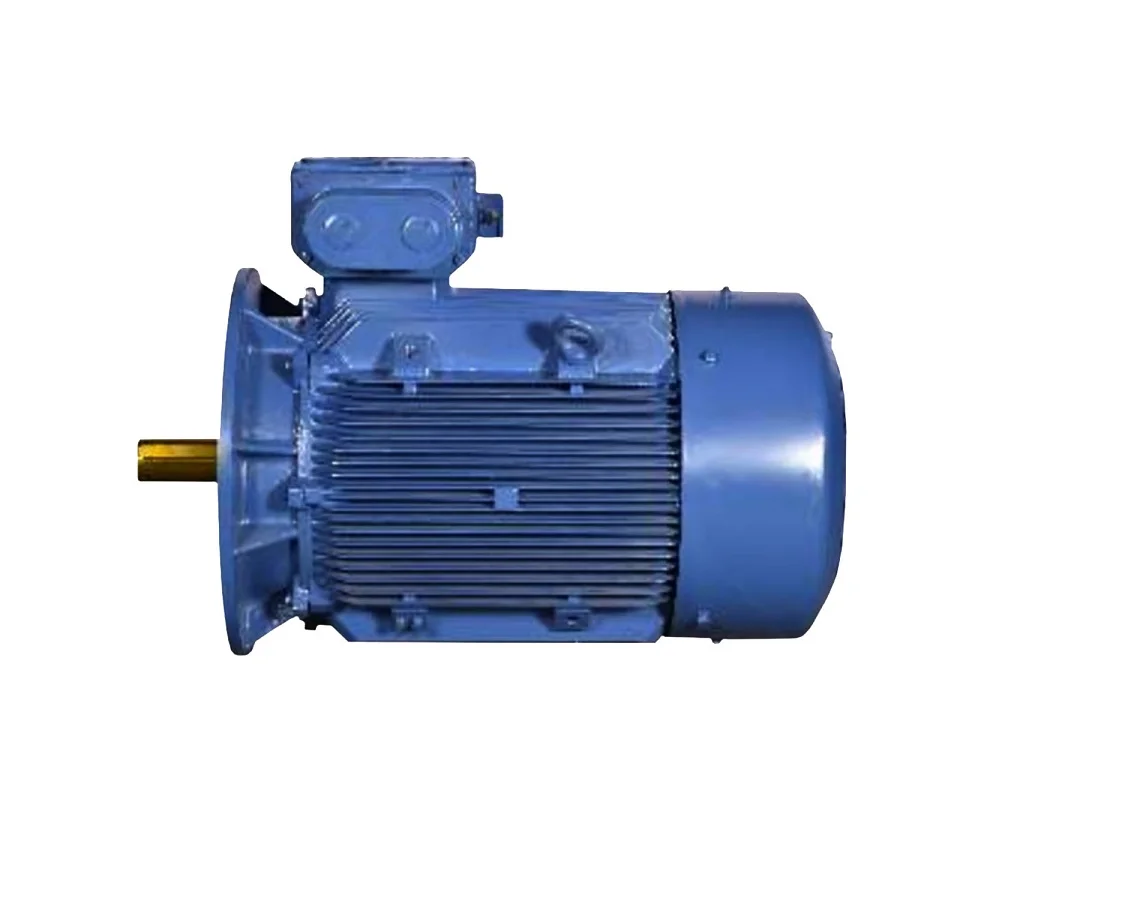

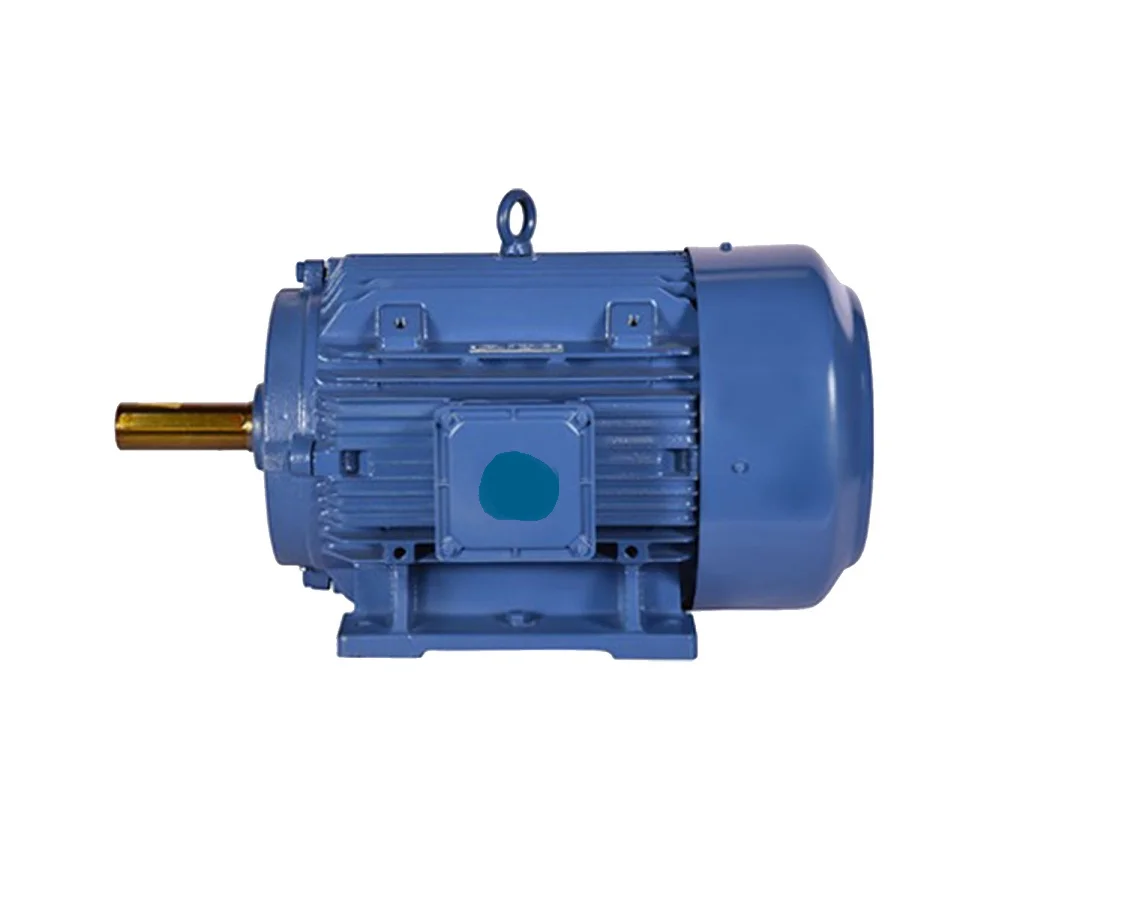

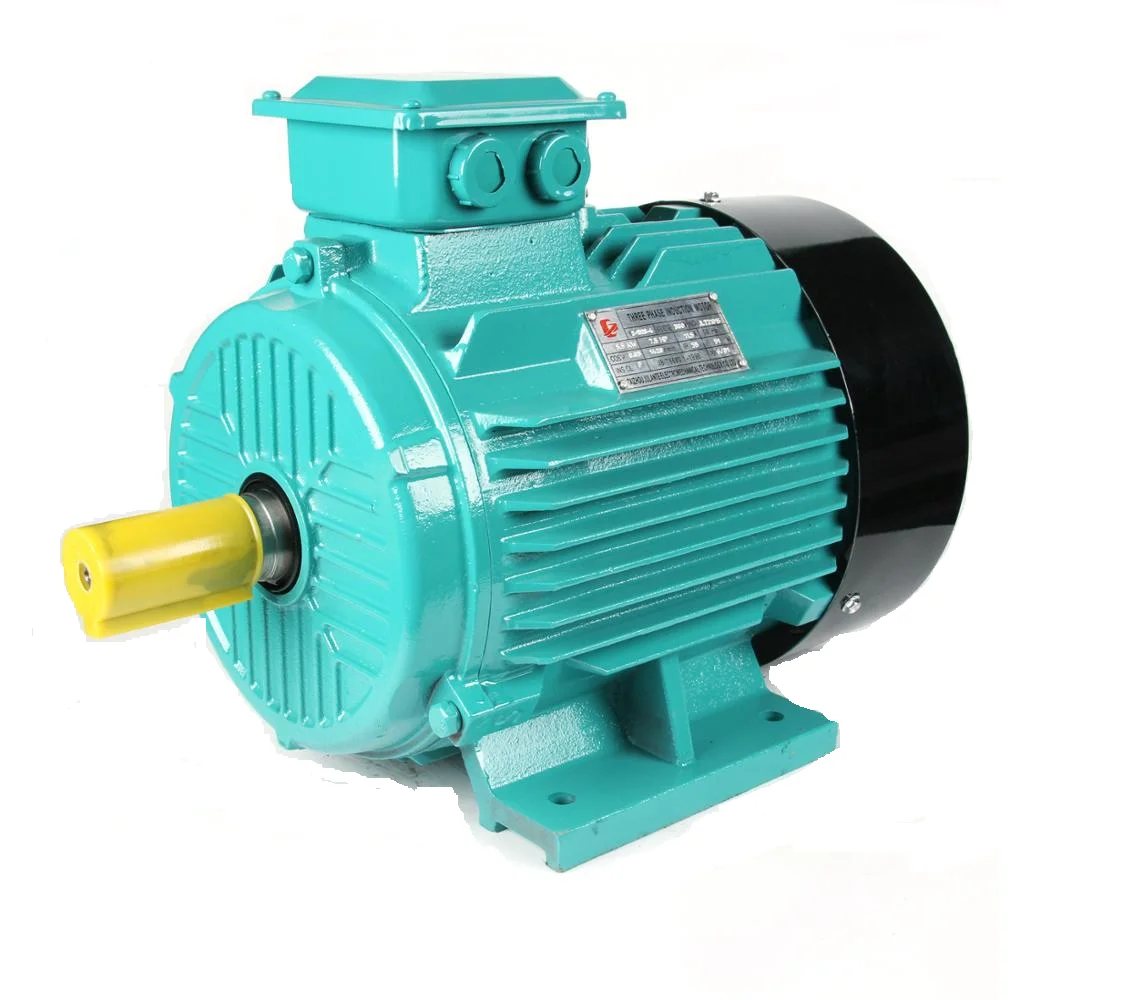

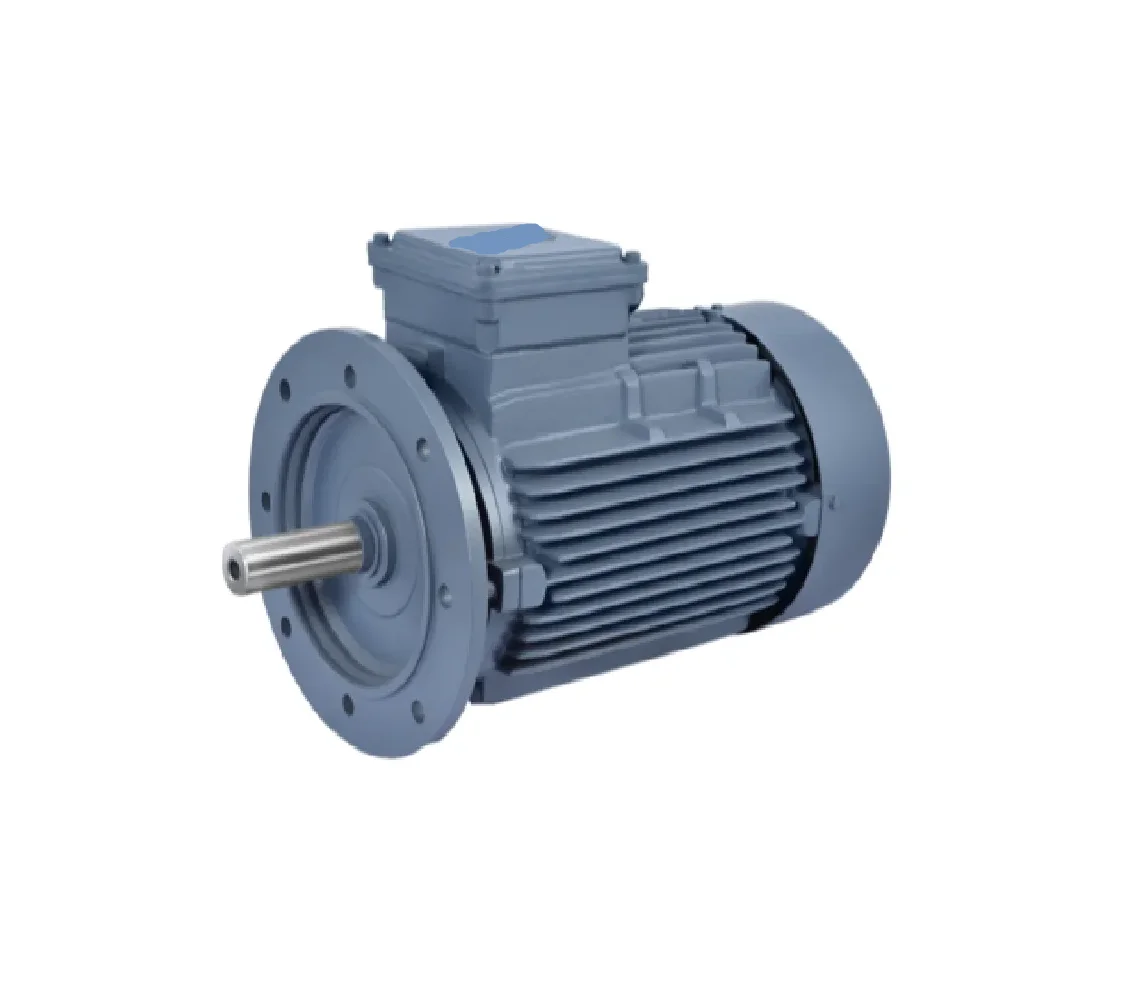

High Performing 415V 3HP 1440RPM Three Phase Squirrel Cage Induction Motor For Dairy Equipment
- Category: >>>
- Supplier: C-WAY EXPORTS
Share on (10000009930257):
Product Overview
Description
SPECIFICATION
Item | value |
Warranty | 2 year |
Place of Origin | India |
Province | Telangana |
Brand Name | C-Way |
Model Number | N/A |
Product name | IE2 Motor |
Type | Three Phase Squirrel-Cage Induction Motor |
Application | Textile Machine |
Usage | Industrial |
Speed | 1400 RPM |
Phase | Three Phase |
Frequency | 50HZ-60HZ |
Output Power | 2.2 Kw |
Feature | High Efficiency |
Service | Customized OEM |
Frame | 71 – 355 dimension |
Mountings | Foot, flange and foot-cum-flange (B3, B5, B35, B14 up to 132 Frame) |
Output | 0.37kW to 315 kW |
Insulation | Class ‘F’, Class ‘H |
Temperature rise | 50°C/70°C |
Enclosure | TEFC |
Degree of protection | IP55, IP56, IP65, IP66 |
Construction | Flameproof/ Safe area, Aluminium, Cast Iron |
PRODUCT DESCRIPTION
Product Description:
C-Way Engineering Exports provide high-performance, energy efficient and total reliable for long life Motors. Our motors are designed to fulfill all the diverse requirements of different Industries, domestic and commercial uses. We supply all types of motors with their complete range such as Brake motors, cooling tower motor-standard & flameproof, crane duty motors, High efficiency standard motors, Inverter duty motors, Multi speed motors, Roller table motors, special application motors, Textile motors, torque motors, Multi speed flameproof motors for gas groups IIA & IIB AS PER IS/IEC 60079. Our Motors are suited for all applications such as Pumps, Compressors, Fans & Blowers, Conveyors, Lifts, Screen, Vibrators, Centrifuges, Stone Crusher and many more. With ease of installation and low cost power transmission units that drive a multitude of machine applications.Premium Energy Efficiency industrial motors are manufactured according to the International Standard IEC 60034-30 and IS12615:2011.IE1/IE2/IE3/IE4 premium efficiency motors are best suited for process industries where quality, robustness and reliability are paramount They are ideal for OEMs to build into pumps and fans, as well as for other applications including gearboxes, conveyors and general machinery.Features:
* Efficiency IE3/ IE2 levels as per IS 12615.
* Large top terminal box for easy cable entry, its direction can be rotated in steps of 90°.
* Vacuum impregnated windings for reliable insulation.
* Motors upto 225 frames are provided with shielded ball bearing with external greasing arrangement from frame 160 & above making it convenient in case bearings are replaced by non-shielded bearings.
* Compact design and good aesthetics.
* Rugged CI construction.
* Motor Material:
Frame: Cast Iron
Terminal Box: Generously dimensioned, Rotatable through 360 degree in steps of 90 degree on the Top as a standard.
Fan Cowl: Sheet Steel
Fan: Thermoplastic (Cast Iron for 2P in Frames 250 and above)
Applications:
* Pharma, Bakery, Food Industry Dairy Equipment Sugarcane Crusher
* Plastic and Chemical Industry
* Diamond Industry Floor Polishers
* Cooling tower, Turbine blower and Compressors
* Construction Equipment and Wet Grinders
* Loom and Textile
* Car Elevators and Elevators
* Machine tools
* Vacuum Pump
* Printing Presses and Hydraulic Press
* Fogging machines
* Efficiency IE3/ IE2 levels as per IS 12615.
* Large top terminal box for easy cable entry, its direction can be rotated in steps of 90°.
* Vacuum impregnated windings for reliable insulation.
* Motors upto 225 frames are provided with shielded ball bearing with external greasing arrangement from frame 160 & above making it convenient in case bearings are replaced by non-shielded bearings.
* Compact design and good aesthetics.
* Rugged CI construction.
* Motor Material:
Frame: Cast Iron
Terminal Box: Generously dimensioned, Rotatable through 360 degree in steps of 90 degree on the Top as a standard.
Fan Cowl: Sheet Steel
Fan: Thermoplastic (Cast Iron for 2P in Frames 250 and above)
Applications:
* Pharma, Bakery, Food Industry Dairy Equipment Sugarcane Crusher
* Plastic and Chemical Industry
* Diamond Industry Floor Polishers
* Cooling tower, Turbine blower and Compressors
* Construction Equipment and Wet Grinders
* Loom and Textile
* Car Elevators and Elevators
* Machine tools
* Vacuum Pump
* Printing Presses and Hydraulic Press
* Fogging machines
• Electric Lawn Mower, Floor Scrubber Machine and High Pressure Car Washer
