FNIRSI 1014D Digital Oscilloscope 2 In 1 Dual Channel Input Signal Generator 100MHz* 2 Ana log Bandwidth 1GSa/s Sampling Rate
- Category: >>>
- Supplier: Shenzhen Hawinbon Technology Co. Ltd.
Share on (10000009955708):
Product Overview
Description

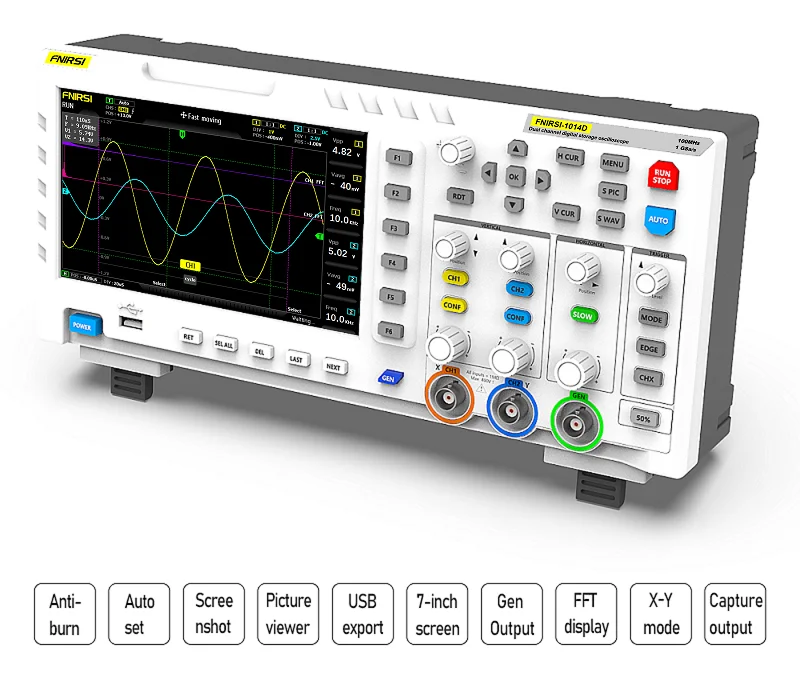

FNIRSI 1014D Real Time sample rate 100MHz 2Channels 1GSa/s USB host and device connectivity 7 Inch Digital Oscilloscope
Key features:

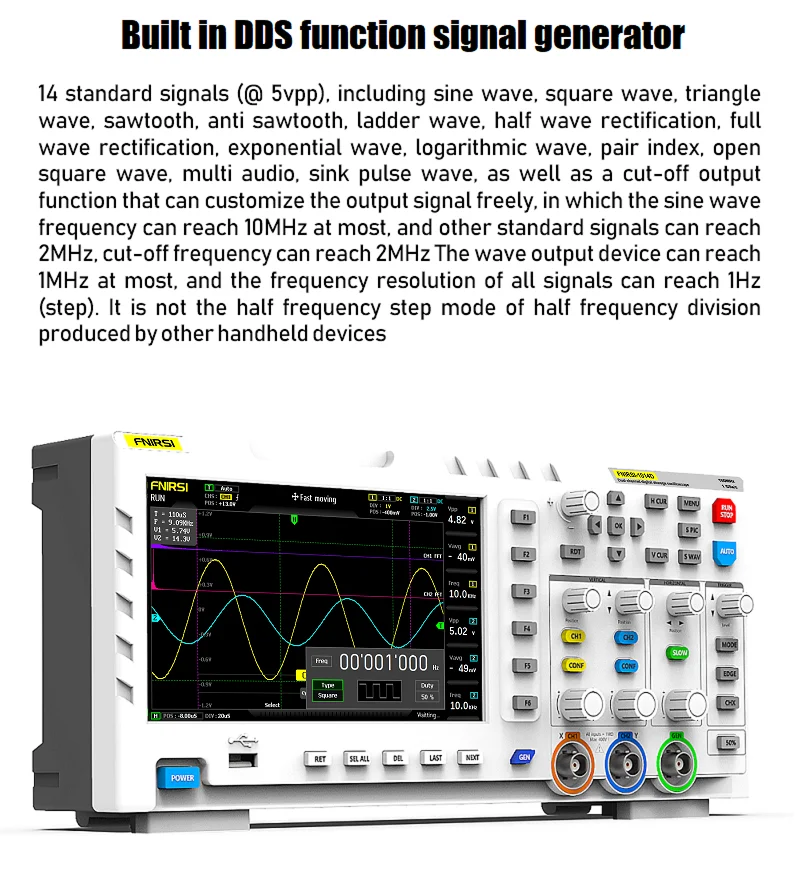

1:Built in DDS signal generator, support 12 kinds of function signal

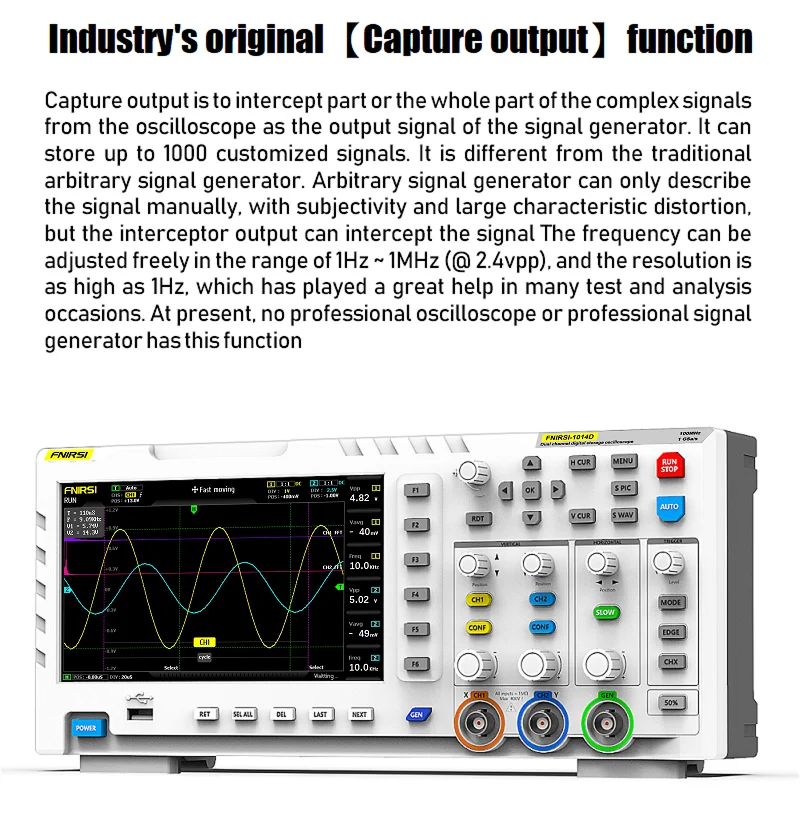

2:Industry's original [Capture output signal]function,can store up to 1000 capture signals

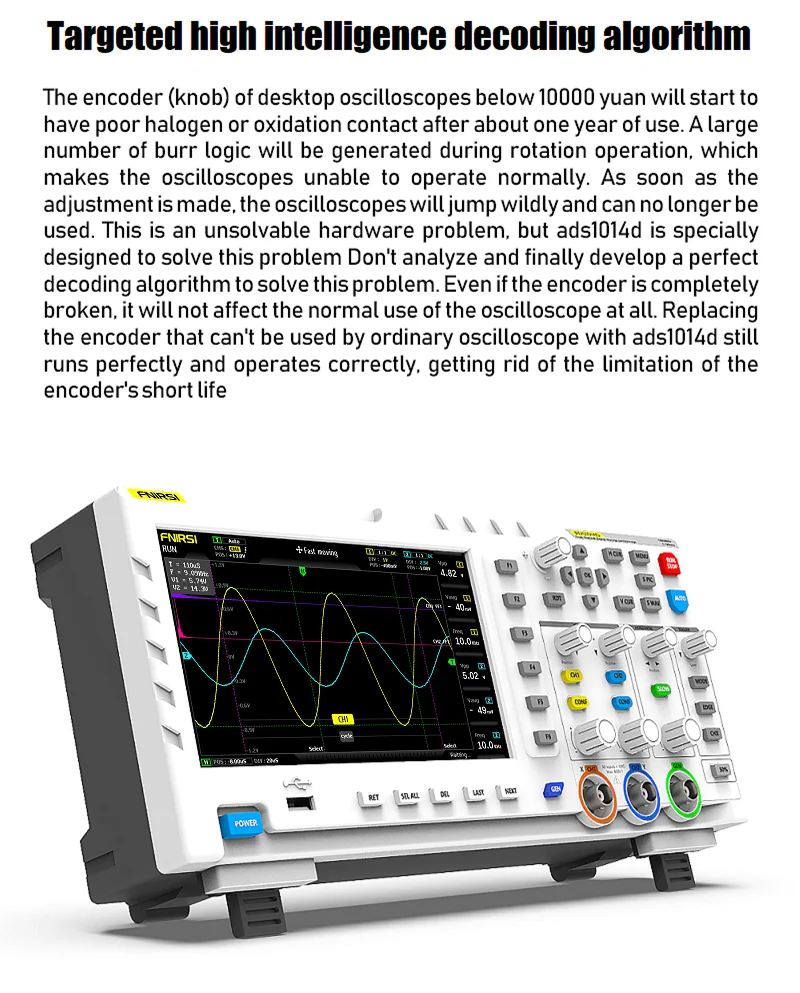

3:Targeted high intelligent decoding algorithm, the encoder life is infinite

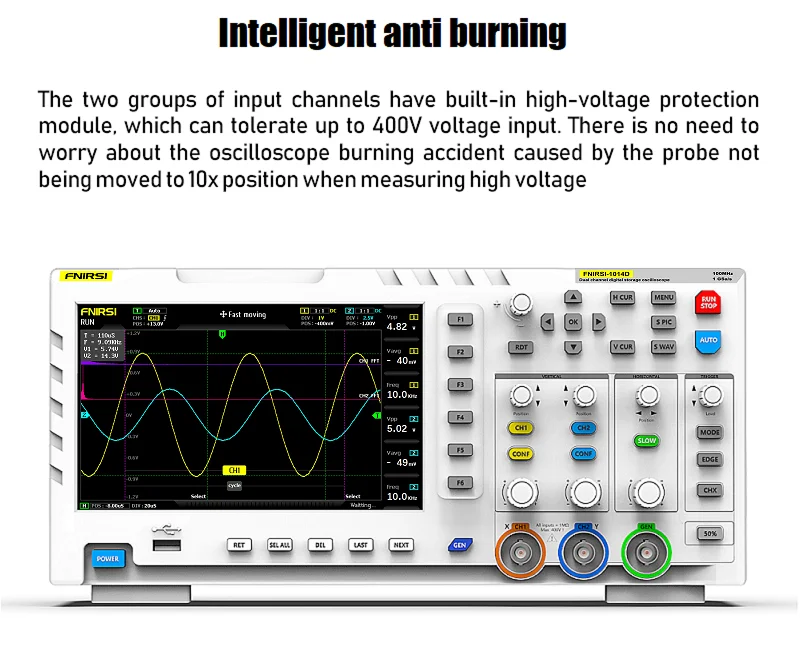

4:Intelligent anti-burn,1X Can withstand up to 400V withstand voltage
4:Intelligent anti-burn,1X Can withstand up to 400V withstand voltage
5:100MHz analog bandwidth @ 1GSa/s sampling rate(1X =5MHz,10X = 100MHz)
6:Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast
6:Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast
7:High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 0 ~ 400V,100X can measure 0 ~ 4000V
8:Up to 12 parameters measurement:VPP,VP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Period
9:Cursor measurement function, it is convenient to manually measure the period and frequency and voltage
10:Complete triggering function (single, normal, automatic)
11:At any time, the waveform display (pause function) is frozen
12:Equipped with high efficiency One-button AUTO

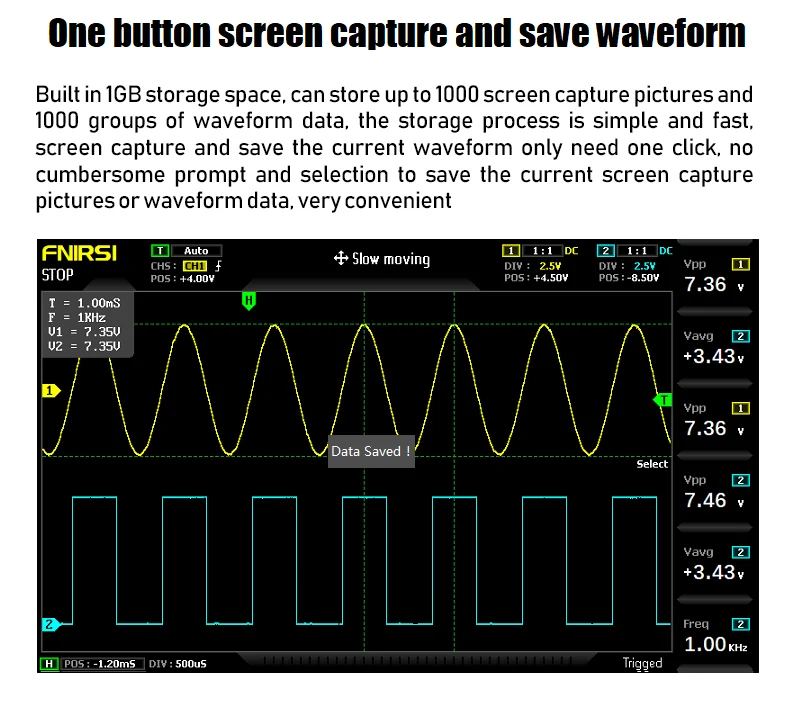

13:One-button waveform storage and screenshot
14:Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data

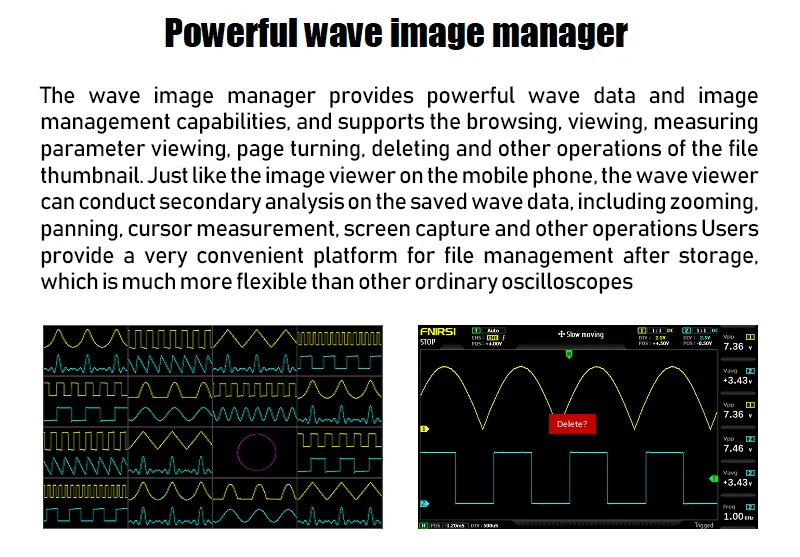

15:Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.

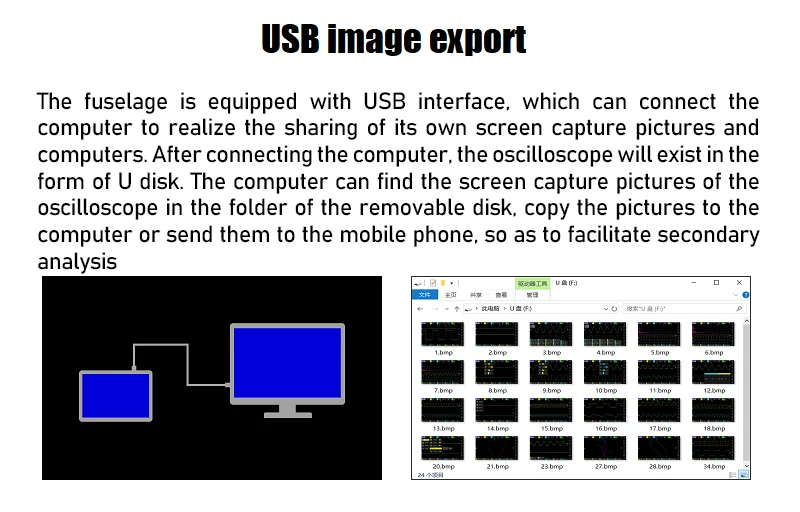

16:Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis
17:Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals
18:FFT display function, can analyze the spectral characteristics of the signal
19:Memory compression technology, waveform refresh screen does not flicker
20:Screen brightness adjustment
21:Background grid brightness adjustment 22:Ultra thin, easy to carry
21:Background grid brightness adjustment 22:Ultra thin, easy to carry

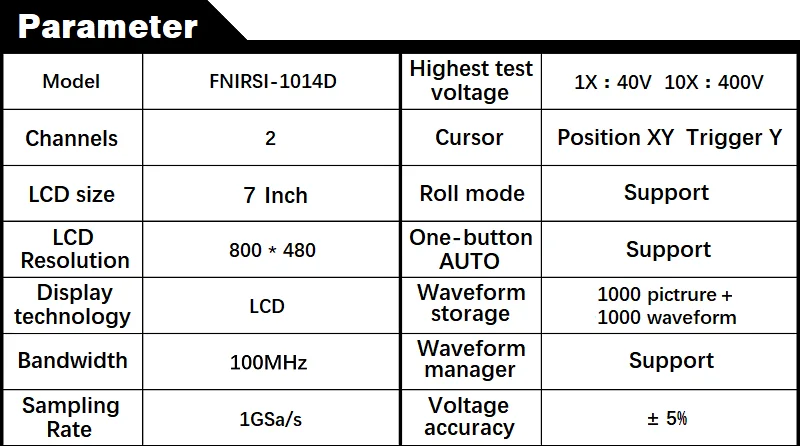

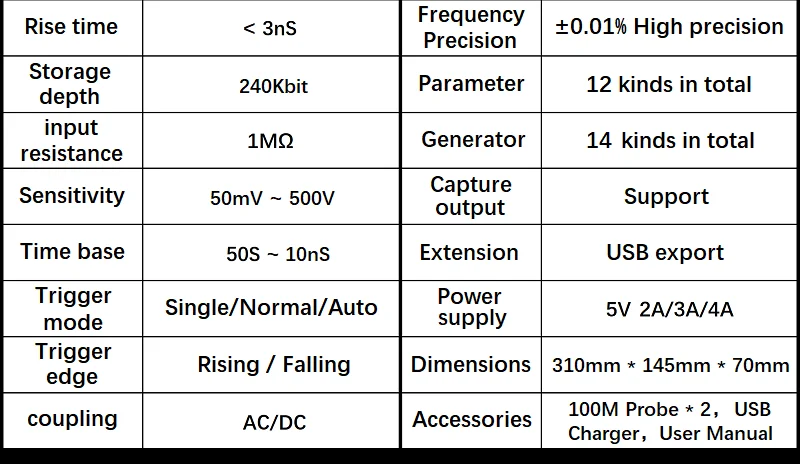

Analog band width | 100MHz * 2 |
Number of channels | 2 channels |
Maximum real time sampling rate | 1GSa/s |
Vertical sensitivity | 50 mV/div ~ 500 V/div |
Horizontal time base range | 50S/div ~ 10nS/div |
Maximum test voltage | 40 V (1X probe), 400 V (10X probe) |
Storage depth | 240Kbit |
Input resistance | 1MΩ |
Input resistance | 8bits |
Coupling mode | AC/DC |
Trigger mode | Single, Normal, Auto |
Trigger edge | Trigger edge |
External trigger voltage | 0 – 40 V |
Display | 7 inch - 800*480 |
Extension ports | USB picture export |
Size | 340mm x 140mm x 70mm |
Body weight | 1.5kg |

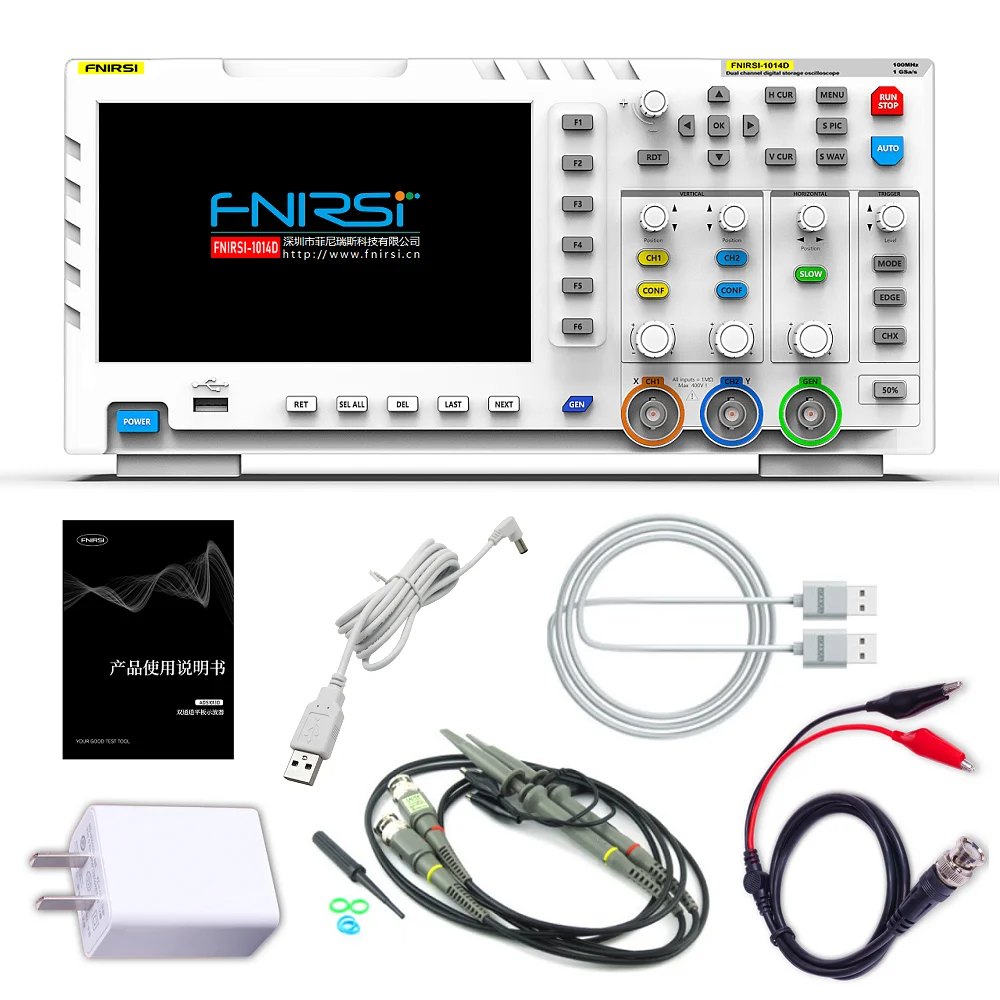

quantity | |
1x | FNIRSI-1014D oscilloscope host |
2x | Matching 100MHz probe(1X and 10X) |
1x | Crocodile clip |
1x | 5V2A Power Adapter |
1x | USB data line |
1x | User manual (English) |
FNIRSI 1014D Real Time sample rate 100MHz 2Channels 1GSa/s USB host and device connectivity 7 Inch Digital Oscilloscoe
FNIRSI 1014D Real Time sample rate 100MHz 2Channels 1GSa/s USB host and device connectivity 7 Inch Digital Oscilloscoe
FNIRSI 1014D Real Time sample rate 100MHz 2Channels 1GSa/s USB host and device connectivity 7 Inch Digital Oscilloscoe
