AlcoPatrol OEM TrafficPolice Law enforcement interlock breathalyzer with printer breath alcohol tester factory design

1. product description:

Law Enforcement Alcohol Tester  with Electrochemical / Fuel Cell Sensor

2. Built in thermal printer:

Heat transfer printer

3. Display:

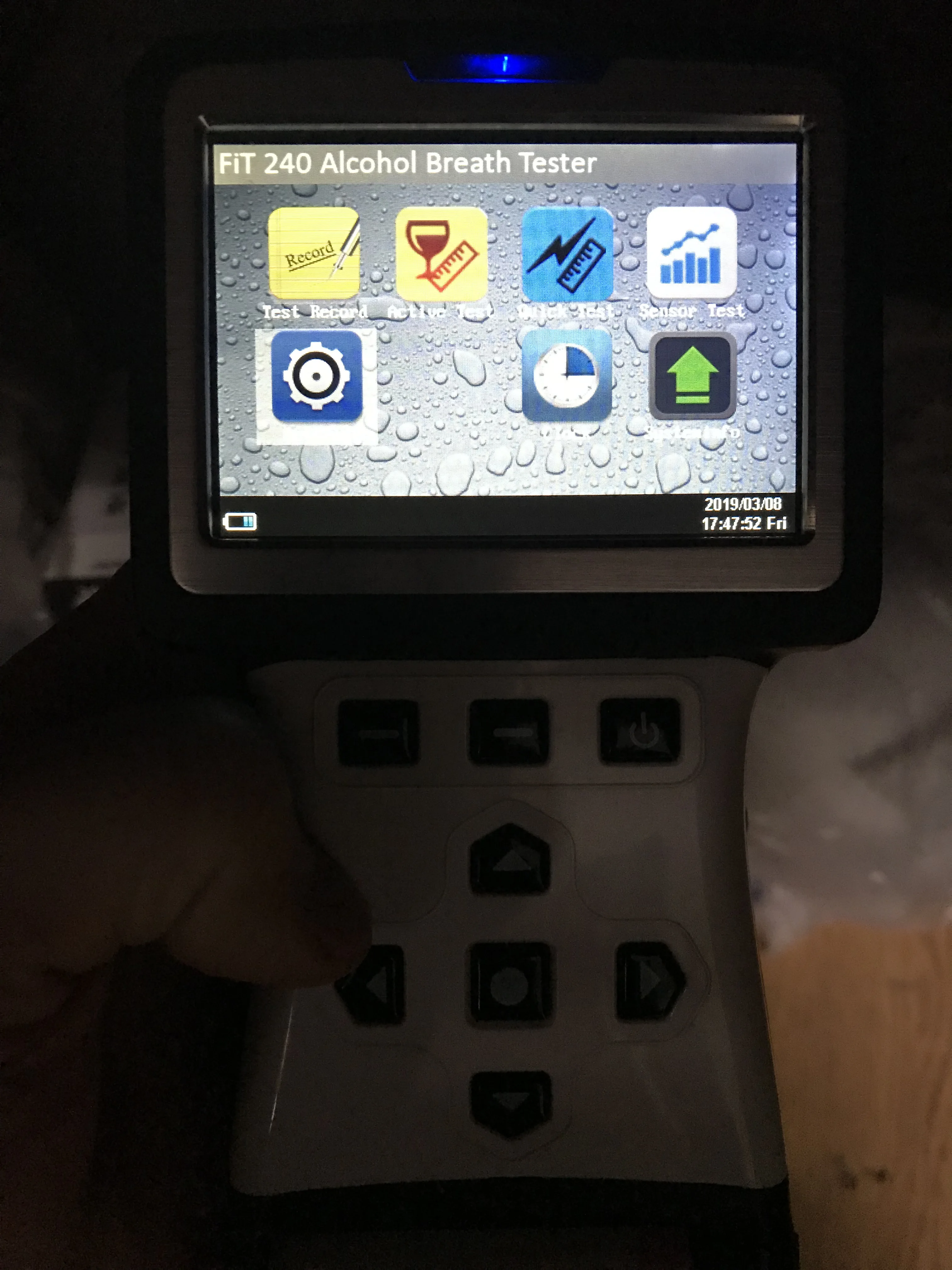

iPS Big 3.5" (320*480) touch screen LCD with graphic waveform animation

4. Navigating key input:

Navigating key input with Touch Panel

5. Quick and precise analysis:

Ensure a high sensitivity to alcohol and stable & reliable working life.

6. Easy to read:

Waveform graphic display

7. Data download:

PC down via USB port.

8. Mouthpiece:

Easy to replace a new mouthpiece by pressing a key, very convenient and hygiene.

9. Power Supply:

Rechargeable 7.4V Li-ion battery

10.Heat warm up:

Chamber & Sensor warm up automatically

11.Auto flow monitoring:

Flow detect automatically

12. Unit setting:

mg/L,mg/100mL,%BAC,‰BAC

13. Display range:

0~0.4% BAC or 0~4.0‰BAC or 0~2.0mg/l

14. Long TermStorage condition:

Temperature: 0 Degree C to +55 Degree C..

Humidity:  30to 90% RH

15. Operating Temperature:

From -20°C to +45°C, ( 5°C to +40 °C for optimum operation)

16. Memories:

Min. 50,000 memories with full information:- Drive name, vehicle no., inspector name, test result with time stamp, date and time, location, instrument no., Calibration date, test no. etc…

17. Measurement precision:

Standard deviation +/–0.025 mg/L or +/–5 % of the measurement
Drift: typically < 0.8 % of the measurement value/month

18. Alert level setting:

Set “drunk driving” and “driving while intoxicated” by a supervisor password.

19. Data management software:

Can export the files as Microsoft Excel documents directly.

20. Advanced self-calibration:

Manually parameters adjust available

21. Standard:

Certified GB/T 21254-2007; CE;  Comply with S&E, AS, NF, DOT, OIML126
