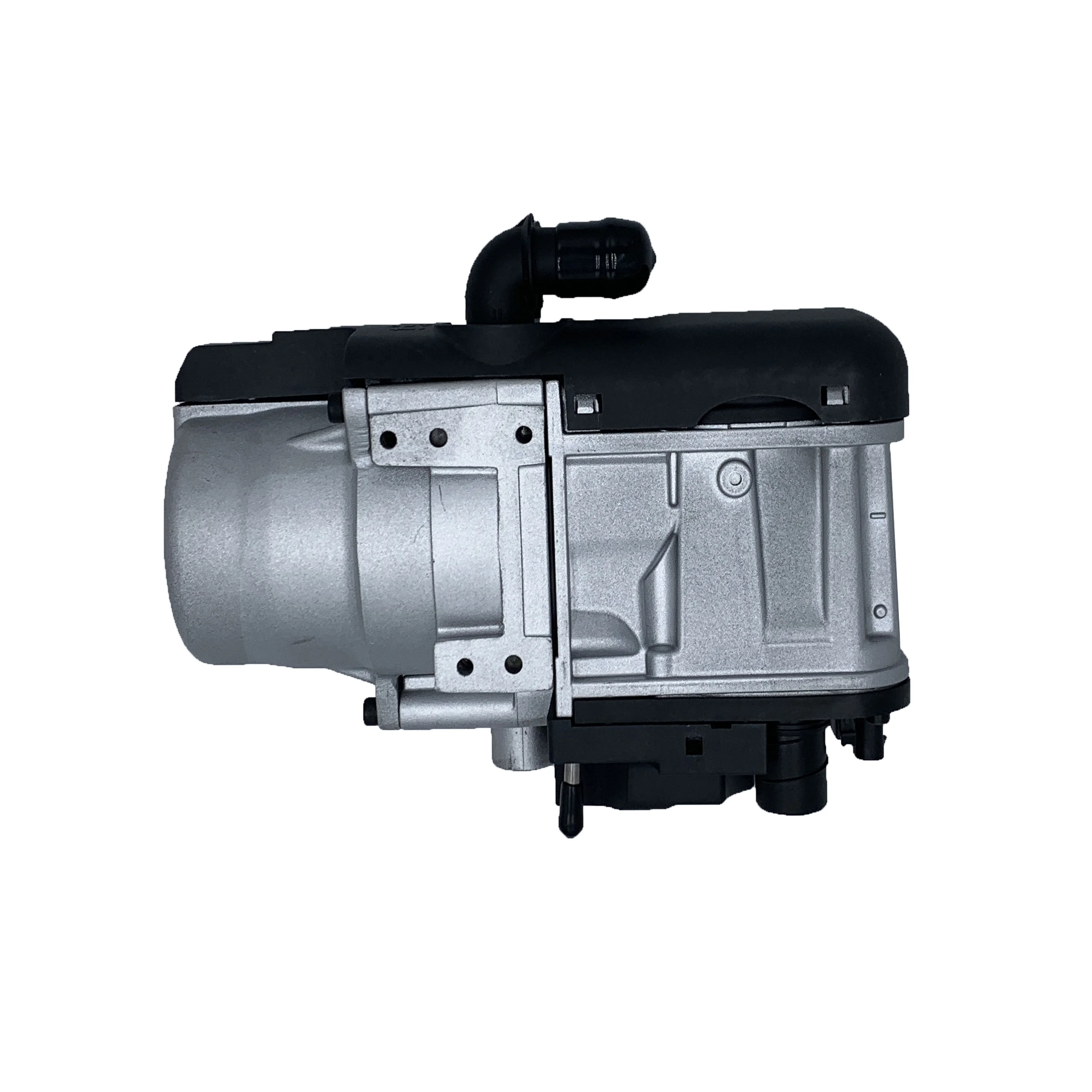

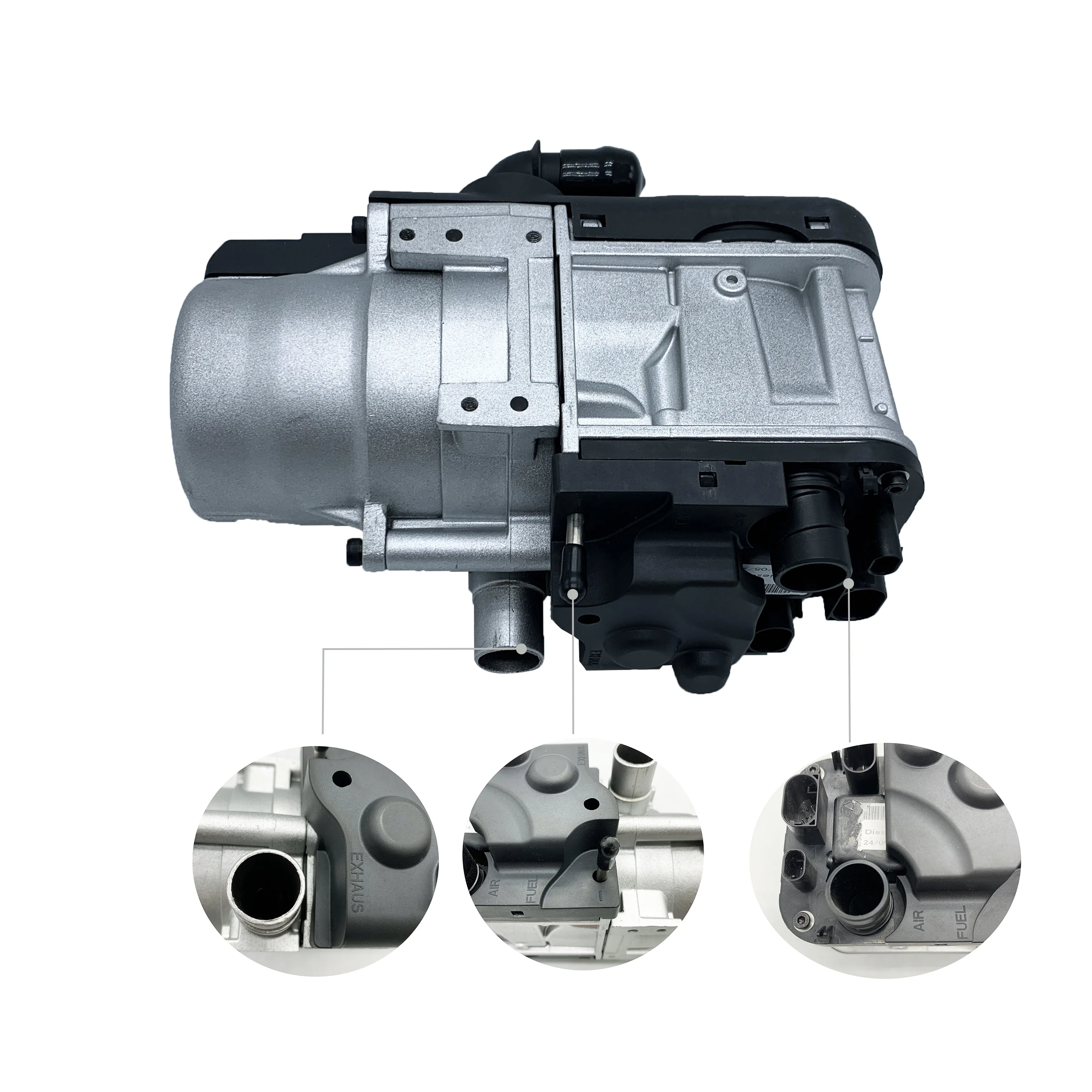

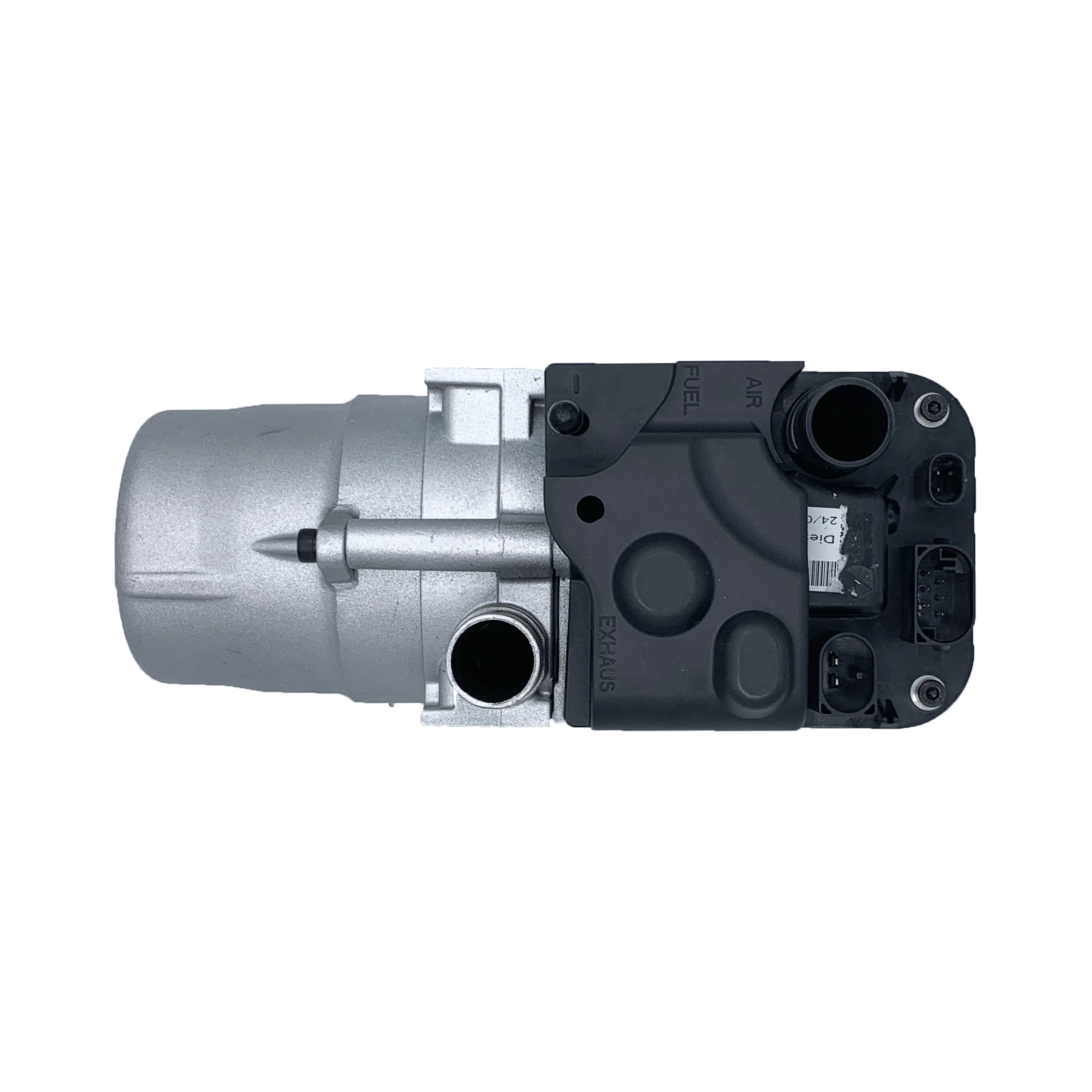

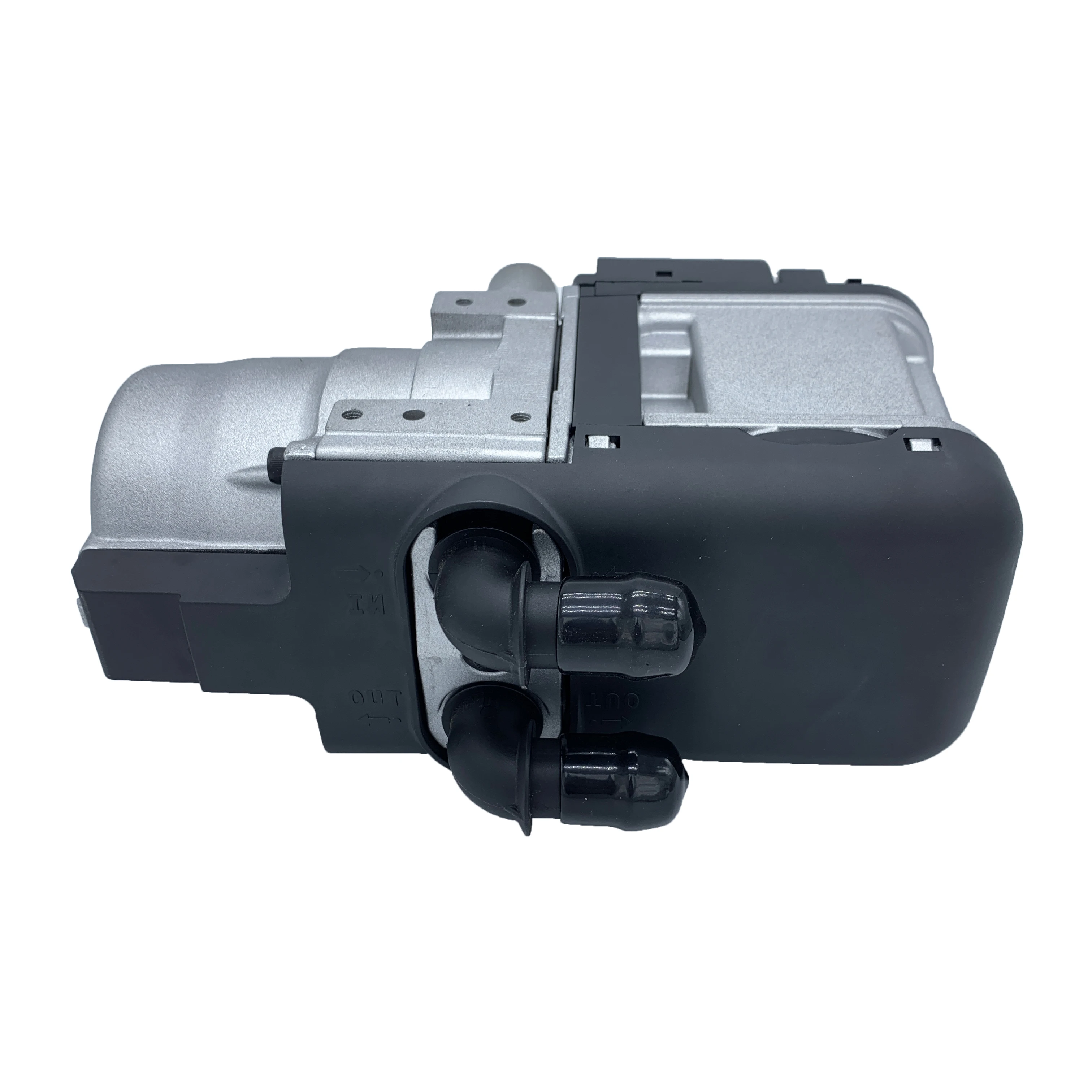

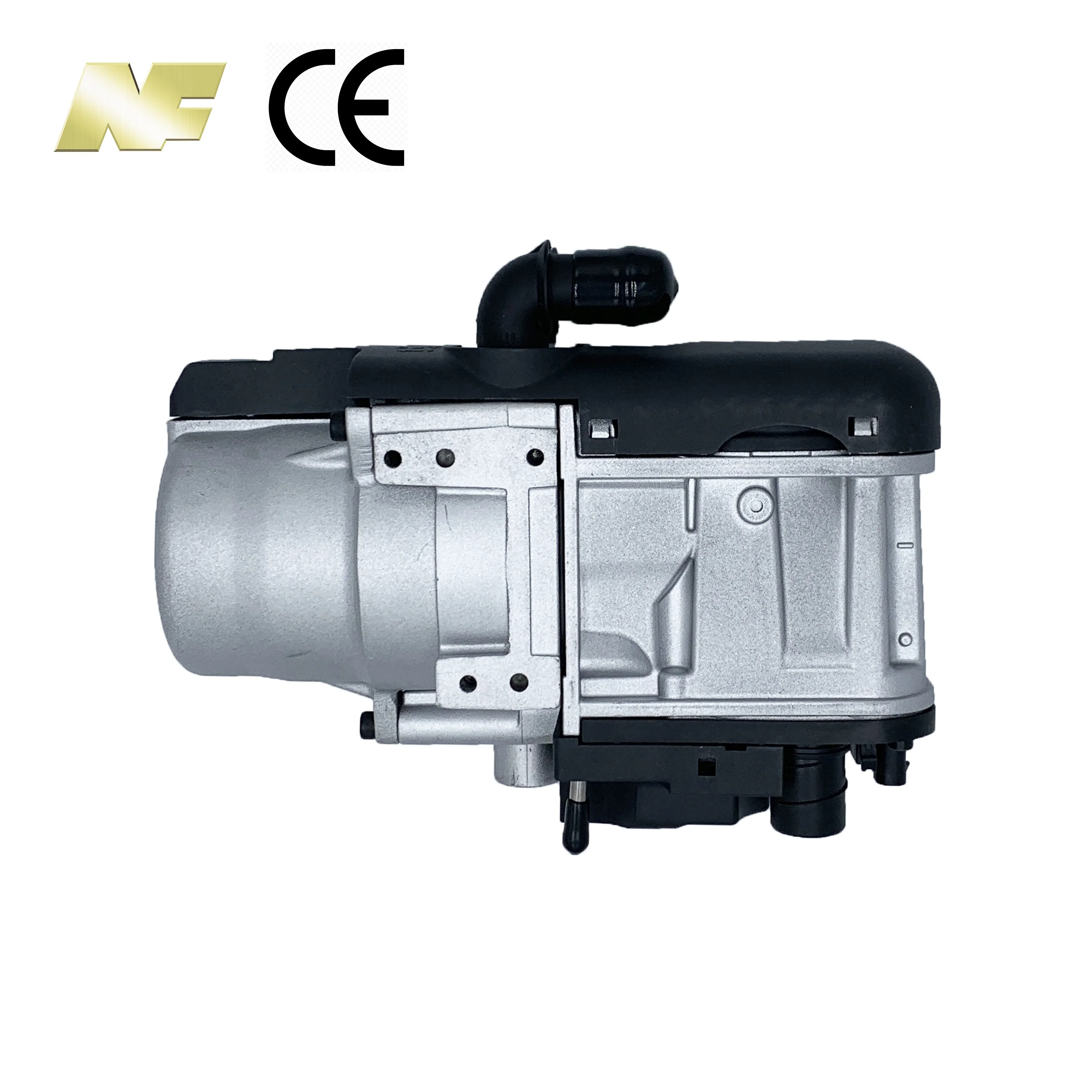

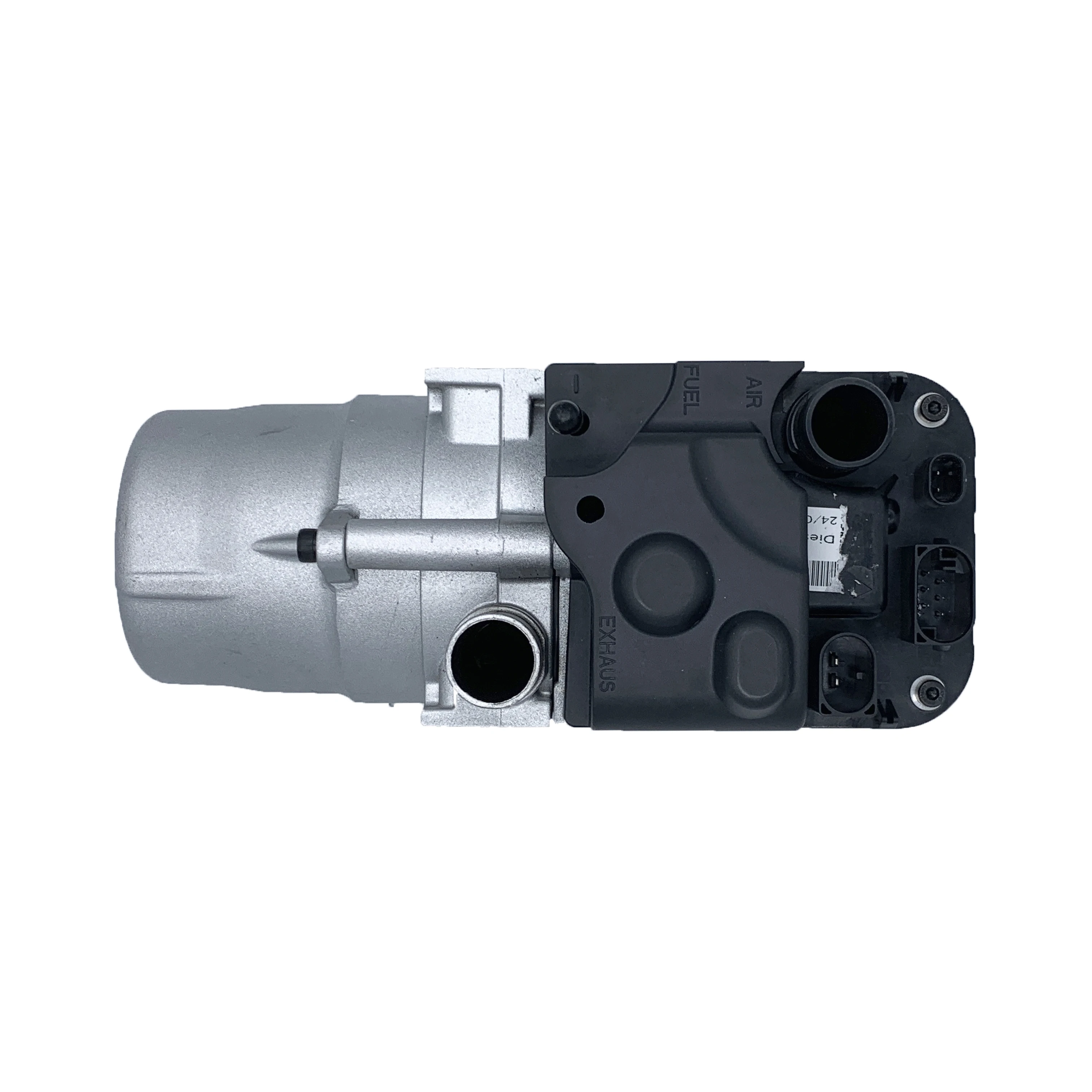

NF 5kw 12v diesel water heater caravan diesel water heater best quality 12v diesel water heater similar to Webasto
- Category: >>>
- Supplier: Beijing Golden Nanfeng International Trading Co. Ltd.
Share on (10000010011360):

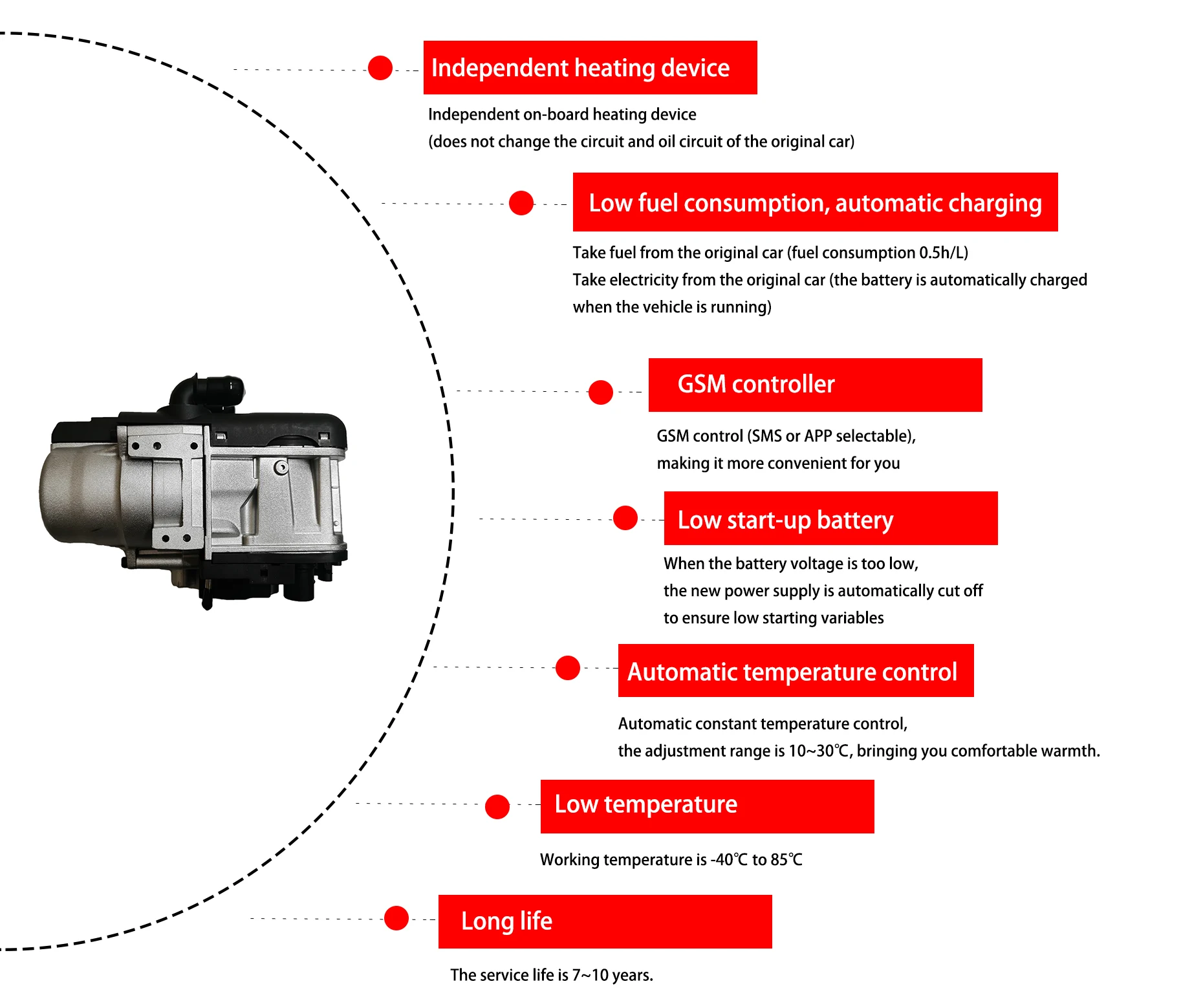

Product Overview
Description
Product Description
1.Output power: 5.0KW
2.Fuel consumption: 0.42L/h.
3.Temperature range: -40℃- 80℃.
4.Voltage: 12V
5.Application Scope: Various vehicles with gasoline and diesel as the fuel.
2.Fuel consumption: 0.42L/h.
3.Temperature range: -40℃- 80℃.
4.Voltage: 12V
5.Application Scope: Various vehicles with gasoline and diesel as the fuel.
Heater | Run | Hydronic Evo V5 - B | Hydronic Evo V5 - D | |
Structure type | Water parking heater with evaporative burner | |||
Heat flow | Full load Half load | 5.0 kW 2.8 kW | 5.0 kW 2.5 kW | |
Fuel | Gasoline | Diesel | ||
Fuel consumption +/- 10% | Full load Half load | 0.71l/h 0.40l/h | 0.65l/h 0.32l/h | |
Rated voltage | 12 V | |||
Operating voltage range | 10.5 ~ 16.5 V | |||
Rated power consumption without circulating pump +/- 10% (without car fan) | 33 W 15 W | 33 W 12 W | ||
Allowable ambient temperature: Heater: -Run -Storage Oil pump: -Run -Storage | -40 ~ +60 °C -40 ~ +120 °C -40 ~ +20 °C -40 ~ +10 °C -40 ~ +90 °C | -40 ~ +80 °C -40 ~+120 °C -40 ~+30 °C -40 ~ +90 °C | ||
Allowed work overpressure | 2.5 bar | |||
Filling capacity of heat exchanger | 0.07l | |||
Minimum amount of coolant circulation circuit | 2.0 + 0.5 l | |||
Minimum volume flow of heater | 200 l/h | |||
The dimensions of the heater without additional parts are also shown in Figure 2. (Tolerance 3 mm) | L = Length: 218 mm B = width: 91 mm H = high: 147 mm without water pipe connection | |||
Weight | 2.2kg | |||

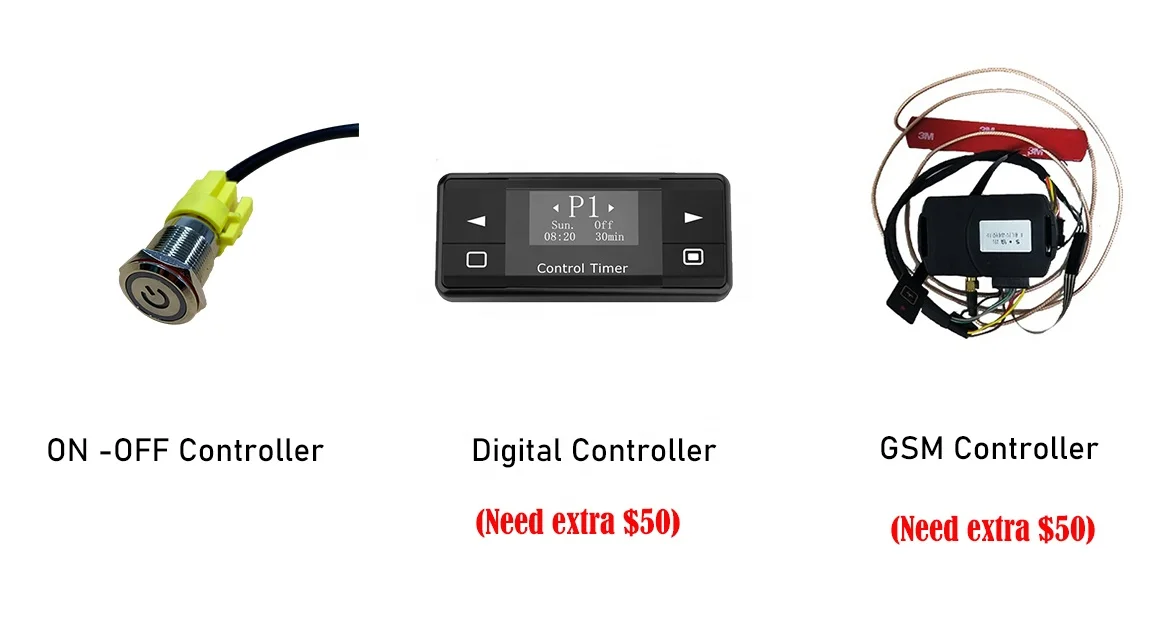

The controller

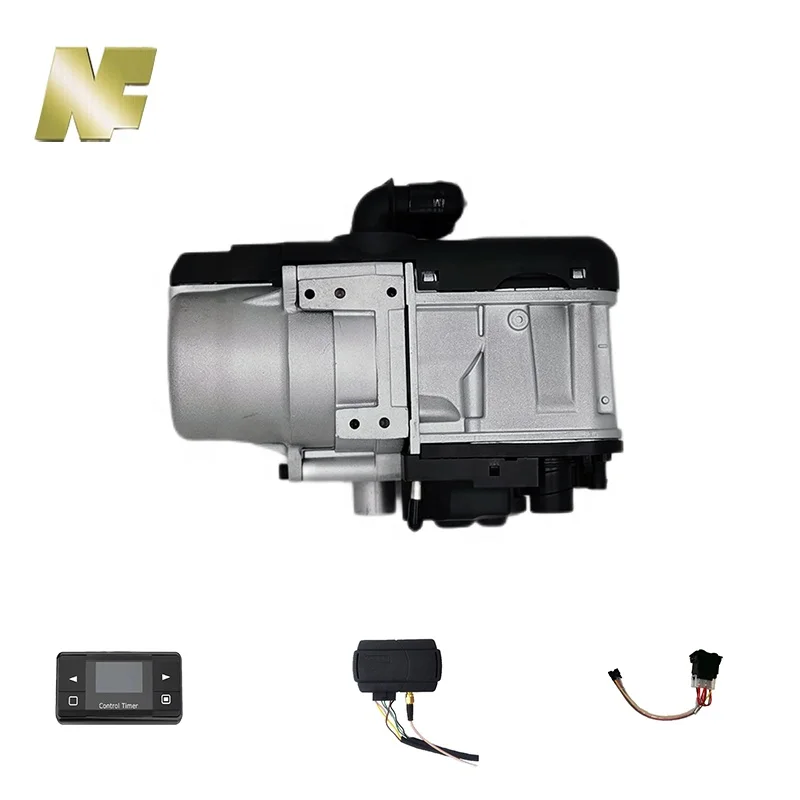

There are three controller:on/off controller, digital timer controller and GSM phone control .You can choose any of them.
working principle:
Model 1: It automatically >80ºC Off, and <60ºC On, until you turn off it by yourself.
Model 2: You can set its running time in the range 10-120 min.When it is adjusted to 120min, press the right button again to set it to run for unlimited time.for example, when you set its running time to 30 min, heater will stop when it ran 30 min.If you set it to run for unlimited time, It automatically >80ºC Off, and <60ºC On, until you turn off it by yourself. It means keep the water temperature between 60ºC to 80ºC.

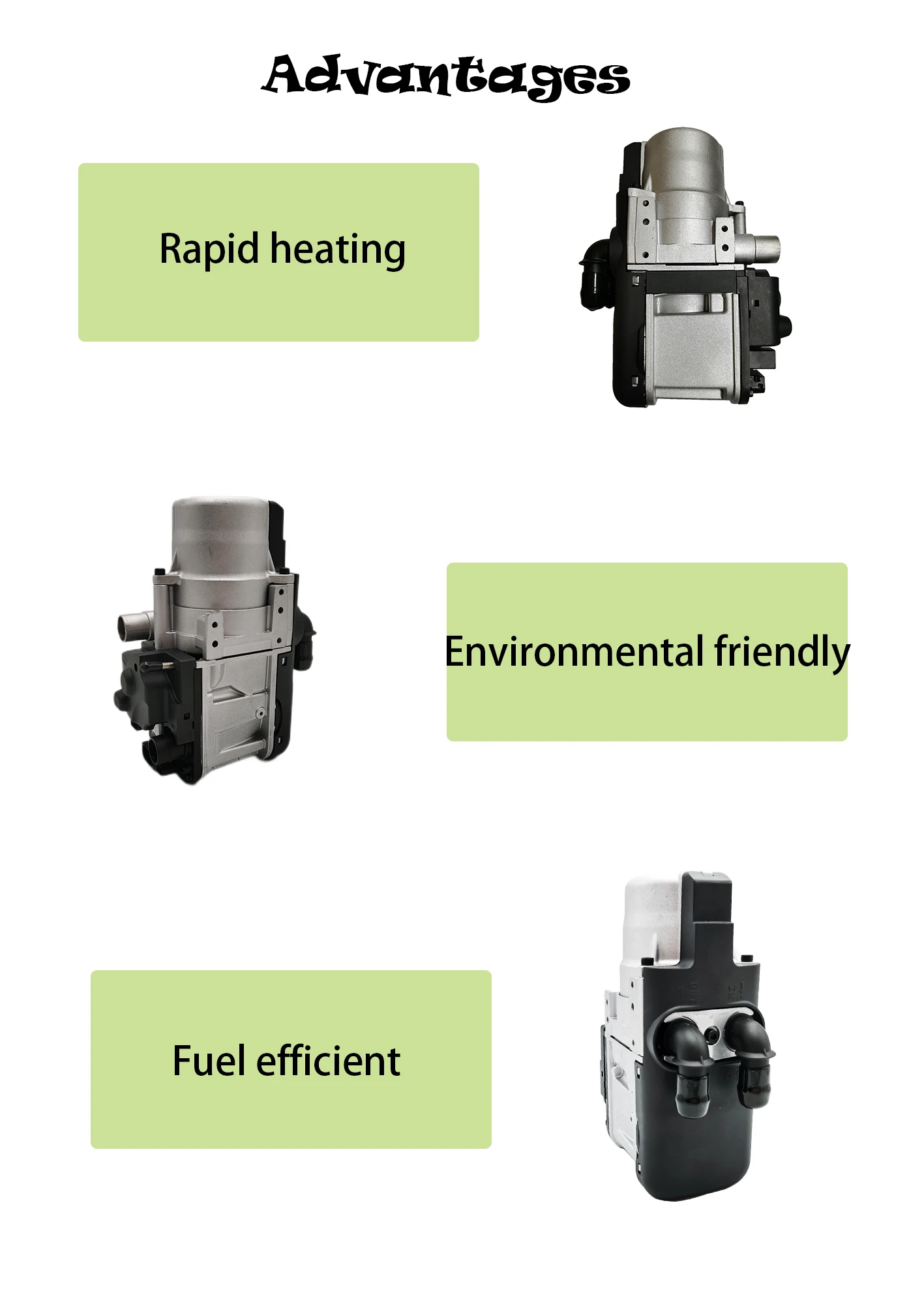

Advantages
1.Start the vehicle faster and safer in winter
2.TT- Evo can help the vehicle start quickly and safely, quickly melt the frost on the windows, and quickly heat the cab. In the cargo compartment of a small transport truck, the heater can quickly create the most suitable temperature for low-temperature sensitive cargo, even in low-temperature weather.
3.The compact design of the TT- Evo heater allows it to be installed in vehicles with limited space. The lightweight structure of the heater helps keep the weight of the vehicle at a low level, while also helping to reduce pollutant emissions.
Application

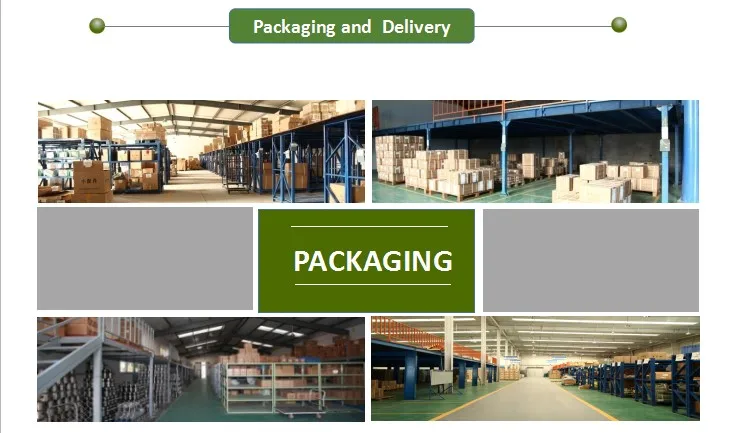

Packing & Delivery
Our Company

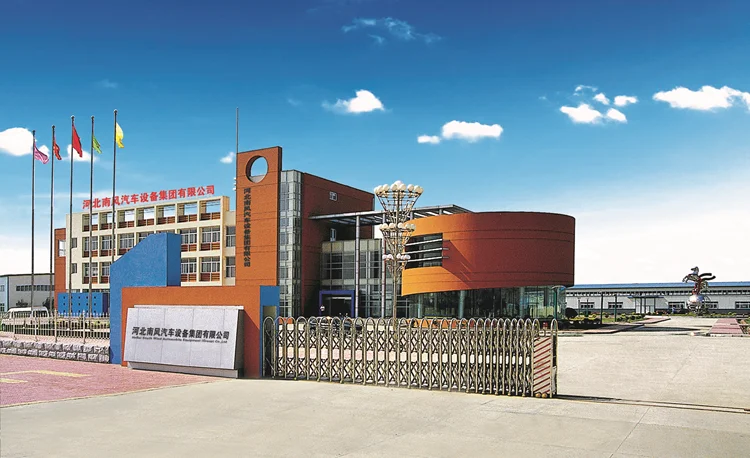

Hebei Nanfeng Automobile Equipment (Group) Co., Ltd is a group company with 5 factories, that specially produce parking heaters,heater parts, air conditioner and electric vehicle parts for more than 30 years. We are the leading auto parts manufacturers in China.
Our factory's production units are equipped with high tech machineries, strict quality,control testing devices and a team of professional technicians and engineers endorsing the quality and authenticity of our products.
In 2006, our company has passed ISO/TS16949:2002 quality management system certification. We also bagged the CE certificate and Emark certificate making us among the only few companies in the world acquiring such high level certifications. Currently being the largest stakeholders in China, we hold a domestic market share of 40% and then we export them around the globe particularly in Asia, Europe and Americas.
Meeting the standards and demands of our customers have always been our top priority. It always encourages our experts to continuously brain storm, innovate, design and manufacture new products, impeccably suitable for the Chinese market and our customers from every nook of the world.
Our Service
1.Waterproofing packing
2.Provide quality services to customers
3.We will reply you for your inquiry in 24 hours.
4.After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
We are the only designated supplier of Chinese military!
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
A: T/T 100%.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
