Solar Lithium Ion Battery 48v 100ah 200ah Bateria Prismatic Lifepo4 Battery Cell Bms
- Category: >>>
- Supplier: Sunpal Solar Co. Ltd.
Share on (10000010012643):
Product Overview
Description
Products Description
Model | PP-E-5kWh | PP-E-10kWh | |
Nominal Voltage | 48V | ||
Rated Capacity | 100AH | 200AH | |
Battery Cell | 3.2V 100Ah Prismatic Battery Cell | ||
Parallel Capacity | Yes,15units maximum | ||
Max Charging Current | 100A | ||
Max Discharging current | 100A | ||
Charging Voltage | 54V | ||
Discharge Cut-off Voltage | 41V | ||
Design Life | 15+ Years(25°C/77°F) | ||
Cycle Life | ＞6000 Cycles,25°C | ||
Communication Port | CAN,RS485,RS232 | ||
Size(L*W*H) | 460*442*180mm | 680*442*180mm | |
Weight | 46Kg±1Kg | 85Kg±1Kg | |
Operation Temperature Range | Charge:0~55℃/Discharge: -20~55℃ | ||
Certification | IEC/CE/UN38.3 | ||

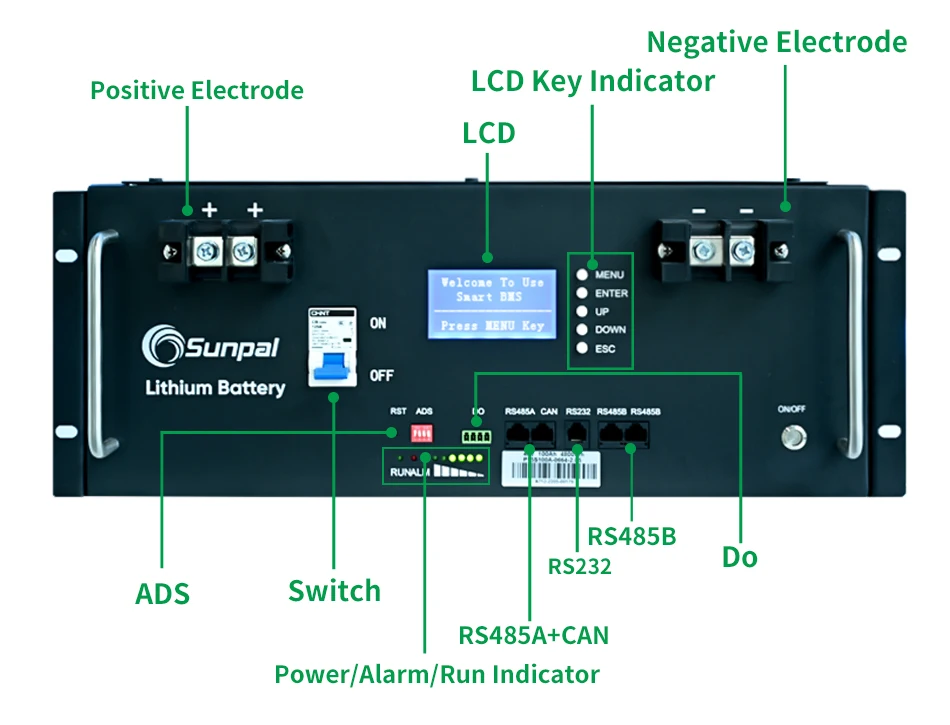

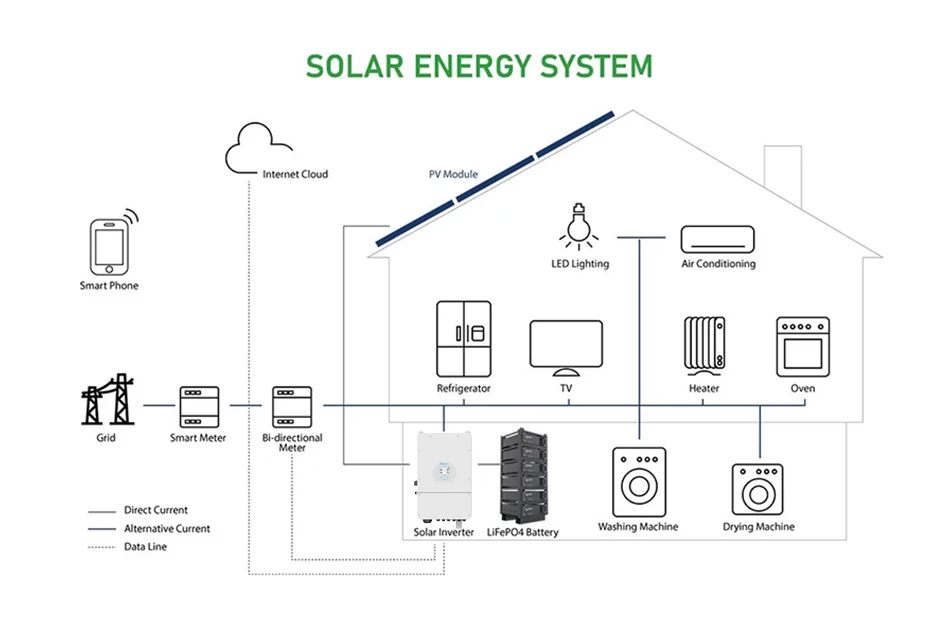

Details Images

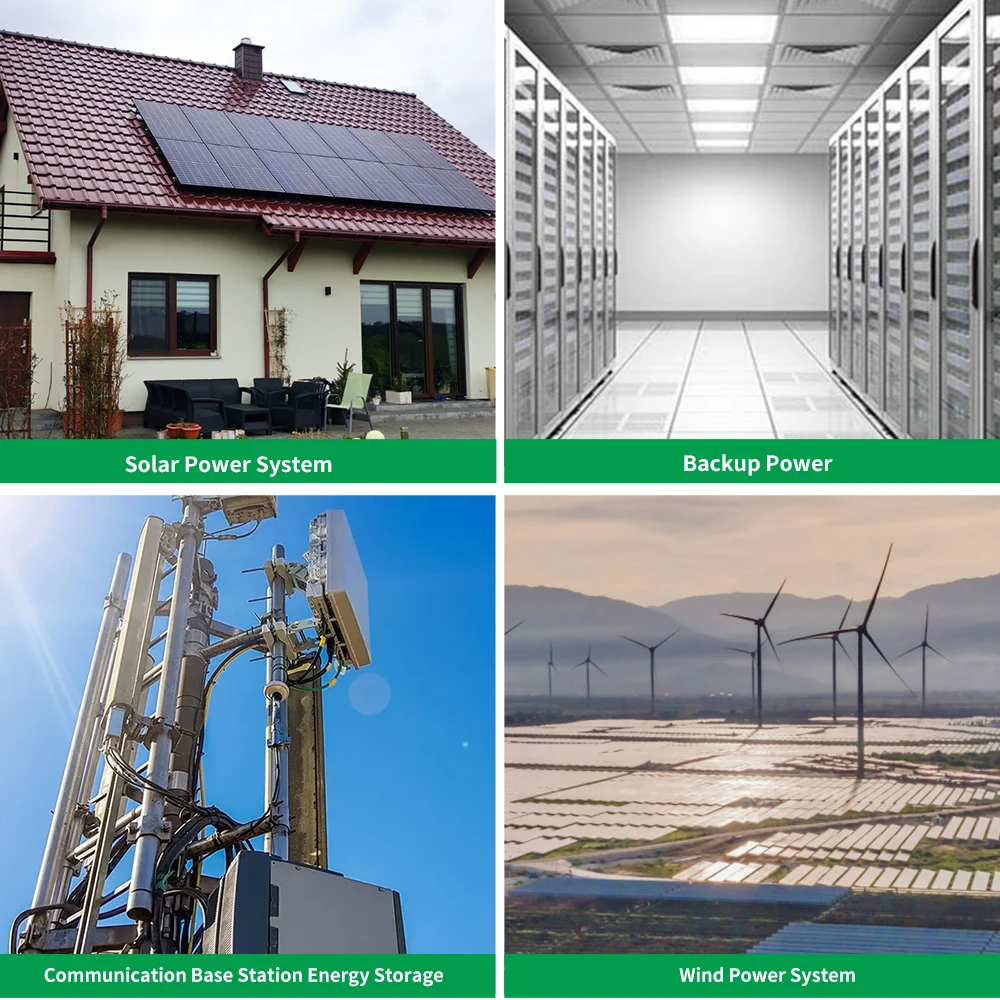

Sunpal Project Case
Company Profile

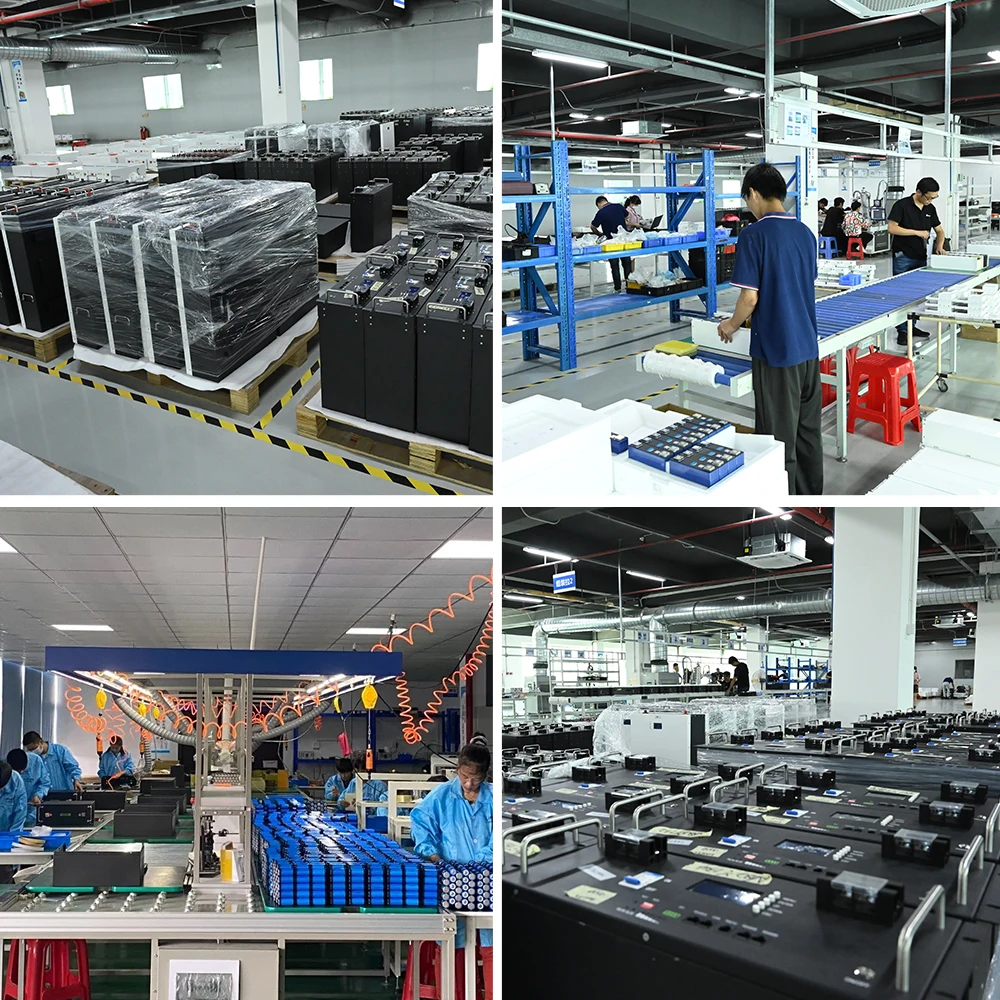

Production Line

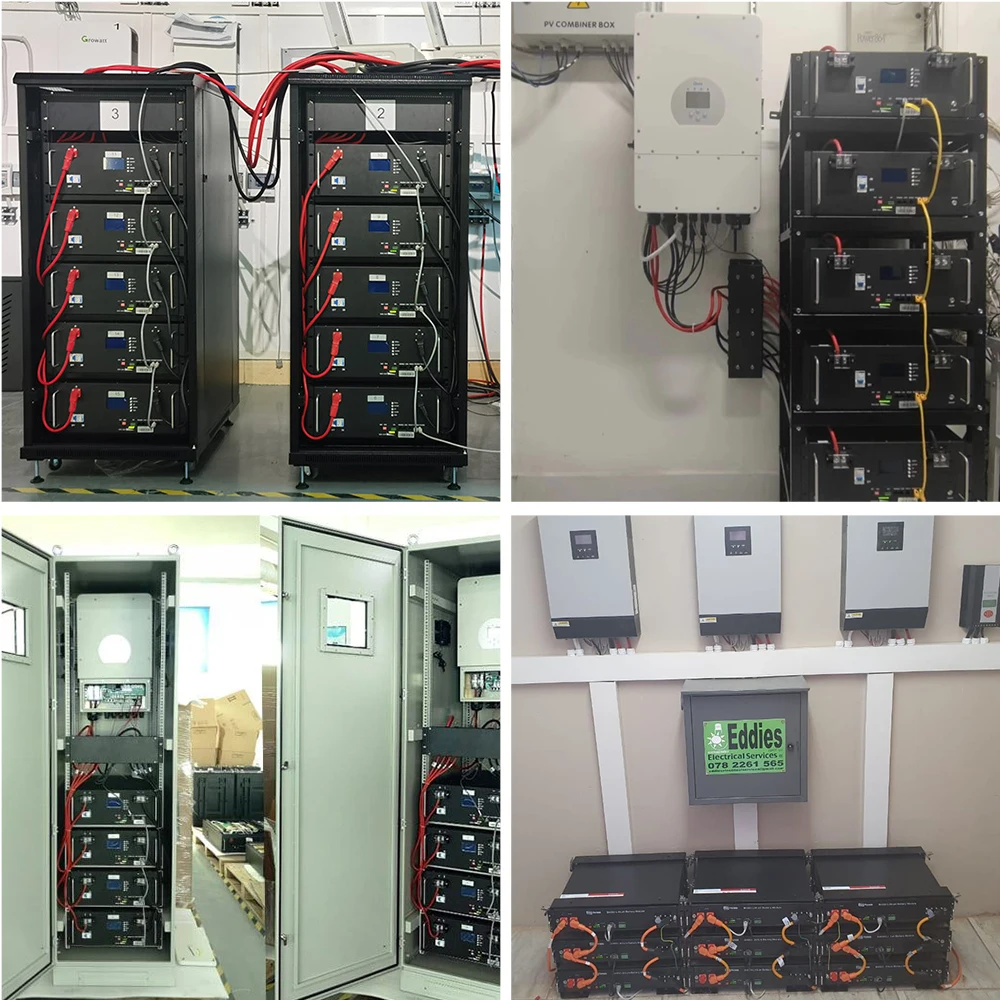

Customer Photos
