Product Overview
Description
L-Shape Silver splitter
L-Shape Silver Splitter
Semi-automatic system;
Performance up to 60 pallets / h
Maximum capacity of 1500 kg;
Insertion and removal freezer spacers
Quick pallet change;
Loading and unloading at floor level with pallet trucks;
Safe pressure of the products.
Easy insertion and removal of freezer spacers
Performance up to 60 pallets / h
Maximum capacity of 1500 kg;
Insertion and removal freezer spacers
Quick pallet change;
Loading and unloading at floor level with pallet trucks;
Safe pressure of the products.
Easy insertion and removal of freezer spacers
Product Description
How does the pallet change operation take place?

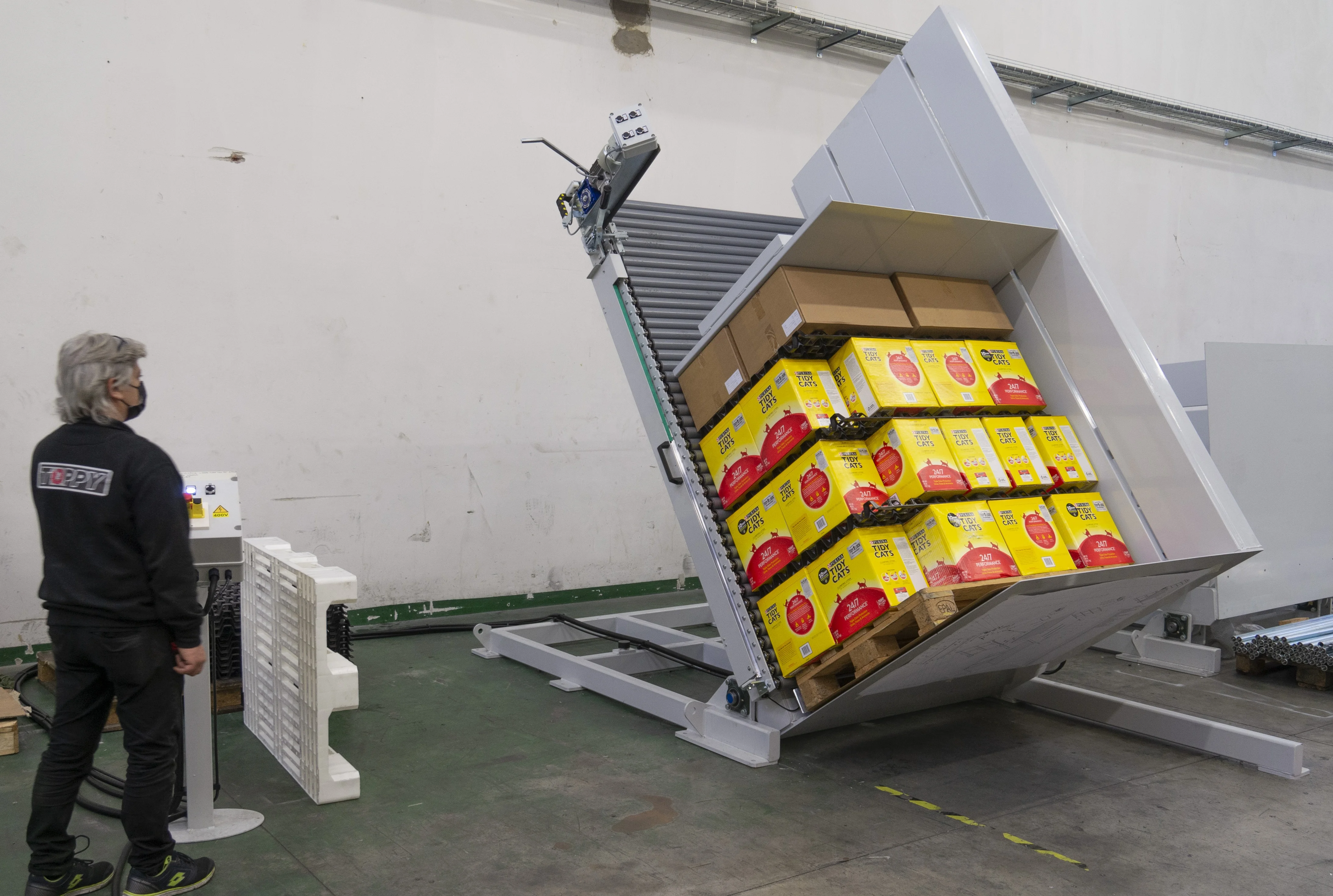

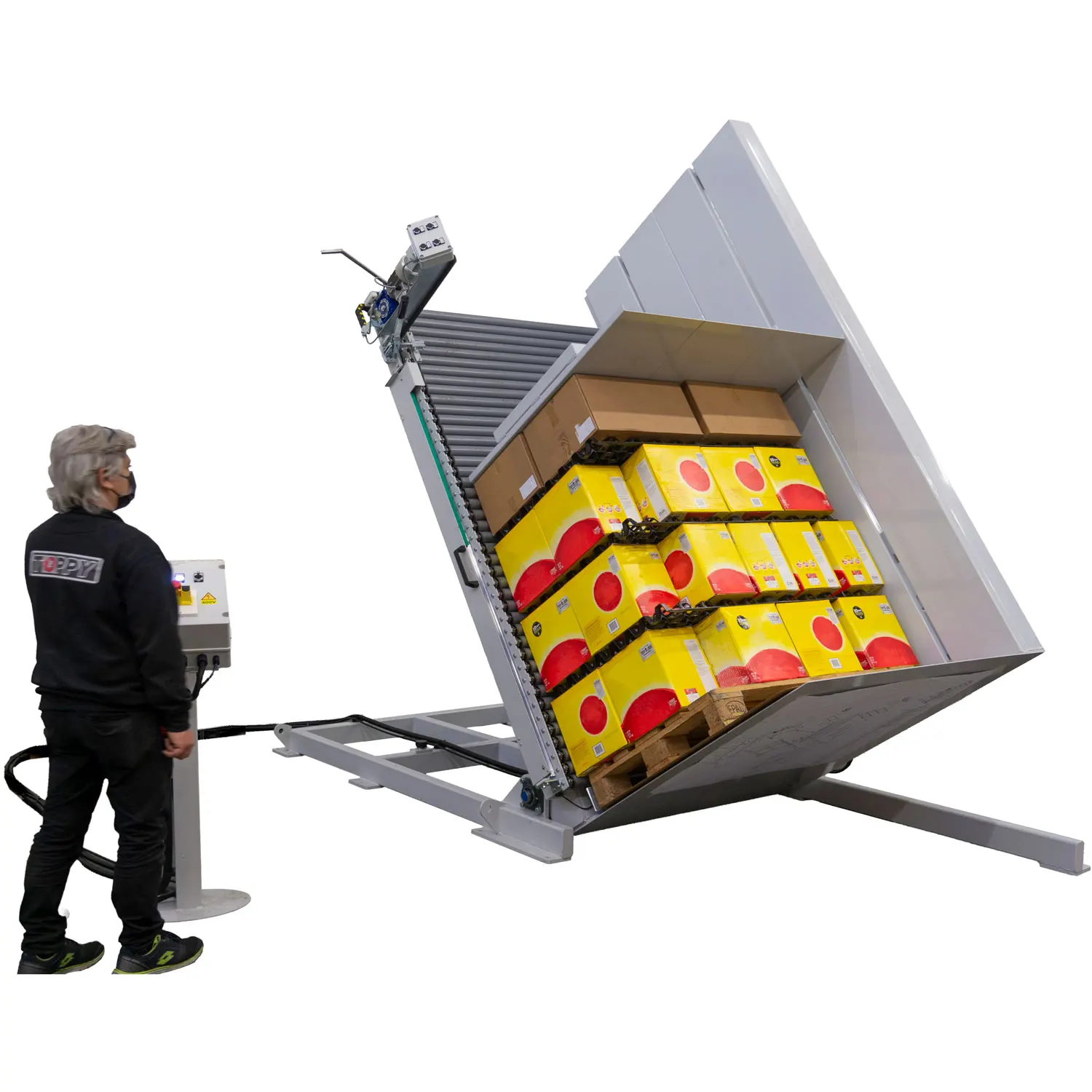

The pallet turning operation takes place by tilting the load at 90° or 100°. In fact, the replacement of the pallet take place
thanks to the operator who transports the load with the transpallet or the forklift on the lower platform. By using a control
panel, the operator decides to start: the upper platform stops the product in order to allow the load for the overturning of 90°
or 100°.

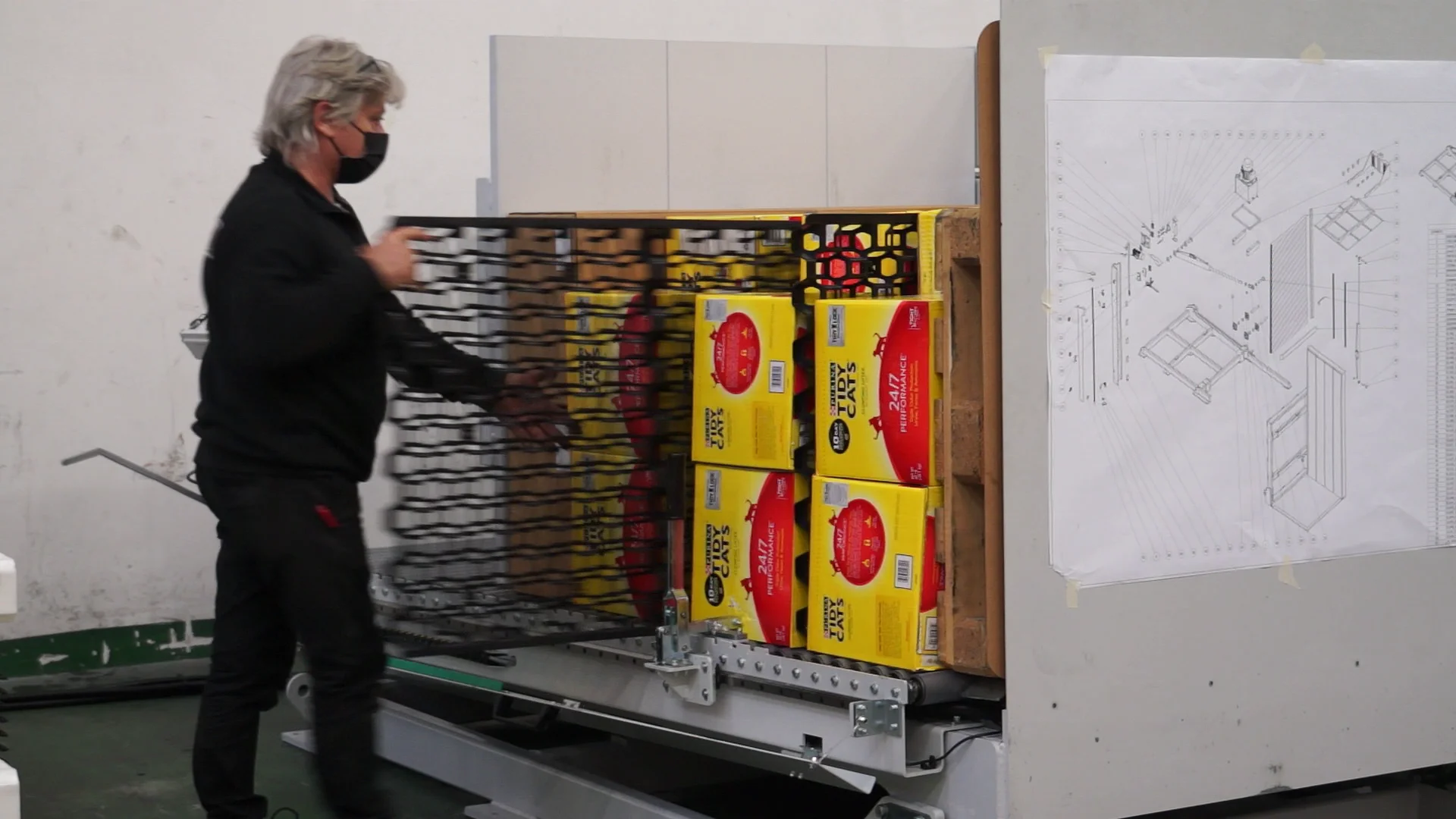

When the load is overturned sideways, the operator widens the upper compactor in order to separate the product from the pallet
that is removed by the operator.
Subsequently, the operator inserts the new pallet, closes the compactor, and returns the machinery to its initial position. The
product will now be on the new pallet ready to be picked up.
thanks to the operator who transports the load with the transpallet or the forklift on the lower platform. By using a control
panel, the operator decides to start: the upper platform stops the product in order to allow the load for the overturning of 90°
or 100°.
When the load is overturned sideways, the operator widens the upper compactor in order to separate the product from the pallet
that is removed by the operator.
Subsequently, the operator inserts the new pallet, closes the compactor, and returns the machinery to its initial position. The
product will now be on the new pallet ready to be picked up.
What products does it move?
It’s a pallet inverter able to move many types of products. Please find below some examples of products able to handle: boxes,
vials, containers, bowls, bottles, packages, big bags, big boxes, barrels, paper barrels, buckets, cans, reels, large cartons,
paper rolls, plywood etc.
It’s a pallet inverter able to move many types of products. Please find below some examples of products able to handle: boxes,
vials, containers, bowls, bottles, packages, big bags, big boxes, barrels, paper barrels, buckets, cans, reels, large cartons,
paper rolls, plywood etc.
Description of stationary pallet changer L-SHAPE FREEZER SPACERS
It is a fixed station pallet changer available in various configurations depending on the product that need to be handled. This
version of L-Shape has the same features as the standard model (L-SHAPE SPLITTER). The only difference is that the laterally

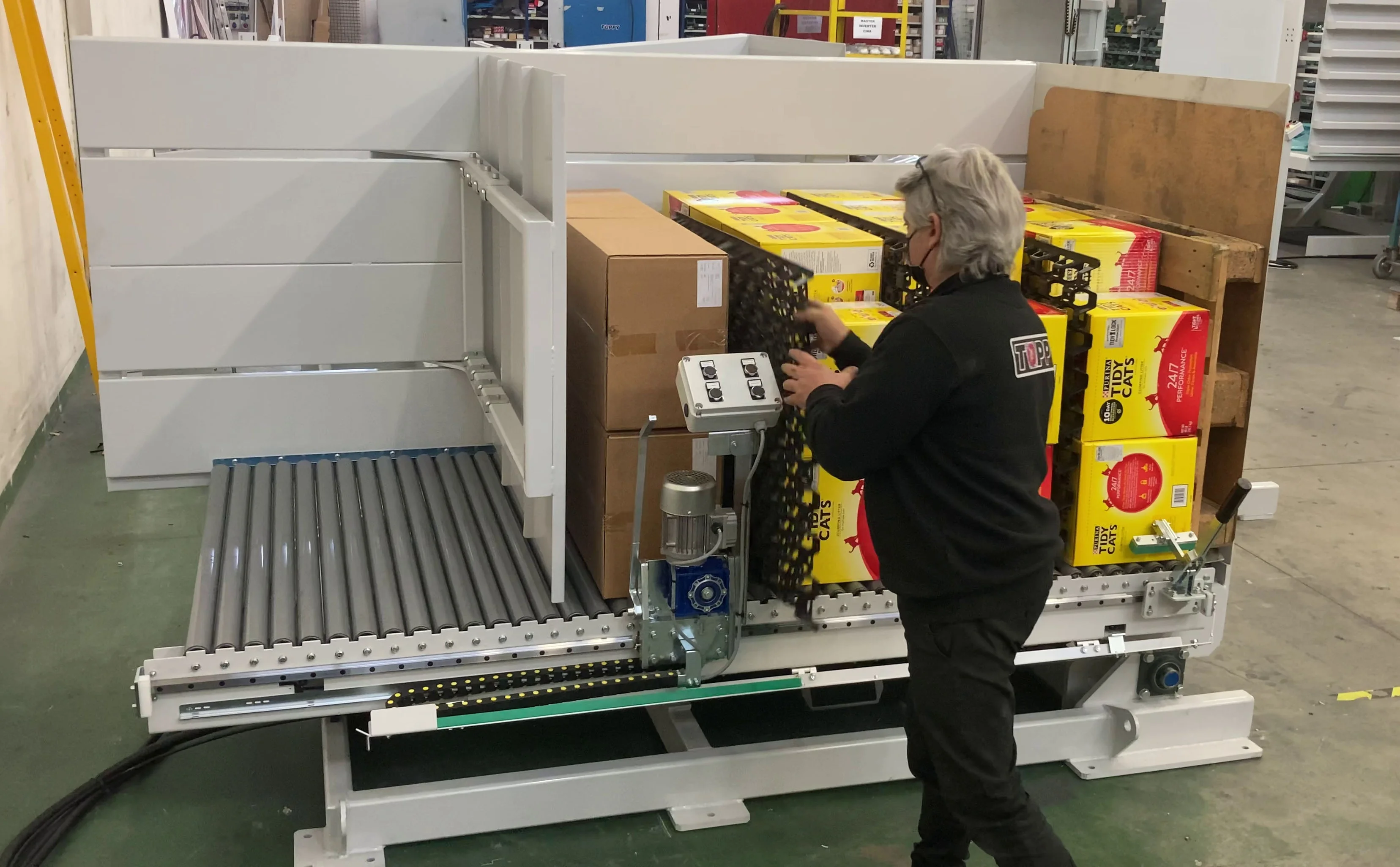

platform where the product is positioned is equipped with movable rollers that can be unlockable and lockable.

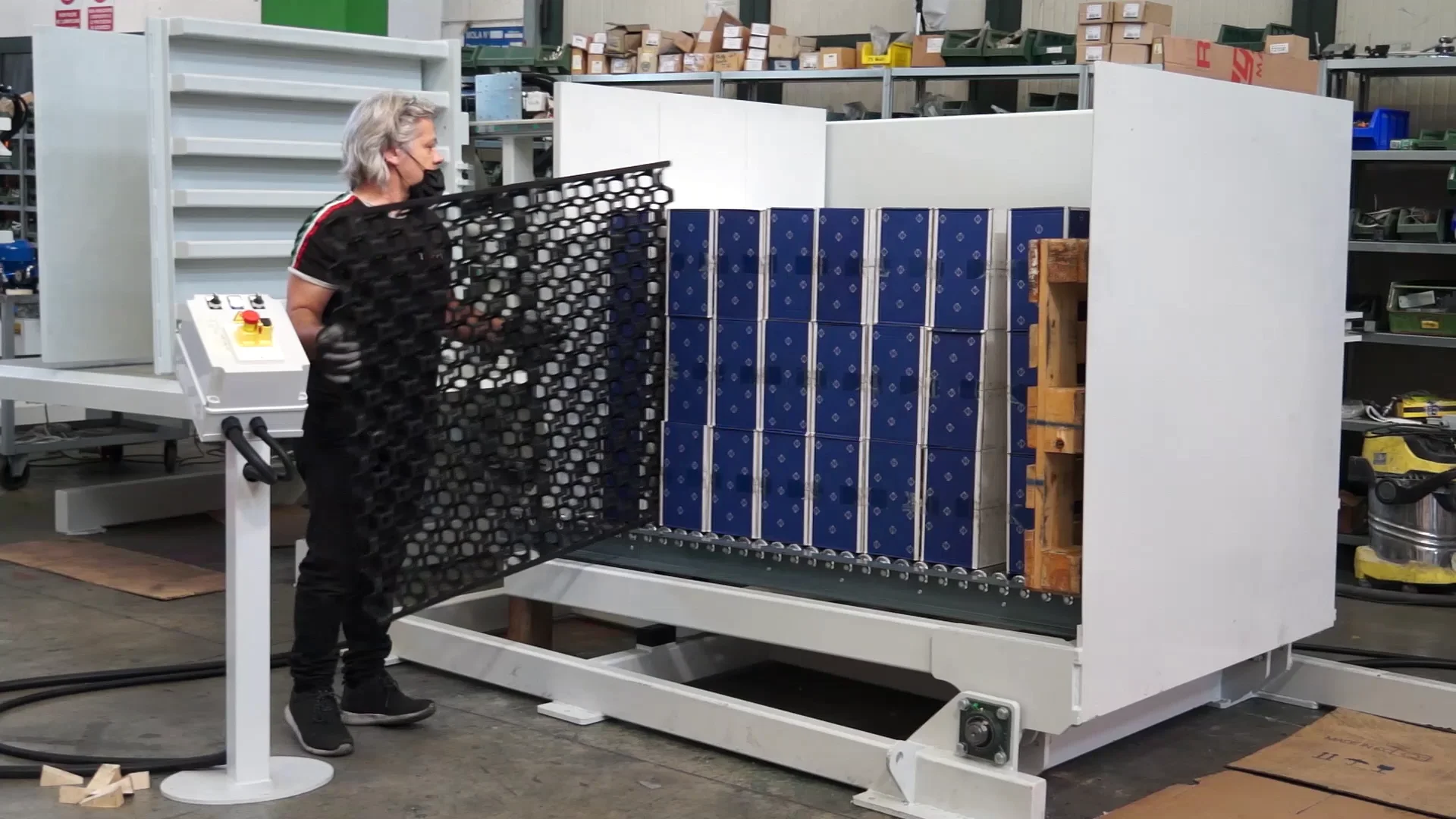

This function has been designed to facilitate the division of products for the insertion and removal of freezer spacers and to
facilitate the removal or insertion of pallets.
L-Shape can be used with countless products and has a maximum capacity of 1,500 kg, with the ability to handle loads with a
maximum height of up to 2,100 mm.
Furthermore, L-SHAPE is available in the Logy configuration (automatic pallet change logistics system), it can be integrated with
roller conveyors and automatic pallet dispensers.
SAFETY
All the Toppy machinery are equipped with safety measurements to avoid work injuries, with an eye to GMP norms to ensure the
appropriate quality standards.
Our stationary pallet inverter systems are supplied with safety system that do not allow access to the operators in the area in
front of the machine. These are optional systems such as metal perimeter protection nets and safety photocells to limit access.
version of L-Shape has the same features as the standard model (L-SHAPE SPLITTER). The only difference is that the laterally
platform where the product is positioned is equipped with movable rollers that can be unlockable and lockable.
This function has been designed to facilitate the division of products for the insertion and removal of freezer spacers and to
facilitate the removal or insertion of pallets.
L-Shape can be used with countless products and has a maximum capacity of 1,500 kg, with the ability to handle loads with a
maximum height of up to 2,100 mm.
Furthermore, L-SHAPE is available in the Logy configuration (automatic pallet change logistics system), it can be integrated with
roller conveyors and automatic pallet dispensers.
SAFETY
All the Toppy machinery are equipped with safety measurements to avoid work injuries, with an eye to GMP norms to ensure the
appropriate quality standards.
Our stationary pallet inverter systems are supplied with safety system that do not allow access to the operators in the area in
front of the machine. These are optional systems such as metal perimeter protection nets and safety photocells to limit access.
Specification
item | value |
Condition | New |
Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops, Warehouse, Beverage, Cosmetic, Ceramic, Pharmaceutical Industry, Food |
Showroom Location | Italy |
Video outgoing-inspection | Not Available |
Machinery Test Report | Not Available |
Marketing Type | New Product 2022 |
Warranty of core components | 1 Year |
Core Components | PLC, Engine, Motor, Pressure vessel, Pump |
Place of Origin | Italy |
Brand Name | Toppy |
Warranty | 1 Year |
FAQ
1.Can “TOPPY L-SHAPE SILVER SPLITTER” be customized for special applications?
Yes, absolutely, we are able to customize the machines according to the customer’s needs.
2.Which products are suitable for this device?
This pallet inverter is able to work with many products, boxes, vials, flasks, trays, bottles, packs, big bags, big boxes,
barrels, paper barrels, buckets, cans, reels, large containers, paper rolls, plywood, battery etc.
barrels, paper barrels, buckets, cans, reels, large containers, paper rolls, plywood, battery etc.
3.What type of pallet it’s able to operate with?
It can operate with any pallet size, from standard to special ones. It is possible to use pallets of many materials (wood ,
plastic, aluminium, iron, etc.)
plastic, aluminium, iron, etc.)
4.How does the pallet change take place?
By tipping the load at 90 ° or 180 °
5.How are the products loaded or unloaded from the pallet changer devices?
They can be loaded and unloaded by forklift or forklift truck.
6.How does it operates with fragile products?
Even the most fragile products are securely locked by the upper platform in order to safe the product. The upper platform locks
the products with a light pression managed by a shock absorber system and limit-switches that prevent the products to be crushed.
the products with a light pression managed by a shock absorber system and limit-switches that prevent the products to be crushed.
7.What’s the difference between “mobile” and “stationary” pallet?
The mobile pallet changers are really versatile systems as they do not need to dedicate a specific area for the operation so can
be performed in any production area. The stationary pallet changers partially compensate the use of the transpallet as it allows
the transport of the loads inside the dispenser.
Our stationary pallet changer are used by customers who need to change a substantial number of pallets per hour and can’t have a
dedicated area dedicated for the pallet change operation.
be performed in any production area. The stationary pallet changers partially compensate the use of the transpallet as it allows
the transport of the loads inside the dispenser.
Our stationary pallet changer are used by customers who need to change a substantial number of pallets per hour and can’t have a
dedicated area dedicated for the pallet change operation.
