Product Overview
Description

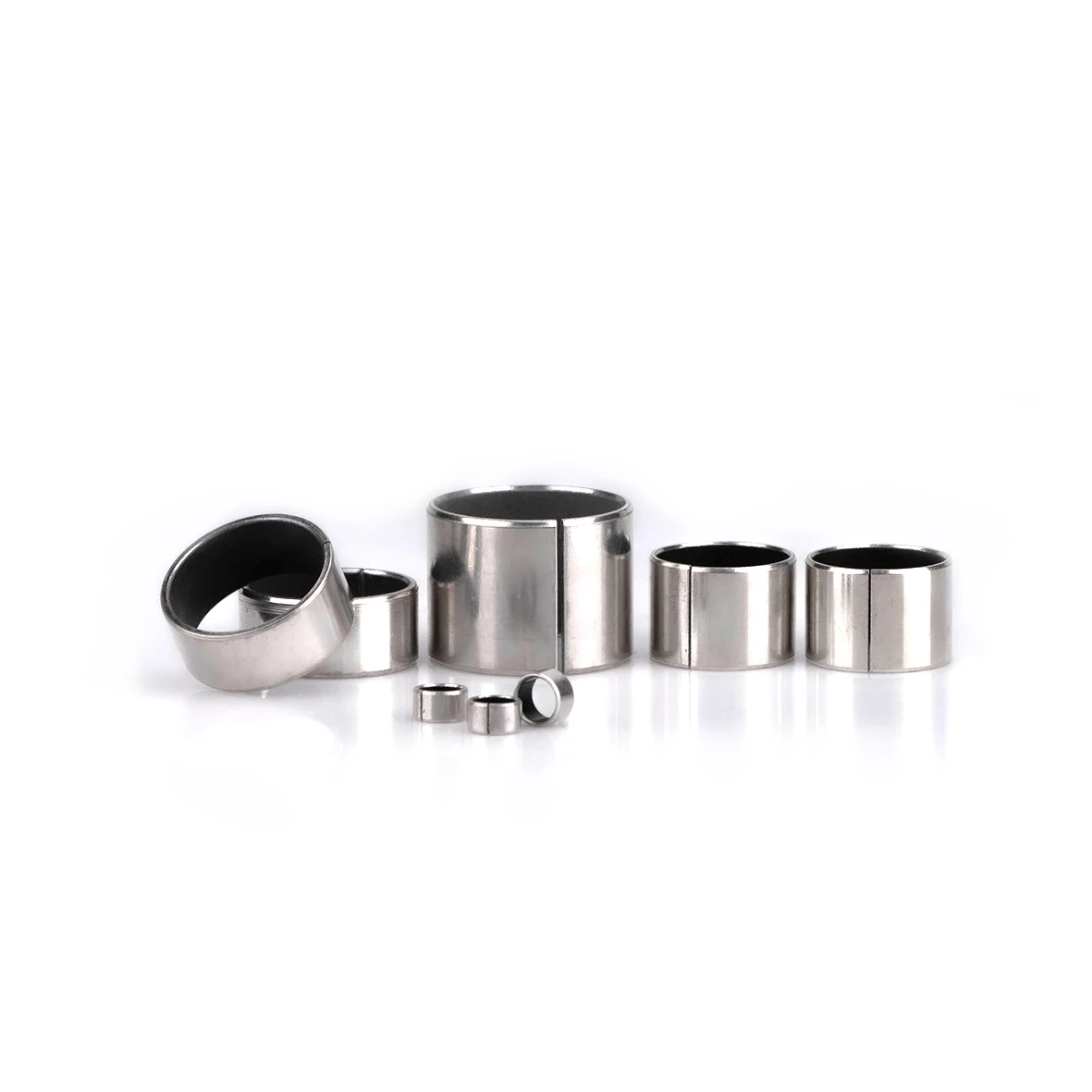

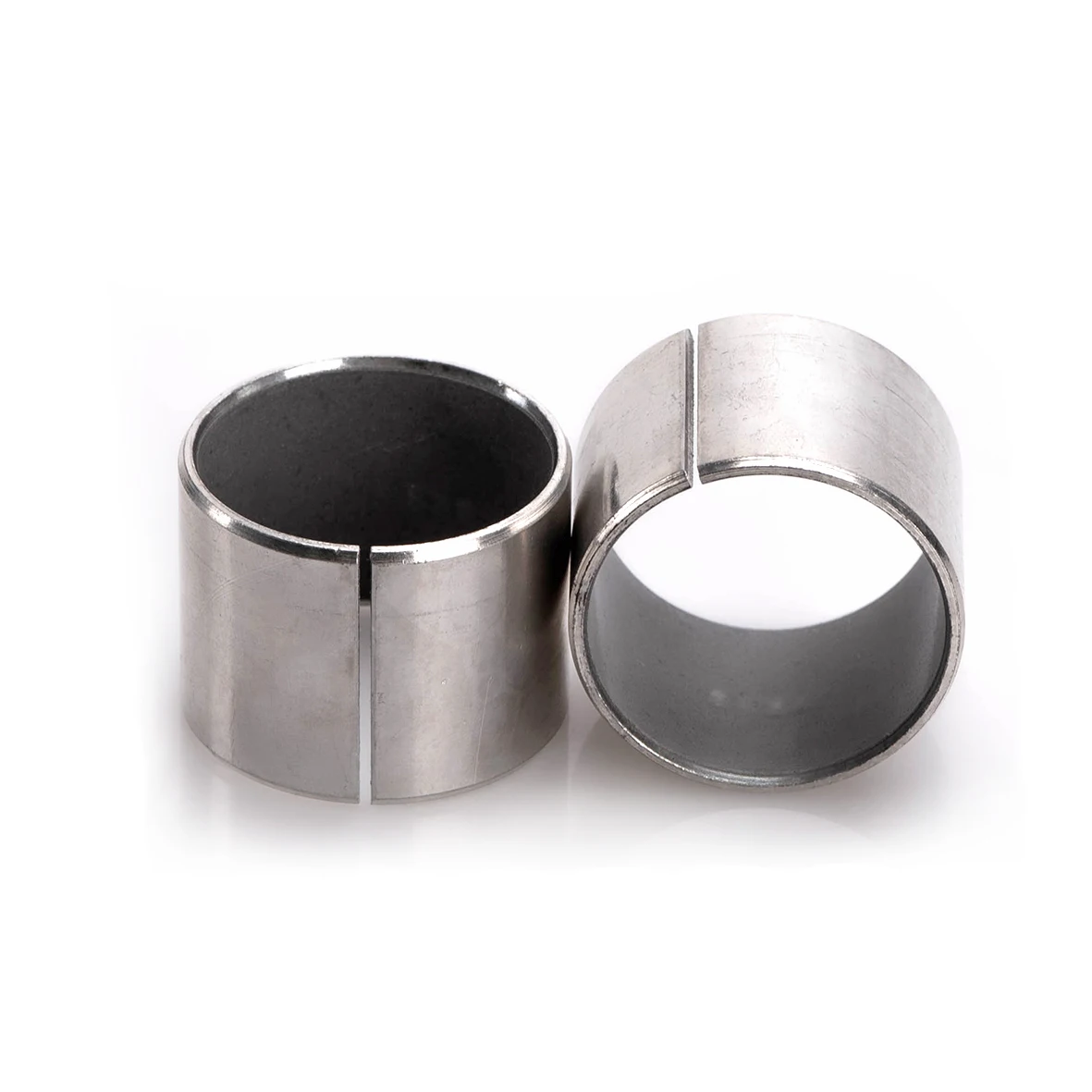

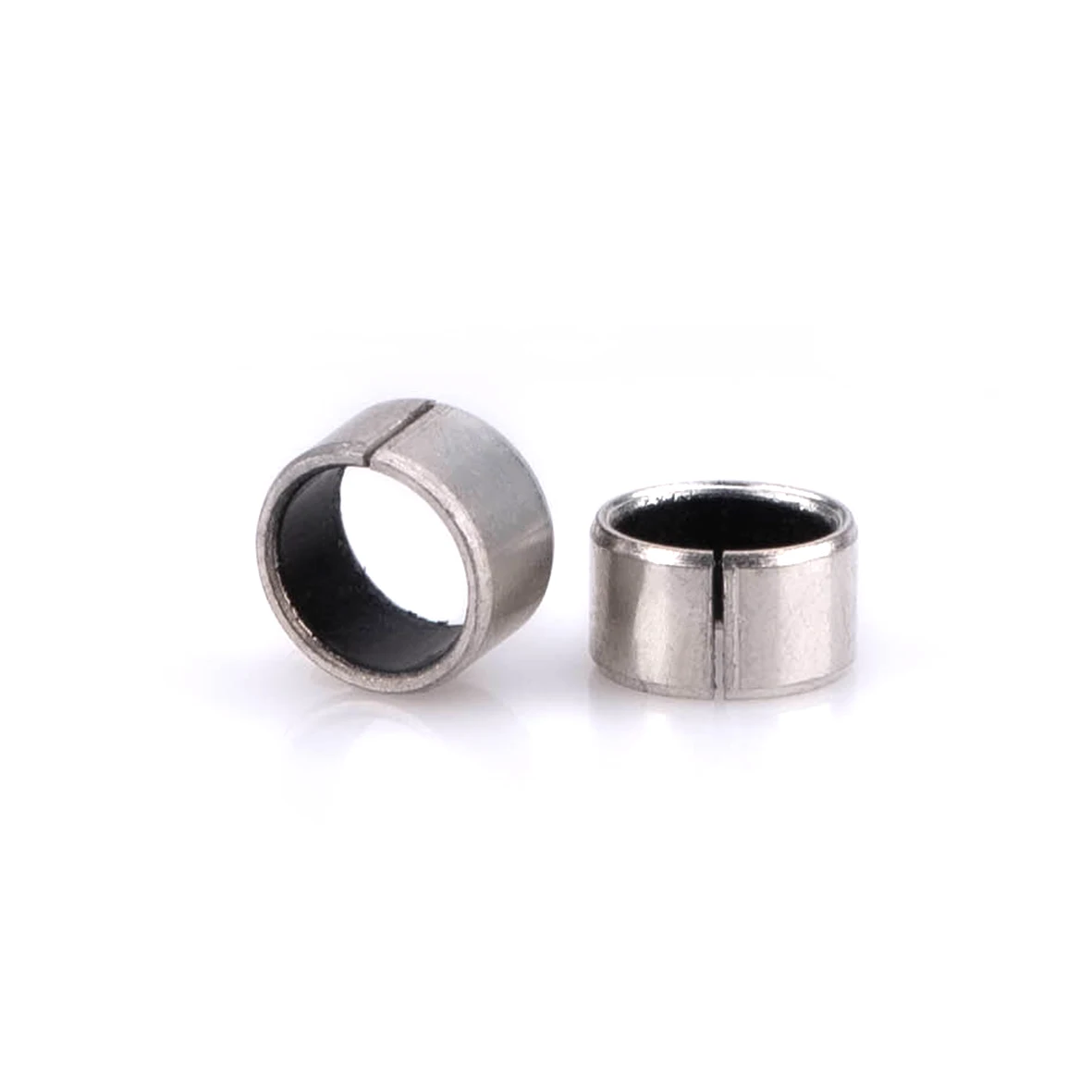

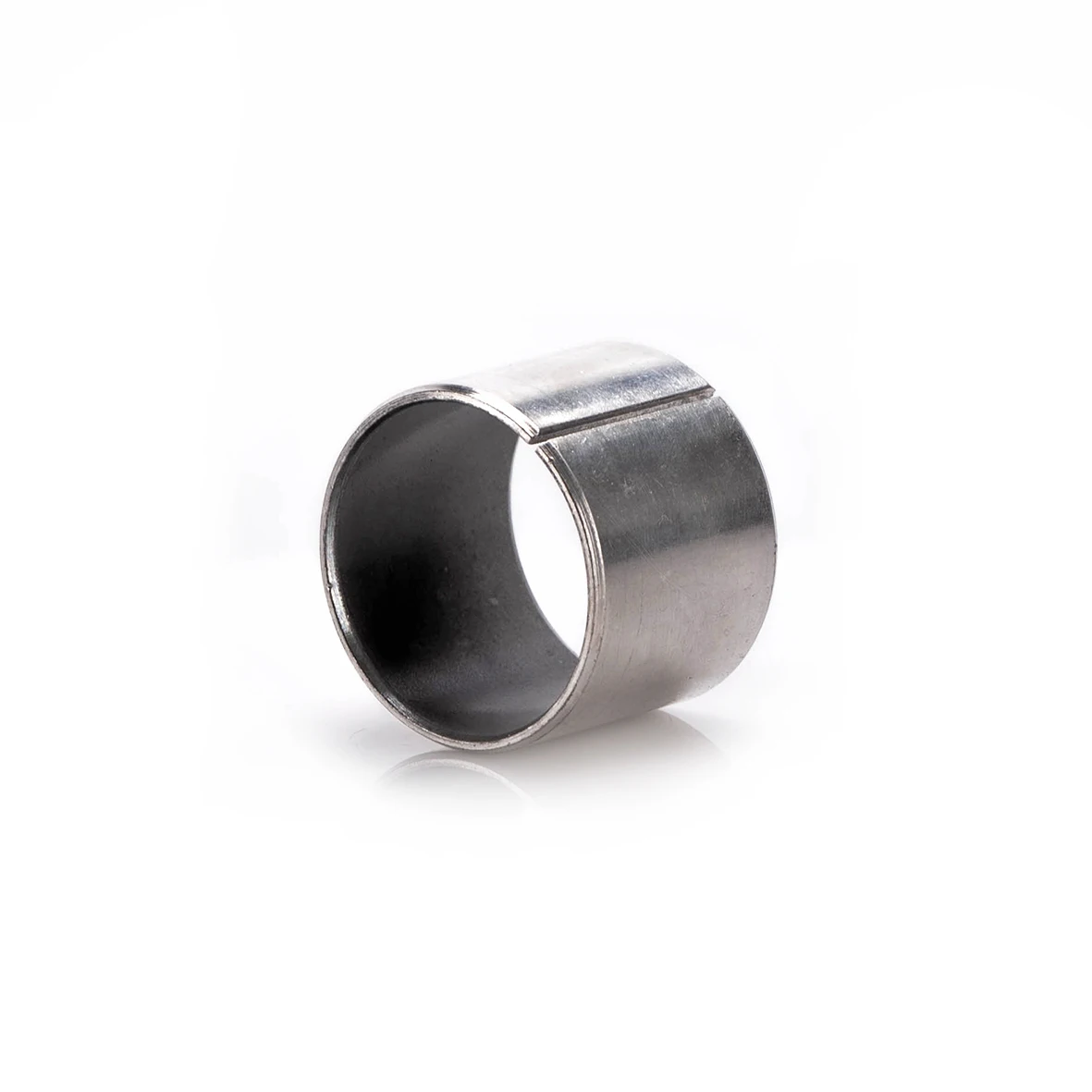

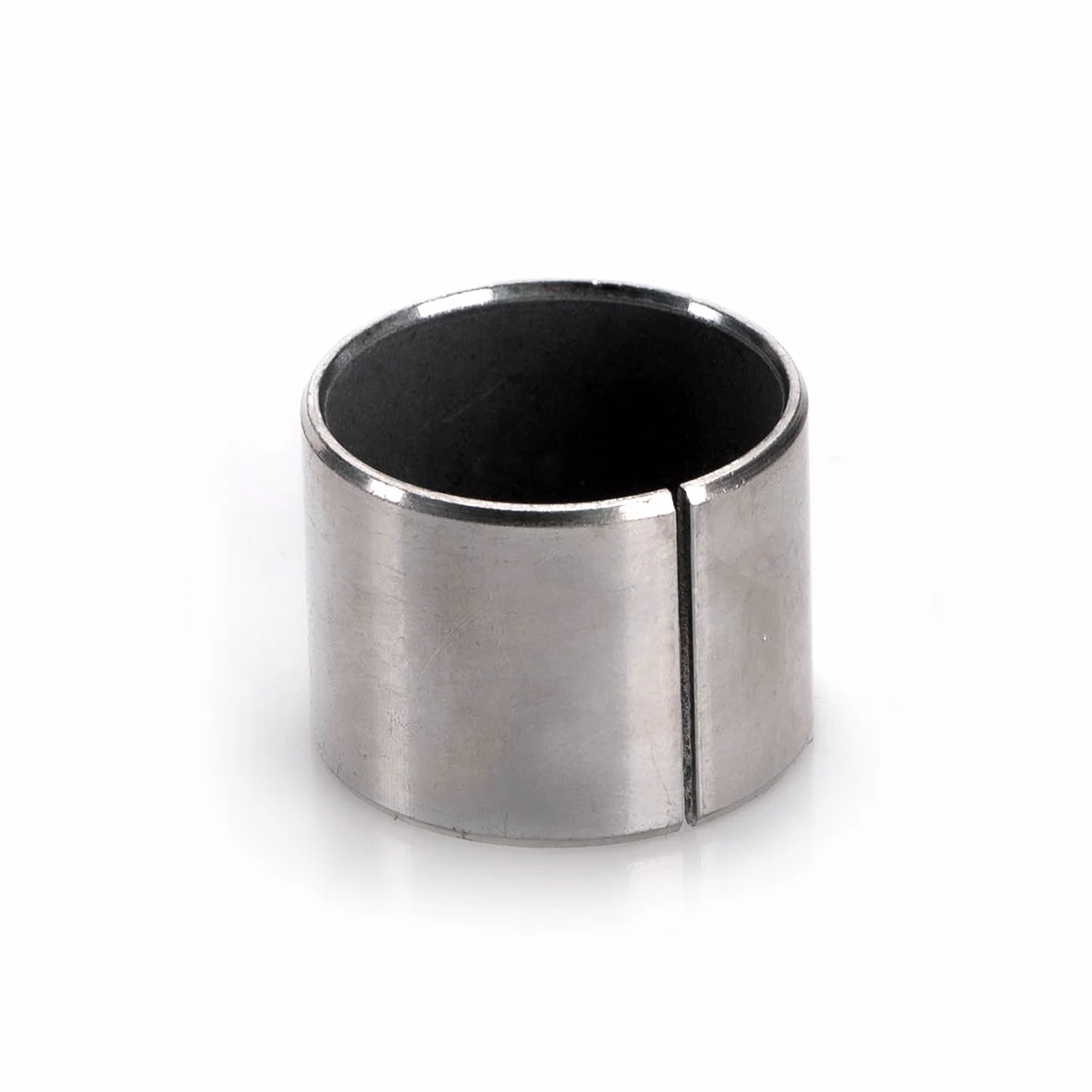

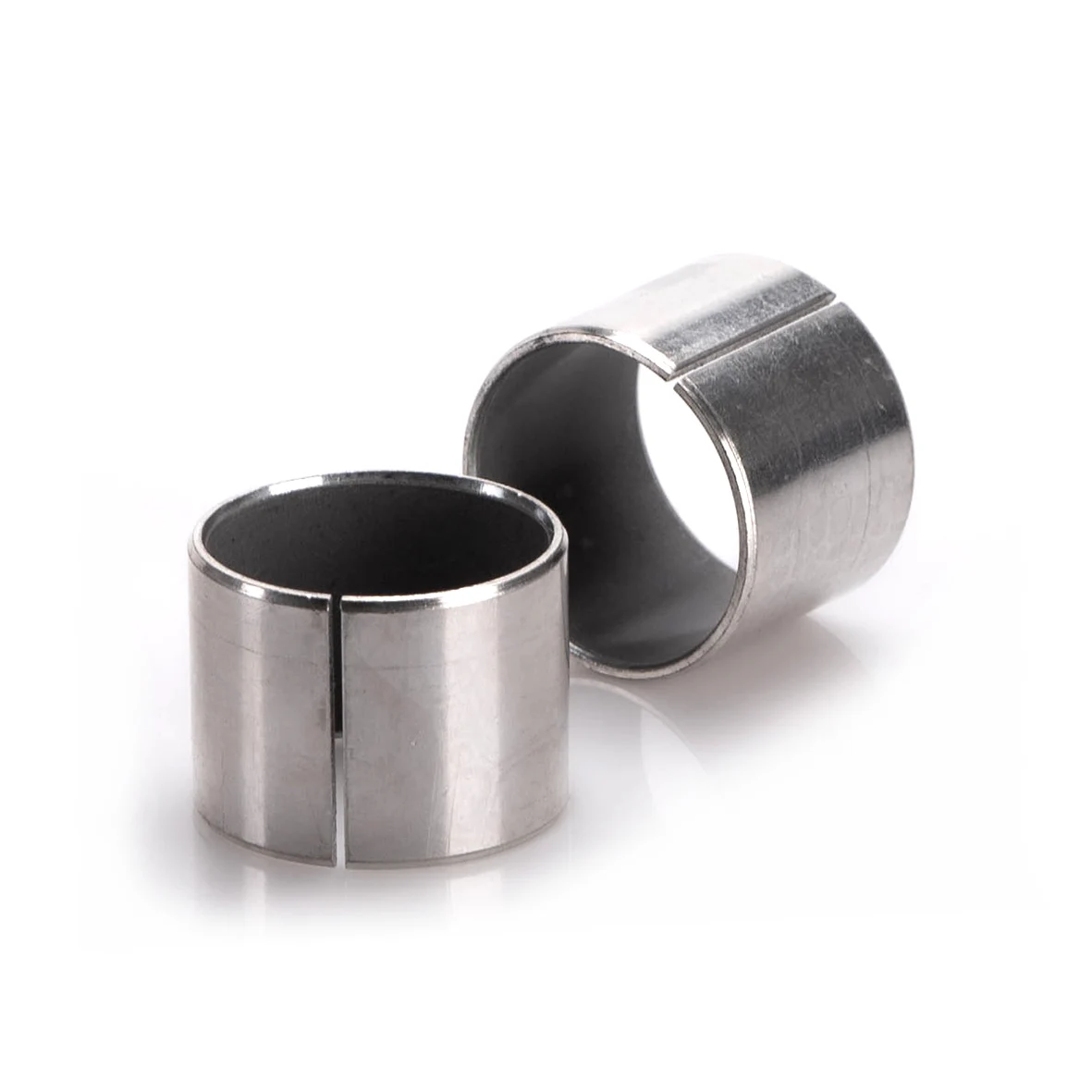

SF-1 DU Bushes 1015 1020 Bearing PTFE Bushing 1015 1020
| Product Information |
Bearing Number | DU 1015 1020 |
Size | 10x12x15 mm 10x12x20 mm |
| Material | PTFE |
| Certification | IATF/16949 |
| Delivery | Express/Air/Ship |
| Order Directly | Yes |
| Properties Of DU SF-1,DU SF-2 Bearing Materials |
| Item Material | Compressive strength(Mpa) | Temperature range(℃) | Coefficient of friction | width of wear(mm) | PV factor limit (MPa•m/s) | Wear depth Limit(mm) | Thermal Comductivity Kcal/M.br.C | Coefficient of Linear expansion(per C) |
| SF-1 | 280 | -195~+270 | <0.20 | <5.5 | 3.6 | 0.05 | 2.41 | 27x105 |
| SF-2 | 140 | -20~+100 | <0.20 (grease) | <4.5 (grease) | 10 (grease) | 0.05 | 2.03 | 5.1x10-5 |
| Materials |
| SF-1 | SF-1 is a kind of oilless Slide Bushing made of the polytetrafluroethylene(PTEE) composite material,Which is a copper-plated steel plate on to which a porous layer of tin bronze powder is sintered and also a mixture of PTFE and lead are filled into and covered the porous layer by a roling process. |
| SF-2 | SF-2 is a boundary lubricating bushes made of the POM composite material, which also has a copper-plated steel plate on to which a tin bronze powder is sintered, modified polyformadehyde resin(POM) is firmly anchored in the sintered bronze layer. The surface of covering layer has many pockets to retain lubricating grease. |
Due to the following, ISK bearings is better than other bearings:
material
We usually use bearing steel (GCr15), but many manufacturers only use softer carbon steel materials, so our bearings have higher hardness and longer service life.
Heat treatment
We have our own heat treatment plant and do not need to be outsourced. We use a slower speed and more stable temperature to effectively control the steel and increase the toughness and life of the steel. Other small-scale bearing companies usually need to outsource. Many outsourcing factories only strengthen the hardness of the bearing surface due to cost factors, but the hardness inside is not enough, which is the reason why many bad bearings are easy to crack.
Precision
Our bearings can be controlled at a height accuracy of 0~-0.004mm, fast speed and smoothness.
Multiple grinding process
We grind the bearing many times, but others may grind it only once, so the chamfer of our bearing is very smooth.
In conclusion
We use high-quality materials and multiple grinding processes, so our bearings have the characteristics of high speed, low noise, high precision and long life.
