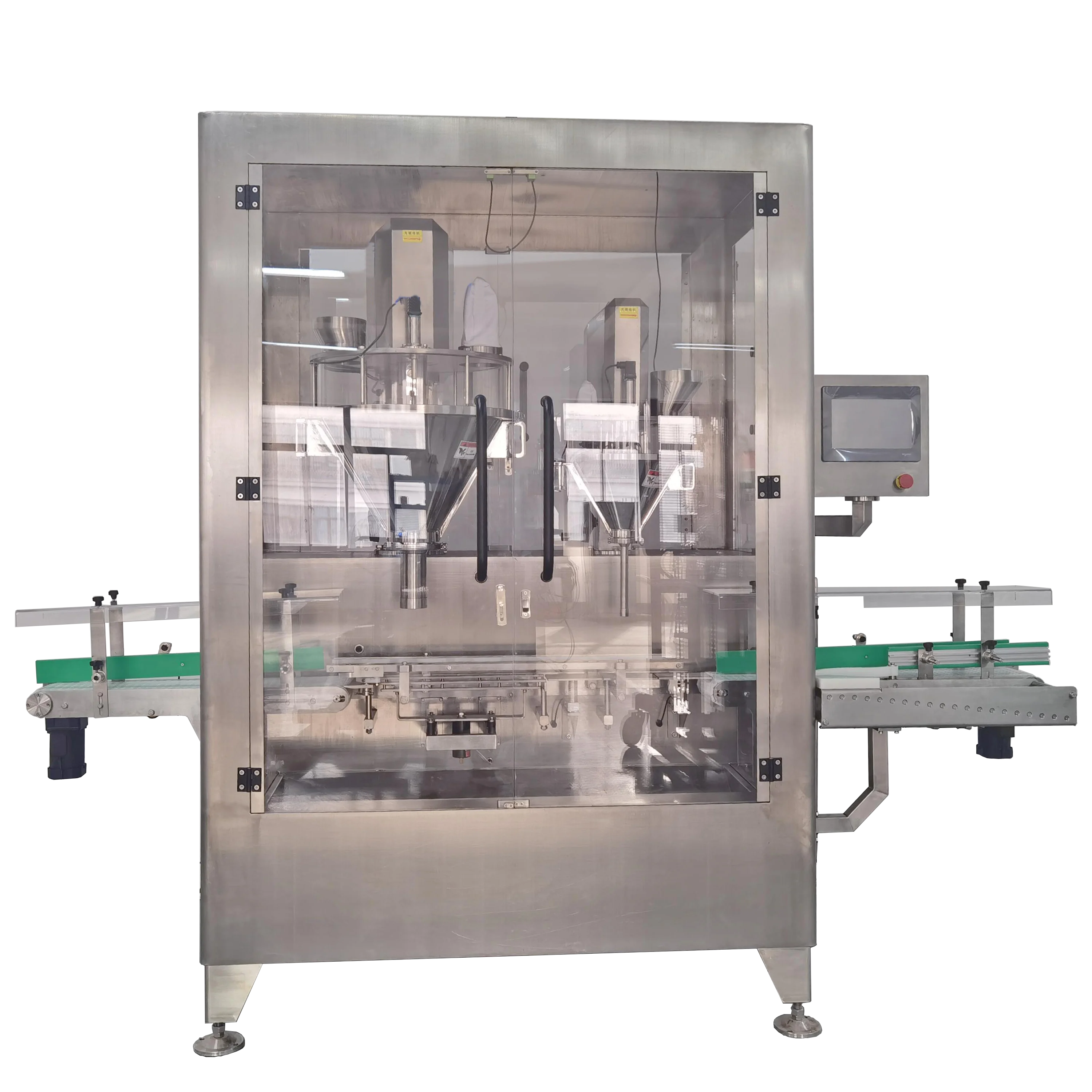

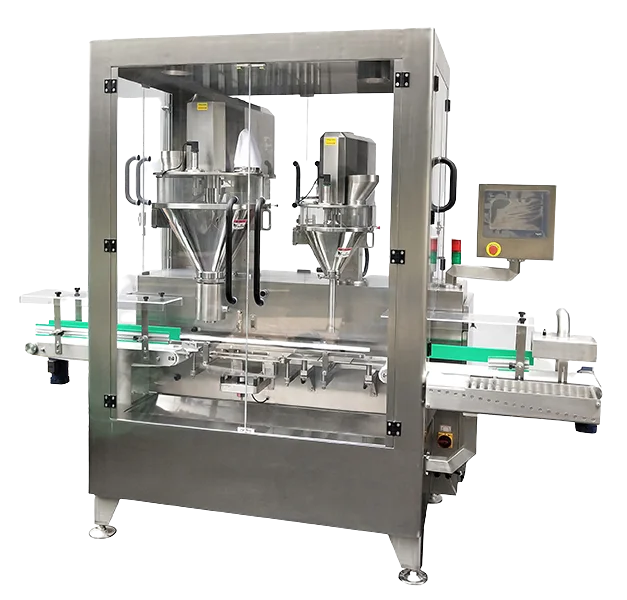

CE Patent Design Automatic Pharmaceutical Capsule Powder Dual Heads Filling Machine
- Category: >>>
- Supplier: Shanghai Tops Group Co. Ltd.
Share on (10000010056815):
Product Overview
Description
Production Description

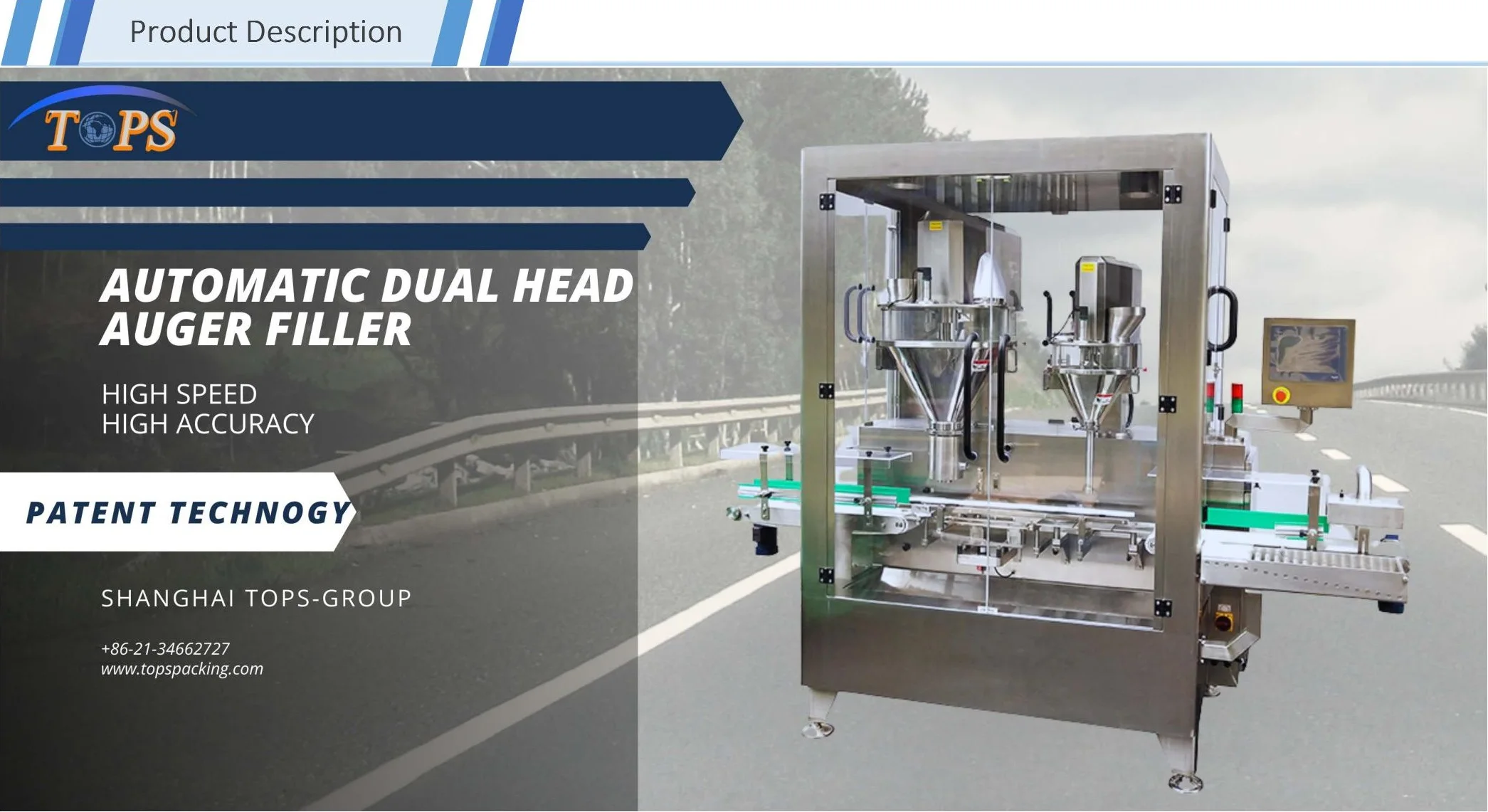

Automatic Dual Heads Auger Filler
This series machine is a new-designed that we make it on placing the old Turnplate Feeding on one side. Dual auger filling within one line main-assist fillers and the originated Feeding system can keep the high-precision and take off the tiring cleaning of the turntable. It can do the accurate weighing & filling work, and also could combined with other machines to buildup a whole can-packing production line. This machine could be used in filling milk powder, albumen powder, condiment, dextrose, rice flour, cocoa powder, solid drink, and so on.

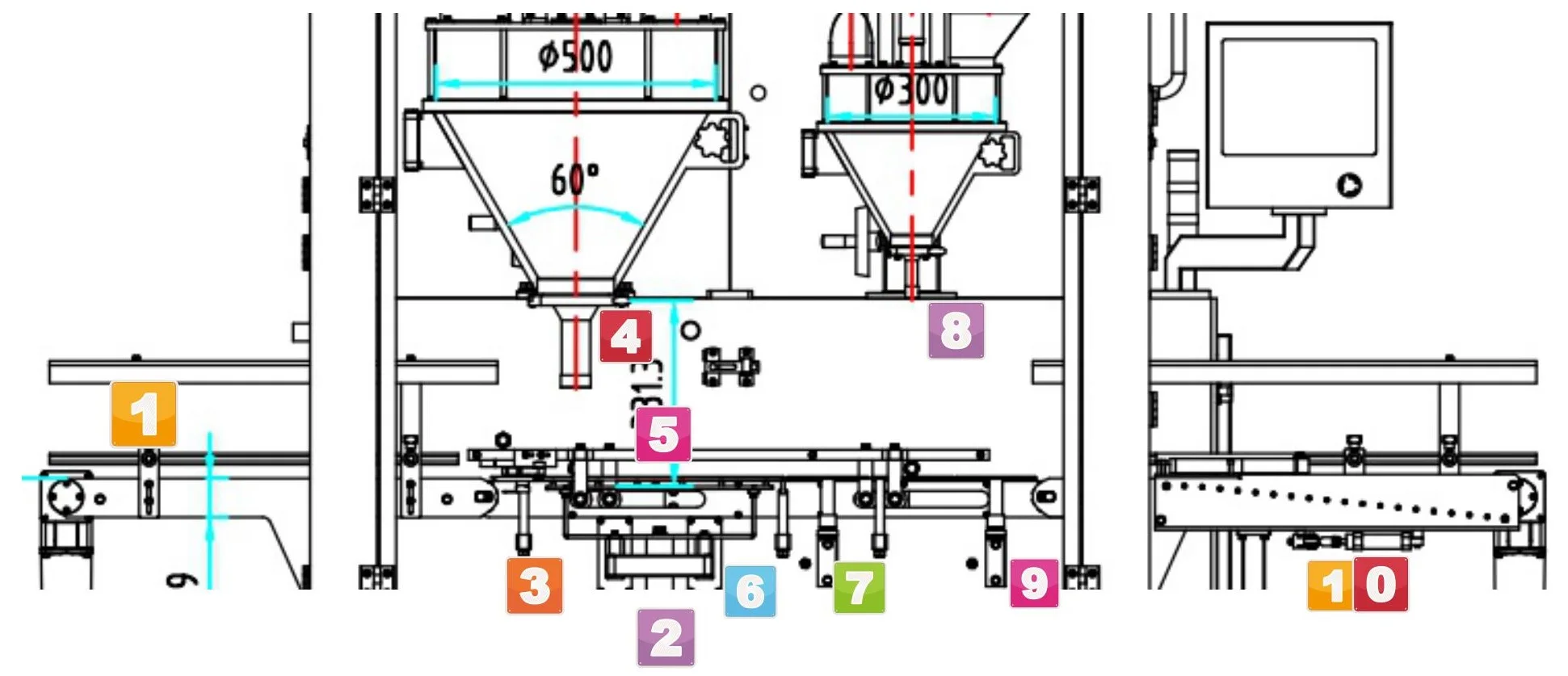

Process

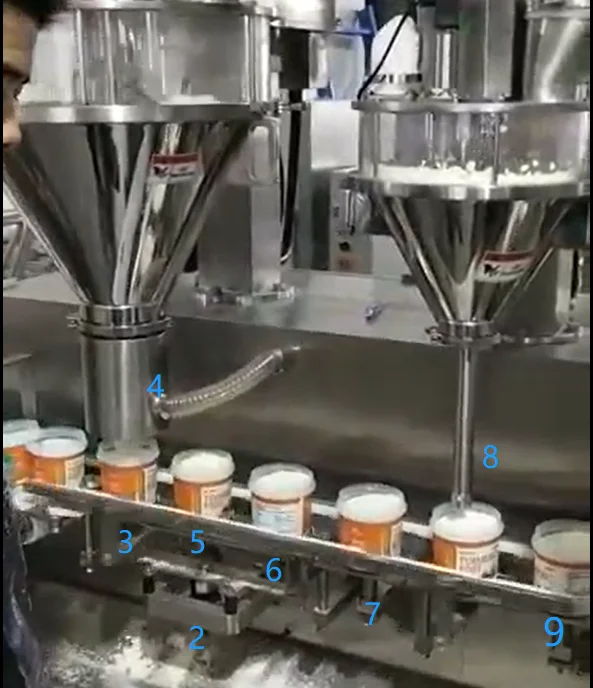

1.can in → 2.can-up → 3.first vibration → 4.filling → 5.second vibration → 6.third vibration → 7.weighing & tracing → 8.supplement → 9.weight checking → 10.Can out
Features & Specification
1.One line dual fillers, Main & Assist filling to keep work in high-precision.
2.Can-up and horizontal transmitting is controlled by servo and pneumatic system, be more accurate, more speed.
3.Servo motor and servo driver control the screw, keep stable and accurate
4.Stainless steel structure, Split hopper with polishing inner-out make it to cleaned easily.
5.PLC & touch screen make it be easy of operation.
6.Fast-respond weighing system make the strongpoint to real
7.The handwheel make the exchange of different filings to be easily.
8.Dust-collecting cover meet the pipeline and protect environment to pollution.
9.Horizontal straight design make the machine in little area
10.Settled screw setup make no metal pollution in producing
11.With whole system central control system.
2.Can-up and horizontal transmitting is controlled by servo and pneumatic system, be more accurate, more speed.
3.Servo motor and servo driver control the screw, keep stable and accurate
4.Stainless steel structure, Split hopper with polishing inner-out make it to cleaned easily.
5.PLC & touch screen make it be easy of operation.
6.Fast-respond weighing system make the strongpoint to real
7.The handwheel make the exchange of different filings to be easily.
8.Dust-collecting cover meet the pipeline and protect environment to pollution.
9.Horizontal straight design make the machine in little area
10.Settled screw setup make no metal pollution in producing
11.With whole system central control system.
Dosing Mode | Automatic Dual Heads Linear Auger Filler |
Filling Weight | 100 - 2000g |
Container Size | Φ60-135mm; H 60-260mm |
Filling Accuracy | 100-500g, ≤±1g; ≥500g,≤±2g |
Filling Speed | Above 50 cans/min(#502),Above 60 cans/min(#300 ~ #401) |
Power Supply | 3P AC208-415V 50/60Hz |
Total Power | 3.4 kw |
Total Weight | 450kg |
Air Supply | 6kg/cm 0.2cbm/min |
Overall Dimension | 2650×1040×2300mm |
Hopper Volume | 50L(Main) 25L (Assist) |
Name | Model Specification | PRODUCING AREA/Brand |
HMI | Schneider HMIGXO5502 | Schneider |
Main filling servo motor | 1.0kw | Panasonic |
Main filling servo driver | 1.0kw | Panasonic |
Assistant filling servo motor | 750w | Panasonic |
Assistant filling servo driver | 750w | Panasonic |
Can conveyer servo motor | 750w | Panasonic |
Can conveyer servo driver | 750w | Panasonic |
Electromagnetic valve | SMC | |
Cylinder | SMC | |
Air Filter and booster | SMC | |
Motor | 120W 1300rpm Model: 90YS120GY38 | Taiwan JSCC |
Reducer | Ratio:1：36，Model:90GK（F）36RC | Taiwan JSCC |
Switch | Schneider | |
Circuit breaker | Schneider | |
Emergency switch | Schneider | |
Contactor | Schneider | |
Heat relay | Schneider | |
Relay | MY2NJ 24DC | Omron |
Loadcell | Mettler-Toledo | |
Fiber sensor | Autonics | |
Photo sensor | Autonics | |
Level sensor | LVL-T1-G3S-E5PG-NA | PEPPERL+FUCHS |

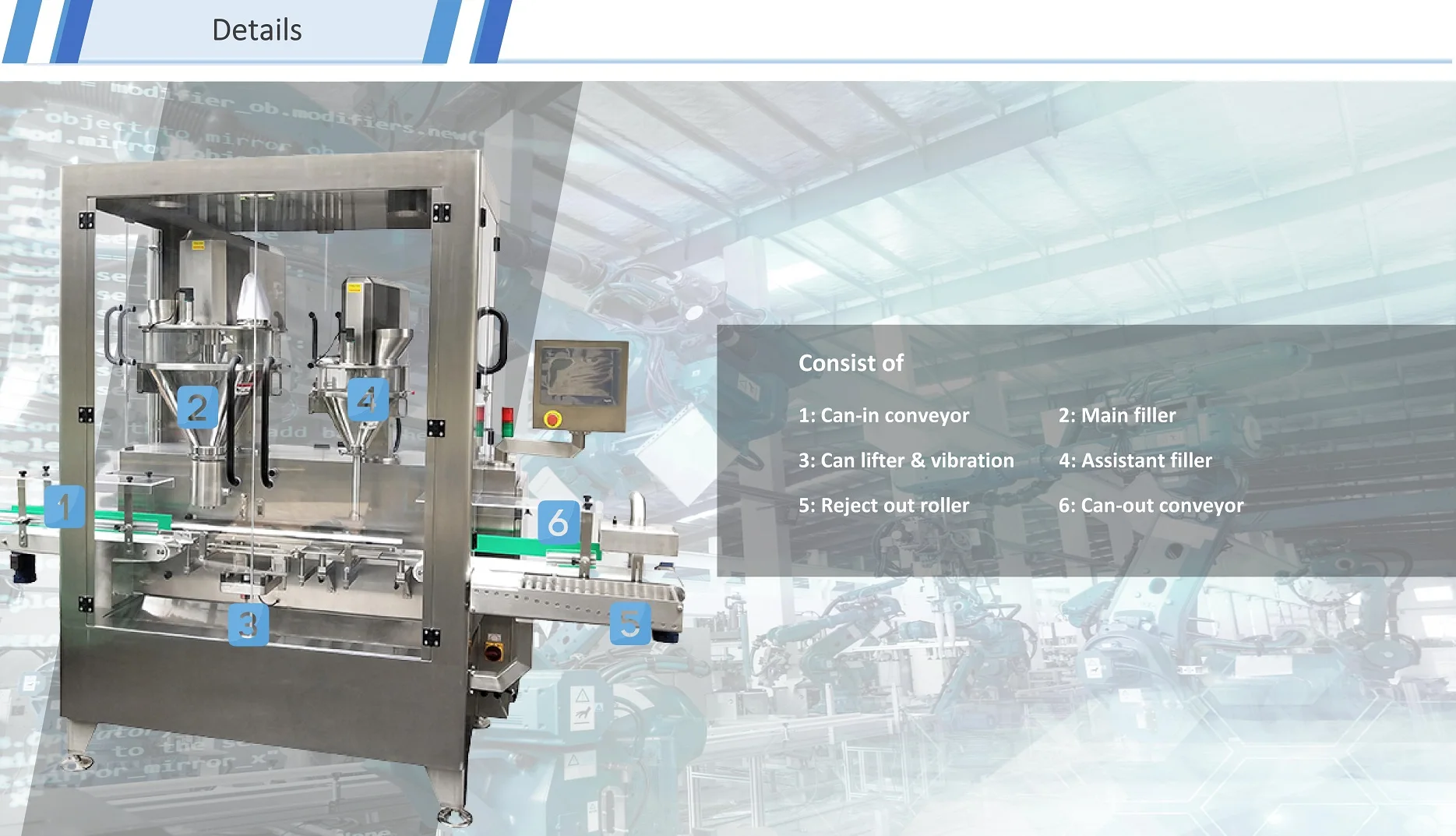

Details

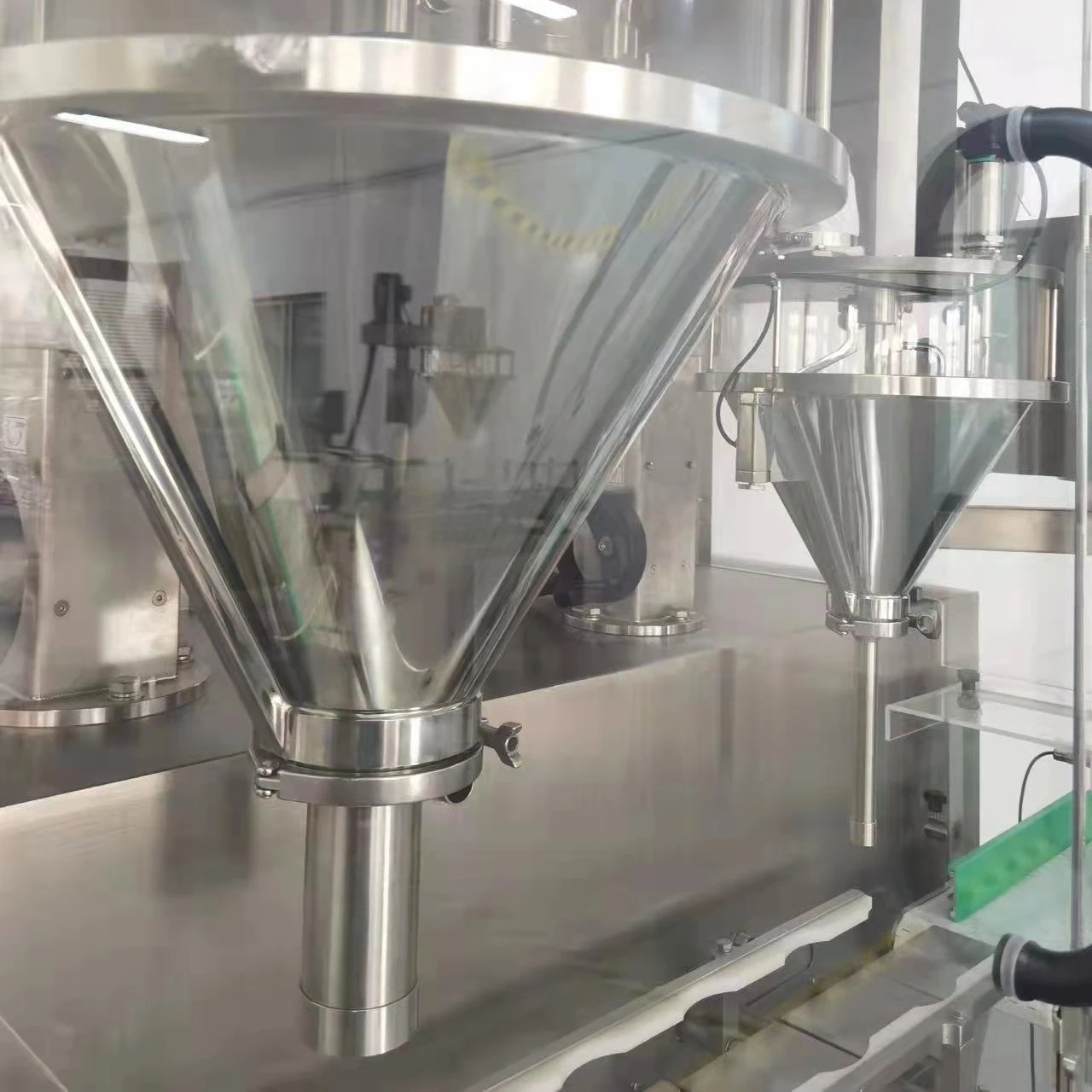

Half open hopper
This level split hopper is easy to open and clean.
Hanging hopper
The combined hopper is suitable for very fine powder because the there is no gap at lower part of hopper
Our design: Screw type
There is no gap for powder to hide inside, and easy to clean
Other suppliers: Hang type
There will be powder hiding inside the hang connection part, which is difficult to clean, and will turn bad even pollute fresh powder.
Our Design
Full welding, including hopper edge. Easy to clean
Other supplier
There is gap at welding place when no full welding, which is easy to hide powder , difficult to clean and might pollute new material.
Our design
The whole machine is made of SS304 including the base and holder of motor, which is stronger and high level.
Other supplier
The holder of motor is not SS304.

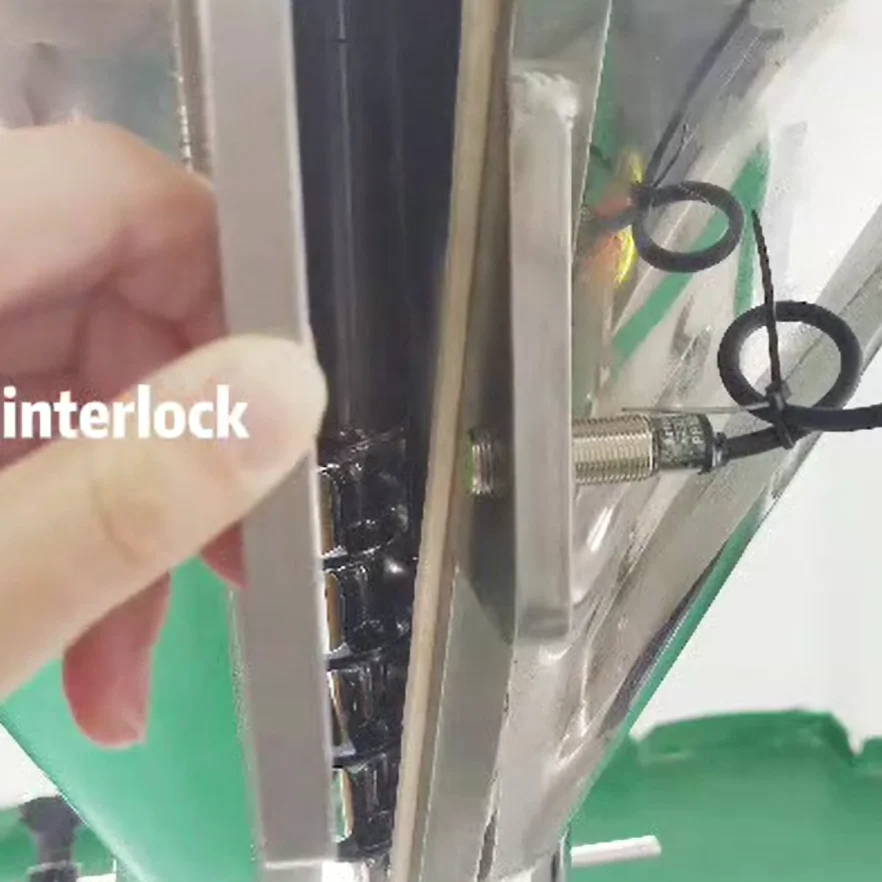

Sensor Interlock
Sensor detect if the hopper is closed. Machine stops automatically when hopper is open so that to protect operator being hurting by turning auger.
Dual heads filler
1. Main filler will finish 85% target weight fast
2. Assistant filler will supplent left 15% accurate and slowly
3. They work together to achieve high speed, and guarentee high precision
Vibration & weighing

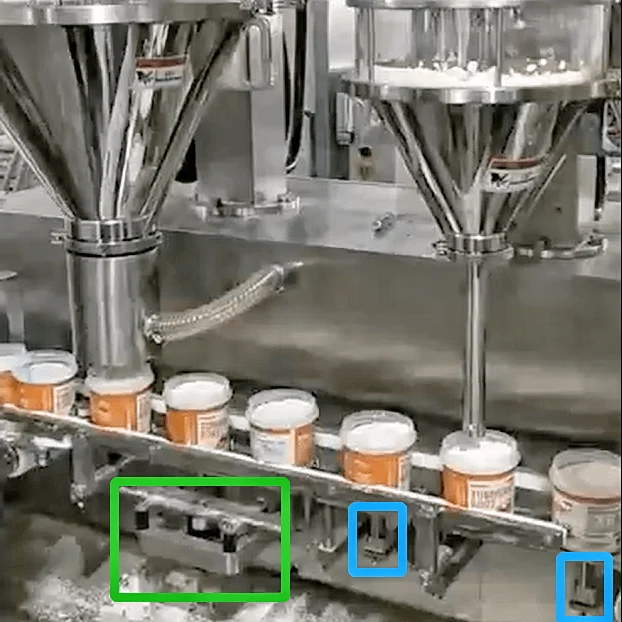

1. The vibration in green square has three shaking points, to extend vibrating range to three cans together
2. Two load cells in blue square is separated from vibration and won't be affected the accuracy. One is to weigh current weight after first main filling, the other is used to detect if final product reaches target weight.

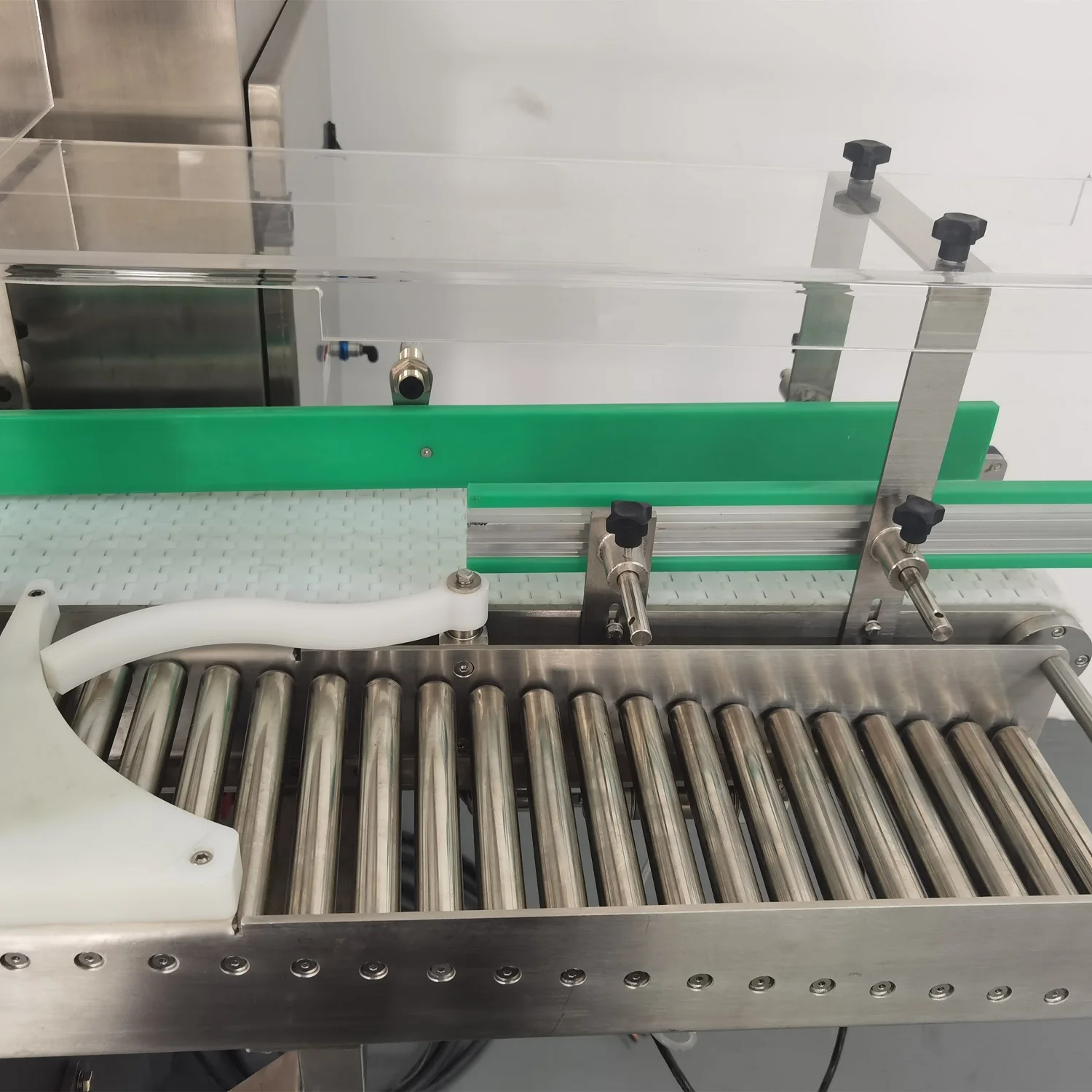

Rejection Channel
Two Channels out for bottles.
Qualified weight bottles comes out from chain conveyor,
Reject will go into eliminate channel and won't enter next station in packing line.

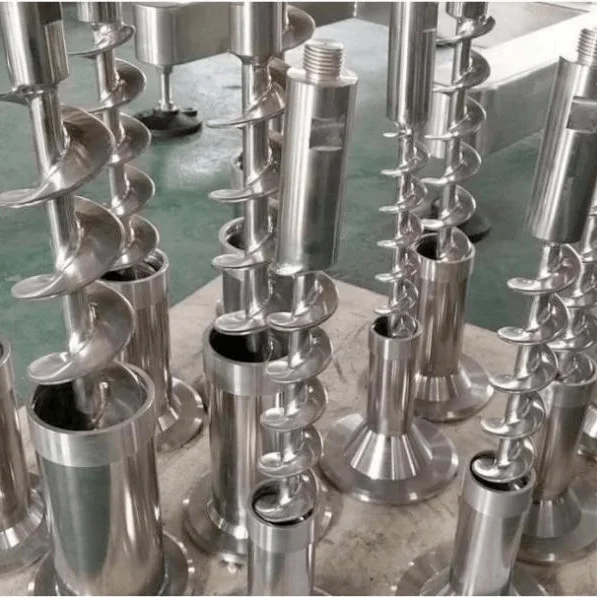

Various size augers and nozzles
The auger filler principle is that volume of powder brought down by auger turning one circle is fixed. So different sizes of auger can be used in different filling weight range to reach higher accuracy and save more time.
There are corresponding size auger tube for each size auger.
for example, dia. 38mm screw is suitable for filling 100g-250
There are corresponding size auger tube for each size auger.
for example, dia. 38mm screw is suitable for filling 100g-250
Cup Size and Filling Range
Order | Cup | Inner Diameter | Outer Diameter | Filling Range |
1 | 8# | 8mm | 12mm | |
2 | 13# | 13mm | 17mm | |
3 | 19# | 19mm | 23mm | 5-20g |
4 | 24# | 24mm | 28mm | 10-40g |
5 | 28# | 28mm | 32mm | 25-70g |
6 | 34# | 34mm | 38mm | 50-120g |
7 | 38# | 38mm | 42mm | 100-250g |
8 | 41# | 41mm | 45mm | 230-350g |
9 | 47# | 47mm | 51mm | 330-550g |
10 | 53# | 53mm | 57mm | 500-800g |
11 | 59# | 59mm | 65mm | 700-1100g |
12 | 64# | 64mm | 70mm | 1000-1500g |
13 | 70# | 70mm | 76mm | 1500-2500g |
14 | 77# | 77mm | 83mm | 2500-3500g |
15 | 83# | 83mm | 89mm | 3500-5000g |
Production & Processing
Package & Shipping
Company Profile
FAQ
1.Are you a auger filler manufacturer?
Shanghai Tops Group Co., Ltd is one of the leading auger filler manufacturers in China, who has been in packing machine industry for over ten years.
2.Does your auger filler have CE certificate?
Not only the filler but also all our machines have CE certificate.
3.How long is the auger filler delivery time?
It takes 7-10 days to produce a standard model.
For customized machine, your machine can be done in 30-45 days.
For customized machine, your machine can be done in 30-45 days.
4.What’s your company service and warranty?
■TWO YEAR warranty, ENGINE THREE YEARS warranty, life-long service (Warranty service will be honored if the damage is not caused by human or improper operation)
■Provide accessory parts in favorable price
■Update configuration and program regularly
■Respond to any question in 24 hours Site service or online video service
For the payment term, you can choose from following terms:
L/C, D/A, D/P, T/T, Western Union, Money Gram, Paypal
L/C, D/A, D/P, T/T, Western Union, Money Gram, Paypal
For the shipping, we accept all term in contract like EXW, FOB, CIF, DDU etc.
5.Do you have the ability of design and propose solution?
Of course, we have professional design team and experienced engineer. For example, we designed a bread formula production line for Singapore BreadTalk.
6.What products can auger filler handle?
It can handle all kinds of powder or granule weighing and filling, and is widely applied in food, pharmaceuticals, chemical etc.
7. How does auger filler work?
The powder volume brought down by screw turning one round is fixed. The controller will calculate how many turns the screw has to turn to reach the target filling weight.
