Best Toppy Pallet Tilter L Shape Silver for Beverage industry for Food & Beverage Factory
- Category: Other Material Handling Equipment >>>
- Supplier: TOPPY S.R.L.
Share on (10000010063571):
Product Overview
Description
L-Shape Silver
L-Shape Silver
Semi-automatic system;
Performance up to 60 pallets / h;
Maximum capacity of 1500 kg;
Insertion and removal freezer spacers;
Quick pallet change;
Loading and unloading at floor level with pallet trucks;
Safe pressure of the products.
Also to insert and remove freezer spacers
Performance up to 60 pallets / h;
Maximum capacity of 1500 kg;
Insertion and removal freezer spacers;
Quick pallet change;
Loading and unloading at floor level with pallet trucks;
Safe pressure of the products.
Also to insert and remove freezer spacers
Product Description
How does the pallet change operation take place?

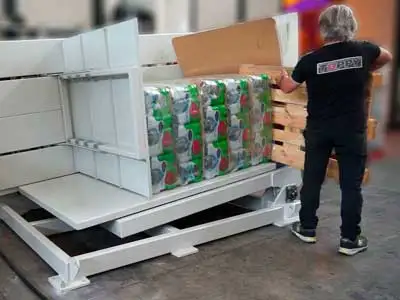

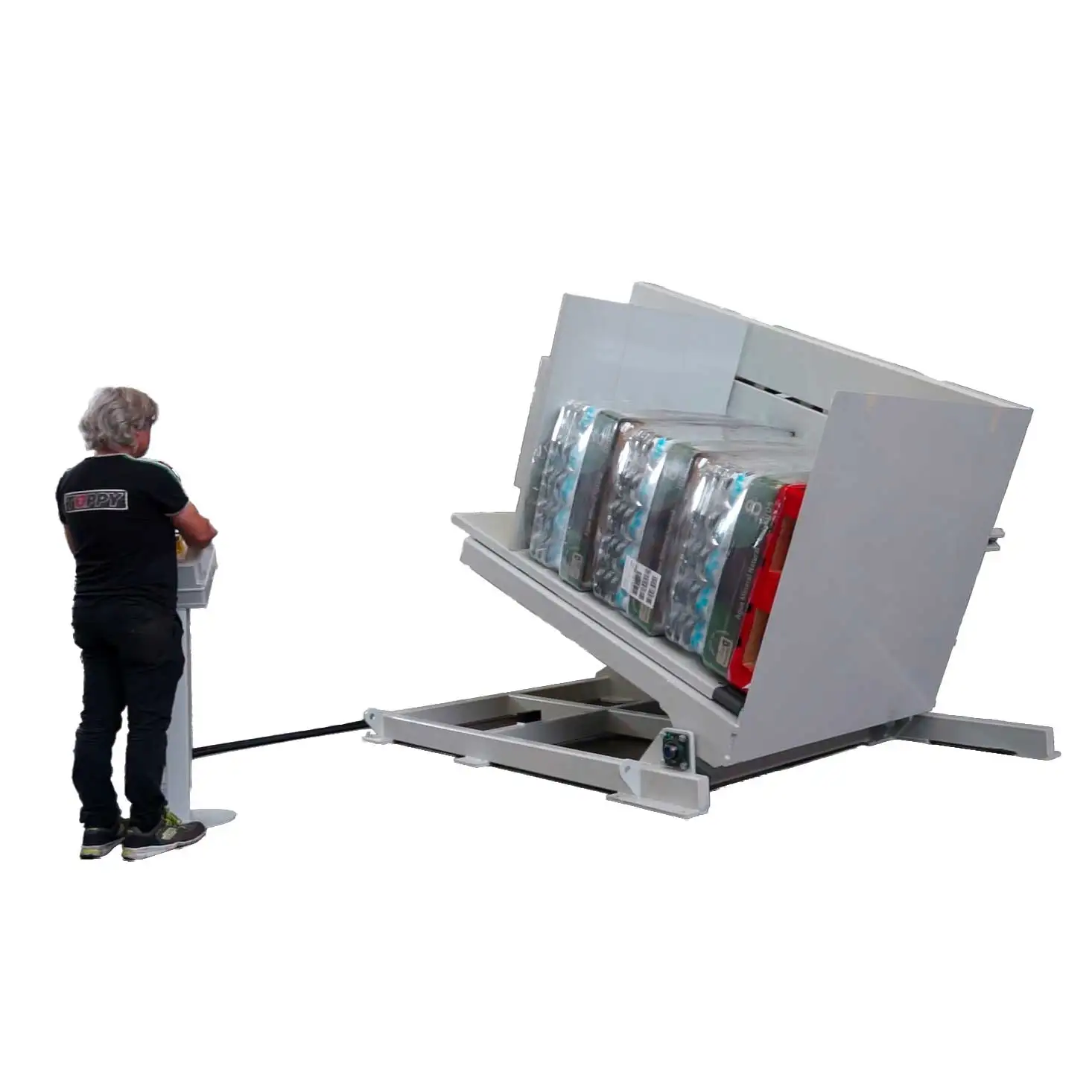

The pallet change operation takes place by tilting the load at 90° or 100°. In fact, the replacement of the pallet take place

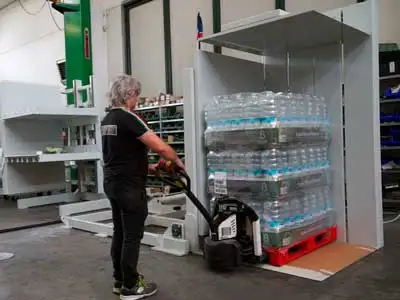

thanks to the operator who transports the load with the transpallet or the forklift on the lower platform. By using a control panel, the operator decides to start: the upper latform stops the product in order to allow the load for the overturning of 90° or 100°.
When the load is overturned sideways, the operator widens the upper compactor in order to separate the product from the pallet that is removed by the operator.
Subsequently, the operator inserts the new pallet, closes the compactor, and returns the machinery to its initial position. The product will now be on the new pallet ready to be picked up.
thanks to the operator who transports the load with the transpallet or the forklift on the lower platform. By using a control panel, the operator decides to start: the upper latform stops the product in order to allow the load for the overturning of 90° or 100°.
When the load is overturned sideways, the operator widens the upper compactor in order to separate the product from the pallet that is removed by the operator.
Subsequently, the operator inserts the new pallet, closes the compactor, and returns the machinery to its initial position. The product will now be on the new pallet ready to be picked up.
What products does it move?
It’s a pallet tilter able to move many types of products. Please find below some examples of products able to handle: boxes, vials, containers, bowls, bottles, packages, big bags, big boxes, barrels, paper barrels, buckets, cans, reels, large cartons, paper rolls, plywood etc.
It’s a pallet tilter able to move many types of products. Please find below some examples of products able to handle: boxes, vials, containers, bowls, bottles, packages, big bags, big boxes, barrels, paper barrels, buckets, cans, reels, large cartons, paper rolls, plywood etc.
Description of the stationary pallet tipper L-SHAPE TILTER
It is a Stationary Toppy pallet tilter able to turn loads on pallets up to a maximum weight of 1,500 kg and a height of 2.000 mm.
This pallet tipper is available in the manual version, with button panel or in the automatic version via PLC. It is an extremely versatile device suitable for various industrial sectors such as the pharmaceutical, food and beverage, cosmetic, ceramic sectors, etc.
Furthermore, L-SHAPE TILTER is available in Logy configuration (automatic pallet change logistics system), can be integrated with roller conveyors and automatic pallet magazines.
SAFETY
All the Toppy tipper machinery are equipped with safety measurements to avoid work injuries, with an eye to GMP norms to ensure the appropriate quality standards.
Our stationary pallet tilter systems are supplied with safety system that do not allow access to the operators in the area in front of the machine. These are optional systems such as metal perimeter protection nets and safety photocells to limit access.
Furthermore, L-SHAPE TILTER is available in Logy configuration (automatic pallet change logistics system), can be integrated with roller conveyors and automatic pallet magazines.
SAFETY
All the Toppy tipper machinery are equipped with safety measurements to avoid work injuries, with an eye to GMP norms to ensure the appropriate quality standards.
Our stationary pallet tilter systems are supplied with safety system that do not allow access to the operators in the area in front of the machine. These are optional systems such as metal perimeter protection nets and safety photocells to limit access.
Specification
Condition | New |
Applicable Industries | Food & Beverage Factory, warehouse, Pharmaceutical Industry, Food |
Showroom Location | Italy |
Place of Origin | Italy |
FAQ
1.Can pallet tilter “TOPPY L-SHAPE SILVER” be customized for special applications?
Yes, absolutely, we are able to customize the machines according to the customer’s needs.
2.Which products are suitable for this device?
This pallet tilter is able to work with many products, boxes, vials, flasks, trays, bottles, packs, big bags, big boxes, barrels,
paper barrels, buckets, cans, reels, large containers, paper rolls, plywood, battery etc.
paper barrels, buckets, cans, reels, large containers, paper rolls, plywood, battery etc.
3.What type of pallet it’s able to operate with?
This pallet tipper can operate with any pallet size, from standard to special ones. It is possible to use pallets of many
materials (wood , plastic, aluminium, iron, etc.)
materials (wood , plastic, aluminium, iron, etc.)
4.How does the pallet change take place?
By tipping the load at 90 ° or 180 °
5.How are the products loaded or unloaded from the pallet changer devices?
They can be loaded and unloaded by forklift or forklift truck.
6.How does it operates with fragile products?
Even the most fragile products are securely locked by the upper platform in order to safe the product. The upper platform locks the products with a light pression managed by a shock absorber system and limit-switches that prevent the products to be crushed.
7.What’s the difference between “mobile” and “stationary” pallet?
The mobile pallet changers are really versatile systems as they do not need to dedicate a specific area for the operation so can be performed in any production area. The stationary pallet changers partially compensate the use of the transpallet as it allows the transport of the loads inside the dispenser.
Our stationary pallet changer are used by customers who need to change a substantial number of pallets per hour and can’t have a dedicated area dedicated for the pallet change operation.
Our stationary pallet changer are used by customers who need to change a substantial number of pallets per hour and can’t have a dedicated area dedicated for the pallet change operation.
