Hydraulic Straddle Leg Drum Handling Truck
US $178.00-$195.00
Бестселлер, поддон обменник, боковой механизм, новая машина для напитков, мощность 1500 кг
- Category: Other Material Handling Equipment >>>
- Supplier: TOPPY S.R.L.
Share on (10000010080580):
Product Overview
Description
Pallet Exchanger Side Mover
Toppy Side Mover
Handle all types of products;
No tilting, no rotating or turning the product;
Mobile and versatile system;
Maximum capacity of 1500 kg;
Performance up to 40 pallets / h;
Safe lateral pressure of the products.
No tilting, no rotating or turning the product;
Mobile and versatile system;
Maximum capacity of 1500 kg;
Performance up to 40 pallets / h;
Safe lateral pressure of the products.
Product Description

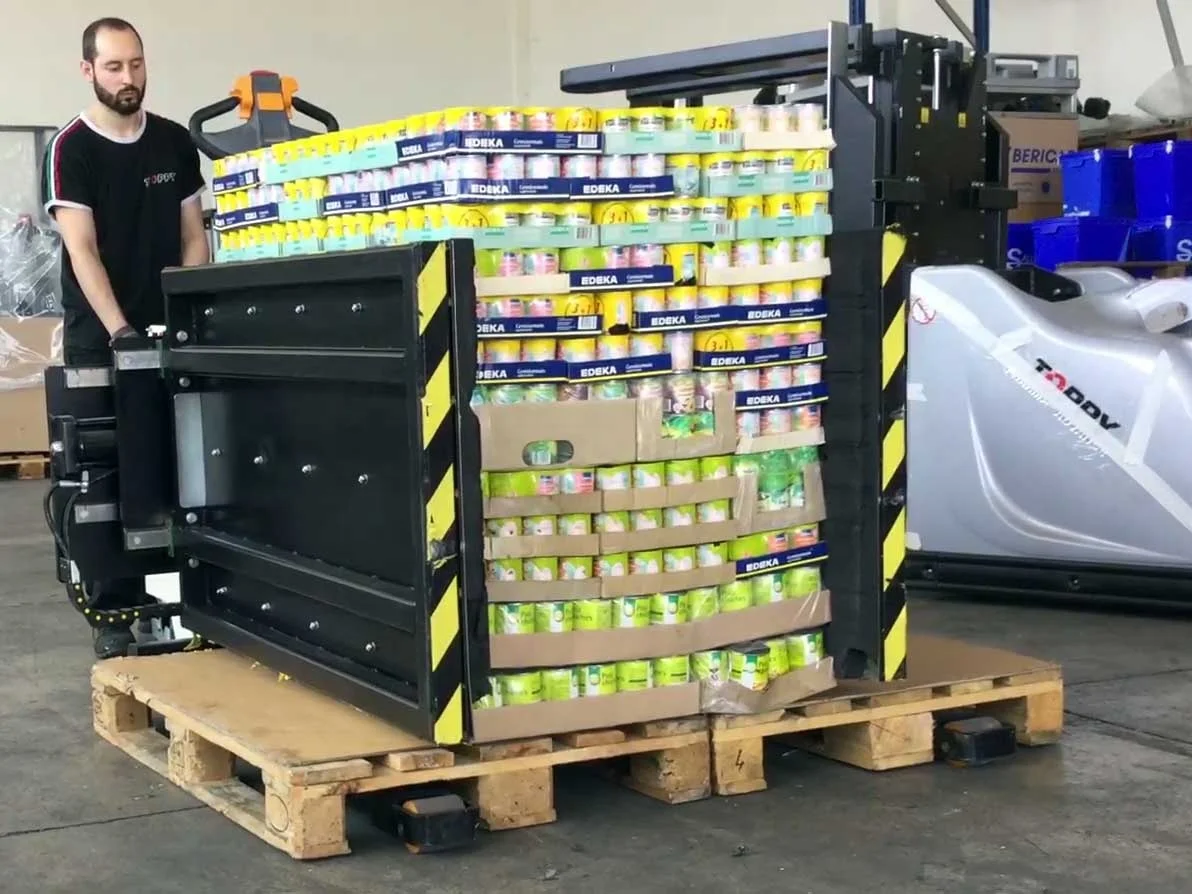

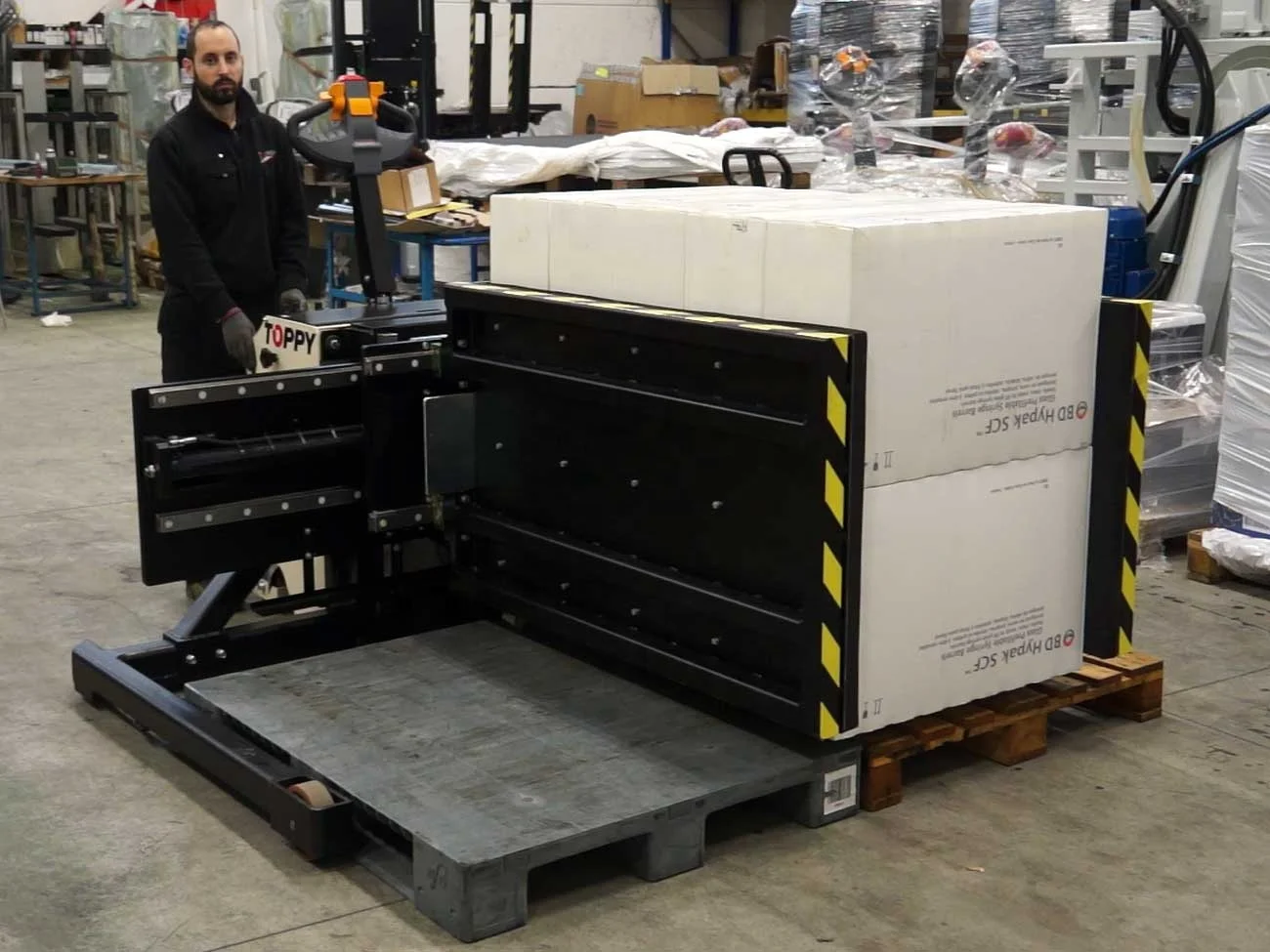

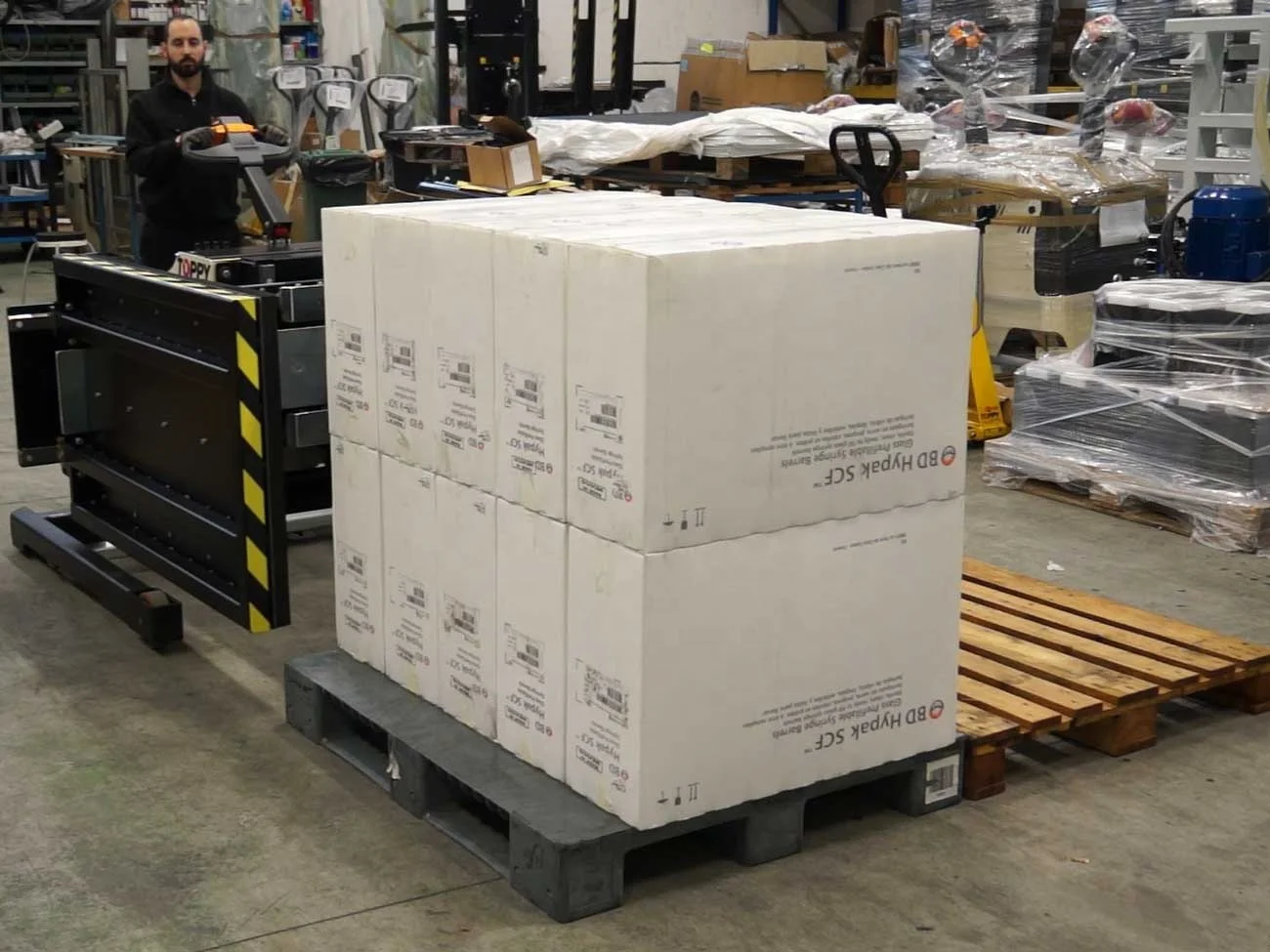

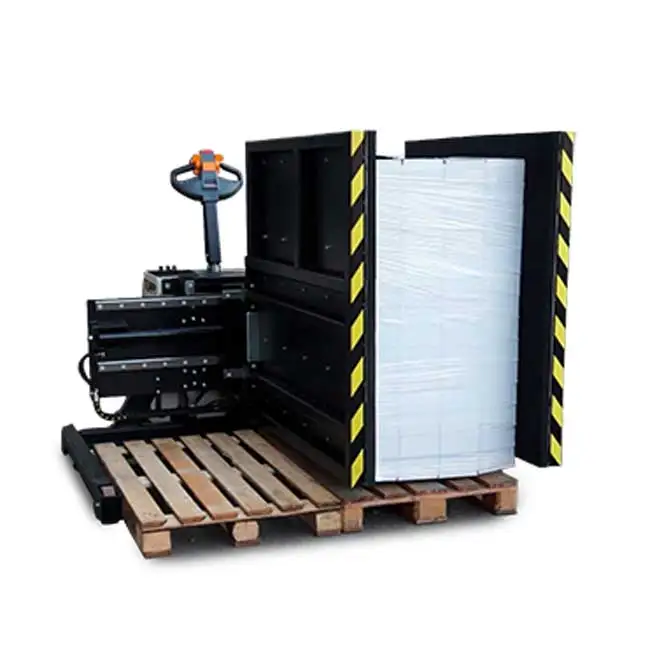

Description of the mobile pallet changer “SIDE MOVER”
It’s a very versatile mobile pallet changer that allows you to quickly change the pallet in confined spaces without having to
dedicate an area of the factory to this operation.
It’s able to handle fragile products, which cannot be turned or tilted, with a maximum weight of 1500 kg and all pallet sizes.
All Toppy equipment are equipped with safety systems in order to prevent accidents at work, with particular attention to GMP
standards to ensure the appropriate quality standards.
In the specific case of mobile pallet changers, they are supplied with safety systems of braking systems for handling the trolley.
In addition, an emergency button is installed which is activated to immediately stop the operation carried out at that moment. In
addition, we provide optional side nets necessary, in extraordinary cases, for the product to fall during the overturning or
rotation operation.
The mobile pallet changer is an electrically powered trolley with a maximum capacity of 1500 kg, operated by tiller controls and
powered by a gel battery. It is an extremely versatile and compact device that allows the replacement of the pallet to be carried
out in very confined spaces, thus not requiring an area to be dedicated in the plant.
The mobile bench vault is equipped with the latest generation gel batteries with a duration of 8-10 hours. It is possible to
increase the duration with larger batteries. In addition, to ensure that mobile devices have a non-stop operating cycle, we
provide the optional “roll-on / roll-off”, a quick battery change system.
Also available as a stationary solution
dedicate an area of the factory to this operation.
It’s able to handle fragile products, which cannot be turned or tilted, with a maximum weight of 1500 kg and all pallet sizes.
All Toppy equipment are equipped with safety systems in order to prevent accidents at work, with particular attention to GMP
standards to ensure the appropriate quality standards.
In the specific case of mobile pallet changers, they are supplied with safety systems of braking systems for handling the trolley.
In addition, an emergency button is installed which is activated to immediately stop the operation carried out at that moment. In
addition, we provide optional side nets necessary, in extraordinary cases, for the product to fall during the overturning or
rotation operation.
The mobile pallet changer is an electrically powered trolley with a maximum capacity of 1500 kg, operated by tiller controls and
powered by a gel battery. It is an extremely versatile and compact device that allows the replacement of the pallet to be carried
out in very confined spaces, thus not requiring an area to be dedicated in the plant.
The mobile bench vault is equipped with the latest generation gel batteries with a duration of 8-10 hours. It is possible to
increase the duration with larger batteries. In addition, to ensure that mobile devices have a non-stop operating cycle, we
provide the optional “roll-on / roll-off”, a quick battery change system.
Also available as a stationary solution
How does the pallet change operation take place?
TOPPY SIDE MOVER is able to perform the pallet change operation in only few seconds. In fact, the pallet is positioned inside the
device. The new pallet where the product will be placed is positioned next to the load. The pallet change operation takes place
thanks to two side platforms that press and lift up the load to place it from one pallet to another.
The pressure applied to the load is very delicate thanks to the possibility of direct adjustment via a pressure gauge or a preset
pressure selector.
device. The new pallet where the product will be placed is positioned next to the load. The pallet change operation takes place
thanks to two side platforms that press and lift up the load to place it from one pallet to another.
The pressure applied to the load is very delicate thanks to the possibility of direct adjustment via a pressure gauge or a preset
pressure selector.
What products does it handle?
This pallet changer is able to operate without tilting or rotating the product. Please find below some examples of products that
this pallet changer is able to handle: boxes, vials, containers, bowls, bottles, packages, big bags, big boxes, barrels, paper
barrels, buckets, cans, reels, large cartons, paper rolls, plywood etc.
This pallet changer is able to operate without tilting or rotating the product. Please find below some examples of products that
this pallet changer is able to handle: boxes, vials, containers, bowls, bottles, packages, big bags, big boxes, barrels, paper
barrels, buckets, cans, reels, large cartons, paper rolls, plywood etc.
Specification
Condition | New |
Applicable Industries | Food & Beverage Factory, warehouse, Pharmaceutical Industry, Food |
Showroom Location | Italy |
Place of Origin | Italy |
FAQ
1.Which products are suitable for this device?
This pallet changer is able to work with many products, boxes, vials, flasks, trays, bottles, packs, big bags, big boxes, barrels, paper barrels, buckets, cans, reels, large containers, paper rolls, plywood, battery etc.
2.What type of pallet it’s able to operate with?
It can operate with any pallet size, from standard to special ones. It is possible to use pallets of many materials (wood,
plastic, aluminium, iron, etc.)
plastic, aluminium, iron, etc.)
3.How does the pallet change take place?
By the side pressing of the product and its lateral translation.
4.How are the products loaded or unloaded from the pallet changer devices?
They can be loaded and unloaded by forklift or forklift truck.
5.How does it operates with fragile products?
Even the most fragile products are securely locked by the upper platform in order to save the product. The upper platform locks the products with a light pression managed by a shock absorber system and limit-switches that prevent the products to be crushed.
6.What’s the difference between “mobile” and “stationary” pallet?
The mobile pallet changers are really versatile systems as they do not need to dedicate a specific area for the operation so can be performed in any production area. The stationary pallet changers partially compensate the use of the transpallet as it allows the transport of the loads inside the dispenser.
Our stationary pallet changer are used by customers who need to change a substantial number of pallets per hour and can’t have a dedicated area dedicated for the pallet change operation.
Our stationary pallet changer are used by customers who need to change a substantial number of pallets per hour and can’t have a dedicated area dedicated for the pallet change operation.
