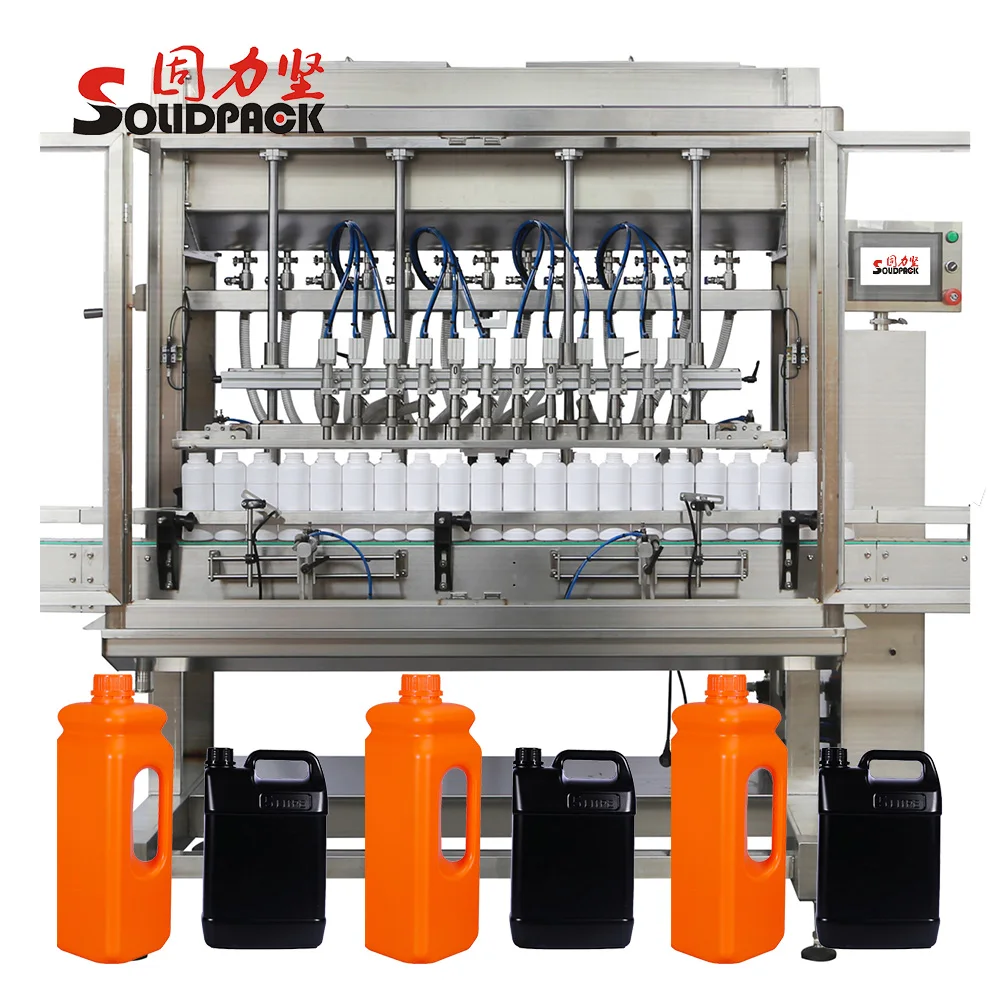

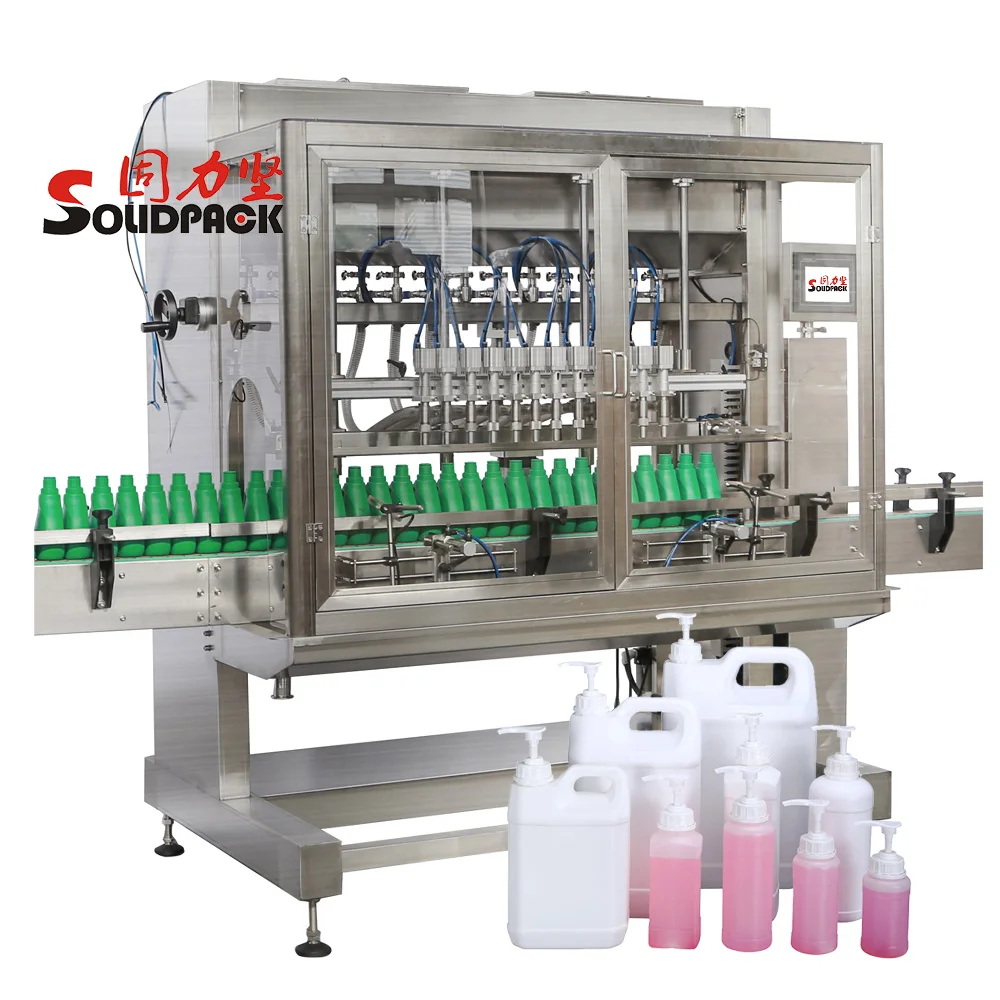

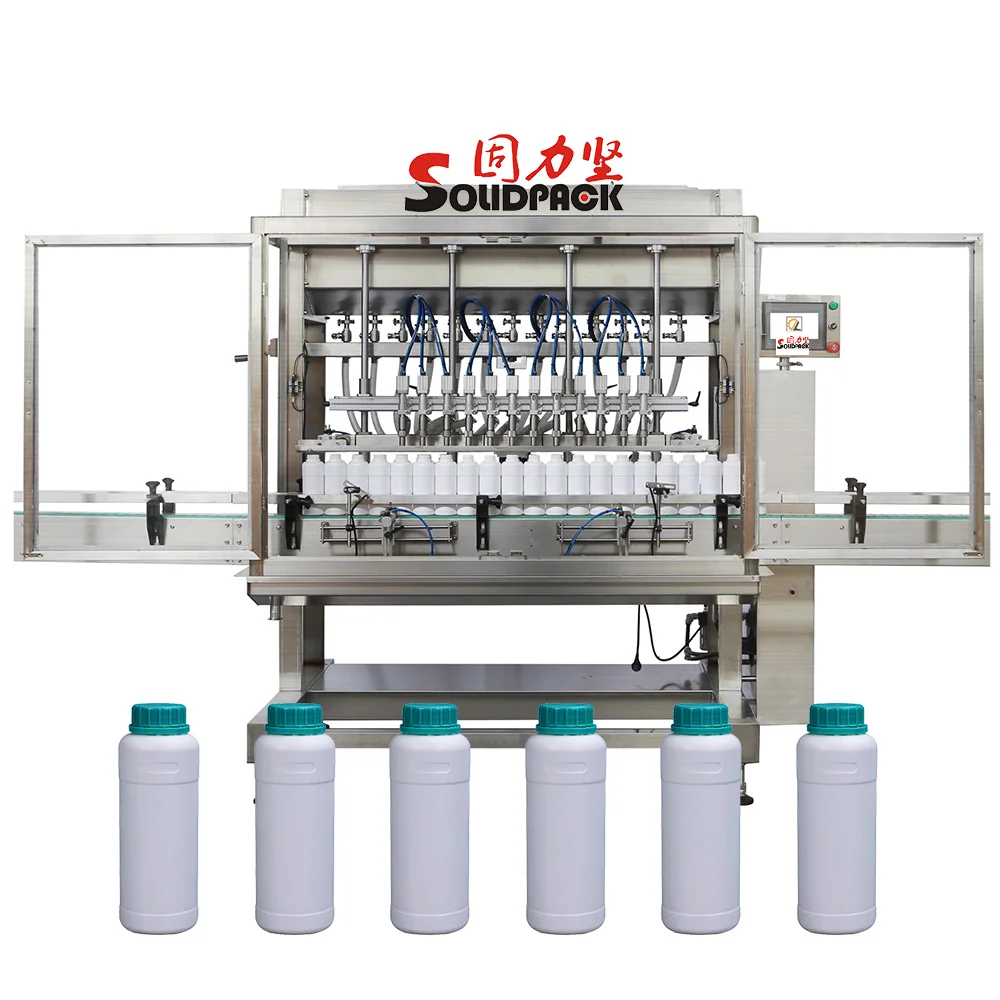

Solidpack 16 heads Automatic Insectcide Chemical Liquid Linear Gravity Bottle Filler Capping Machine
- Category: >>>
- Supplier: Beijing Solid Packing Machinery Co. Ltd
Share on (10000010195013):
Product Overview
Description
Our Advantages
Specification
Filling heads | 10 | 12 | 14 | 16 | 18 | 20 | |||||
Material | SUS304 & SUS316L | ||||||||||
Direction | From right to left or from left to right | ||||||||||
Suit filling volume | 100-5000ml | ||||||||||
Filling precision | ±1% | ||||||||||
Filling speed (Based on 500ml) | 3000-3500 (bottles/hour) | 3500-4000 (bottles/hour) | 4000-4500 (bottles/hour) | 4500-5000 (bottles/hour) | 5000-5500 (bottles/hour) | 5500-6000 (bottles/hour) | |||||
Air pressure | 0.4-0.6Mpa | ||||||||||
Power | 220/380V 50/60Hz 1.5Kw (Can be tailor-made to suit different countries) | ||||||||||
Machine Size (L*W*Hmm) | 3000*900*2200 | 3200*900*2200 | 3400*900*2200 | 3600*900*2200 | 3800*900*2200 | 4000*900*2200 | |||||
Weight | 400Kg | 450Kg | 500Kg | 550Kg | 600Kg | 650Kg | |||||
Product Description
Introduction:
The gravity filling machine is suitable to fill all kinds water based liquid in food and drinking industry, like wine, milk, liquor, vinegar, juice, mineral water etc. It also can liquid in agricultural chemicals industry like liquid fertilizer, liquid pesticide and liquid insecticide etc.
For thick and sticky various liquid, it can not fill. It need to choose our servo piston filling machine.
For thick and sticky various liquid, it can not fill. It need to choose our servo piston filling machine.
Functions:
Machine component: All the contacted part with the liquid detergent is made by Stainless steel 316L. Other parts are made by stainless steel 304. The machine use world word-class brand components, such as photo sensor---keyence (Japan) PLC---Mitsubishi (Japan) Electrinic control part--- Mitsubishi (Japan) Touch screen---MCGS (Beijing) Cylinder--AirAc (Taiwan).
Controlling system : The machine adopts full-auto PLC + human-computer touch screen control system. For different volume for example, 500ml, 1000ml, 2000ml, we set three procedures, mode 1, mode 2, model 3``` The PLC can save these parameters for later use. Operators do not need too much complicated adjustments; the filling machine can switch between the three models easily.
Liquid hopper: The tank is made by SUS316L material, there is a sensor on tank to start or stop the pump transfer liquid or stop transfer. It is automatically.
Bottle position correct device: To ensure the bottles and filling heads are in the correct position, we add a special bottles position device to make the whole filling process smooth and stable. No bottle no filling.

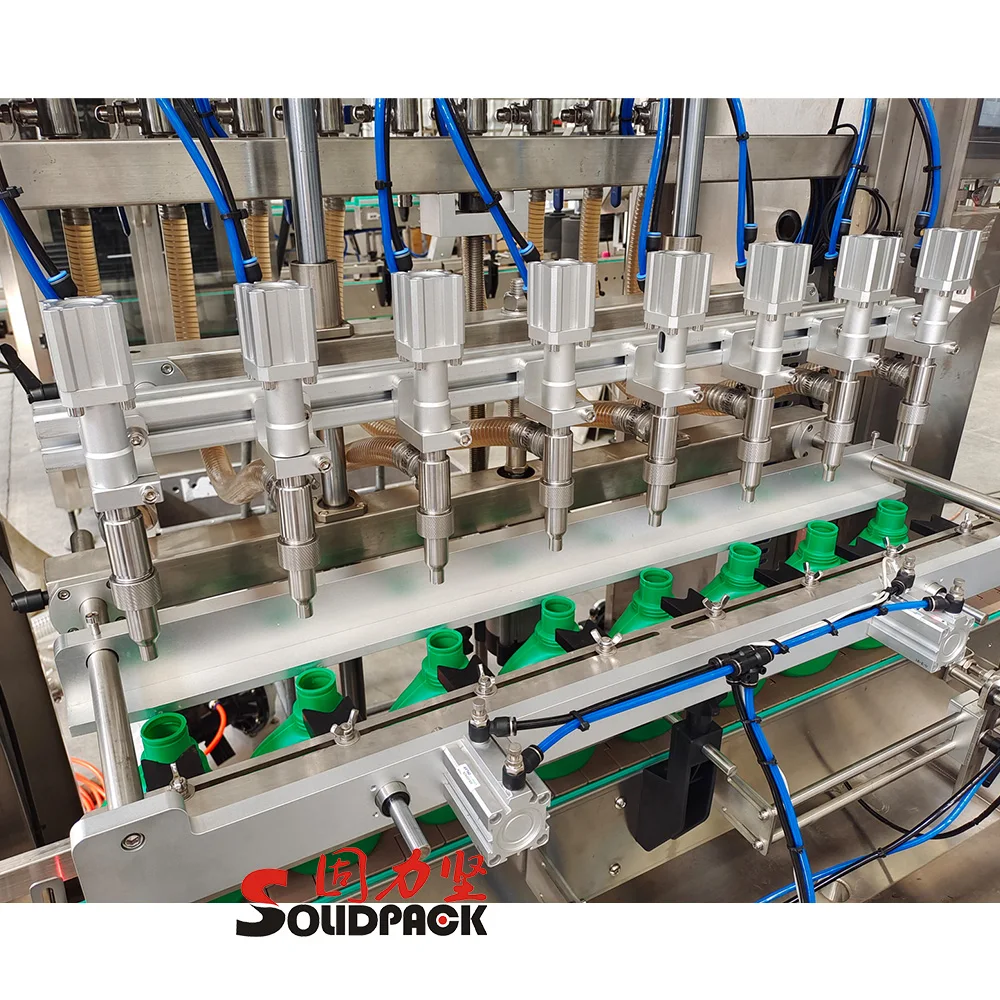

Filling heads: The filling heads are specially made, with the function of anti-drop and anti-drawing & bubble-kill. The filling heads are diving, moving together with liquid level.
Transaction process
Why Choose Us
Our logistics
FAQ
1.Where is your factory?
Our factory address :Plant No 6, No.77 Fuyuan Road, Wuqing Development Area, Tianjin City, China.
2. If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical staff can help to analysis, design and test the new products you offered.
3.What can you buy from us?
Filling Machine, Sealing Machine, Capping Machine, Labeling Machine
4. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Our factory address :Plant No 6, No.77 Fuyuan Road, Wuqing Development Area, Tianjin City, China.
2. If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical staff can help to analysis, design and test the new products you offered.
3.What can you buy from us?
Filling Machine, Sealing Machine, Capping Machine, Labeling Machine
4. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
