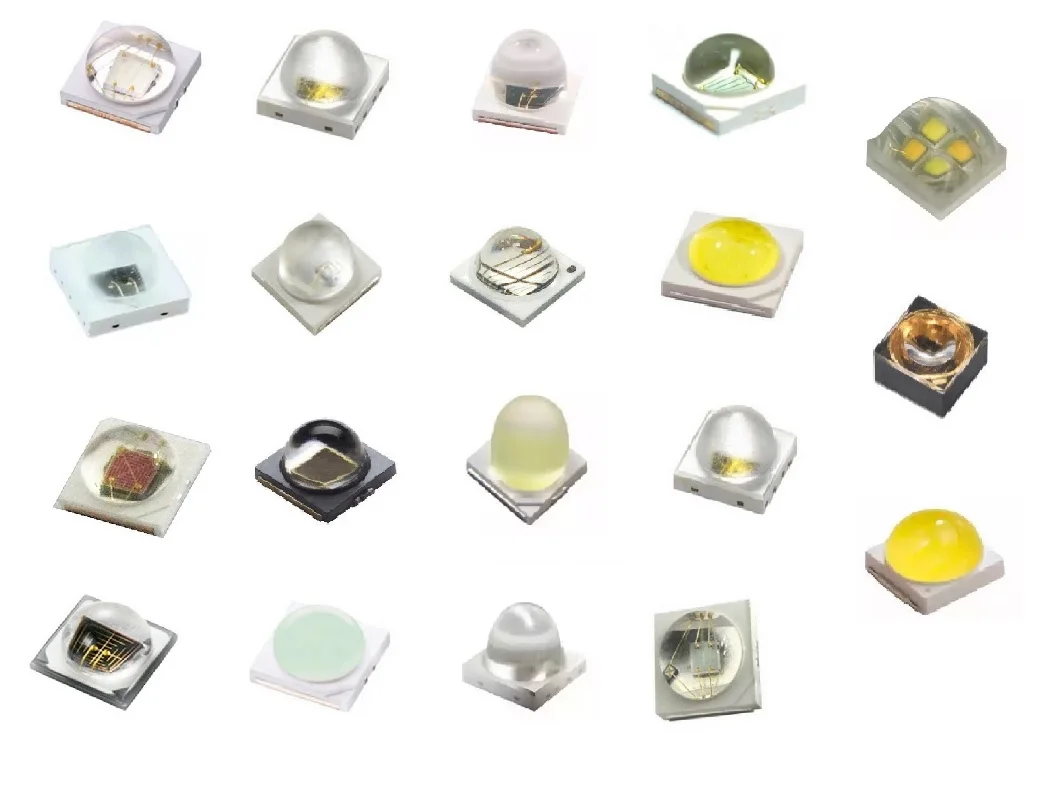

Hot Sell 10w rgb led or 1616 3030 5050 3535 High Power Red Green Blue RGB UV IR Power LED
- Category: >>>
- Supplier: SUPER BRITE LTD.
Share on (10000010229283):
Product Overview
Description
Specification
3030 1W 3V LED
AE3030X2P-1LEXX
Product Description

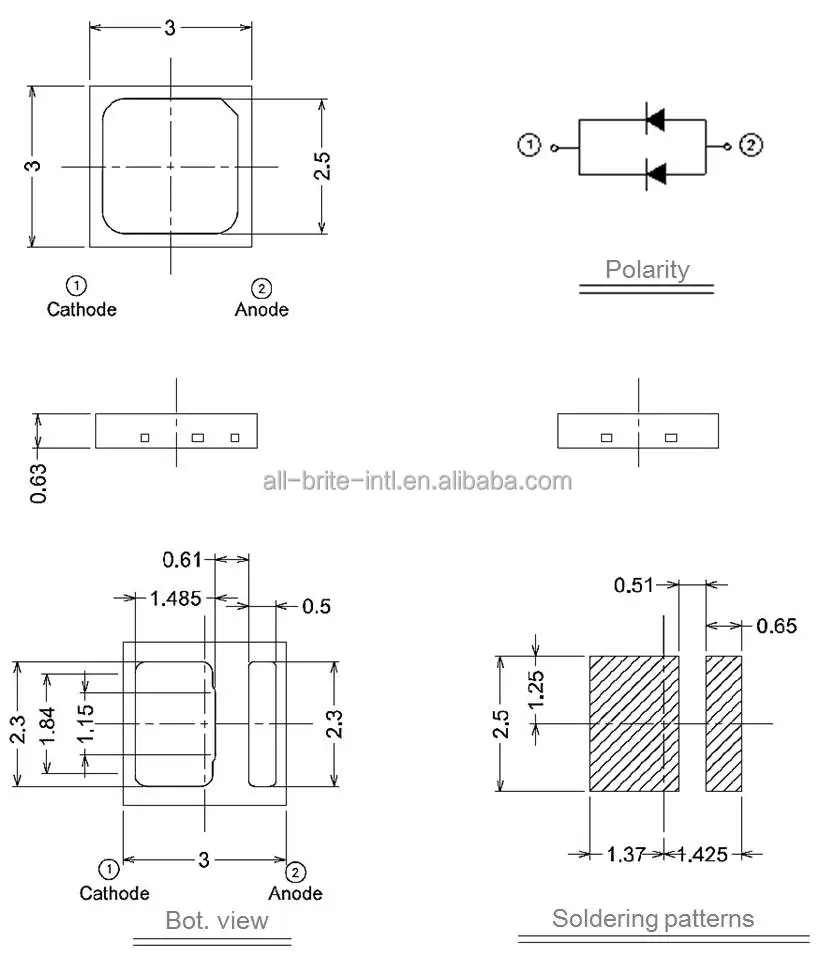

Mechanical Dimension
Features
• Top view white LED
• High luminous intensity output• Typical viewing angle: 120°
• Pb-free
• RoHS compliant
Absolute Maximum Ratings
Parameter | Symbol | Ratings | Unit |
Max. DC Forward Current (mA) | IF | 350 | mA |
Max. Peak Pulse Current (mA) | IPulse | 480 | mA |
Thermal Resistance | Rth | 15 | ℃/W |
Max. Junction Temperature | TJ | 115 | ℃ |
Operation Temperature | Topr | -40 ~ +85 | ℃ |
Storage Temperature | Tstg | -40 ~ +100 | ℃ |
Max. Soldering Temperature | Tsol | 260 | ℃ |
Max. Allowable Reflow Cycles | n/a | 2 | cycles |

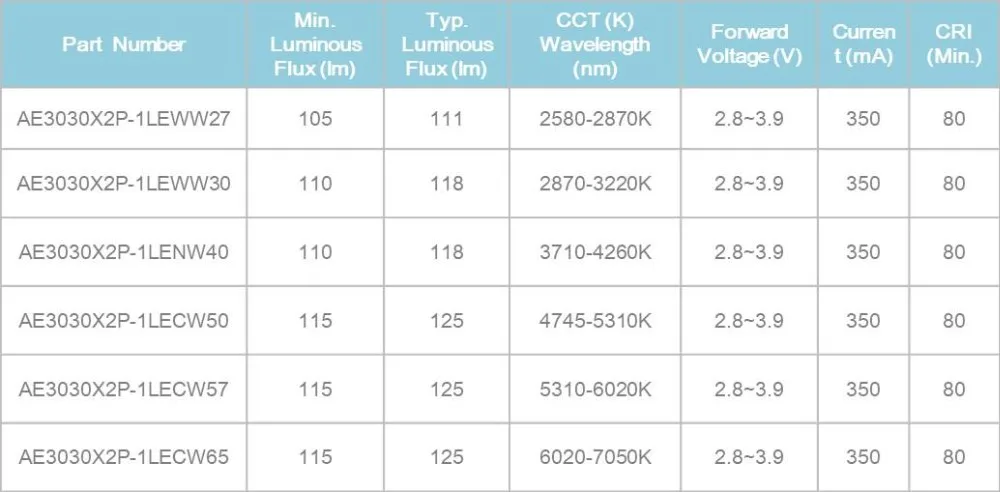

PN of the AE3030 series : White LEDs

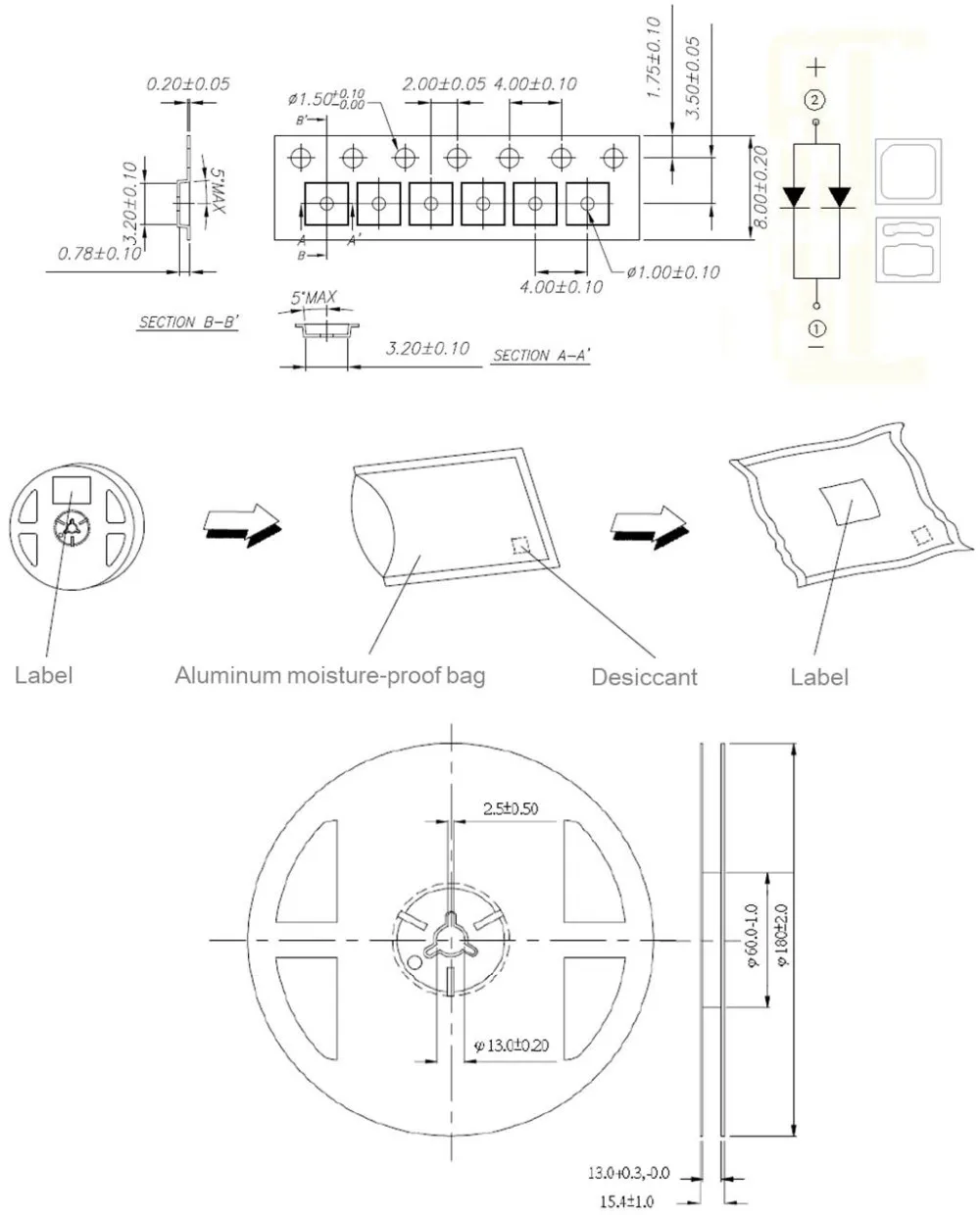

Emitter Tape Packaging
Product Comparison
Recommended Products
Company Information
Certifications
Payment Terms
We accept official Bank Wire transfer and for sample amount payment customer can use
Paypal, Western Union, Alipay and Ecrow ...etc.
Shipping Delivery
We can ship by Courier Service such as Fedex, DHL, TNT, UPS EMS ...etc.
Also, Air Freight and Sea Freight depends on clients needs.
FAQ
Q1. Sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. Lead time?
A:1-2 weeks depends on different items
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
Q5. How to process an order?
A: please kindly contact us for more detail
