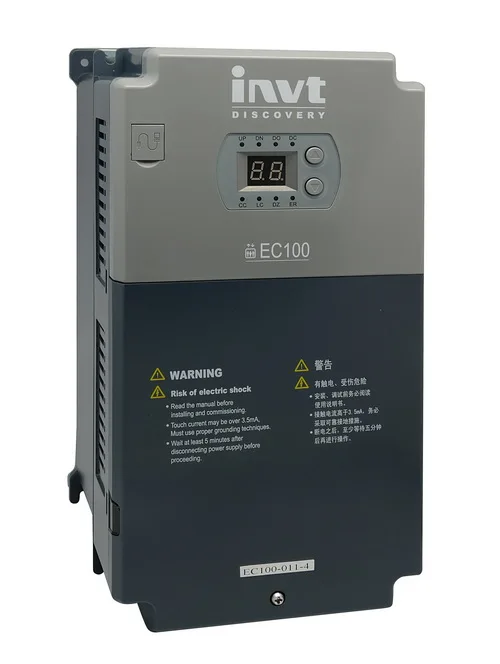

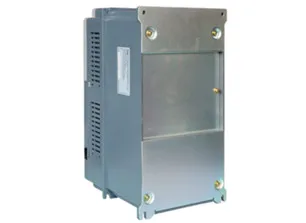

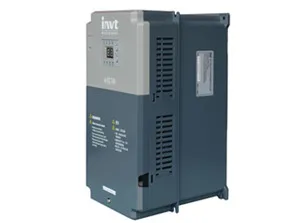

Chinese Manufacturer 380V AC motor drive VFD for elevator

The related products of EC100 elevator integrated series includes:DC-01Main Controller in car,DC-02 Command Board in car,DC-03A
Elevator calling and LCD
,DM-05 Ethernet Network Monitor Module ect. which provide the integraterd solutions of elevator control,drive and monitoring.


DC-01 Main Controller in Car:
1.32-bit processor
2.Simple and reliable CANBUS serial communication
3.internal 12-floor calling button, the outside calling signal can be extended to 64 floor
4.Front-rear door control
5.Energy-saving control for light and fan
6.Arrival gang output
7.Voice floor-reporting


DC-02 Command Board in Car:
1.Car button for the floor signal higher than 12 floor can be extended
2.One for every 8-floor
3.Four-wire DC24V

DC-03A Elevator Calling and LCD:
1.32-bit processor
2.Simple and reliable CANBUS serial communication
3.All ASC characters can be displayed
4.Calling, locking and fire protection function
5.OL, FL, maintenance and UP/DOWN arrival lights are optional
6.Lattice rolling display

LM20 Multimedia Picture Machine Series:
1.Display the floor, running direction, overload, fire alarm, full load, stopping and inspection information of the elevator;
2.Floor reporting or background music playing. The displaying will stop automatically if no calling signal for 10 minutes.
3.Display the date, time, LOGO of customers and words;
4.Color pictures used for corporate identity and commercial advertising;
5.The user can connect the U port with the computer to update the displayed images and audio files and change

DM-05 Ethernet Network Monitor Module:
1.Dynamic real-time monitoring operation and early warning, saving in local SD memory and remote access server with black box
function.
2.Real-time failure records and warning through collection of signal, analysis of failure and records of operation and failure.
3.Supervision and management of maintenance technician, real-time records of maintenance technician’ work
4.ModBus protocol applied, RS485 compatible

Application:
Passenger elevator,cargo elevator, Sightseeing elevator, Hospital elevator and others elevator.
