Industrial Powder V Shape Mixer Titanium Dioxide Powder Mixing Machine
- Category: >>>
- Supplier: Shanghai Tops Group Co. Ltd.
Share on (10000010282968):
Product Overview
Description
Production Description

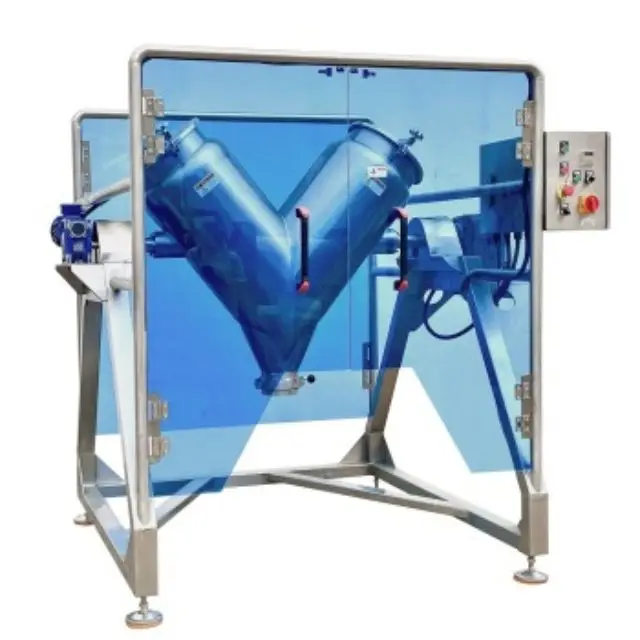

TP-V Series V Type Mixing Machine
This v-shaped mixer machine is suitable to mix more than two kinds of dry powder and granular materials in pharmaceutical, chemical and food industries. It can be equipped with forced agitator according to user's requirements, so as to be suitable for mixing fine powder, cake and materials containing certain moisture. It consists of a work-chamber connected by two cylinders forming a “V " shape. It has two opening on top of the "V" shape tank that conveniently discharged the materials at the end of the mixing process. It can produce a solid-solid mixture.
(a) revolve (b) convolution (c) falling (d) sliding
During the v-shaped cylinder rotation, the material particles begin to rotate with the v-shaped cylinder axis as the center. When the V-shaped cylinder rotates to a certain angle, the material particles revolve due to the influence of gravity, and began to convolute to both sides of cylinder at the same time. In the falling process, the particles meet the V-shaped corner welding surface, and be separated to both sides of the V-shaped cylinder. During separation, some particles on the shorter side of the cylinder wall slide into the longer side under the action of convolution. With the rotation of the V-shaped cylinder, the material particles repeat above steps.
This v-shaped mixer machine is commonly used in dry solid blending materials and used in the following application:
* Pharmaceuticals: mixing prior to powders and granules
* Chemicals: metallic powder mixtures, pesticides and herbicides and many more
* Food processing: cereals, coffee mixes, dairy powders, milk powder and many more
* Construction: steel preblends and etc.
* Plastics : mixing of master batches, mixing of pellets, plastic powders and many more
Features & Specification
1. With two cylinders structure, 3-10mins mixing time can reach high efficiency and excellent mixing uniformity.
2. Easy to clean with fully welded and polished surface internal and external.
3. No dead angle inside mixing tank, no residue when discharge, so as to prevent waste and cross contamination.
4. Plexiglass safe door and safety button protect operator from injury.
5. All stainless steel 304 material, contact part stainless steel 316 is optional, which suits food grade production and brings long service life.
6. New structure design is safe and easy to clean as well high level looking
7. Easy opening and good sealing at charging and discharging.
Model | TP-V 100 | TP-V 200 | TP-V 500 | TP-V 1000 | TP-V 1500 | TP-V 2000 | TP-V 3000 | |||||||
Capacity(L) | 100 | 200 | 500 | 1000 | 1500 | 2000 | 3000 | |||||||
Loading rate | 40%-60% | |||||||||||||
Mixing time(min) | 5-8 | 5-8 | 8-10 | 8-10 | 8-15 | 8-15 | 8-15 | |||||||
Weight(kg) | 150 | 200 | 450 | 800 | 1200 | 1500 | 1800 | |||||||
Total Power(KW) | 0.75 | 1.1 | 2.2 | 4 | 5.5 | 7.5 | 11 | |||||||
Notes: Please inquire the sales if you need other capacity. | ||||||||||||||
Item | Brand |
Motor | Zik |
Stirrer Motor | Zik |
Inverter | QMA |
Bearing | NSK |

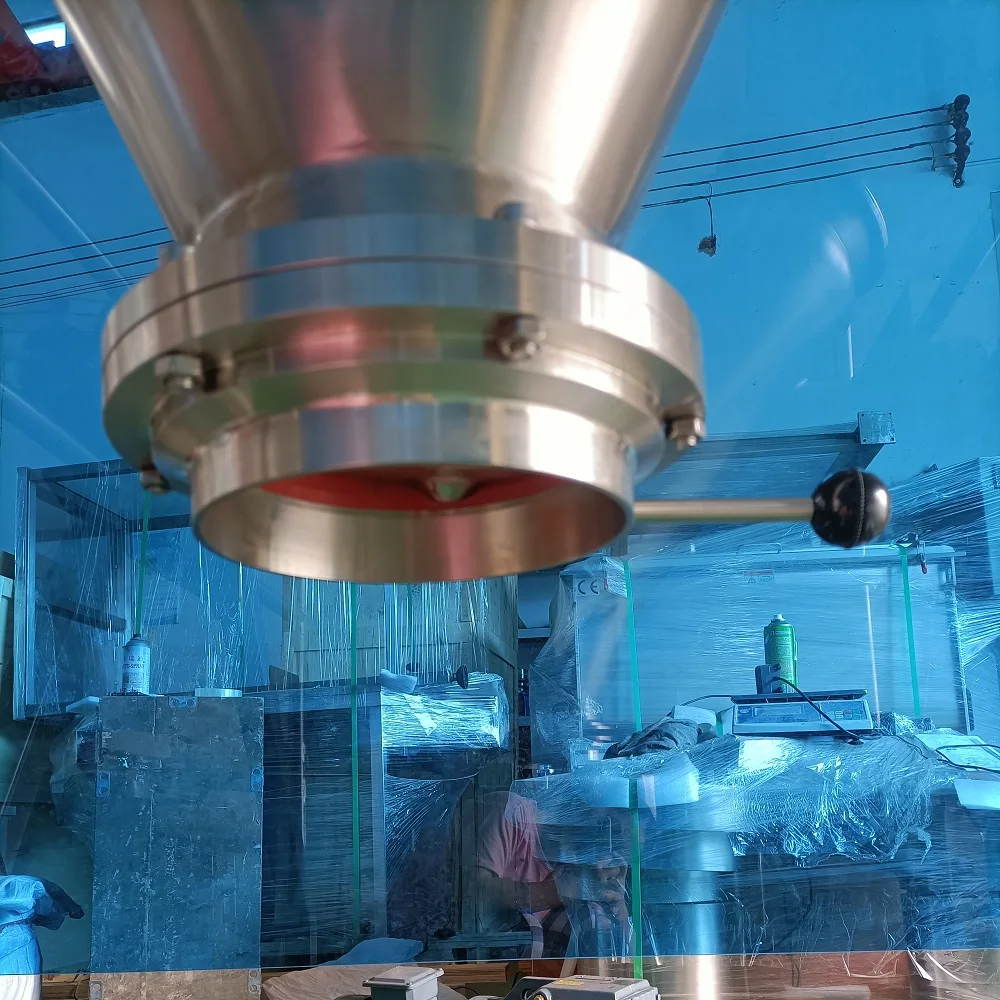

Discharge Valve | Butterfly Valve |
Details
Materials
All materials are stainless steel 304, stainless steel 316 for contact part is optional.
Internal finish parts are fully welded and bright polish.
External finish parts are fully welded and bright polish.
New design
1. Base: Stainless steel square tube
2. Frame: Stainless steel round tube
Nice looking appearance, safe and easy to clean.

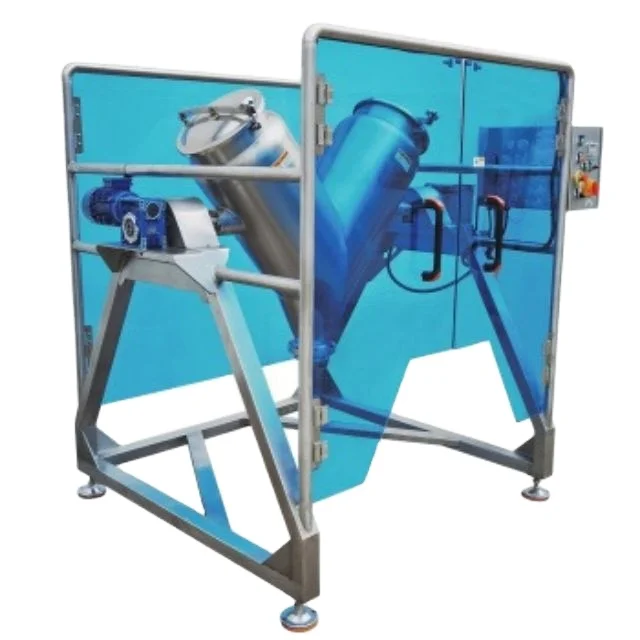

Plexiglass safe door & safety button
The machine has safety plexiglass
door equipped with safety button.
It stops automatically when the
door is open, which keeps the
operator safe.
Outside of the tank
1. The outer surface is fully welded and polished, no material storage, easy and safe to clean.
2. All materials outside the tank is stainless steel 304.

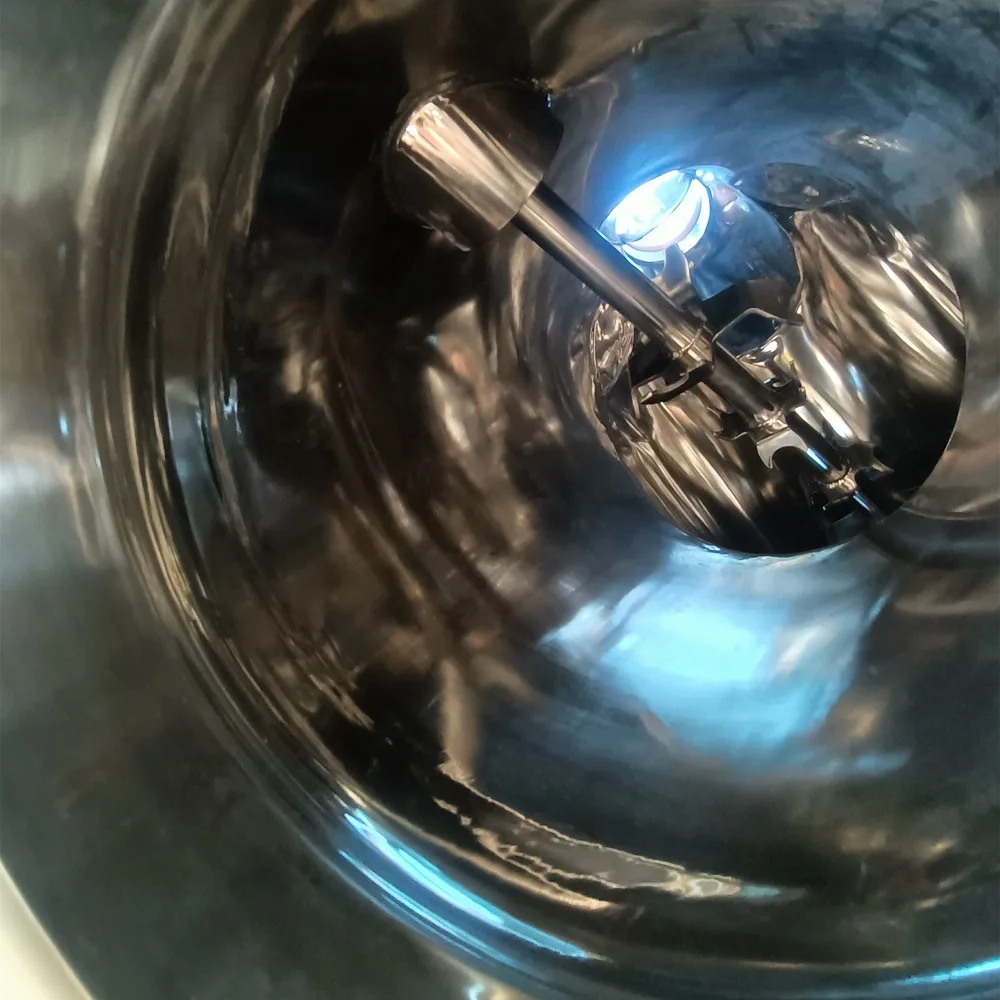

Inside of the tank
1. The inner surface is fully-welded and polished. Easy to clean and hygienic, no dead angle in discharging.
2. It has removable (optional) intensifier bar and it helps to increases the mixing efficiency.
3. All materials inside the tank is SS304.
Electric control panel
1. Speed is adjustable with requency converter.
2. With time relay, mixing time can be set according to the material and mixing process.
3. Inching button is adopted to turn tank at appropriate charging (or discharging) position for feeding and discharging materials.
4. It has safety switch for the safety of the operator and to avoid personnel injury.
Charging Port
1. The feeding inlet has movable cover through pressing the lever it is easy to operate
2. Edible silicone rubber sealing strip, good sealing performance, no pollution
3. Made of stainless steel

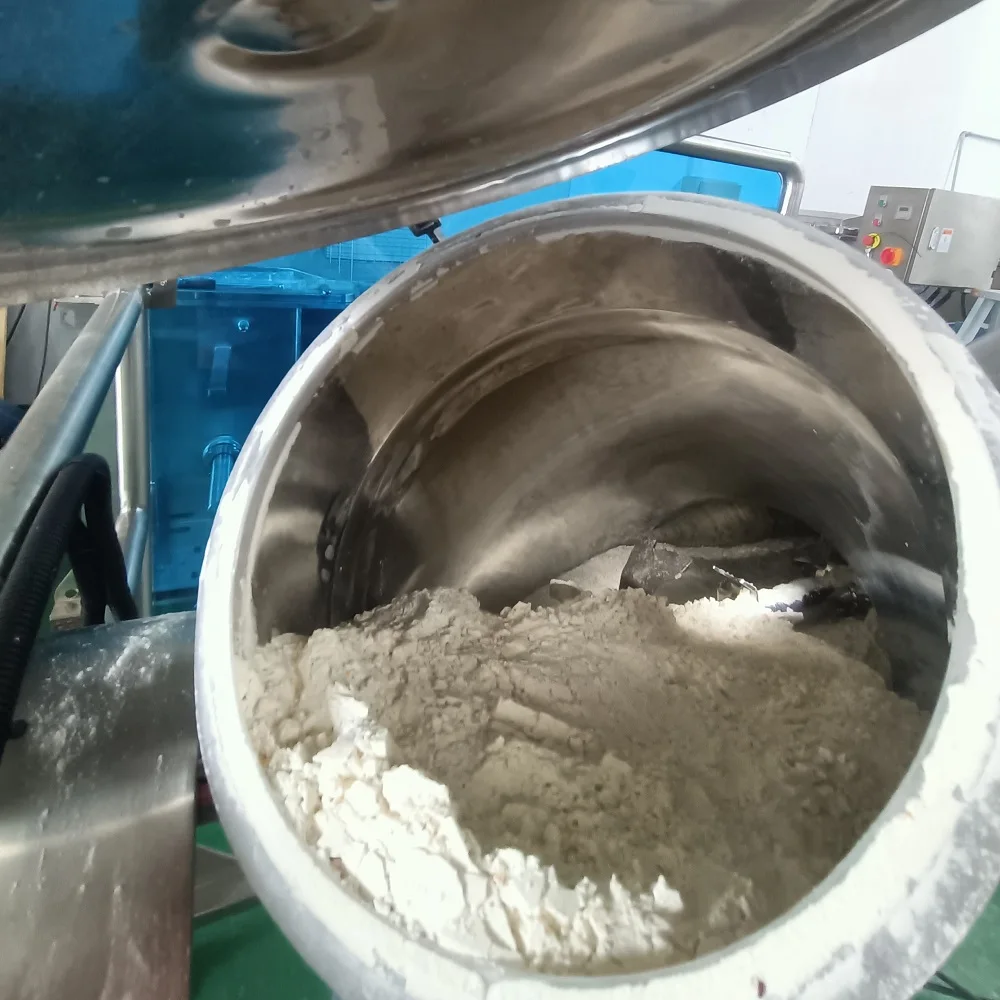

This is an example of charging powder material inside the tank
Production & Processing
Package & Shipping
Company Profile
FAQ
1.Are you a v type mixer manufacturer?
Shanghai Tops Group Co., Ltd is one of the leading v mixer manufacturers in China, who has been in packing machine industry for over ten years.
2.Does your powder v type mixer have CE certificate?
Not only the v mixer but also all our machines have CE certificate.
3.How long is the v mixer delivery time?
It takes 7-10 days to produce a standard model.
For customized machine, your machine can be done in 30-45 days.
For customized machine, your machine can be done in 30-45 days.
4.What’s your company service and warranty?
■TWO YEAR warranty, ENGINE THREE YEARS warranty, life-long service (Warranty service will be honored if the damage is not caused by human or improper operation)
■Provide accessory parts in favorable price
■Update configuration and program regularly
■Respond to any question in 24 hours Site service or online video service
For the payment term, you can choose from following terms:
L/C, D/A, D/P, T/T, Western Union, Money Gram, Paypal
L/C, D/A, D/P, T/T, Western Union, Money Gram, Paypal
For the shipping, we accept all term in contract like EXW, FOB, CIF, DDU etc.
5.Do you have the ability of design and propose solution?
Of course, we have professional design team and experienced engineer. For example, we designed a bread formula production line for Singapore BreadTalk.
6.What products can v type mixer handle?
V type mixer can handle all kinds of powder or granule mixing and is widely applied in food, pharmaceuticals, chemical etc.
7. How do industry v type mixer work?
During the v-shaped cylinder rotation, the material particles begin to rotate with the v-shaped cylinder axis as the center. When the V-shaped cylinder rotates to a certain angle, the material particles revolve due to the influence of gravity, and began to convolute to both sides of cylinder at the same time. In the falling process, the particles meet the V-shaped corner welding surface, and be separated to both sides of the V-shaped cylinder. During separation, some particles on the shorter side of the cylinder wall slide into the longer side under the action of convolution. With the rotation of the V-shaped cylinder, the material particles repeat above steps.
8.How to select a v mixer?
Choose a suitable model
Ribbon blenders have the effective mixing volume. Normally it is about 50%. However, some suppliers name their models as total mixing volume, while some like us name our v mixer models as effective mixing volume. You need to calculate the suitable volume according to your product density and batch weight.
For example, manufacturer TP produces 500kg flour each batch, whose density is 0.5kg/L. The output will be 1000L each batch. What TP needs is a 1000L capacity v mixer. And TP-V2000 model is suitable.
For example, manufacturer TP produces 500kg flour each batch, whose density is 0.5kg/L. The output will be 1000L each batch. What TP needs is a 1000L capacity v mixer. And TP-V2000 model is suitable.
Ribbon blender quality
Full-welding:
Full welding is one of the most important part for food and pharmaceutical machines. Powder is easy to hide in gap, which may pollute fresh powder if residual powder goes bad. But full-welding and polish can make no gap between hardware connection, which can show machine quality and usage experience.
Moreover, the welding processing is important, too. Water cold welding keeps cylinder in shape.
Easy-cleaning design:
A easy-cleaning v mixer will save much time and energy for you which is equal to cost.
