12 Stations Automatic Rotary Auger Capsule Protein Powder Filling Machine
- Category: >>>
- Supplier: Shanghai Tops Group Co. Ltd.
Share on (10000010287015):
Product Overview
Description
Production Description

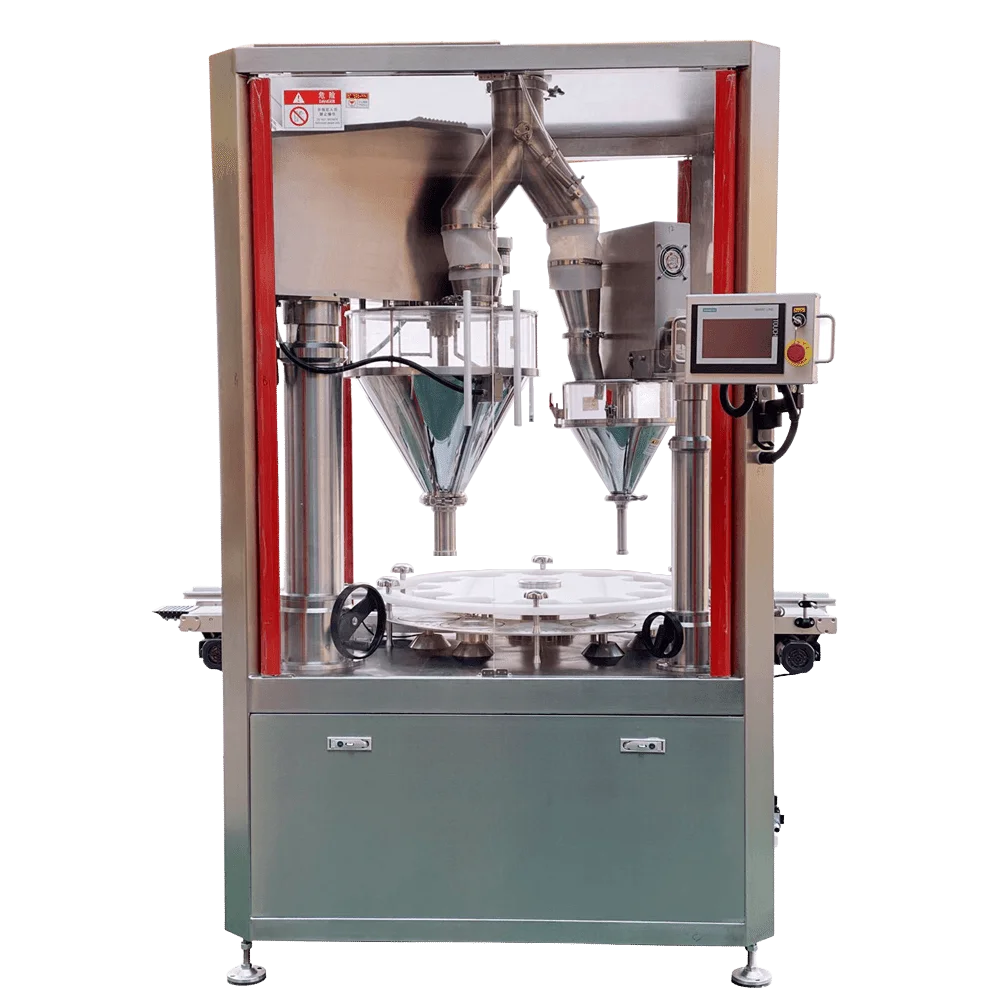

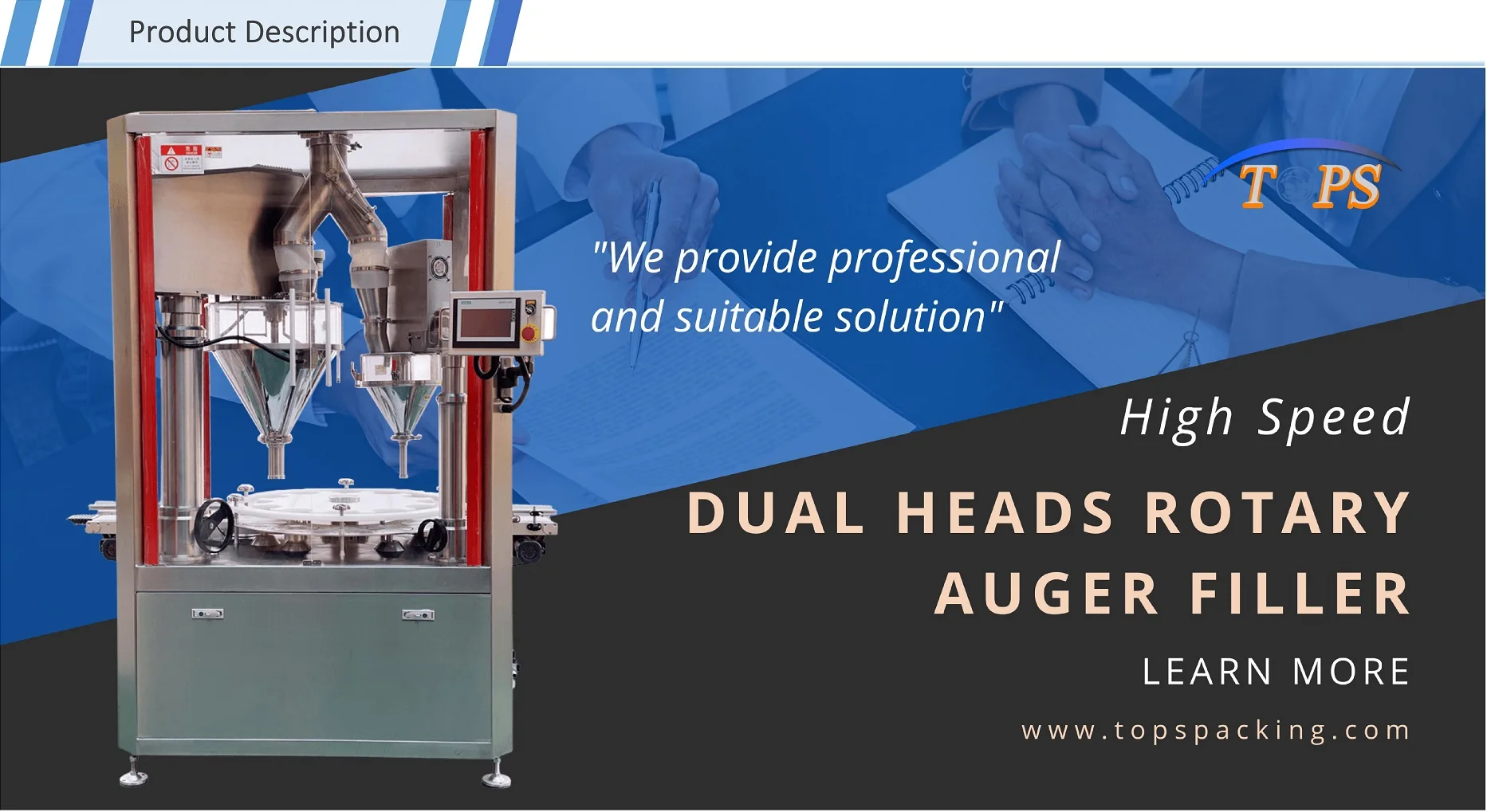

Automatic Dual Heads Rotary Auger Filler

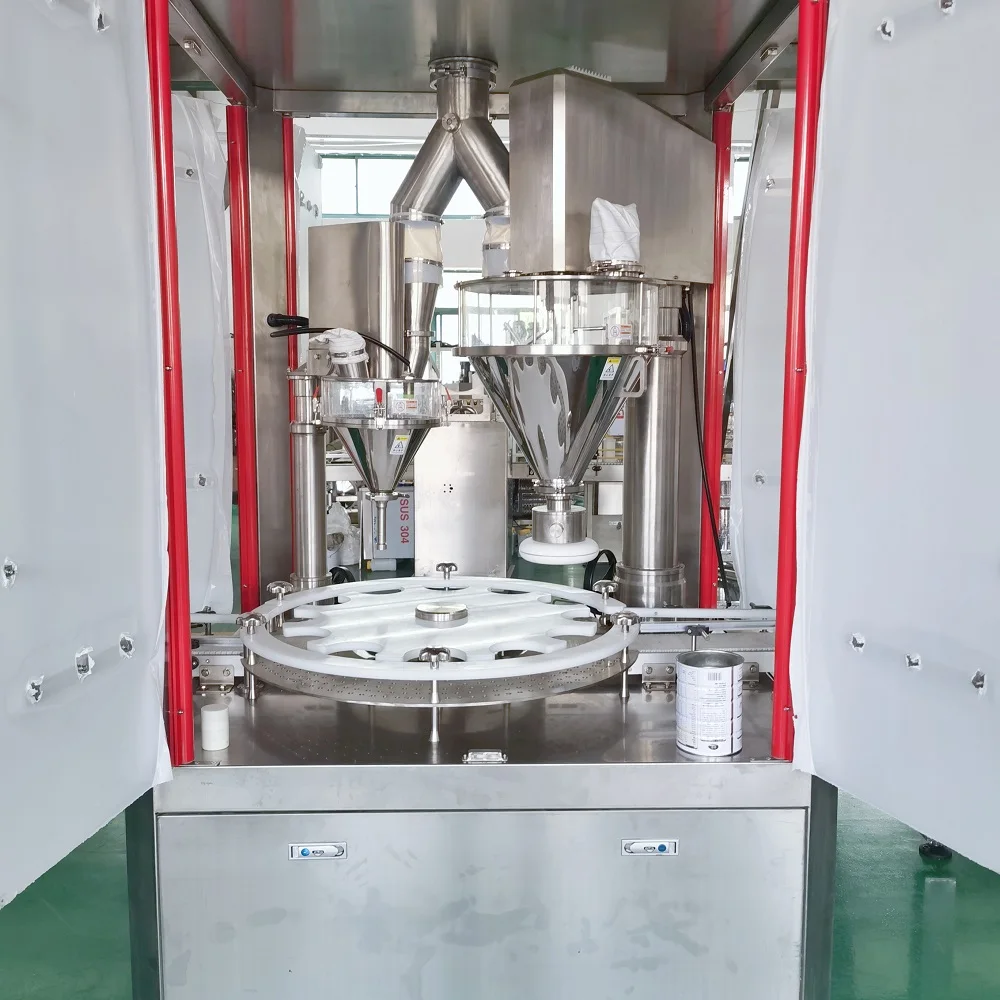

This filler is latest develop and designed according to the market development needs, based on the practice, which in line with the national GMP certification standards. The machine integrates the latest concept of European packaging technology, the design is more reasonable, stable and reliable. We updated the original 8 stations to 12 stations. So the single rotation angle of the turntable is reduced a lot, which has significantly improved the running speed and stability. The equipment can automatically handle the jar feeding, measuring, filling, weighing feedback, automatic correction etc. It is suitable for filling powder like materials, such as milk powder, protein powder, glucose powder, coffee powder, health care products and condiments.
Principle
Two fillers, one is for fast and 80% target weight filling, the other is for supplement of left 20% slowly.
Two load cells, one is after fast filler to detect how much weight slow filler needs to supplement, the other is after slow filling to get rid of reject.
Features & Specification
1. PLC control system, touch screen, clear working mode;
2. Rotary type, 2 sets weighing and detecting devices, real-time feedback to ensure no defective products in the packaging process;
3. Automatic turntable can position the jars accurately, which to realize no bottle no filling. 2 sets vibration devices reduce the volume of materials effectively;
4. The whole structure design is reasonable. No dead corner, which is convenient to clean. It is easy and fast to change jar specification.
5. It is designed for secondary supplement after weighing so that the accuracy and speed can be comprehensively improved;
6. Automatic empty jar peeling, has automatic double weight check. A small amount of circular supplement.
7. Panasonic servo motor drive screw and rotary operation, with precision planetary reducer, accurate positioning, high precision.
8. Fully sealed and filled, with lifting jar, 2 sets vibration and dust cover devices.
Measurement method | second supplement after filling | |
Container size | cylindrical container φ50-130 (replace the mold) 100-180mm high | |
Packing weight | 100-1000g | |
Packaging accuracy | ≤± 1-2G | |
Packaging speed | ≥40-50 jars/min | |
Power supply | three-phase 380V 50Hz | |
Machine power | 5kw | |
Air pressure | 6-8kg/cm2 | |
Gas consumption | 0.2m3/min | |
Machine weight | 900kg | |
A set of canned molds will be sent along with it | 50L(Main) 25L (Assist) | |
Name | Brand | Origin |
PLC | Siemens | Germany |
Touch Screen | Siemens | Germany |
Filling Servo Motor | Speecon | Taiwan |
Filling Servo Drive | Speecon | Taiwan |
Mixing Motor | CPG | Taiwan |
Rotary Servo Motor | Panasonic | Japan |
Rotary Servo Drive | Panasonic | Japan |
Rotary Precision Planetary Reducer | Mdun | Taiwan |
Conveyor Motor | GPG | Taiwan |
Breaker | Schneider | France |
Contactor | Schneider | France |
Intermediate Relay | Schneider | France |
Thermal Overload | Schneider | France |
Air Cylinder | AirTAC | Taiwan |
Magnetic Valve | AirTAC | Taiwan |
Water-oil separator | AirTAC | Taiwan |
Material Level Sensor | Autonics | South Korea |
Material level Safety Sensor | Bedook | Germany |
Photoelectric switch | Bedook | Germany |
Load Cell | METTLER TOLEDO | USA |

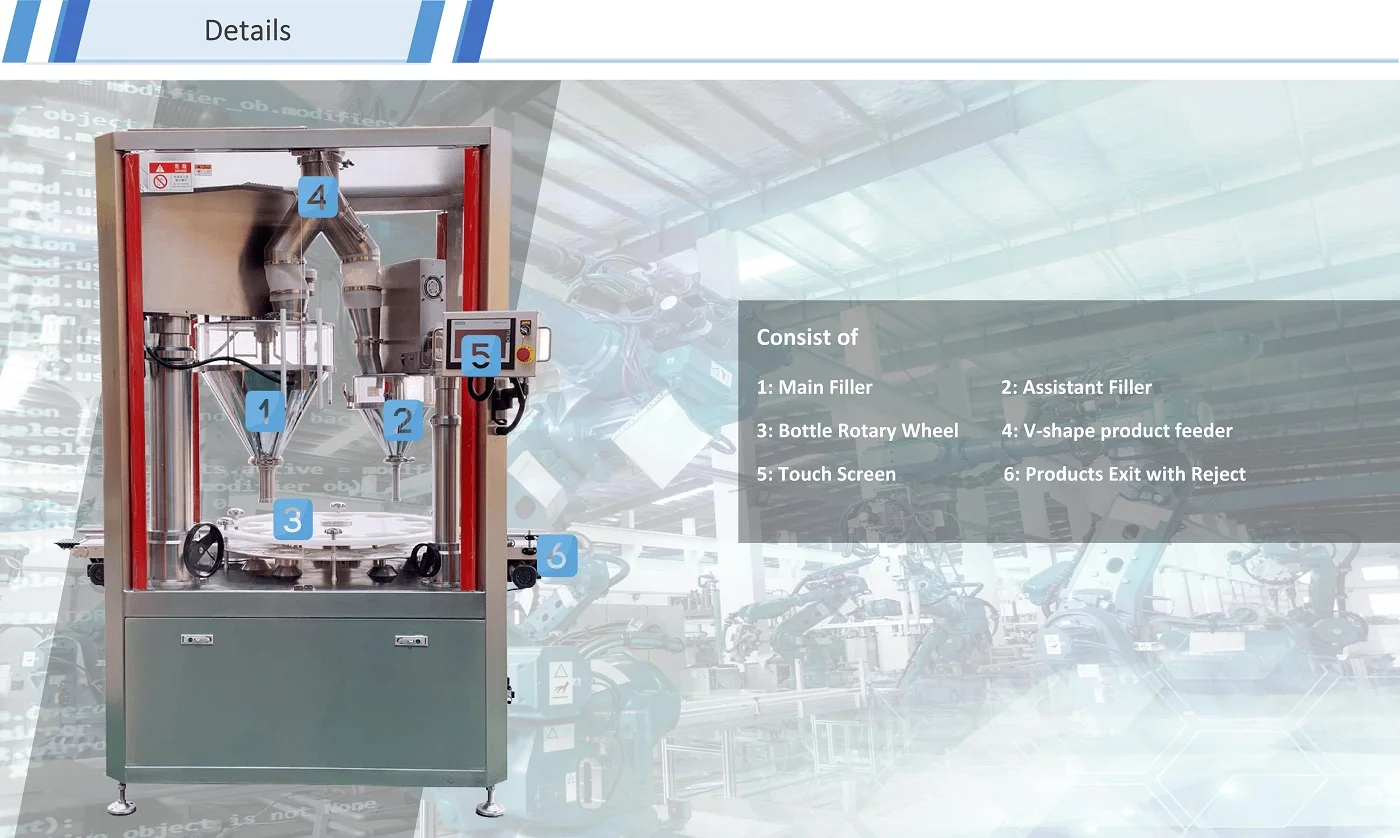

Details

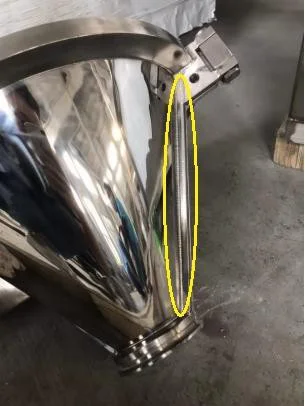

Half open hopper
This level split hopper is easy to open and clean.
Hanging hopper
The combined hopper is suitable for very fine powder because the there is no gap at lower part of hopper
Our design: Screw type
There is no gap for powder to hide inside, and easy to clean
Other suppliers: Hang type
There will be powder hiding inside the hang connection part, which is difficult to clean, and will turn bad even pollute fresh powder.
Our Design

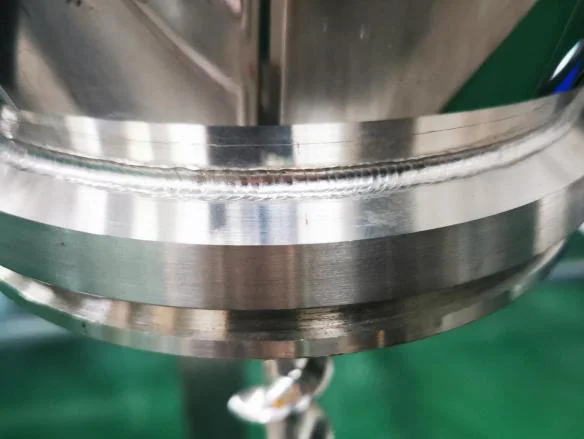

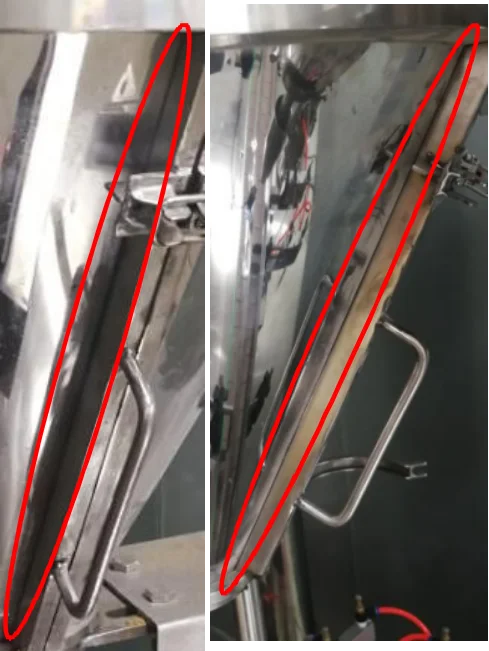

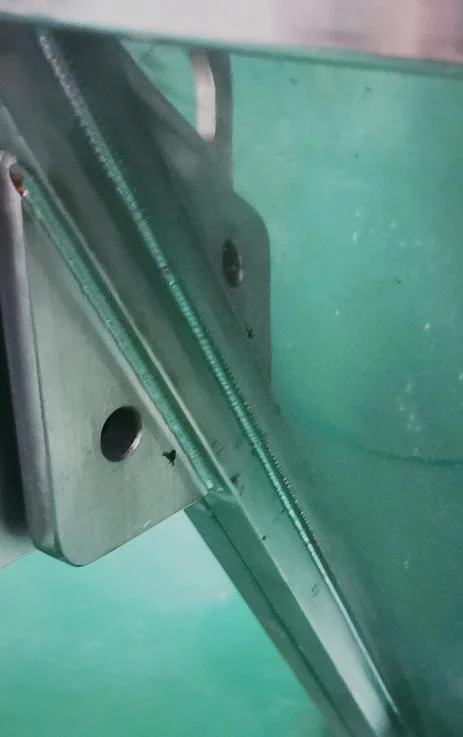

Full welding, including hopper edge. Easy to clean
Other supplier

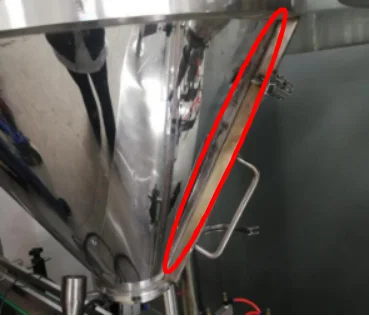

There is gap at welding place when no full welding, which is easy to hide powder , difficult to clean and might pollute new material.
Our design
The whole machine is made of SS304 including the base and holder of motor, which is stronger and high level.
Other supplier
The holder of motor is not SS304.

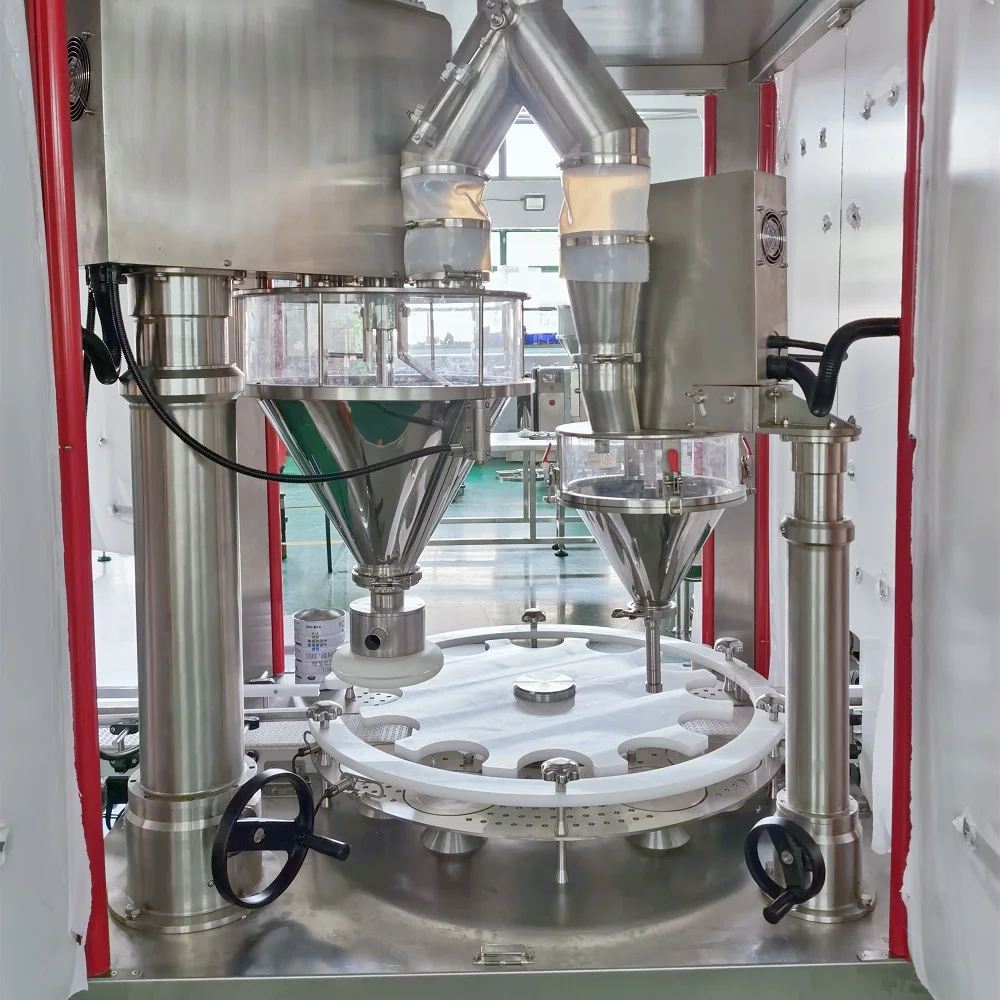

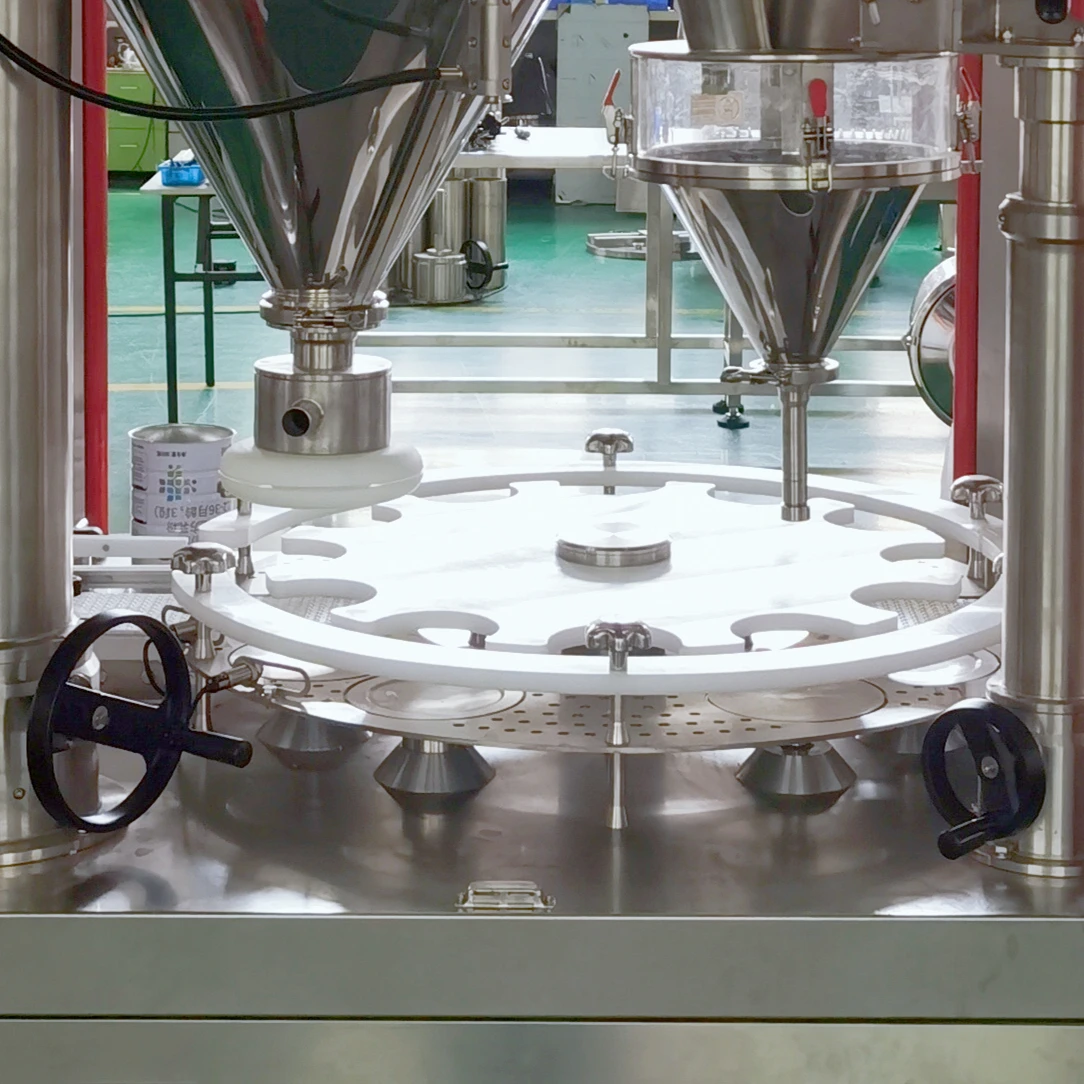

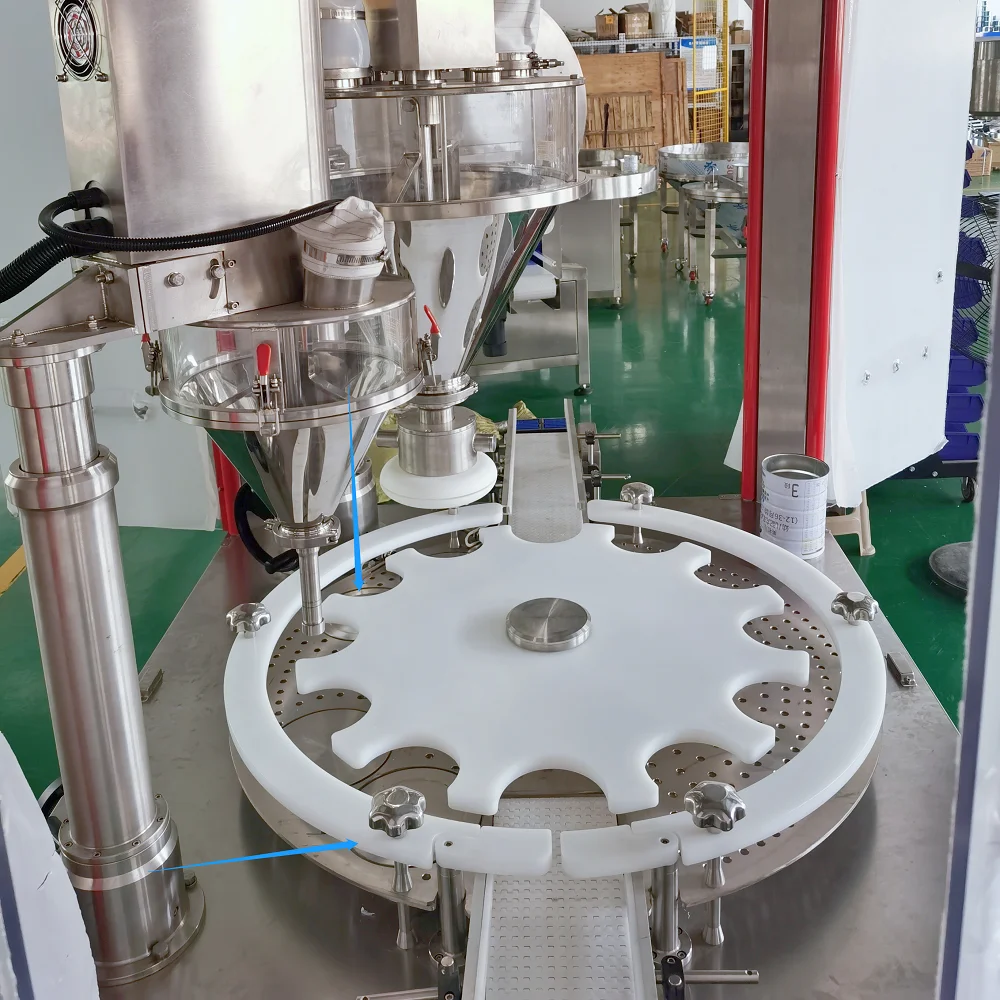

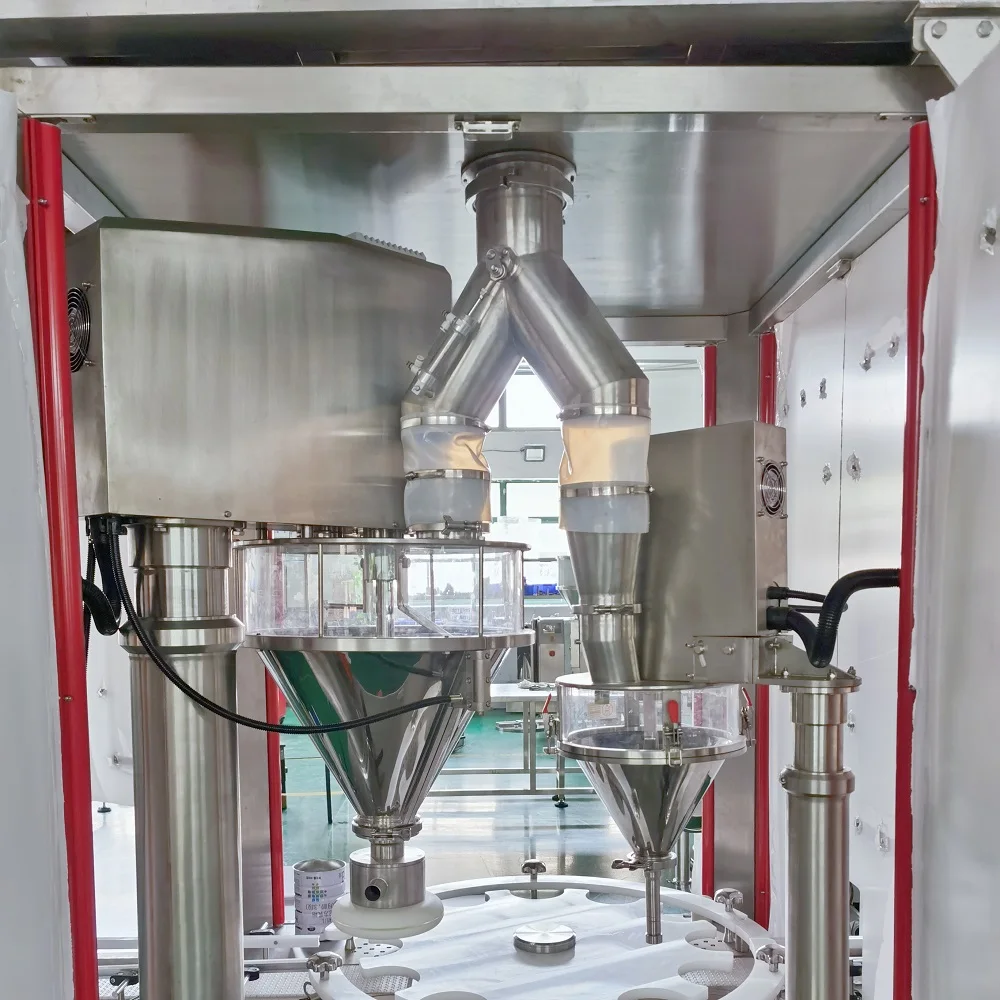

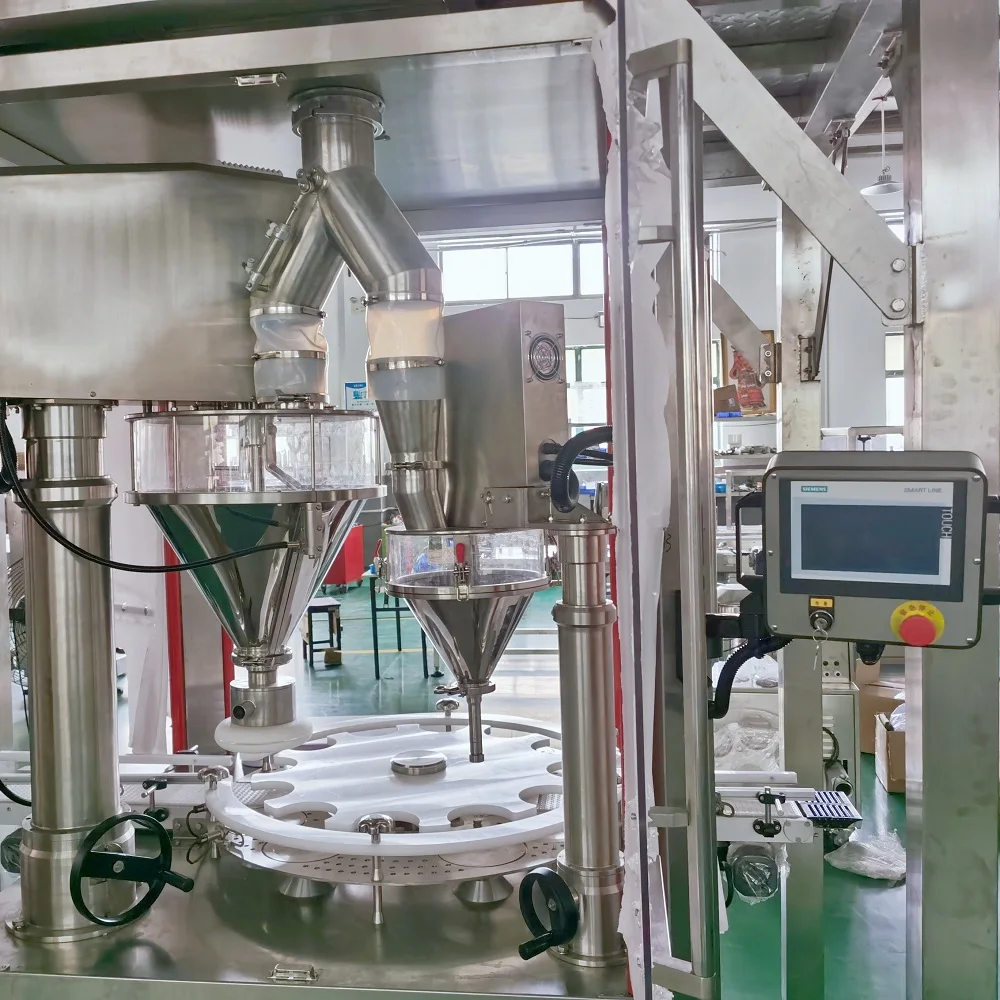

Dual heads filler
1. Main filler will finish 85% target weight fast
2. Assistant filler will supplent left 15% accurate and slowly
3. They work together to achieve high speed, and guarentee high precision
Vibration & weighing

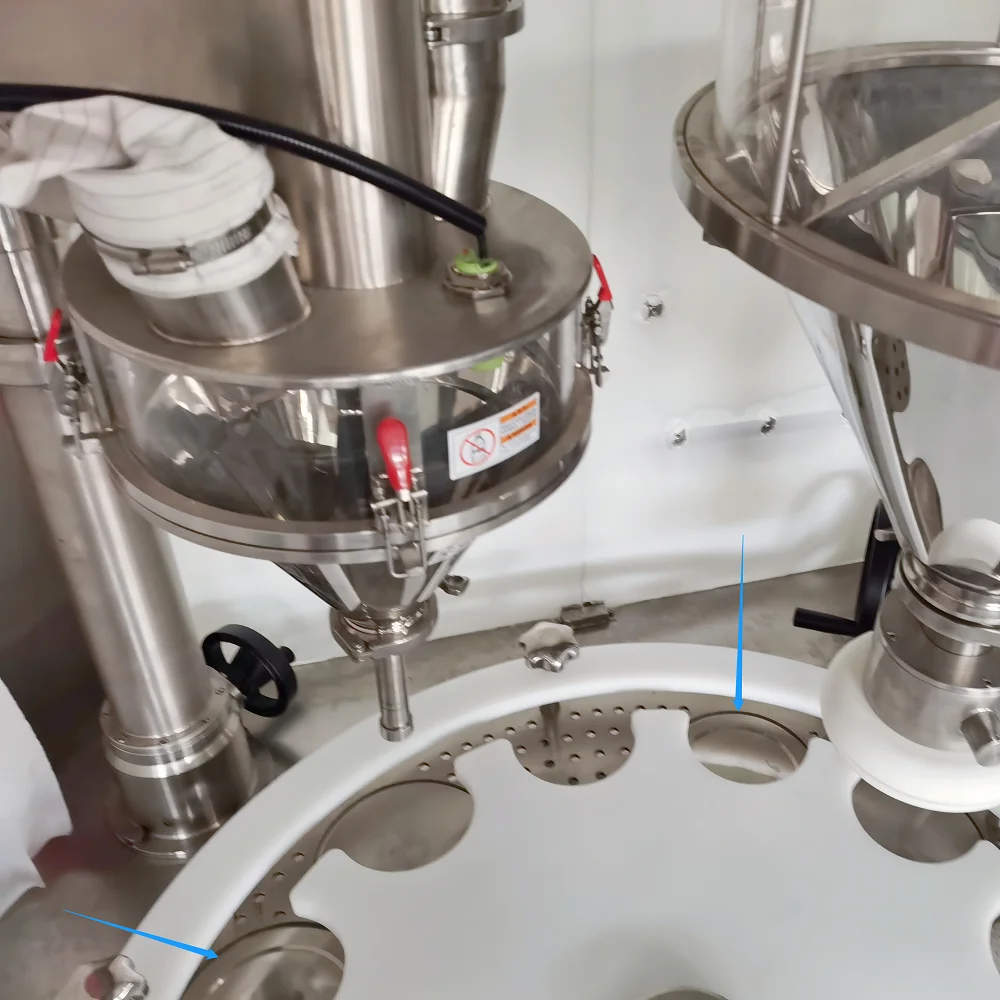

2. Two load cells in blue arrows is separated from vibration and won't be affected the accuracy. One is to weigh current weight after first main filling, the other is used to detect if final product reaches target weight.

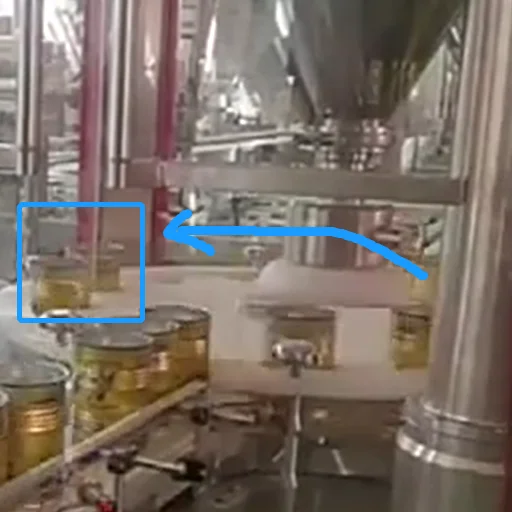

Reject Recycling

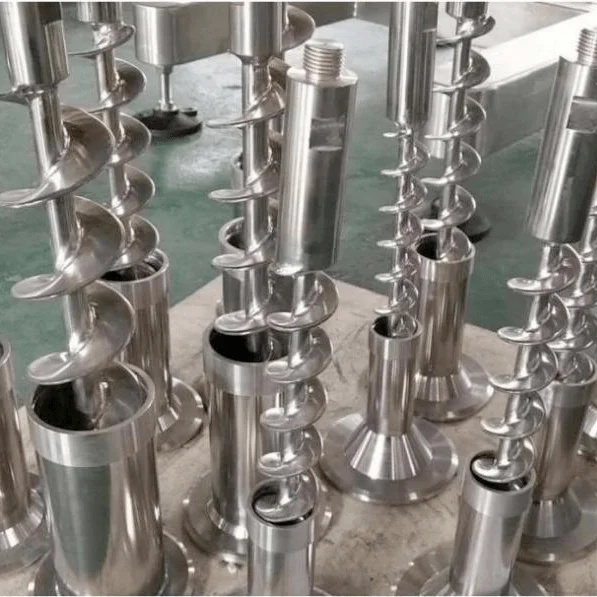

Various size augers and nozzles
The auger filler principle is that volume of powder brought down by auger turning one circle is fixed. So different sizes of auger can be used in different filling weight range to reach higher accuracy and save more time.
There are corresponding size auger tube for each size auger.
for example, dia. 38mm screw is suitable for filling 100g-250
There are corresponding size auger tube for each size auger.
for example, dia. 38mm screw is suitable for filling 100g-250
Cup Size and Filling Range
Order | Cup | Inner Diameter | Outer Diameter | Filling Range |
1 | 8# | 8mm | 12mm | |
2 | 13# | 13mm | 17mm | |
3 | 19# | 19mm | 23mm | 5-20g |
4 | 24# | 24mm | 28mm | 10-40g |
5 | 28# | 28mm | 32mm | 25-70g |
6 | 34# | 34mm | 38mm | 50-120g |
7 | 38# | 38mm | 42mm | 100-250g |
8 | 41# | 41mm | 45mm | 230-350g |
9 | 47# | 47mm | 51mm | 330-550g |
10 | 53# | 53mm | 57mm | 500-800g |
11 | 59# | 59mm | 65mm | 700-1100g |
12 | 64# | 64mm | 70mm | 1000-1500g |
13 | 70# | 70mm | 76mm | 1500-2500g |
14 | 77# | 77mm | 83mm | 2500-3500g |
15 | 83# | 83mm | 89mm | 3500-5000g |

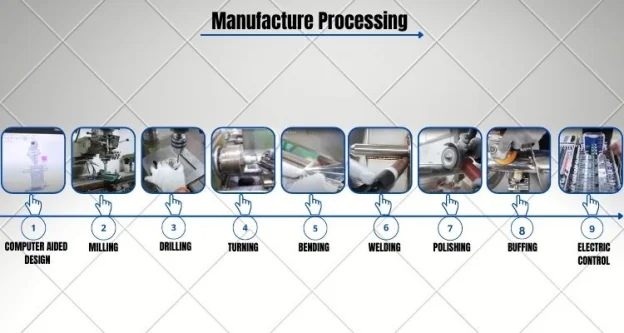

Production & Processing
Package & Shipping
VR
Company Profile
Company Preview
Shanghai Tops Group is a highly experienced manufacturing company with over 21 years of experience.
Full certificates like CE, UL, CSA, patent certificates, and more
After-sales service and customer service
Can be customized based on function design or configuration
Full certificates like CE, UL, CSA, patent certificates, and more
After-sales service and customer service
Can be customized based on function design or configuration
FAQ
1.Are you a auger filler manufacturer?
Shanghai Tops Group Co., Ltd is one of the leading auger filler manufacturers in China, who has been in packing machine industry for over ten years.
2.Does your auger filler have CE certificate?
Not only the filler but also all our machines have CE certificate.
3.How long is the auger filler delivery time?
It takes 7-10 days to produce a standard model.
For customized machine, your machine can be done in 30-45 days.
For customized machine, your machine can be done in 30-45 days.
4.What’s your company service and warranty?
■TWO YEAR warranty, ENGINE THREE YEARS warranty, life-long service (Warranty service will be honored if the damage is not caused by human or improper operation)
■Provide accessory parts in favorable price
■Update configuration and program regularly
■Respond to any question in 24 hours Site service or online video service
For the payment term, you can choose from following terms:
L/C, D/A, D/P, T/T, Western Union, Money Gram, Paypal
L/C, D/A, D/P, T/T, Western Union, Money Gram, Paypal
For the shipping, we accept all term in contract like EXW, FOB, CIF, DDU etc.
5.Do you have the ability of design and propose solution?
Of course, we have professional design team and experienced engineer. For example, we designed a bread formula production line for Singapore BreadTalk.
6.What products can auger filler handle?

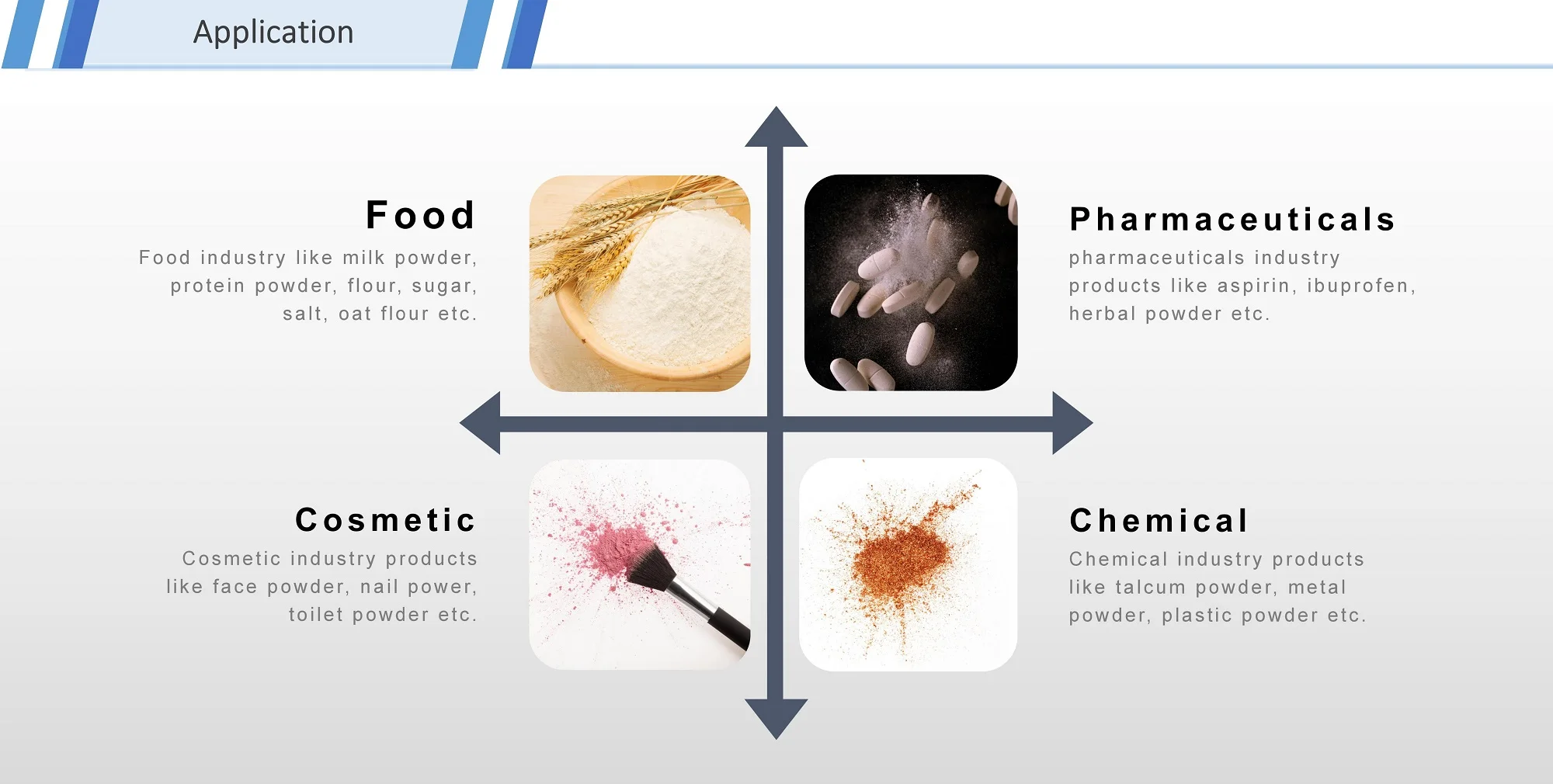

It can handle all kinds of powder or granule weighing and filling, and is widely applied in food, pharmaceuticals, chemical etc.
7. How does auger filler work?
The powder volume brought down by screw turning one round is fixed. The controller will calculate how many turns the screw has to turn to reach the target filling weight.
