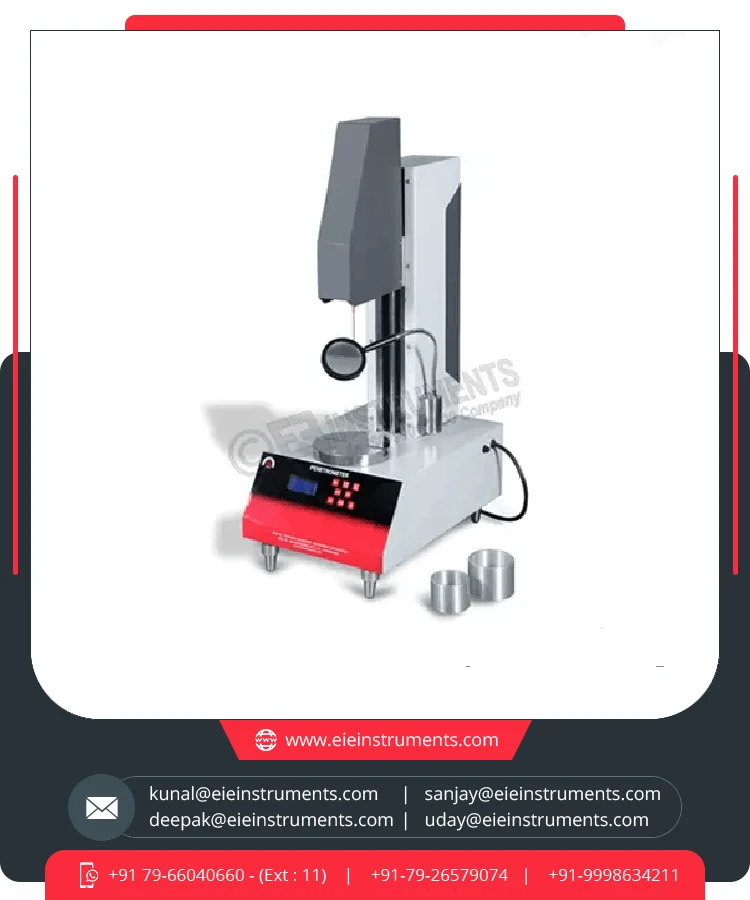

Fully Automatic Testing Equipment Universal Penetrometer with Sturdy Cast Iron Base Provides Excellent Support

Universal Penetrometer with Sturdy Cast Iron Base Provides Excellent Support

Complies to following International Standard

ASTM D5, ASTM D217, ASTM D937, ASTM D1321, AASTHO T-49, IP 50, IP 49, IP 179

Salient Features

• Fully Automatic operational Design


• Compact design and rugged construction ensures long service life and facilitates easy transport for field applications.


• Sturdy cast iron base provides excellent support


• Digital Alphanumerical LCD touch screen display with keyboard (LCD Make : Schneider Electric)


• Optoelectronically depth detection & measurement through imported optoelectronic sensor


• Automatically timed programmable penetration measurements - Preset penetration time at factory (Operator can also enter the user defined penetration interval through LCD touch screen)


• Motorized placement of penetrator on sample surface


• Penetrometer arm automatically comes back to its home position at the end of 5 seconds penetration test


• In-built Facility to tare and reset the measurement results


• Display resolution of penetration depth in tenths of units (0.01mm)


• Magnifying lens for adjusting needle tip/cone tip exactly on the sample surface


• Low voltage Illuminator mounted on flexible arms to assist an operator during testing


• Built-in spirit level and leveling screws to ensure proper alignment


• Micrometer differential gearing mechanism for fine movement of head


• Weight of the Needle/Cone and plunger match the criteria of ASTM and IP requirements.


• The penetration time is controlled and indicated on Digital LCD display with least count of 0.1 second.


• The optoelectronic sensor installed within the instrument detects the penetration depth in 10th of millimeter (0.01mm)


• The penetration value is measured and indicated on digital LCD display


• Large, removable base accommodates grease worker cups and other ASTM and non-standard sample containers


• Complete selection of penetrometer cones, needles and accessories for petroleum products testing and for a wide range of other applications (See optional accessories)


• Supplied complete with Needle/cone, container and applicable weight


• Supplied complete with following Accessories in case of Bitumen penetration


• Weight of 50 Grams - 1 No.


• Penetration cup of 55mm diameter x 35mm height - 1 No.


• Penetration cup of 70mm diameter x 45mm height - 1 No.


• Transfer dish - 1 No.


• Penetrometer Needle - 1 No.


• Needle Holder 47.5g ± 0.05g - 1 No.7) Thermometer ASTM 17C (+19 to 27 °C) - 1 No.


• Supplied complete with following Accessories in case of Grease penetration


• Sample container of 100mm dia x 100mm height - 1 No


• Transfer dish - 1 No


• Penetrometer Hollow 90° brass cone, Highly polished stainless steel tip - 2 Nos

Note

Please specify the intended penetration test at the time of placing the order. Instrument will be supplied with corresponding penetration accessories only.
