Product Overview

Description






Product Description

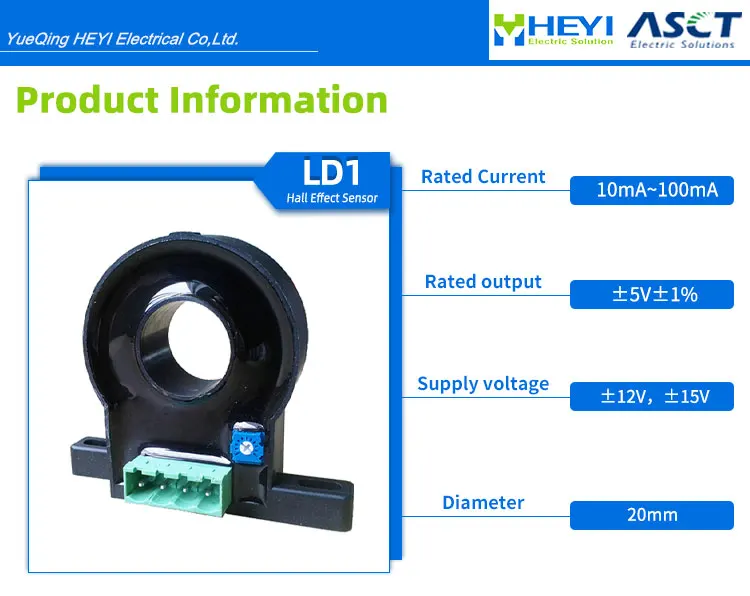

LD1 series DC leakage current sensor is a series of new device developed according to principle of electromagnetic induction. Its low current is stable. It is highly insulating between its primary coil and secondary coil. This sensor is used to measure current of signal system, circuit, and leakage monitoring system, as well as to measure current difference.
















































































TypeLD1-10mALD1-20mALD1-30mALD1-50mALD1-100mAUnit
Rated current(Ipn)±10±20±30±50±100mA
Measure range(Ip)±12±24±36±60±120mA
Rated output@Ip=±Ipn                ±5±1%V
Supply voltage±12,±15V
Power Consumption <25mA
Offset voltage@Ip=0      ±50mV
Offset drift@ -40~+85℃     ≤±1.5mV/℃
Output drift@ -40~+85℃    ≤±1mV/℃
Linearity@Ip=0-±Ipn      ≤1%FS
Response time@50A/μS, 10%-90%     ≤50μs
Galvanic isolation@ 50HZ,AC,1min     2.5KV









































General date
 ValueUnit
Operating temperature-40 to +85°C
Storage temperature-40 to +125°C
Mass(approx)22g
