Stainless steel Automatic Flour Vibrating sieve Circular screen vibrating screen for food chemical powder
- Category: >>>
- Supplier: Jiangyin Yinda Machinery Co. Ltd.
Share on (10000010447071):
Product Overview
Description
Product Description
Stainless steel Automatic Flour Vibrating sieve Circular screen vibrating screen for food chemical powder
Stainless steel Automatic Flour Vibrating sieve Circular screen vibrating screen for food chemical powder is designed according to GMP standard and wholly made of stainless steel, used to promote the material to dimensionally through the up and down vibrating force of the vibration motor, and promotes the material to advance at the spiral shape, and then discharges from the outlet. Stainless steel Automatic Flour Vibrating sieve Circular screen vibrating screen for food chemical powder can efficiently screen foreign matters, filter impurities, and grade materials to ensure high-quality products.
Model | YDGZ-400 | YDGZ-600 | YDGZ-800 | YDGZ-1000 | YDGZ-1200 |
Capacity（kg/h) | 20-200 | 150-1200 | 200-2000 | 250-3000 | 300-4000 |
Size(mm) | 600×600×1000 | 800×800×1100 | 1100×950×1150 | 1100×1100×1250 | 1300×1300×1400 |
Power(kw) | 0.55 | 0.55 | 0.75 | 1.5 | 1.5 |
Filter fineness(mesh) | 20-180 | 20-180 | 20-180 | 20-180 | 20-180 |
Vibration frequency(pcs/min) | 1500 | 1500 | 1500 | 1500 | 1500 |
Weight(kg) | 120 | 180 | 220 | 300 | 400 |
Details Images

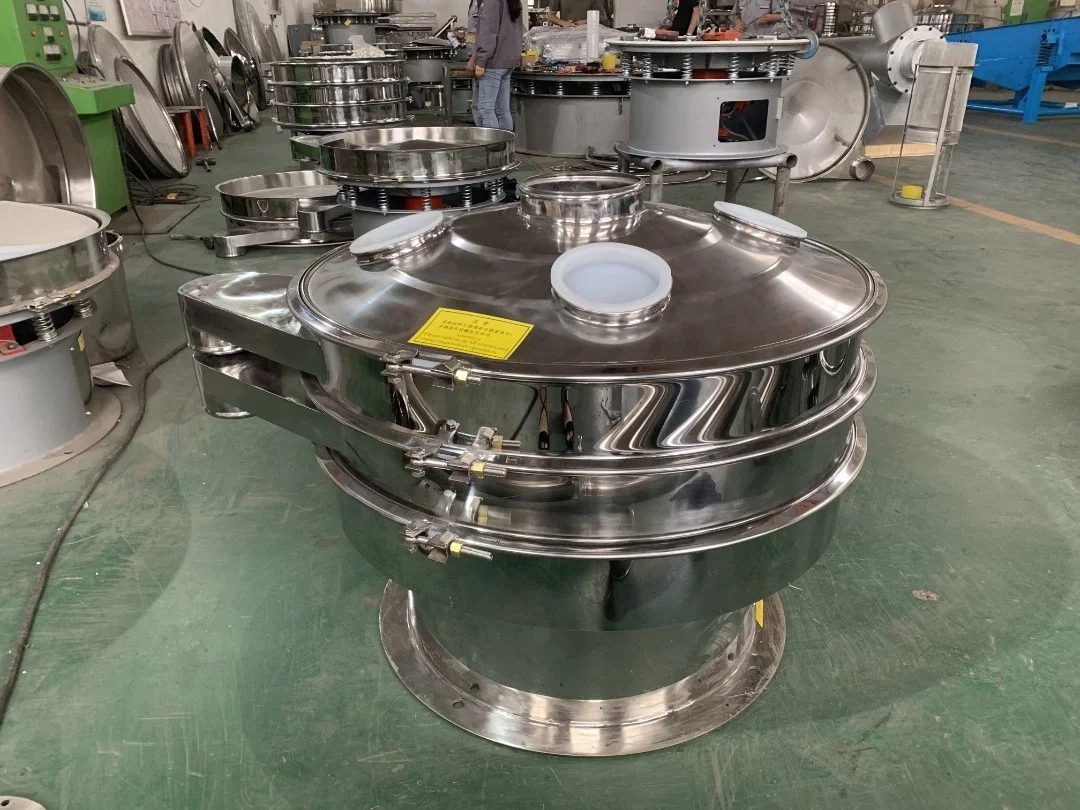

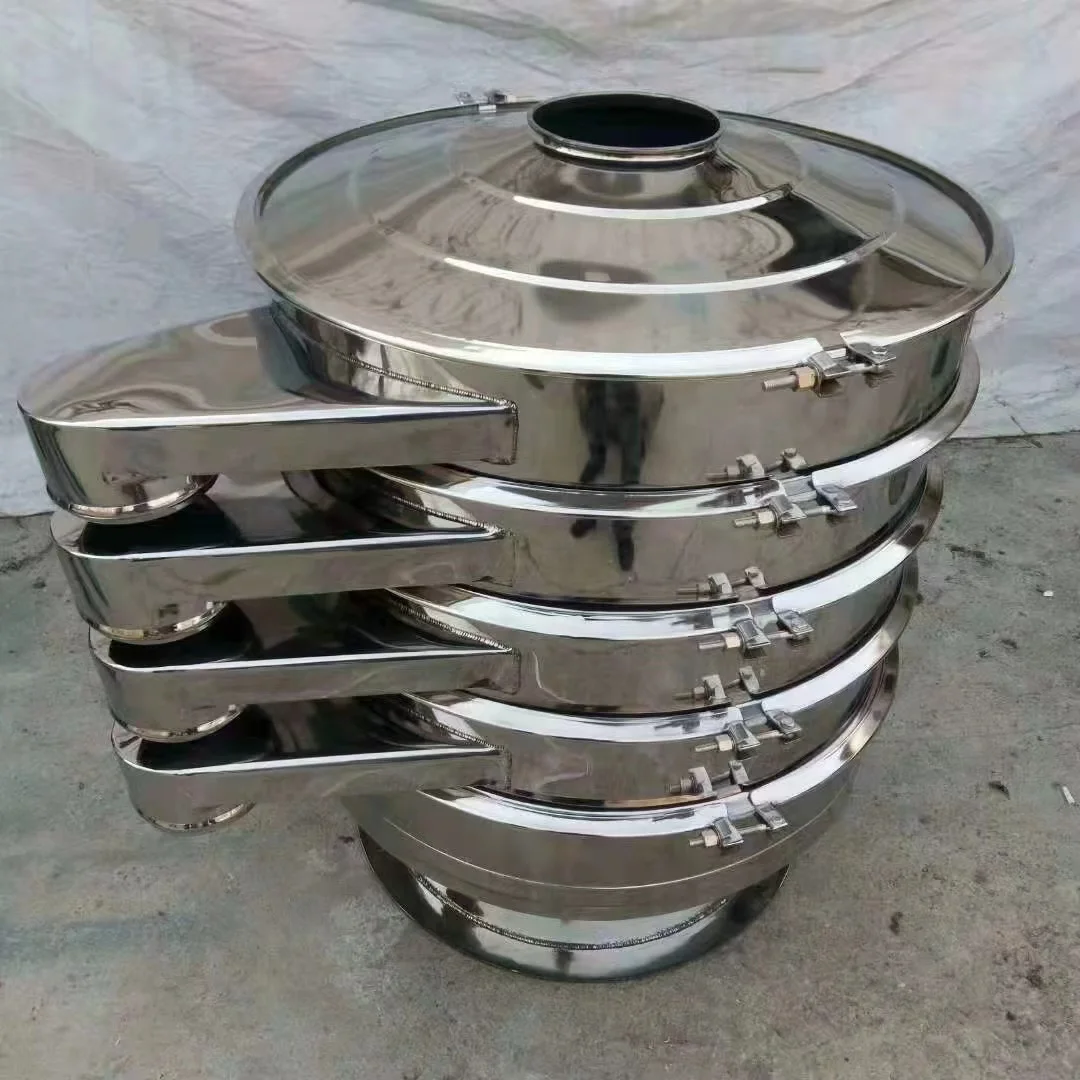

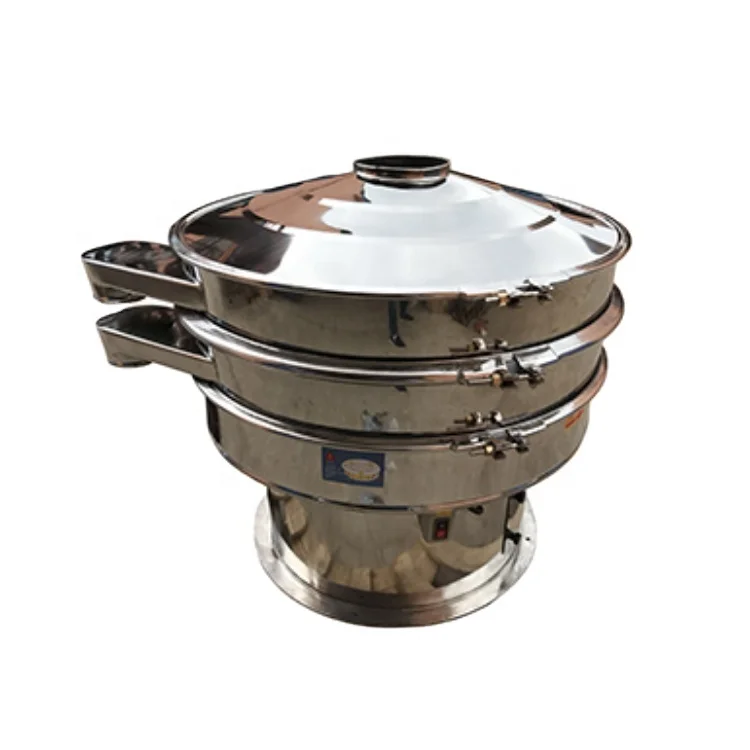

Stainless steel Automatic Flour Vibrating sieve Circular screen vibrating screen for food chemical powder

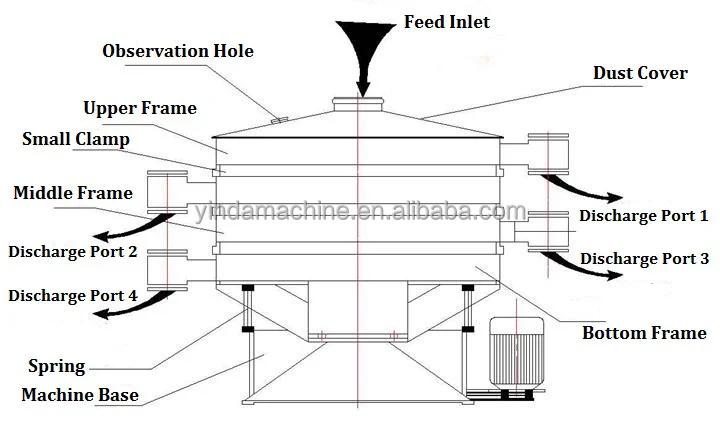

Stainless steel Automatic Flour Vibrating sieve Circular screen vibrating screen for food chemical powder is produced by the vibration of the vibrating device, which forces the material to form the orbital cortex in the sieve machine, which is very useful for sieving the material. Adjusting the relative position of the upper and lower heavy hammer can improve the moving track of the material on the sieve surface, prolong or shorten the staying time of the material on the sieve surface, so as to achieve the ideal sieving effect.
2. stainless steel 316L
3. Carbon Steel
2. Yinda powder Mixer/Blender
3. Conveying system
4. Feeding system
Main features: Stainless steel Automatic Flour Vibrating sieve Circular screen vibrating screen for food chemical powder is produced by the vibration of the vibrating device, which forces the material to form the orbital cortex in the sieve machine, which is very useful for sieving the material. Adjusting the relative position of the upper and lower heavy hammer can improve the moving track of the material on the sieve surface, prolong or shorten the staying time of the material on the sieve surface, so as to achieve the ideal sieving effect. |
Industrial Application
Food additives Industry
Seasoning Industry
Cosmetic Industry
Mineral Industry
Chemicals Industry
Grains Industry
Recommend Products
There are a wide range of powder handling systems can be offered for your bedget.
YDSW series 3D powder mixer
*fit for foodstuff,chemicals industry use
*SUS304#,316L machine material to meet food Grade standard
*Multi-dimentional movement suitable for different bulk gravity materials.
YDLH series Ribbon Blender
*Fit for dry or wet powder mixing
*SUS304#, 316L machine material to meet food grade standard
*Pneumatic valve for discharging
*Double layer ribbon mixing for even mixing
Company Profile
Packing & Delivery
Wooden Case Package For LCL Shipment To shanghai port
Plastic film for FCL Shipment to shanghai port
FAQ
1-what material you? chemical, food, spice, plastic...?
2-what capacity you expect? (kg/batch, or litre/batch)
3-what material of this equipment you want? usually we adopt stainess steel 304; You can choose:1-all carbon steel;2-contact part 304ss,other parts carbon steel
2-what capacity you expect? (kg/batch, or litre/batch)
3-what material of this equipment you want? usually we adopt stainess steel 304; You can choose:1-all carbon steel;2-contact part 304ss,other parts carbon steel
