COLO Sandblasting Machine & Powder Coating Line System
- Category: >>>
- Supplier: Hangzhou Kafan Machinery & Equipment Co. Ltd.
Share on (10000010482477):
Product Overview
Description
Product Description
COLO Sandblasting Machine & Powder Coating Line System

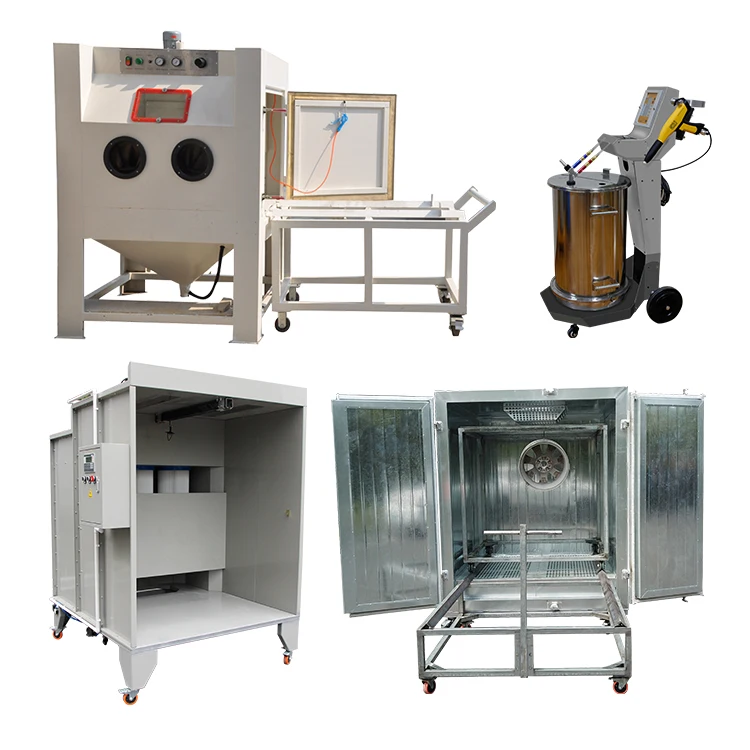

We provide the whole machinery from pretreatment to powder coating to curing for metal finishing, including COLO-1212 sandblasting cabinet, COLO-191S powder coating gun, COLO-1517 powder spray booth and COLO-1864 powder curing oven.
This package is designed to operate small or medium workparts for metal surface finishing, such as rims, bike and motorcycle parts, etc.
Detailed information

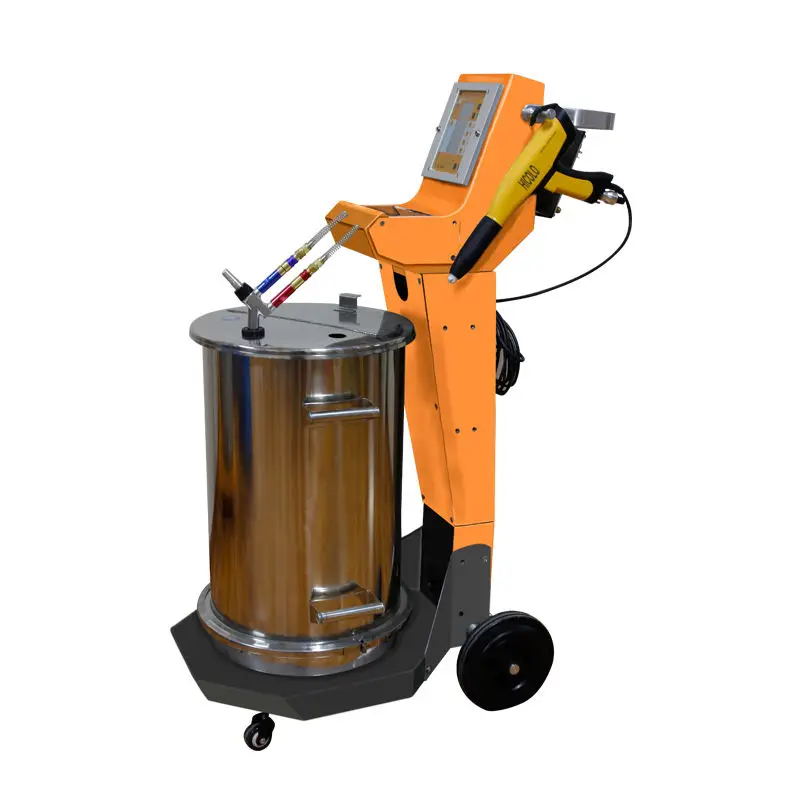

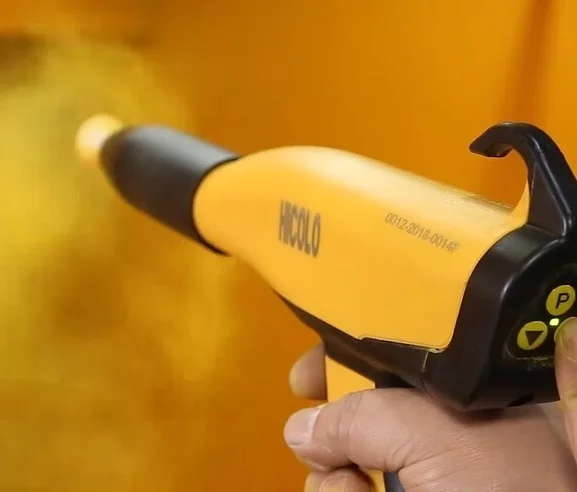

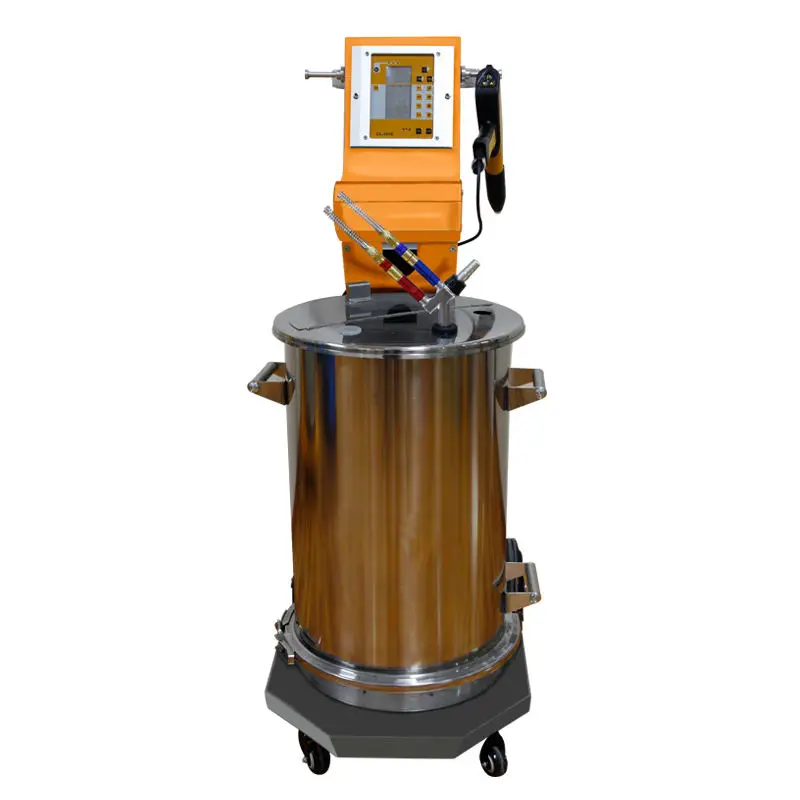

KF-191 Series electrostatic powder coating gun

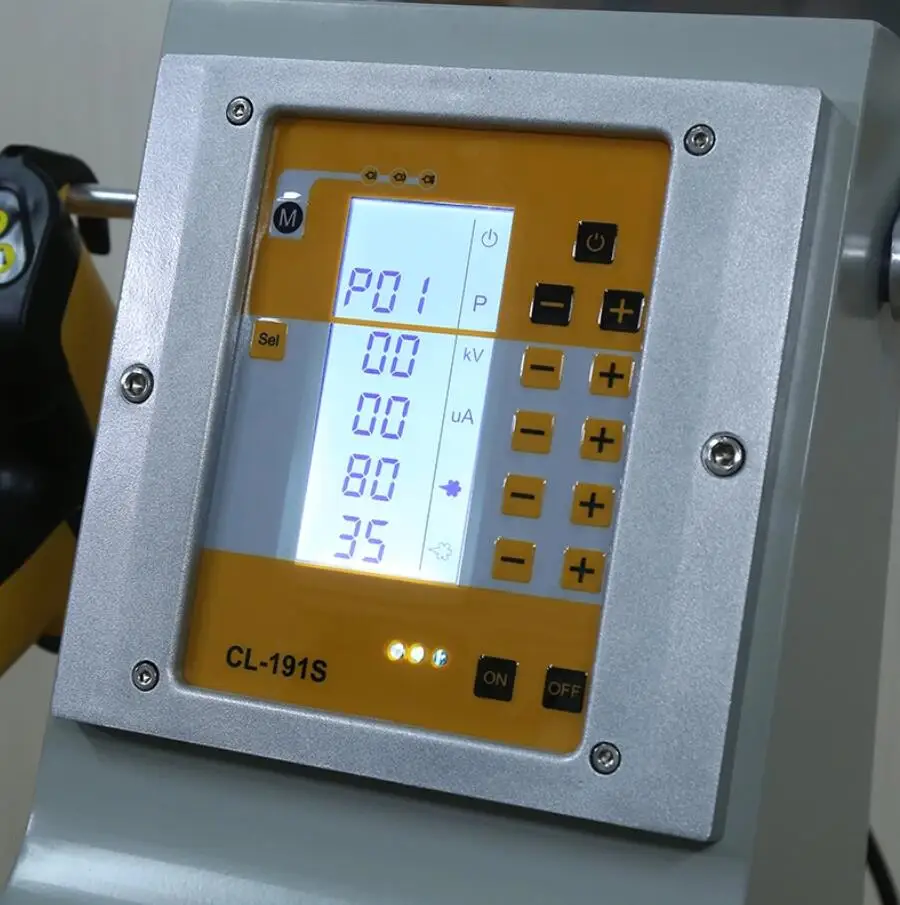

The precise application and intuitive handing of COLO-191S in gun control technology, delivers excellent coating quality for high requirement industrial use.. With its clear display, all processing parameters (kv, charging current, powder ouptput, atomizing air, all can be simply accessed and directly controlled.
Specifications
Model | COLO-191S Series |
Poweer range | 100-240 V |
Frequency | 50/60HZ |
Input power | 50W |
Temperature range in use | -10 - +50 ℃ |
Powder Gun | |
Gun weight: | 500G |
Input voltage | Max12V |
Input current | Max1A |
Maximum output current | 180Ua(max) |
Maximum output voltage | 0-100KV ( adjustable) |
Maximum powder injection | 600g/min |
Polarity | negative (-) |
Pneumatic technical spec | |
Maximum input-air pressure | 10 bar / 145 psi |
Optimum input-air pressure | 6 bar / 87 psi |
Maximum water vapor content or compressed air | 1.3 g/m3 |
Maximum oil vapor content of compressed air | 0.1 mg/m3 |
Maximum cimpressed-air consumption | 13.2 m3/h |

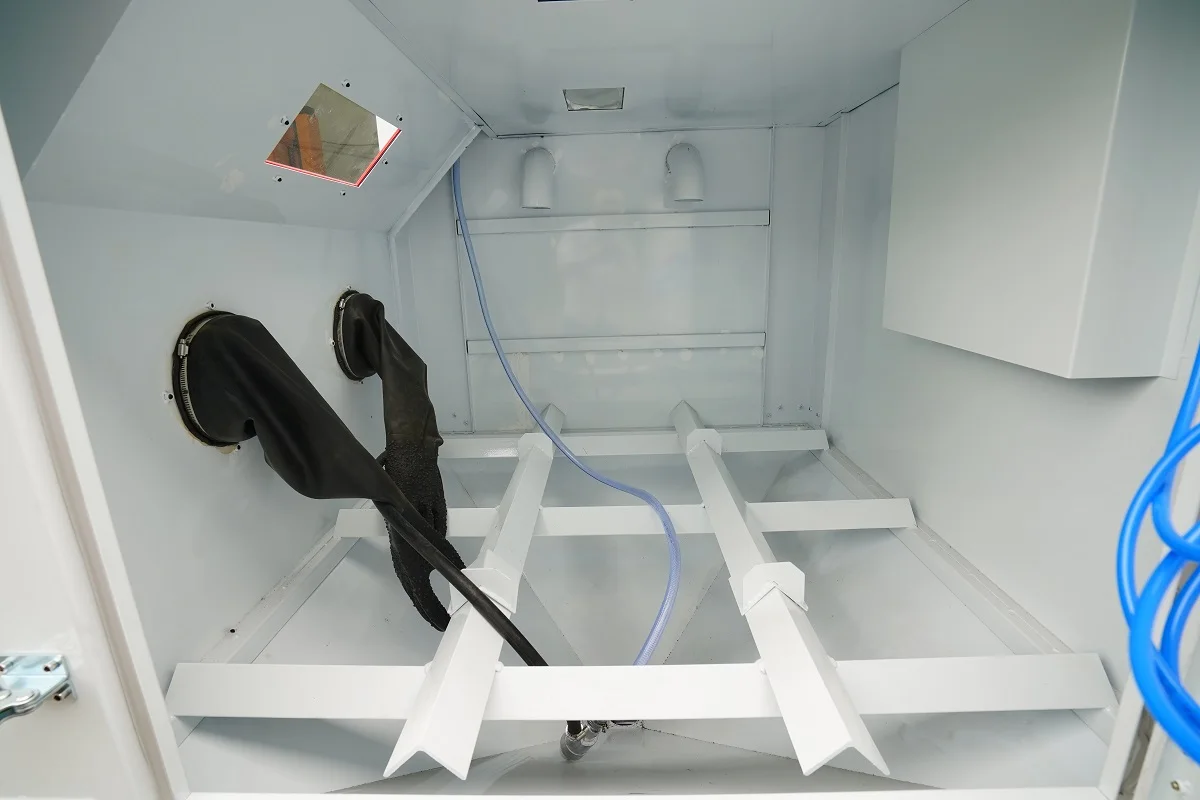

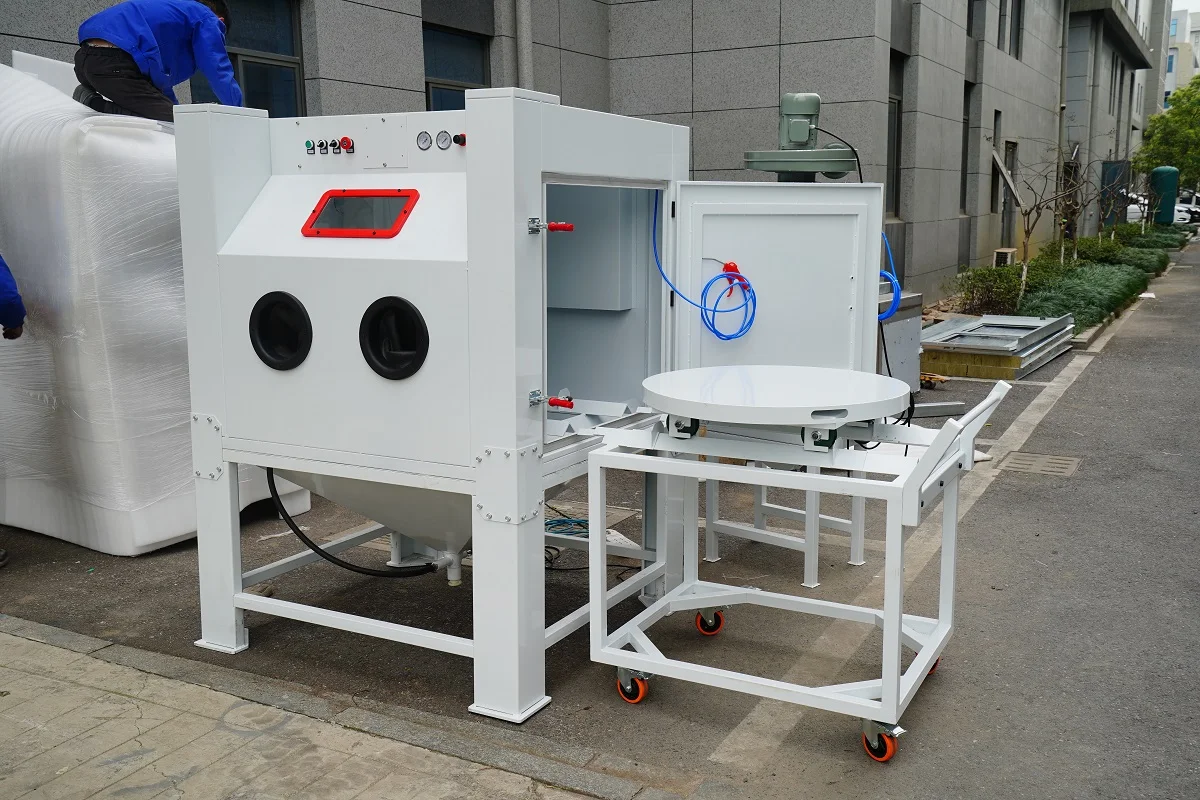

COLO-1212 Dry Sandblasting Cabinet
As a pretreatment tool, the sandblaster easily and quickly removes rust, oil, or old coatings from workparts, obtain a smooth and clean surface for subsequent powder coating process, increase adhesion ability.
As a pretreatment tool, the sandblaster easily and quickly removes rust, oil, or old coatings from workparts, obtain a smooth and clean surface for subsequent powder coating process, increase adhesion ability.
Dry Sandblasting Machine Features

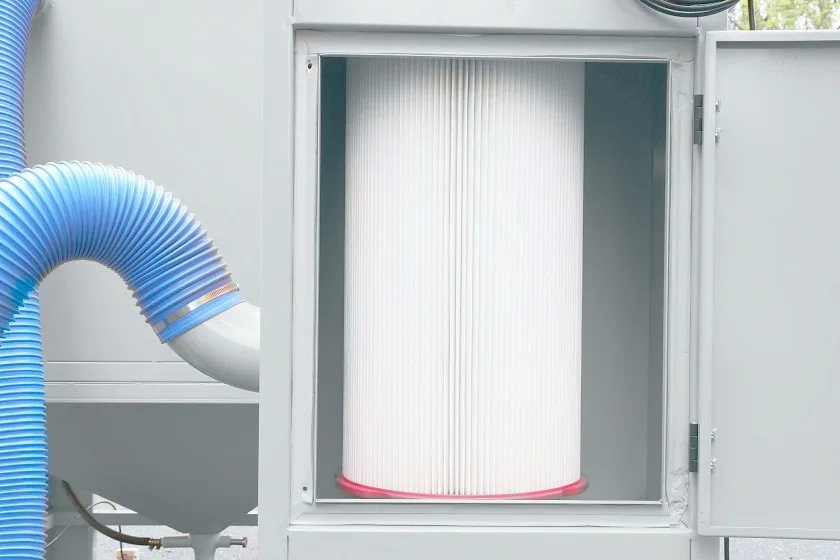

1. Cartridge filter dust collector captures dust that comes out of production, provides a clear operation field of vision.
2. Can be equipped with turntable and cart for easy operation of heavy workparts.
3. Design of foot controlled pedal is convenient for users to control the machine.
4. Blasting gun is combined with alloy body holder and durable boron carbide nozzle, ensure longer service life.
2. Can be equipped with turntable and cart for easy operation of heavy workparts.
3. Design of foot controlled pedal is convenient for users to control the machine.
4. Blasting gun is combined with alloy body holder and durable boron carbide nozzle, ensure longer service life.
Model | CL-1212 |
Outside Size | 1430*1300*1850 mm |
Working Size | 1200*1200*800 mm |
Turntable | Dia 800mm (maximum 200kg) |
Door Size | W830*H770 mm |
Motor Power | 0.75 kw |
Air Requirement | Flow 0.5-1.2m3/min |
Light | 18w fluorescent |
Blast Gun | 1 (aluminum alloy with boron carbide nozzle) |
Air Consumption | 5-8 bar(kg/cm2) |
Voltage | 380V / 220V (customized) |

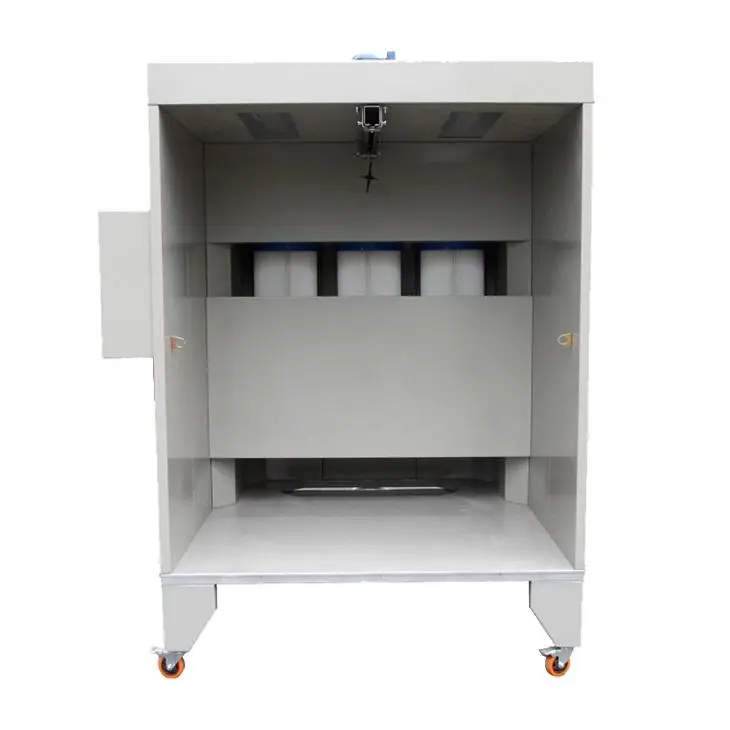

COLO-1517 Powder Coating Spray Booth
COLO-S-1517 Powder coating booth provides a bright and clean environment for spraying process. Space-saving manual powder booth features easy and economical for powder application of small and medium-sized workpieces.
An integrated and innovative powder collection module is designed for effectively capturing oversprayed powder. The pneumatic controlled pulse-jetting system regularly cleans filter to prevents powder accumulation and extend filter life.
COLO-S-1517 Powder coating booth provides a bright and clean environment for spraying process. Space-saving manual powder booth features easy and economical for powder application of small and medium-sized workpieces.
An integrated and innovative powder collection module is designed for effectively capturing oversprayed powder. The pneumatic controlled pulse-jetting system regularly cleans filter to prevents powder accumulation and extend filter life.
Model | COLO-S-1517 |
Operating Dimensions | Width1500*Depth1000*Heght1700mm |
Overall dimensions | Width1600*Depth2000*Heght2250mm |
Weight | 480kg |
Power Supply | 220V/380V, 3Phase, 50-60HZ |
Fan Power | 2.2kw |
Filter Count | 3 pcs, Quick-release Type |
Filter Material | Polyester |
Filter Cleaning | Pneumatic |
Air Consumption | 4000m^3/h |

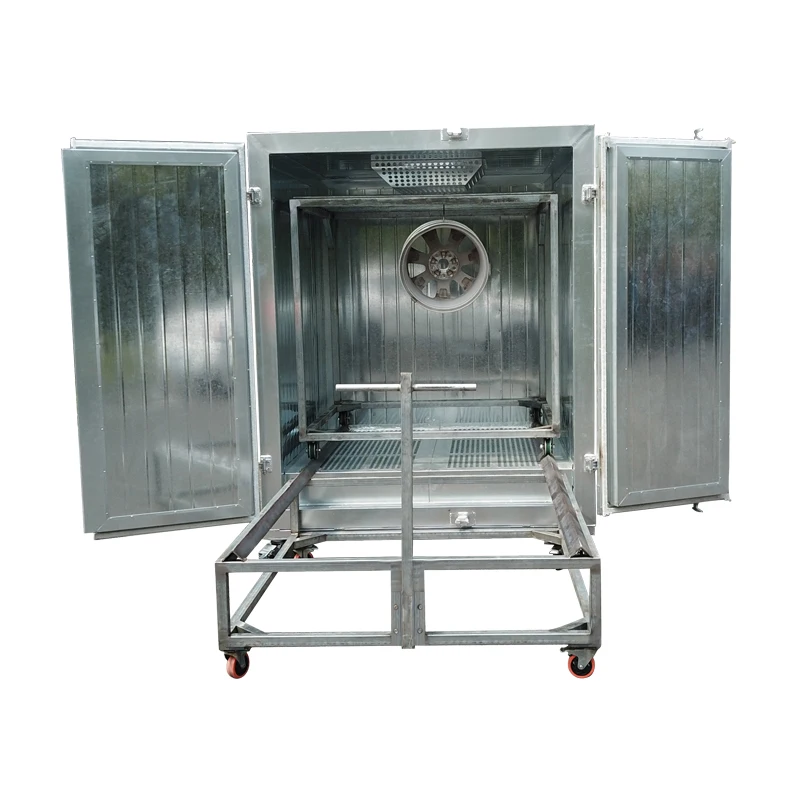

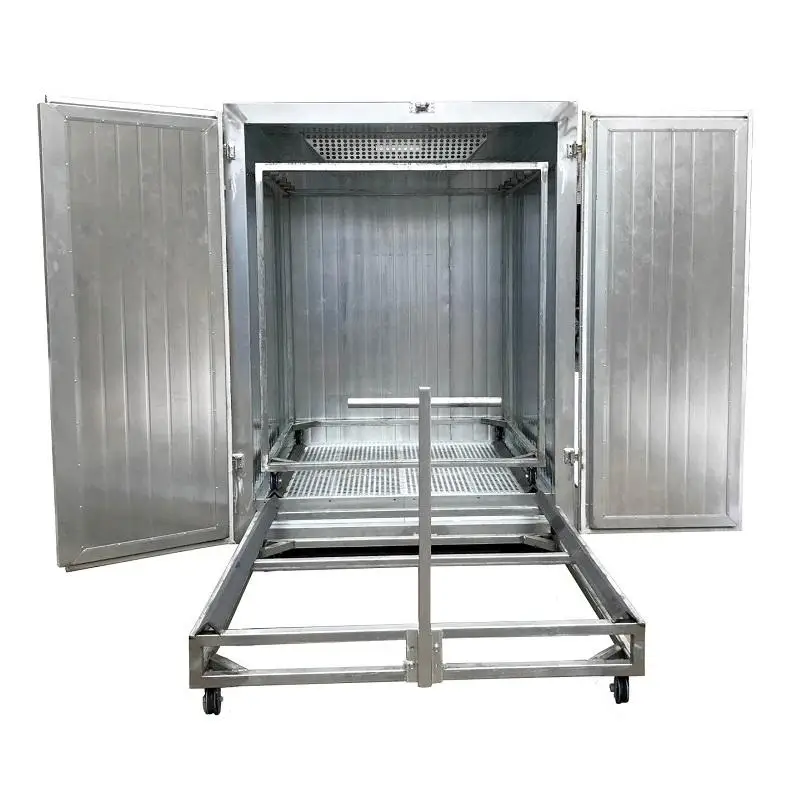

COLO-1864 Electric powder coating oven
COLO-1864 powder coating oven is simple and efficient for powder curing process, whose electric heating method provides a quick raise to required temperature with using less energy as well as keeps the environment clean.

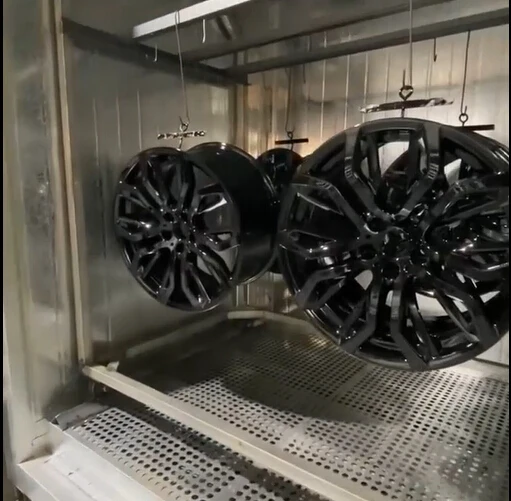

It is the most popular model applying to batch heating jobs for small and medium sized parts, such as alloy wheels, bike frames, motorcycle parts, etc.
It is the most popular model applying to batch heating jobs for small and medium sized parts, such as alloy wheels, bike frames, motorcycle parts, etc.
Model | COLO-1864 |
Working dimensions | Width1600 x Height1800 x Depth1400 mm |
Overall dimensions | Width1900 x Height2200 x Depth1700 mm |
Power supply electric | 18kw |
Voltage | 380V/220V (Custom Voltage Available) |
Frequency | 50-60hz |
Warm-up time | 15-30 min. (180° C) |
Temperature stability | < ± 3-5°C |
Temperature max | 250° C |
Ventilation performance | 805-1677m3/h |
Motor power | 0.75kw |
Circulation/ Air flowVertical | Variable through holes on the walls |
Transportation | Trolley |
Warranty | 12 months |

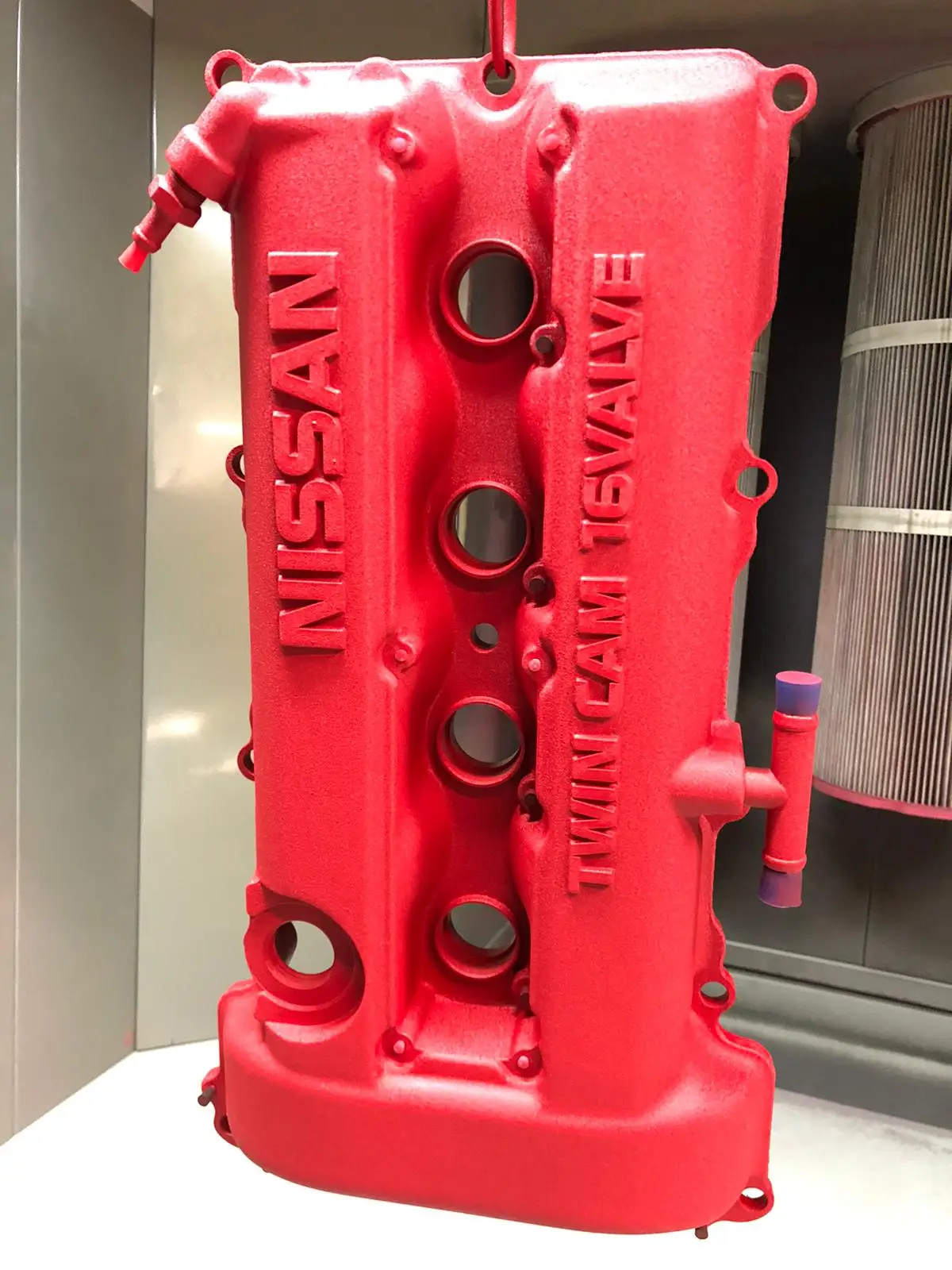

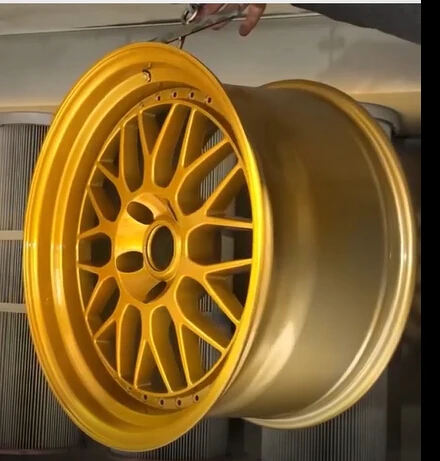

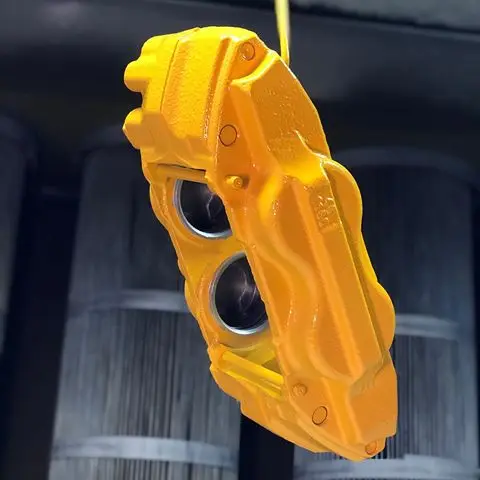

Application
Related Products
Standardized production workshop in Kafan
Quality Control
After production, the product is inspected to distinguish between qualified products and unqualified products. Qualified products are put on the market for delivery to customers, and unqualified products need to be reworked, reworked, degraded, or scrapped.
Welding&Grinding
In Kafan, each process has undergone rigorous screening and control by the workers.
Safe Production
Every worker of Kafan seriously abides by the safety operation regulations and related safety systems, achieves safe production, establishes sound and reasonable rules and regulations, and strictly implements technical regulations.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*Offer daily maintenance knowledge
Our Company
Hangzhou Color Powder Coating Equipment Co., Ltd
Our main products are complete automatic powder coating line,powder spray booth,curing oven,electrostatic spray guns, famous gun spare parts, and automatic reciprocating machines.
Our machines can spray well in a variety of shapes, which efficiently solves the penetration problems with corners and recesses. Moreover, our machines are easy for operation because of the intelligent design.
Our machines can spray well in a variety of shapes, which efficiently solves the penetration problems with corners and recesses. Moreover, our machines are easy for operation because of the intelligent design.
Welcome guests from all countries to our factory.
Ecuadorian customers visited and they tested Kafan equipment, they're very satisfied and look forward to more cooperation in the future with Kafan.
In April 2018, Indonesian customer visited KAFAN factory, and mainly discussed the mono-cyclone recycling equipment and spray guns and related accessories.
Russia customers visited in April 2018 and mainly discussed agent details.
Certifications
Packing & Delivery
FAQ
1. Can you produce custom products?
3. How about your delivery time?
A: Generally, it we have goods in stock,will take 7 work days to ship,just need build the electric voltage as your local
standard.If we don't have stock,need about 10~20 work days depend on order quantity.
Yes, we can produce the products as customer's requirement.
2. What is your terms of payment?
Above $10,000 order,accept 100% payment in advance for production.Under $10,000,50% T/T deposit first for production,the balance before shipment,we can send you products picture for your confirmation.3. How about your delivery time?
A: Generally, it we have goods in stock,will take 7 work days to ship,just need build the electric voltage as your local
standard.If we don't have stock,need about 10~20 work days depend on order quantity.
4. Is it safe to order from Kafan?
Yes, 100% sure you are safe to order from us ,we exported into more than 80 countries ,
and in many countries we have agents or Distributors and we are The famous factory in the powder coating equipmen in china.
Yes, 100% sure you are safe to order from us ,we exported into more than 80 countries ,
and in many countries we have agents or Distributors and we are The famous factory in the powder coating equipmen in china.
5. How about the Warranty?
Because of quality problem we supply free replacement included the shipping cost within
1 year according to the problem photo with series number.
Because of quality problem we supply free replacement included the shipping cost within
1 year according to the problem photo with series number.
