DTM 386 PT100 platinum resistance thermometer with USB Digital thermocouple temperature data logger
- Category: >>>
- Supplier: TECPEL CO. LTD.
Share on (10000010925564):
Product Overview
Description
DTM-386 Platinum resistance RTD thermometer Data logger pt100 with high resolution of 0.01°C

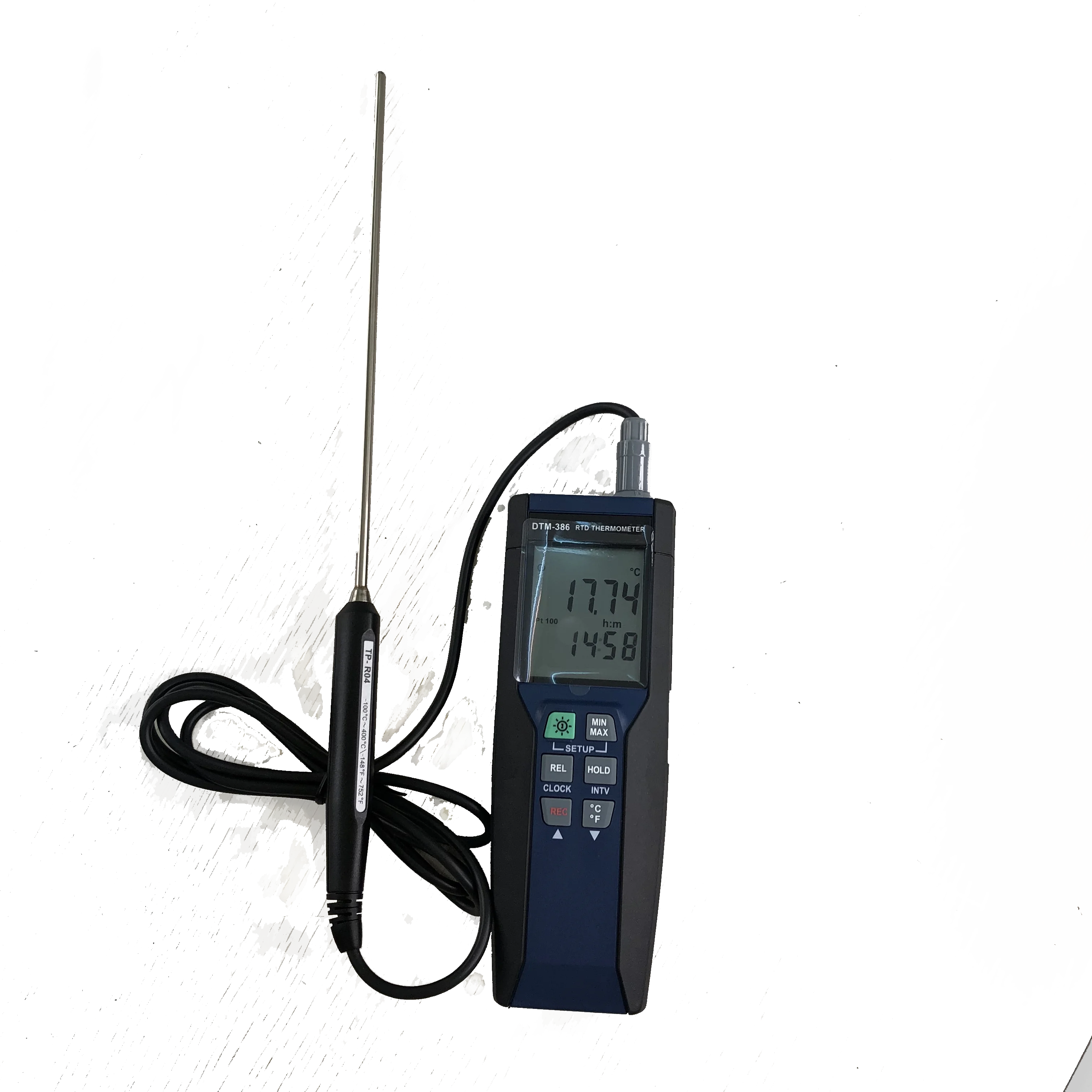

DTM-386 is a handheld platinum resistance thermometer with highly high measurement accuracy. It is suitable for low-temperature and temperature detection, requiring high measurement accuracy.
Built-in 16,000 record function, can measure temperature changes for a long time; users can download the measurement data through USB, and browse the temperature graph and data on the computer.
Measurement Specification
Measuring Range : -100 to 400°C (-148 to 752°F)
Accuracy : ±0.05% + 0.1°C (±0.05% + 0.2°F)
Resolution : 0.01°C (0.02°F)
Sensor Type : pt-100 4 wires (ALPHA=0.00385)
Sensor specification : IEC751, Class A
Sensor accuracy : ±0.15°C±0.002t (t: measurement temperature)
Product Features
MAXIMUM (MAX) : 16,000
MINIMUM
HOLD FUNCTION (HOLD)
AUTO SHUT OFF: 30 minutes
Back Light
Time
OVER-RANGE INDICATION: OL
LOW BATTERY INDICATOR
Product Information
Working environment: 0~50°C / lower than 80%RH without dew.
Storage environment: -10~60°C / lower than 80%RH without dew.
Elevation Limitation: Lower than 2,000 meters
Power Supply: 9V battery (Optional DC 9V power supply)
Battery life: Approx 100 hours
Dimension : 185 x 65 x 36 mm
Weight: 360 g

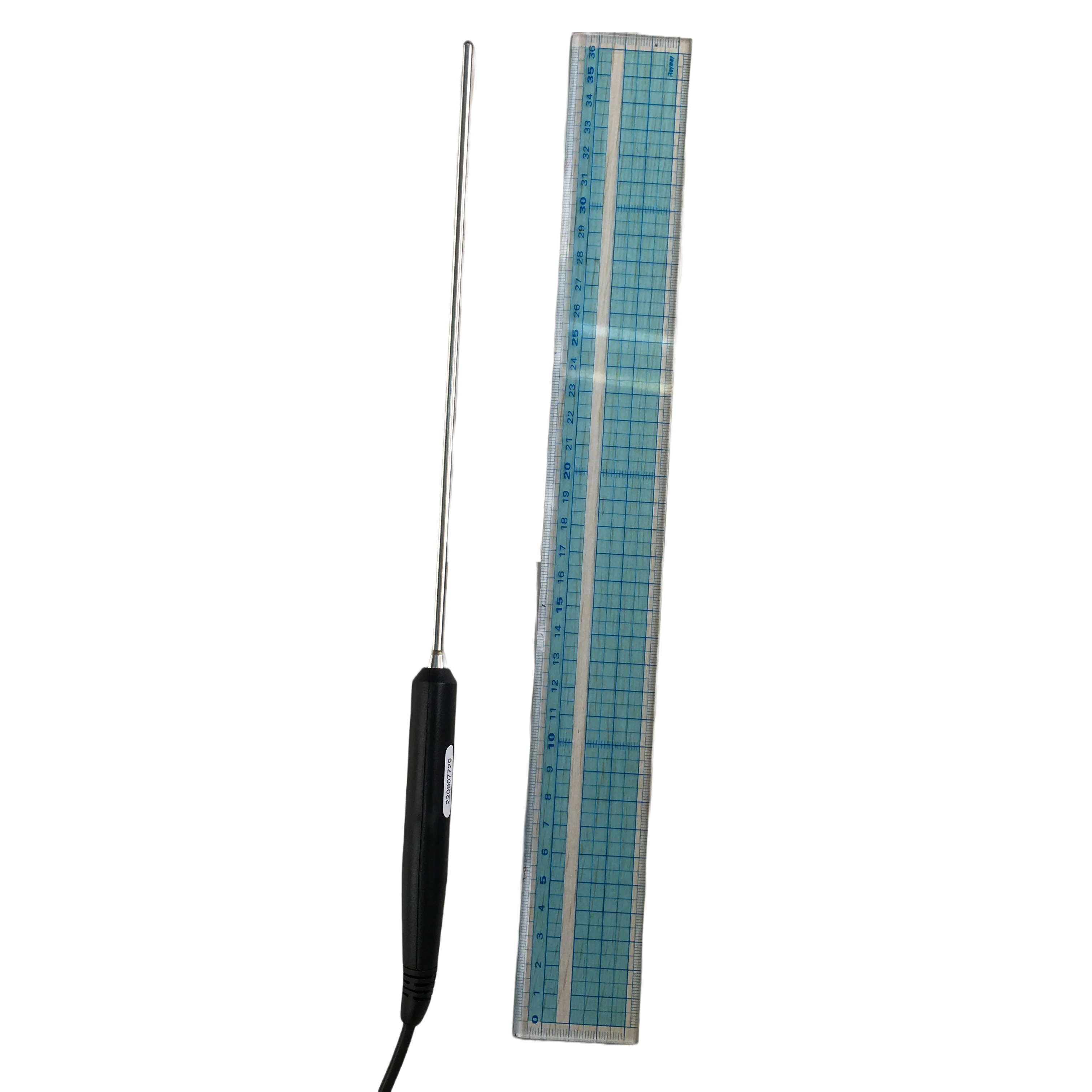

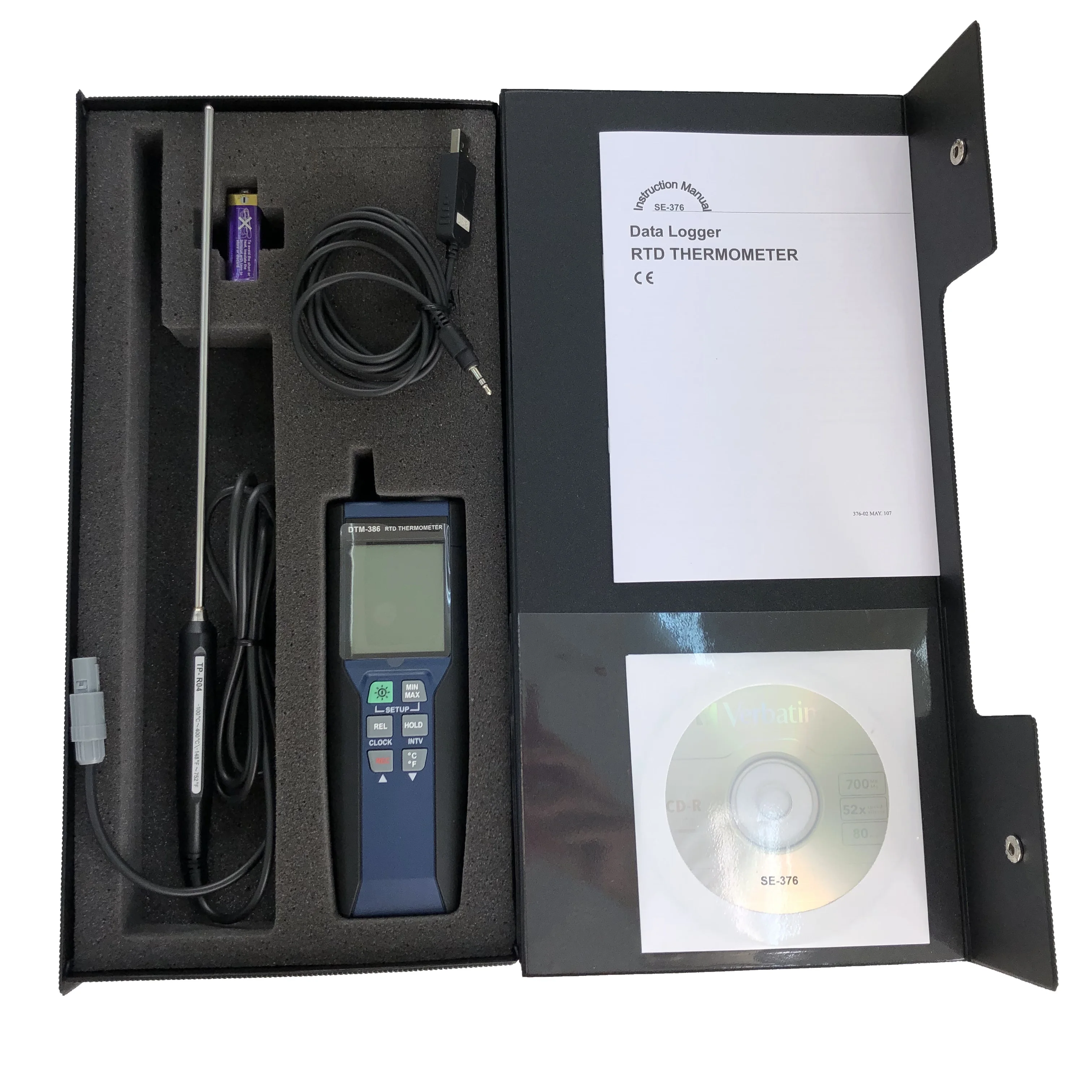

Accessory: pt-100 probe, soft carrying case, and owner manual
Optional Accessory : Transformer(9V), Transmission line (USB/RS-232), Software(SE-300)
Product Description
Some well-known international customers have accepted our quality products. Our confidence in our products is reflected in our one-year warranty and our flat-rate service policy 3 through 5 years. Many of our products get CE approvals.
Packaging & Shipping
Shipment can be done within 14 days after receipt of payment for small quantity.
Our Services
Years of experience have taught us that to make our customers happy is to satisfy their every need. TECPEL continues to be a customer focused company and is committed to providing our customers with high quality, best price products with prompt services. All of this is combined to ensure your satisfaction.
Company Information
| Established in: | 1990 |
| Annual Sales: | 3 millions |
| Capital: | US$ 150,000 |
| Business Type: | OEM Manufacturer ODM Manufacturer Exporter/Agent Electronics Test and Measuring Instruments |
| Markets: | North America South America / Caribbean West Europe East Europe / Russia East Asia Southeast Asia Mid-East / Africa Australia / New Zealand China / Hong Kong World Wide |
| Main Products: | TECPEL Quality Test Instruments Taiwan - Temperature Meter, Multimeter, Thermometers, Clamp Meter, Measuring Instrument, Ph Meter, Sound Level Meter. |
| No. of Employee: | over 10 |
| Location: | Taiwan |
| Factory: | Taipei, Taiwan |
FAQ
How to order ?
TECPEL sells products through international distributors in over 30 countries. For the countries in that we don't have distributors there, we can quote you and ship goods directly.
Send us an inquiry and we assure you that our staff is made up of a professional team that will help make your TECPEL experience pleasant.
After receiving your inquiry, we will send a quotation or proforma invoice to confirm our delivery and price within two working days.
Once you approve it, you can send the payment via T/T remittance in advance or by Master or Visa credit card. Fill out the order form on
our home page. Duly sign it and send it back by fax 886-2-2737-3343. After receiving authentification from our bank, we can send goods in a few days as per our P/I confirmation.
What is warranty period ?
___1. Each TECPEL product is warranted to be free from defects in material and workmanship under normal use for one year. The warranty period is controlled by the documents furnished with each product and begins on the date of shipment. This warranty extends only to the original buyer or end-user customer of TECPEL. It does not apply to fuses, disposable batteries, or to any product which, in TECPEL's opinion, has been misused, altered, neglected, or damaged by an accident or abnormal conditions of operation or handling.
___2. TECPEL's warranty obligation is limited to a refund of the purchase price or replacement of a defective product returned to TECPEL within the warranty period. TECPEL assumes no risk for damage in transit.
___3. If repair or re-adjustment is necessary and has not resulted from abuse or misuse within the warranty period, please return the freight prepaid, and rectifying the deviation will be done without charge. However, rectification charges will be incurred if product problems are examined due to consumer misuse. Out-of-warranty products will be charged accordingly.
