TECHNICAL SPECIFICATION | ||
Rating | Rated voltage: 220-240V Rated frequency: 50/60 Hz Rated power: 3500W (KG35) / 4500W (KG45) / 5500W (KG55) Rated water pressure: 0.03-0.6MPa | |
Cover | Material: tempered glass Color: Sliver | |

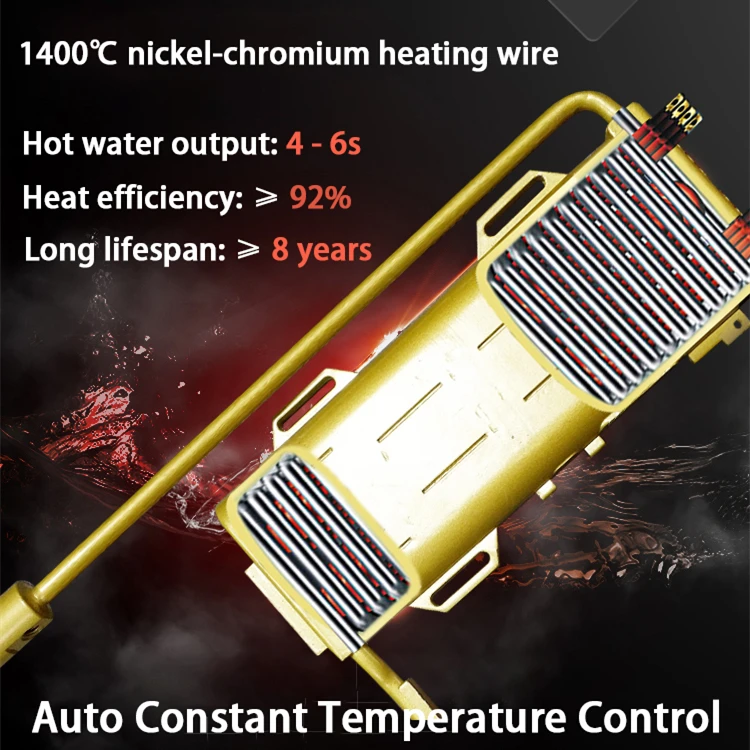

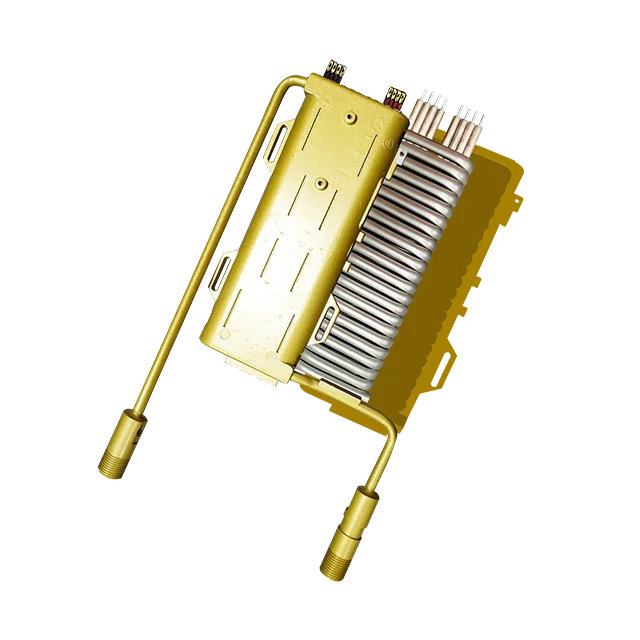

Heating element | Aluminum die-cast heating plate | |

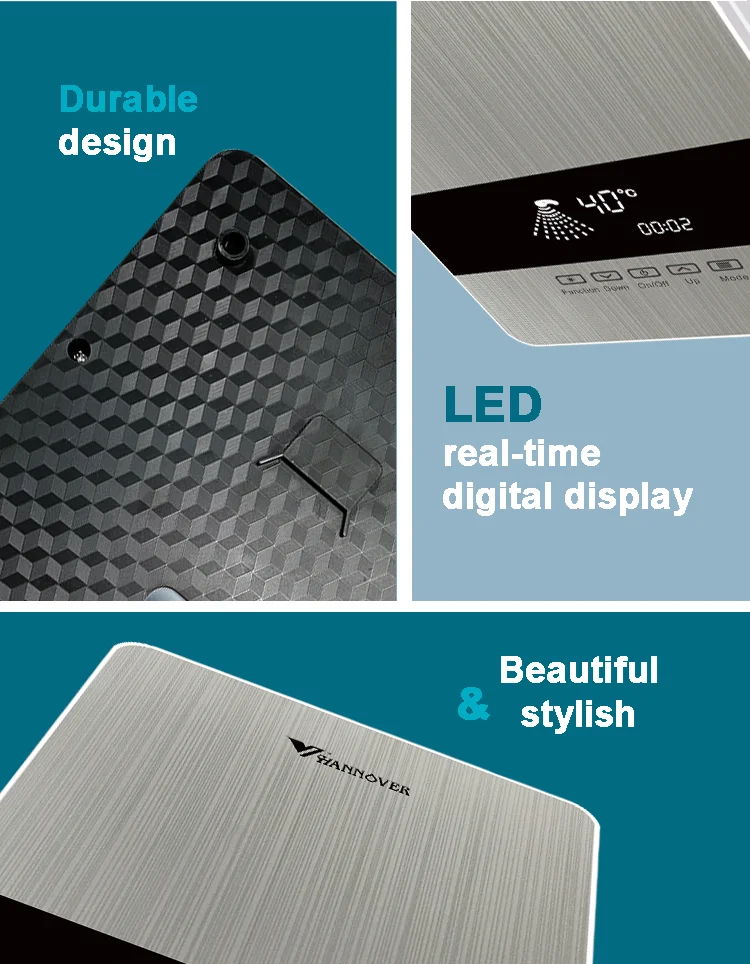

Function | Hot water output: 4 - 6s Hot water capacity: endless Hot water temperature: 32 - 55℃ Constant temperature control LED temperature display Water pressure resistance: ≥ 0.8MPa Starting water flow rate: ≥ 1.2L/min Rated water flow rate: 5 - 8 L/min (1.3 - 2.1 GPM) Ingress protection: IPX4 Free installation Artistic outlook and compact design | |
Safety protection | Precise water flow sensor Precise temperature sensor Precise double circuit relay Precise leakage protection device Precise dry-boiling protection Precise over-heat protection Safety grounding device Automatic pressure relief valve (optional) | |

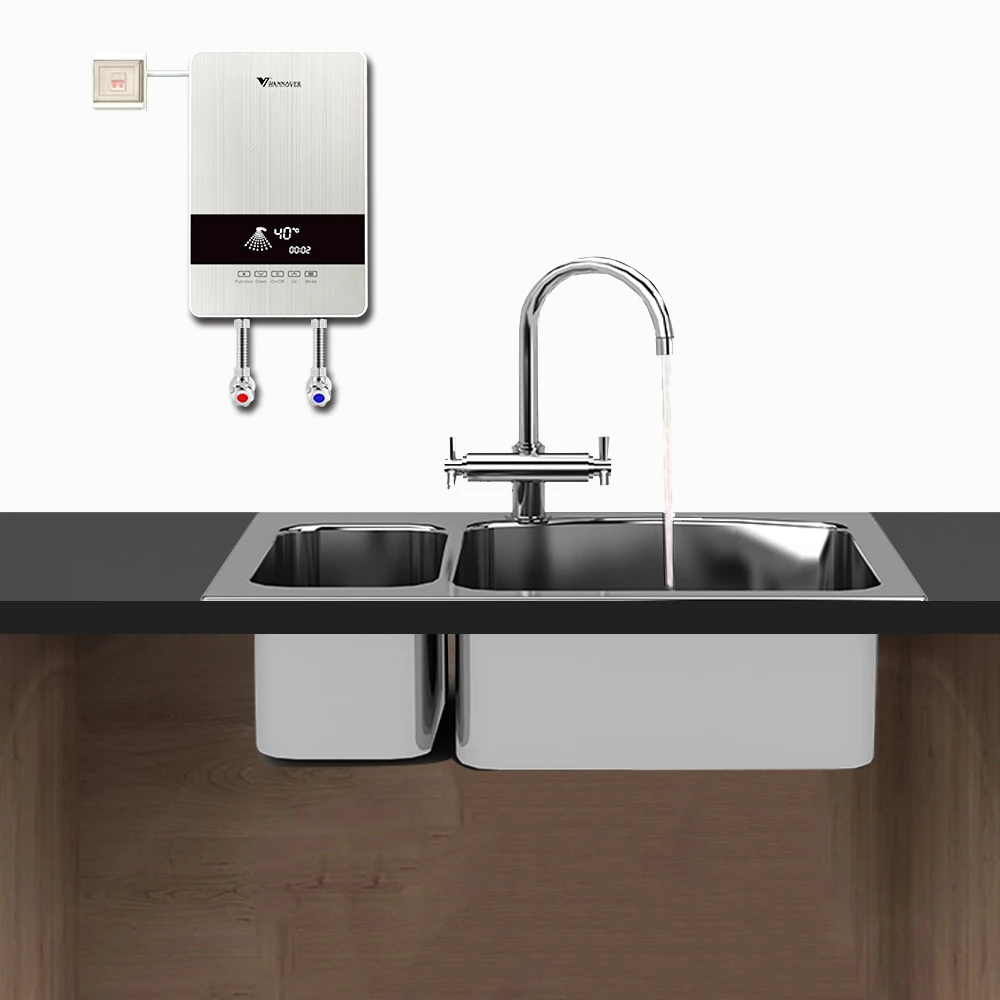

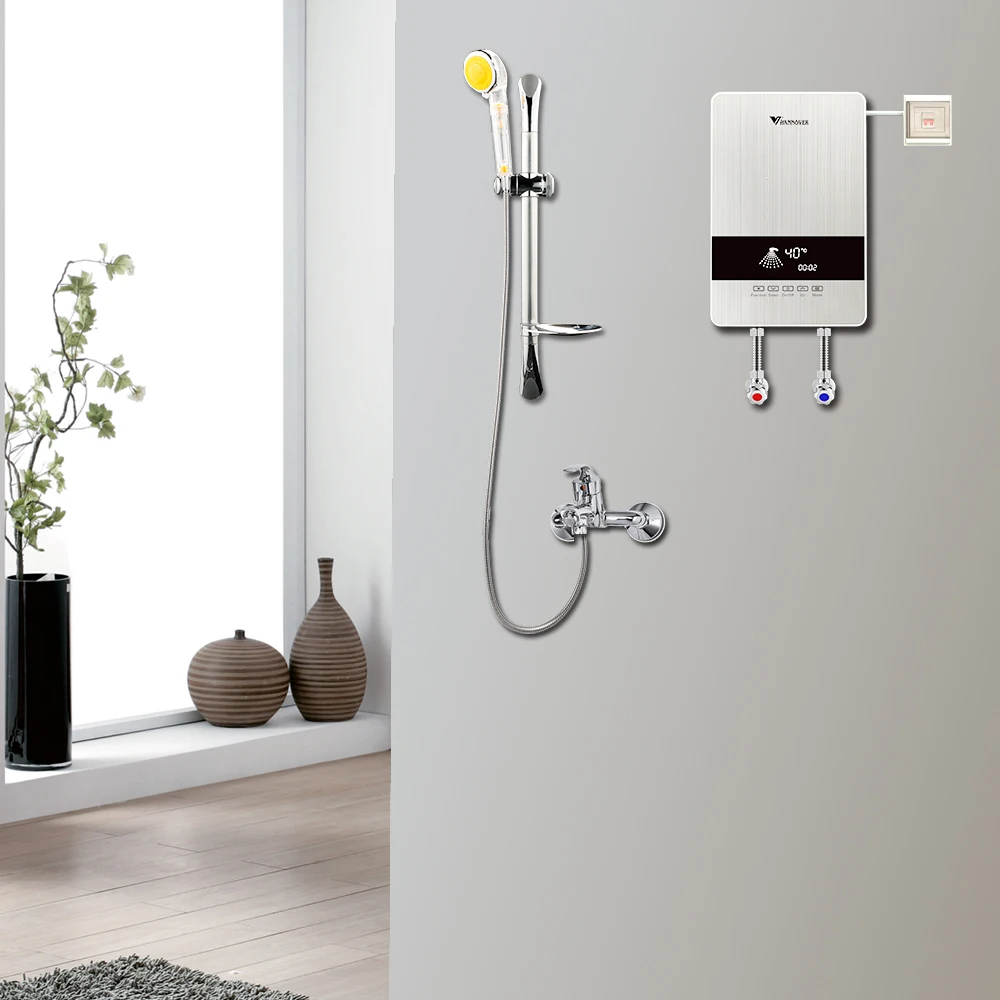

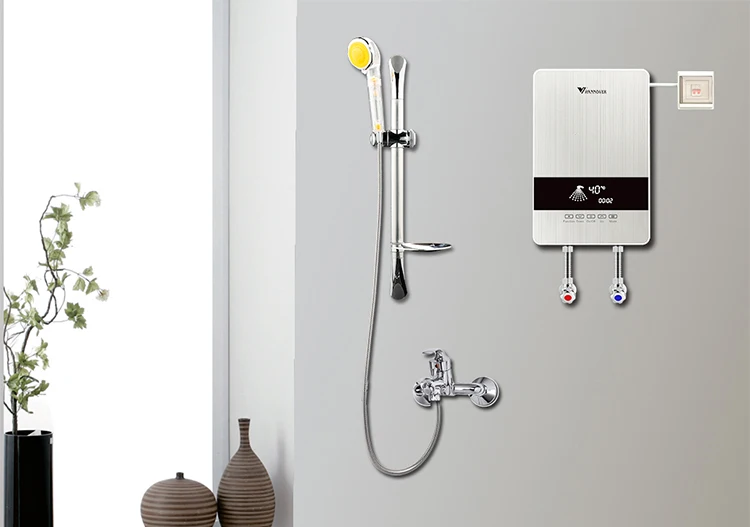

Installation | Application: apartment, office, hotel, school, hospital, hair salon, etc. Water inlet: up inlet Inlet/outlet connection: G 1/2 BSP, pure brass connector Installation: wall mounted Installation method: concealed / unconcealed Compatible to solar system or central heating system | |
Size | 350 x 220 x 65mm (L x H x T) Gross weight: 3.2kg | |
