Product Overview
Description
NO3 Specification | Temperature Specification | ||||
Measuring range | Slope reading 70~130% Zero potential -50~50mv | Temperature principle | NTC30K | ||
Measuring range | -10~120°C(ATC) | ||||
Accuracy | ±0.2°C | ||||
Accuracy | ±5% reading ±0.5mg/L | Resolution | 0.1°C | ||
Resolution | 0.01 mg/L | Reproducibility | 0.1°C | ||
Reproducibility | ±3% reading ±0.5 mg/L | Other Specification | |||
Electrode withstand voltage | Max. 50 Psig | Link above | 3/4”NPT | ||
Operating temperature | 0~40°C | Link below | M42 | ||
Operation pH | Housing Material | PP, acid and alkali resistance/food grade/ zero dissolution | |||

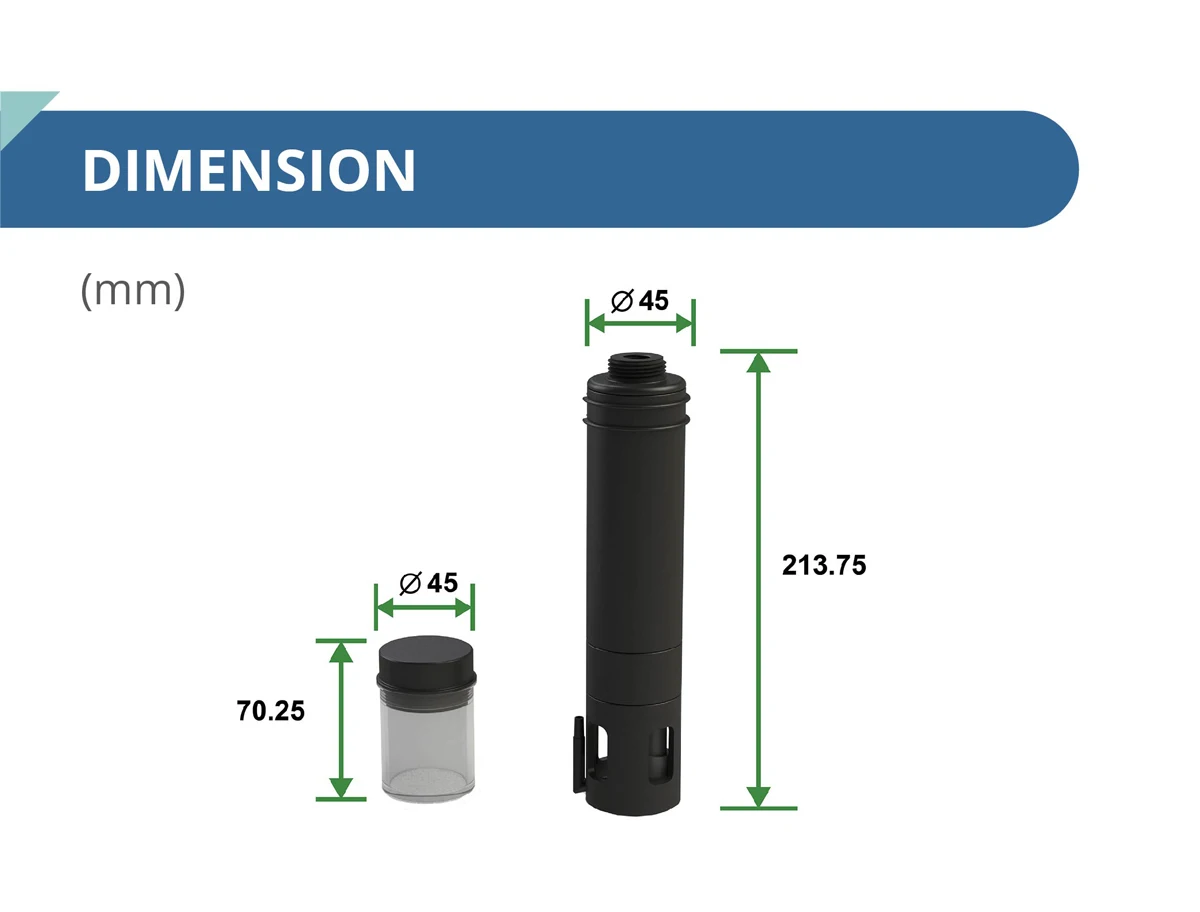

Response time | T90 ≤120 second | Dimension | ø45*L214mm | ||
Communication | RS-485 Modbus RTU Wi-Fi Modbus TCPWeb Browser direct reading(192.168.1.80) | Weight | ≤340g | ||
Power | 12VDC(auto-cleaning) 9~36VDC(Non auto-cleaning) | ||||
Certificate | Power consumption | 1.6w (auto-cleaning) 0.8w (Non auto-cleaning) | |||

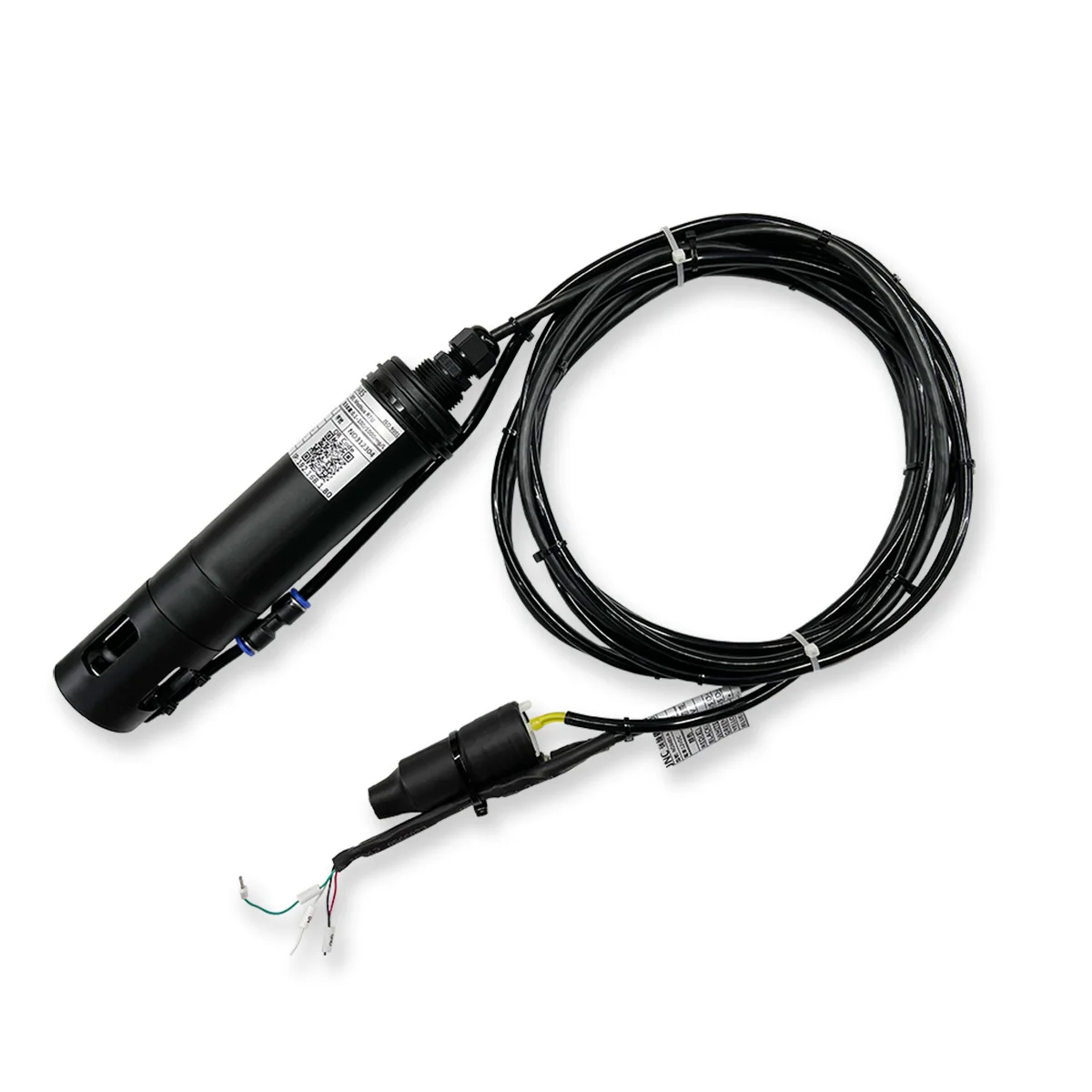

Line length | 3m | ||||
Ingress Protection Rating | IP68 | ||||
Features

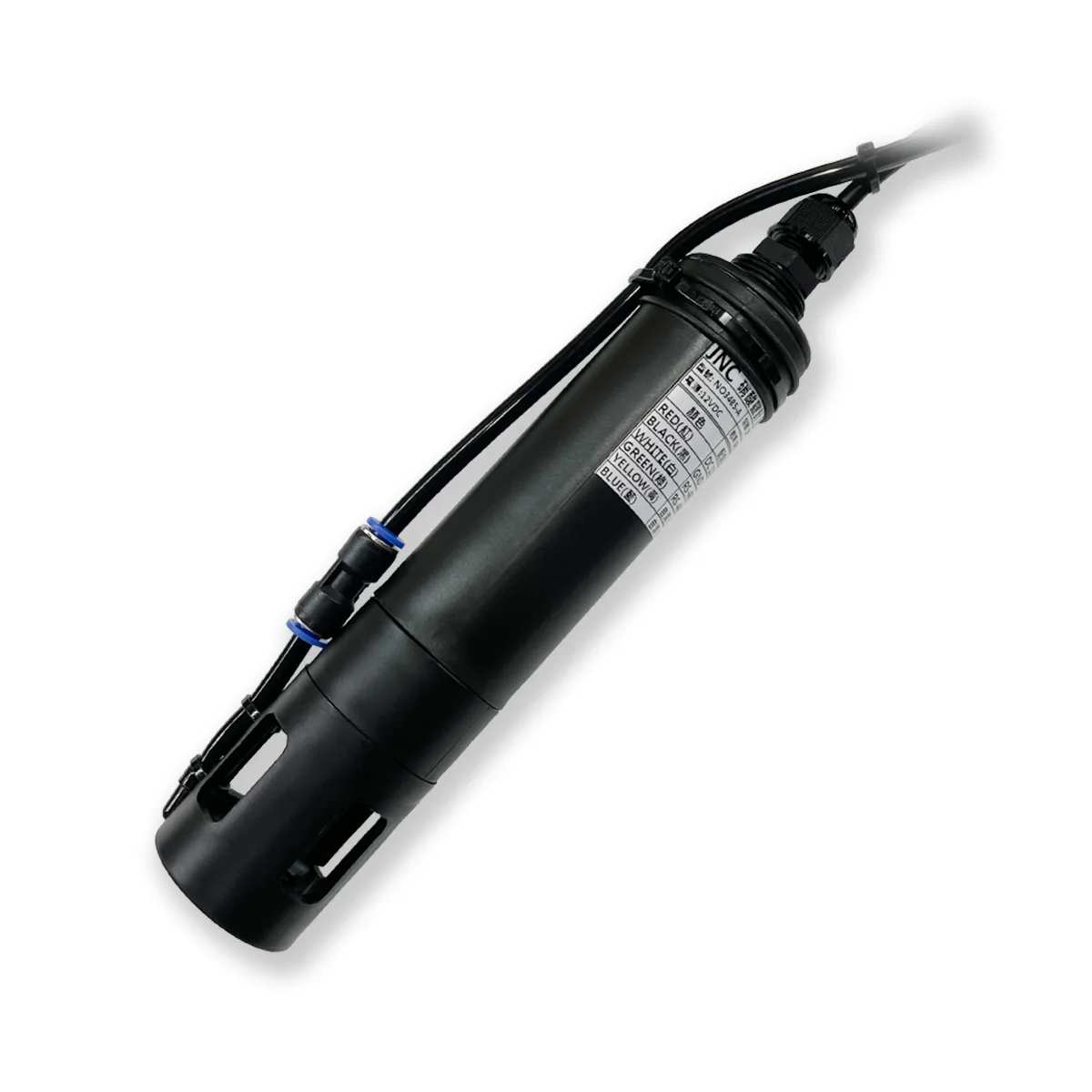

IoT NO3 analyzer with RS-485 and Wi-Fi web interface, and it can monitor by remote and in-situ with mobile phone which is without meter and app.

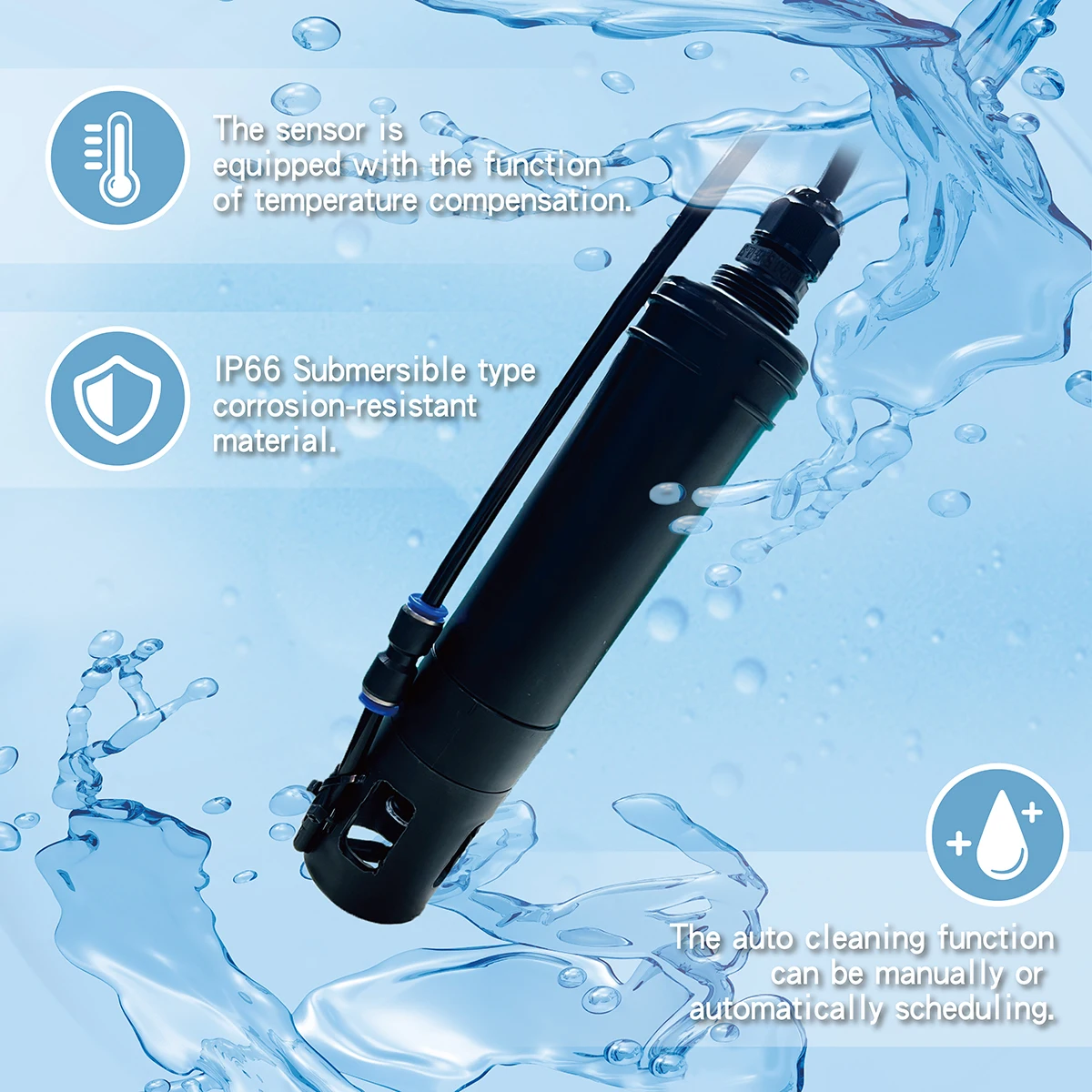

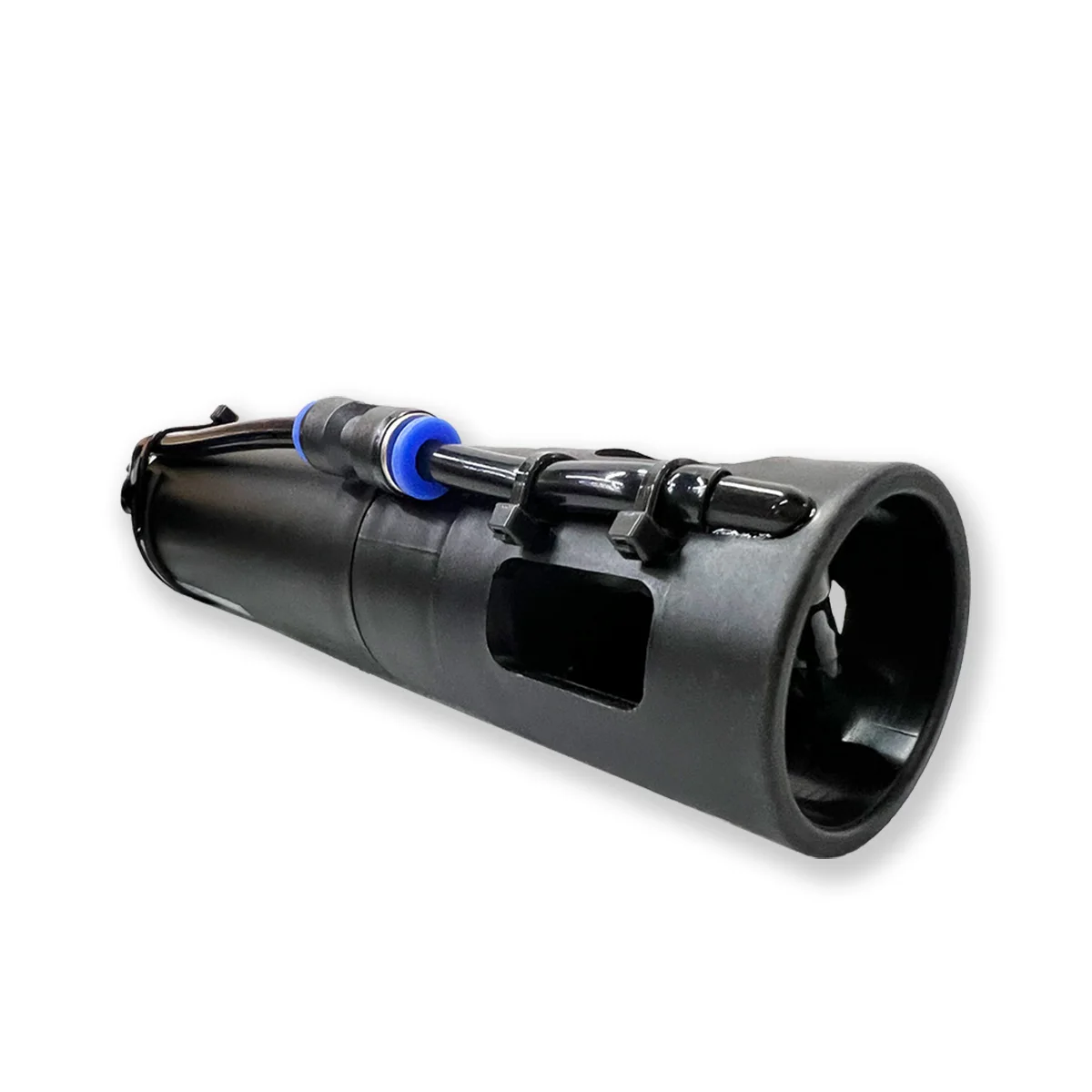

Automatic cleaning function (optional):Including Micro air pump, cleaning scheduling(adjustable), keeping the last reading(during auto cleaning), and stabilization time(adjustable), that is able to extend maintenance period easily.

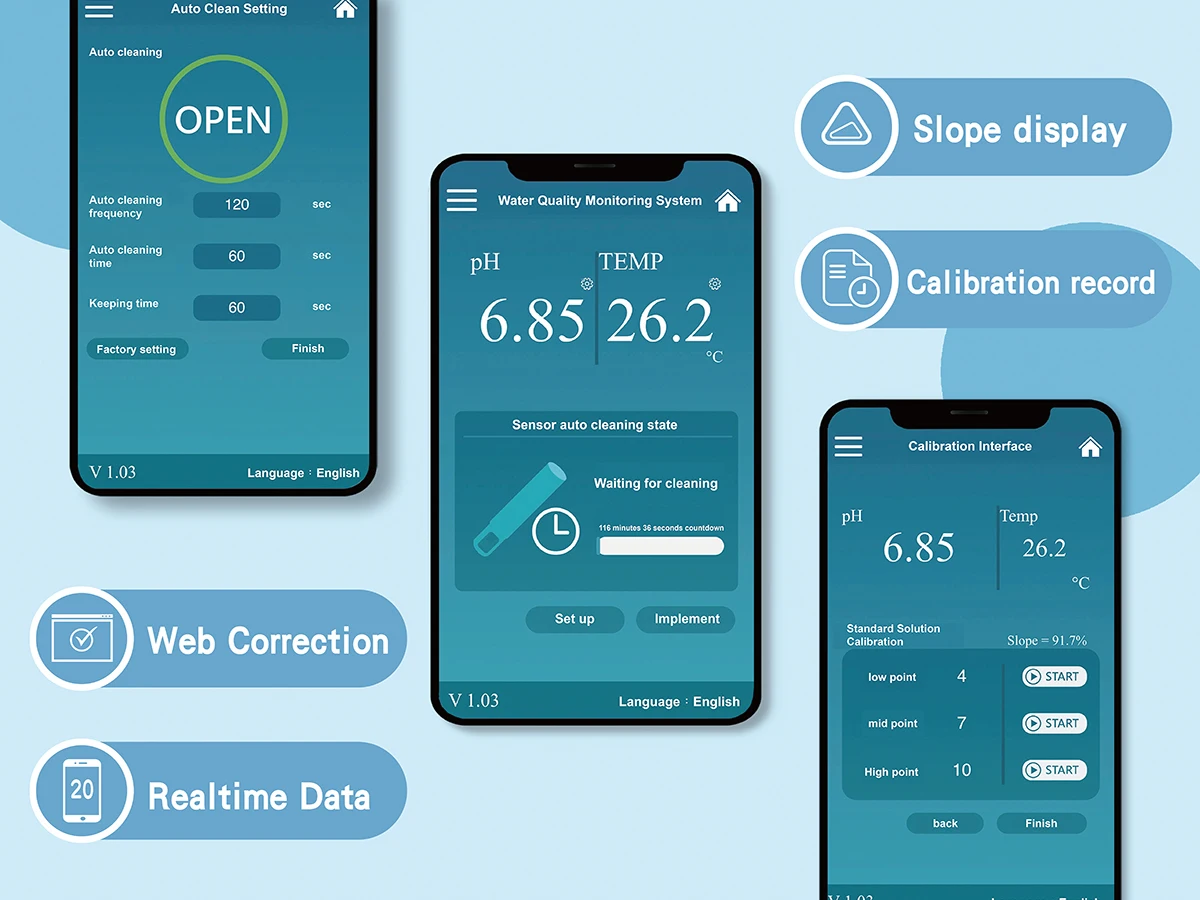

Smart calibration function: Switching protective cover to standard solution cover, and it calibrates with phone webpages.
Smart AI function: calibration/auto-cleaning notification, self-judgment of stain and electrode degree of aging...etc.
IP68 integrated design: The NO3 sensor can put into the application environment such as river/reservoir/tap water/ sewage..etc. Accurate and durable NO3 value can be provided to any meter or software in the world.
FAQ
Q1 : What is your products of packing?
A1 : Pack the goods in cartons with buffer material.
Q2 : Can you provide samples?
A2 : Sorry, we will not have samples.
Q3 : Is your company a manufacturer?
A3 : Yes, we are ISO9001 factory which engaged in R&D and manufacture for 18 years.
Q4 : What are parameters required for product selection?
A4 : Application, range, power and output signal.
Q5 : How is the quality of the manager?
A5 : We have a complete quality control system. We will comprehensive pre-check before shipping to
you.We are able to send our company verification test to you.
Q6 : Could you provide the OEM service?
A6 : Sure, we will according to your request to support OEM and ODM product.
Q7 : How long is your lead time?
A7 : Generally, we will arrange the shipment after the payment in 15 days.
Q8 : What is the warranty?
A8 : 12 months.

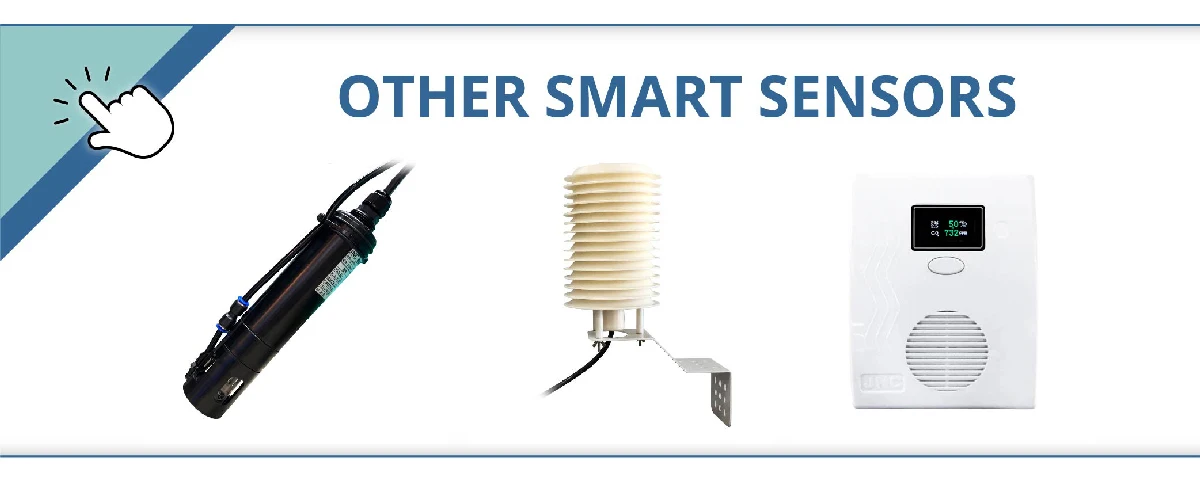

Q9 : What can we buy from your company?
A9 : PH sensor, EC sensor, Turbidimeter, COD sensor, ORP sensor ,NH4 sensor ,NO3 sensor, DO sensor
and air quality monitor.
Q10 : What services do we offer?
A10 : Trade term: FOB, CFR Currency: USD,CNY Payment method: T/T, credit card, escrow. Language :
English, Chinese.
Q11 : Can I print my logo on the product?
A11 : Of course you can. You can design it by yourself.
