New ck210 cnc teaching lathe micro mini cnc with siemens fanuc misthubishi operation system for selection
- Category: >>>
- Supplier: Shanghai,Ants,Machine,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
CK210 Mini CNC Lathe Technical parameters | ||
Turning diameter over bed(max) | 210mm | |
Chuck diameter | 100mm | |
Spindle speed | 100-1750r/min(control speed of G code) | |
Spindle through-hole | 20mm | |
Spindle mount | MT3 | |
Spindle motor power | 500W | |
X travel | 80mm | |
Z travel | 290mm | |
The max moving speed | 2000mm/min | |
The max feeding speed | 1000mm/min | |
Control system | KY 980Tc Turning CNC System | |
Instruction | Run ISO G code | |
MPG handwheel | 4 axis | |
Tool position | 4 | |
Tool dimension | 10*10mm | |
Tailstock taper | MT2 | |
Tailstock sleeve diameter | 20mm | |
Travel of tailstock | 25mm | |
Positioning accuracy: | 0.03mm | |
Repeatability accuracy | 0.02mm | |
Power | 220VAC / 110VAC | |
Weight(NW/GW) | 180/200KG | |
Overall dimension | 1000*580*680mm | |
Packing size | 1100*700*1150mm | |
Equipment Introductions (1).Automatic 4 positions tool post. (2).KY 980Tc Turning CNC System, Optional GSK 980Tb or Mach3 (3).ARM 9 CPU+FPGA,Support B macro function,PLC function,Mutil-language library function. (4).Lathe CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas. (5). The standard spec includes MPG hand wheel. (6). USB and RS232 port, (7). Control speed of G code. (8). Selection of high -quality casting materials,morecompact. (9). A collection of double-nut ball screw, bearings and couplings with high precision positioning, while adding an automatic oil lubrication system, to protect your machine precision, extended service life. (10). 220VAC or 110VAC single-phase AC power supply. (11). Safety electrical components of high quality. (12). Auto power off when door open. (13). Applicable industry: technology development, advertising design, art, vocational technical college Education & Training CNC and DIY enthusiasts. |
Optional Parts
Packing & Delivery

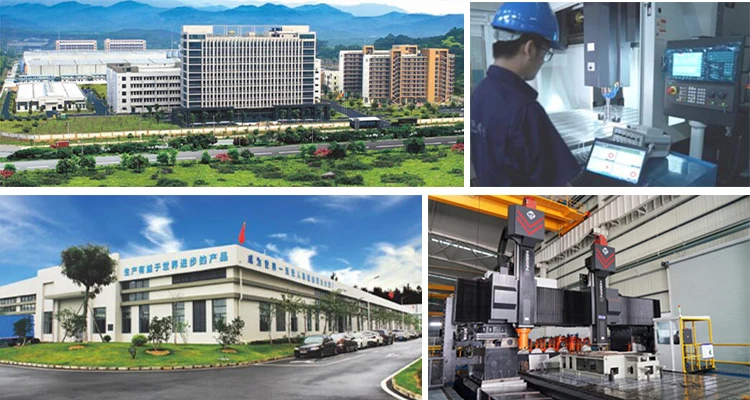

ANTS Machine is a leading Chinese industrial lathe machinery andtooling machines supplier, located in the downtown of Shanghai City.Since our company was founded, based on the advantage of BOCHI which is the No.1 Chinese machine tool manufacturer, we continuallyintroduce top Chinese lathe machinery enterprises and their productsto international markets and export them to approximately 30countries and several regions across the globe, such as BOCHI,Shanghai Machine Tool, SPARK etc. Today we stand tallamidst a number of competitors across the world.
