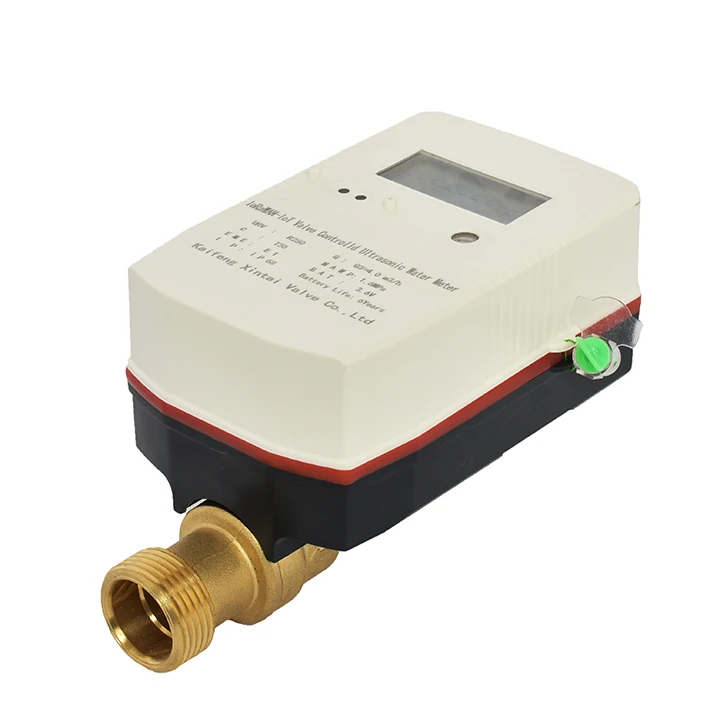

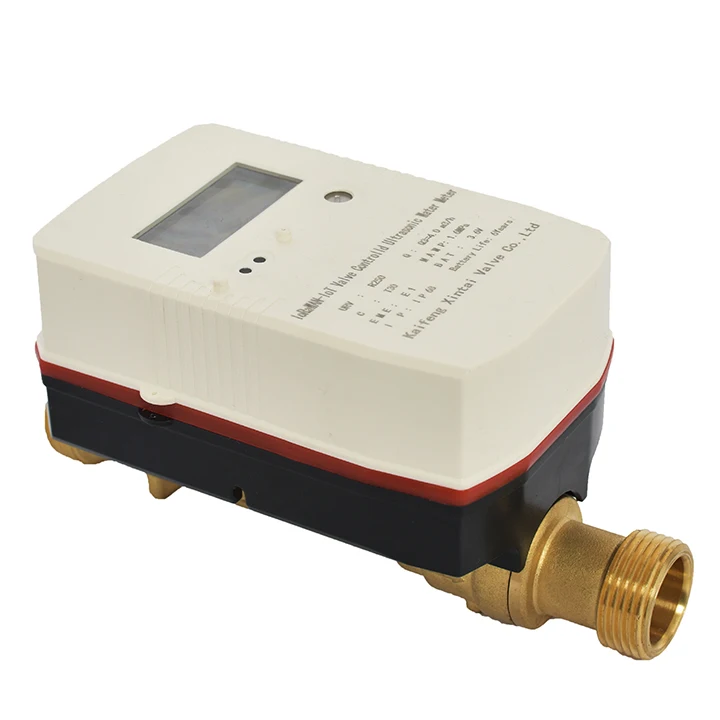

factory wholesale R200 R250 R400 R800 smart ultrasonic valve water meter
- Category: >>>
- Supplier: Kaifeng,Xintai,Valve,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Specification
Nominal Caliber | Common Flow | Transitional Flow | Min Flow | Flow Sensor Interface Size | Flow Sensor Connection Size | Case L | ||||||
DN mm | Q3 m³/h | Q2 m³/h | Q1 m³/h | Thread L mm | Thread Size | Connection L mm | Thread L mm | Thread Standard | mm | |||
15 | 2.5 | .0.016 | 0.01 | 10 | G3/4 | 43 | 15 | R1/2 | 165 | |||
20 | 4 | 0.025 | 0.016 | 12 | G1B | 50 | 16 | R3/4 | 195 | |||
25 | 6.3 | 0.04 | 0.025 | 12 | G1 1/4B | 58 | 18 | R1 | 225 | |||
32 | 10 | 0.064 | 0.04 | 13 | G1 1/2B | 58 | 20 | R1/4 | 180 | |||
40 | 16 | 0.1 | 0.064 | 13 | G2B | 59 | 22 | R1/2 | 200 | |||
Features
(1) Range Ratio: Default R250 (R125/R160/R200/R400 customized)
(2) Pressure Class: MAP16
(3) Max Pressure Loss: ≤0.040Mpa
(4) Temperature Class: T30
(5) Protection Level: IP68
(6) Environment Class: B Level ( O optional)
(7) Electromagnetic environment and other levels:E1
(8) Flow Field Sensitivity: U5/D3
(9) Data Storage: 24 months historical data, alarm occurrence time and alarm source
(10) Pipe Material: Copper
(11) Communication: LoRaWAN, (NB-IoT, M-BUS,RS485 OPTIONAL)
(12) IoT networking: LoRaWAN, Supporting and perfect operation management system platform
(13) Installation: H/V
(2) Pressure Class: MAP16
(3) Max Pressure Loss: ≤0.040Mpa
(4) Temperature Class: T30
(5) Protection Level: IP68
(6) Environment Class: B Level ( O optional)
(7) Electromagnetic environment and other levels:E1
(8) Flow Field Sensitivity: U5/D3
(9) Data Storage: 24 months historical data, alarm occurrence time and alarm source
(10) Pipe Material: Copper
(11) Communication: LoRaWAN, (NB-IoT, M-BUS,RS485 OPTIONAL)
(12) IoT networking: LoRaWAN, Supporting and perfect operation management system platform
(13) Installation: H/V
(14) Low overall power consumption, the built-in lithium battery last for 10 years
(15) Very low initial flow, can achieve drip metering
(16) Ability of forward and reverse measurement
(17) 4 high-speed measurements per second
(18) With self-diagnosis function: flow sensor failure alarm, measurement over-range alarm, battery under-voltage alarm
(15) Very low initial flow, can achieve drip metering
(16) Ability of forward and reverse measurement
(17) 4 high-speed measurements per second
(18) With self-diagnosis function: flow sensor failure alarm, measurement over-range alarm, battery under-voltage alarm
