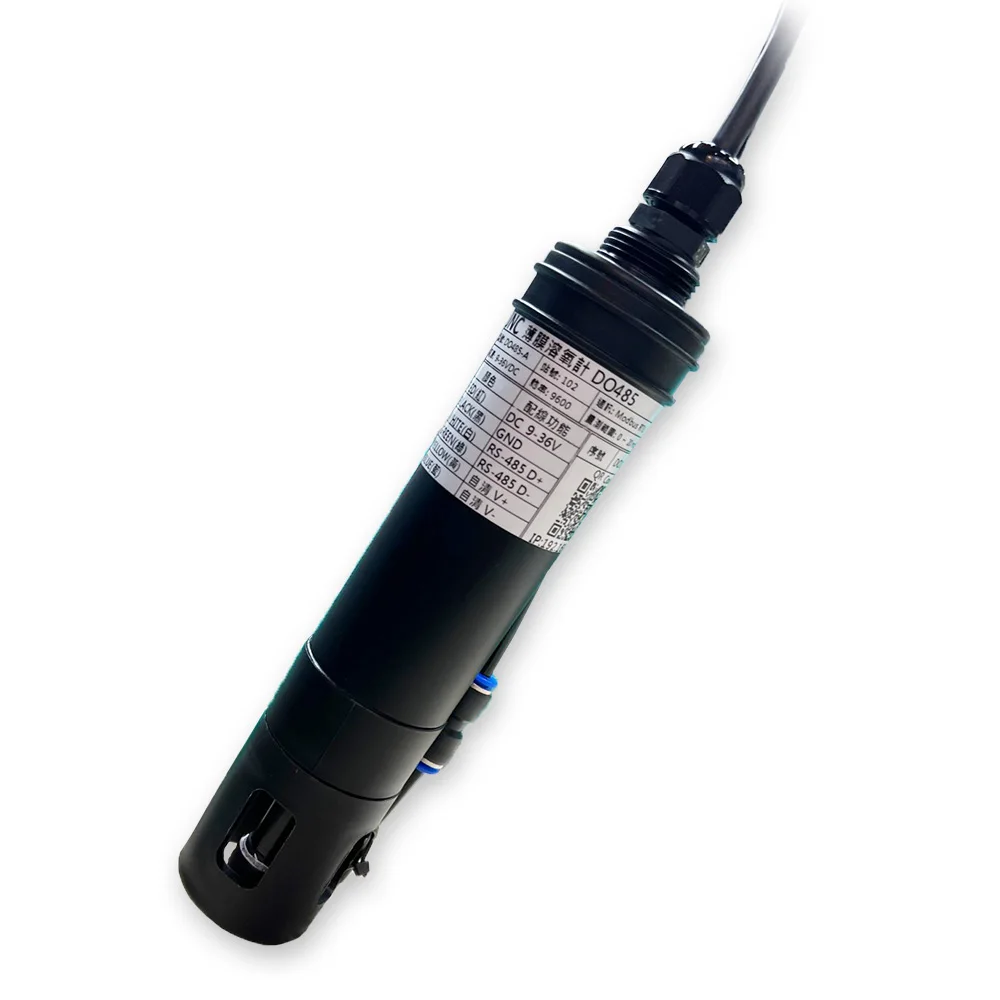

Dissolved Oxygen Sensor For Seawater

Price:$730.00 - $1,010.00

Price in USD:Details

Quantity:

DO Specification			Temperature Specification
Measuring range	0~20mg/L(ppm) 0~200% Slope 70~130%	Temperature principle	NTC30K
				Measuring range	-10~120°C(ATC)
				Accuracy	±0.2°C
Accuracy	±0.2mg/L(0~8mg/L)	Resolution	0.1°C
Accuracy		±0.3mg/L(8~20mg/L)	Reproducibility	0.1°C
Resolution	0.01mg/L	Other Specification
Reproducibility	±0.5% F.S	Link above	3/4”NPT
Electrode withstand voltage	Max. 100 Psig	Link below	M42
Operating temperature	0~50°C	Housing Material	PP,acid and alkali-resistance/food grade/ zero dissolution
Water velocity	Maximum 3M/S	Electrode material	silver / zinc electrode
Response time	T90 120 seconds	Dimension	ø45*L214mm
Communication	RS-485Modbus RTU Wi-Fi Modbus TCP Web Browser direct reading (192.168.1.80)	Weight	≤350g
				Power	12VDC(auto-cleaning) 9~36VDC(non auto-cleaning)
				Power consumption	1.6w (auto-cleaning) 0.8w (Non auto-cleaning)
Safety certification	CE、FCC	Line length	3m
Safety certification	CE、FCC			Ingress Protection Rating	IP68

Features

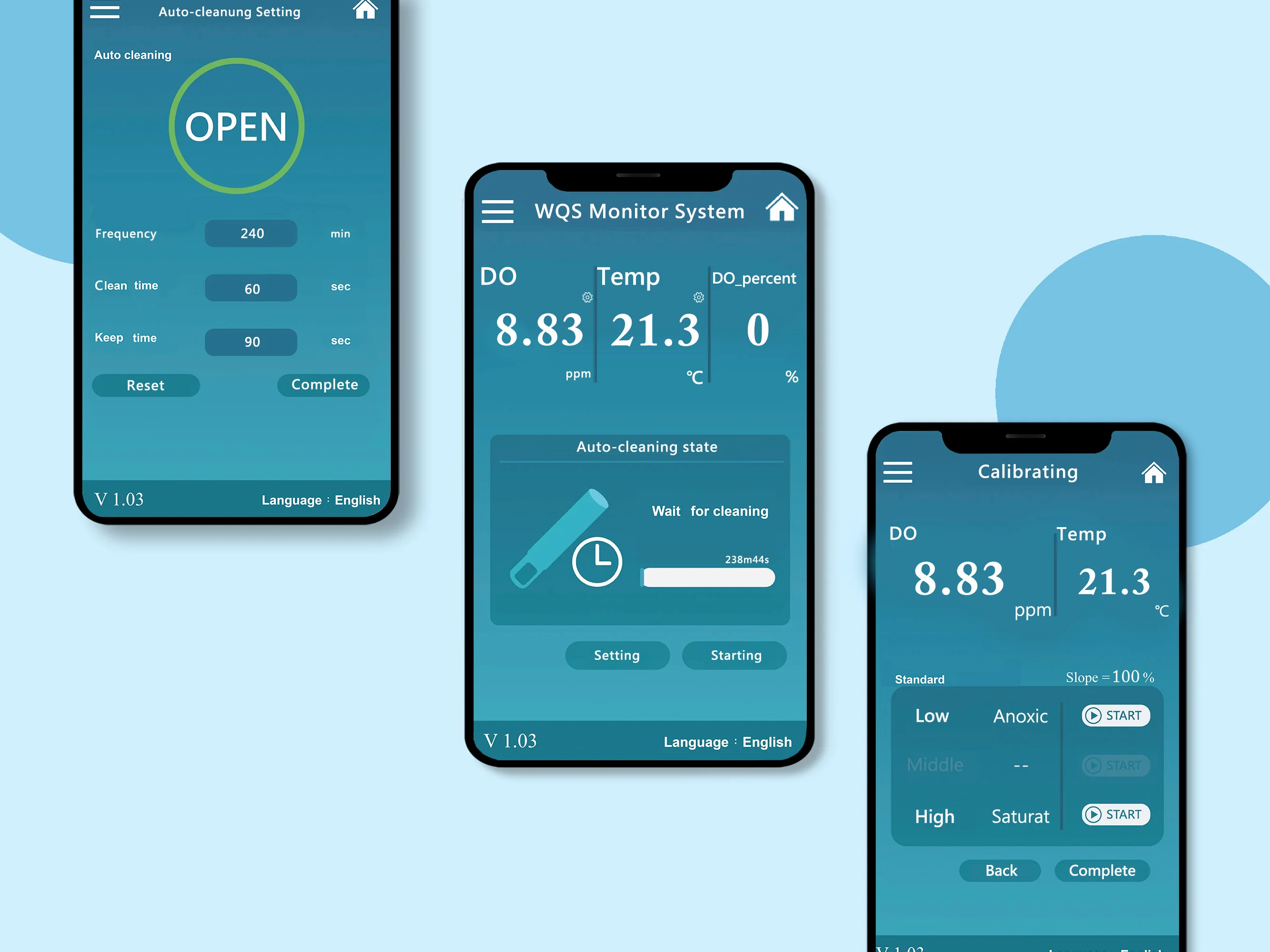

IoT DO analyzer with RS-485 and Wi-Fi web interface, and it can monitor by remote and in-situ with mobile phone which is without meter and app.
Automatic cleaning function (optional):Including Micro air pump, cleaning scheduling(adjustable), keeping the last reading(during auto cleaning), and stabilization time(adjustable), that is able to extend maintenance period easily.
Smart calibration function: Switching protective cover to standard solution bottle, and it calibrates with phone webpages.
Smart AI function: calibration/auto-cleaning notification, self-judgment of stain and electrode degree of aging..etc.
IP68 integrated design: The DO sensor can put into the application environment such as river/reservoir/tap water/ sewage/ seawater... etc. Accurate and durable DO value can be provided to any meter or software in the world.

FAQ

Q1 : What is your products of packing?

A1 : Pack the goods in cartons with buffer material.

Q2 : Can you provide samples?

A2 : Sorry, we will not have samples.

Q3 : Is your company a manufacturer?

A3 : Yes, we are ISO9001 factory which engaged in R&D and manufacture for 18 years.

Q4 : What are parameters required for product selection?

A4 : Application, range, power and output signal.

Q5 : How is the quality of the manager?

A5 : We have a complete quality control system. We will comprehensive pre-check before shipping to

you.We are able to send our company verification test to you.

Q6 : Could you provide the OEM service?

A6 : Sure, we will according to your request to support OEM and ODM product.

Q7 : How long is your lead time?

A7 : Generally, we will arrange the shipment after the payment in 15 days.

Q8 : What is the warranty?

A8 : 12 months.

Q9 : What can we buy from your company?

A9 : PH sensor, EC sensor, Turbidimeter, COD sensor, ORP sensor ,NH4 sensor ,NO3 sensor, DO sensor

and air quality monitor.

Q10 : What services do we offer?

A10 : Trade term: FOB, CFR Currency: USD,CNY Payment method: T/T, credit card, escrow. Language :

English, Chinese.

Q11 : Can I print my logo on the product?

A11 : Of course you can. You can design it by yourself.
