Потенциальный датчик окисления для Подземной Воды

Price:420,00 $ - 590,00 $

Price in USD:Details

Quantity:

ORP Specification			Other Specification
Measuring range	-2000~2000mv Slope reading 70~130% Zero potential -50~50mv	Link above	3/4”NPT
				Link below	M42
				Housing Material	PP, acid and alkali Resistance / food grade/ zero dissolution
Accuracy	±5mv	Electrode material	glass
Resolution	0.1mv	Dimension	ø45*L214mm
Electrode withstand voltage	Max. 50 Psig	Weight	≤340g
Operating temperature	0~60°C	Power	12VDC(auto-cleaning) 9~36VDC (Non auto cleaning)
Response time	T90 3 seconds	Power consumption	1.6w (auto-cleaning) 0.8w (Non auto-cleaning)
Communication	RS-485Modbus RTU Wi-Fi Modbus TCP Web Browser direct reading (192.168.1.80)	Line length	3m
Communication				Ingress Protection Rating	IP68
Safety certification	CE、FCC			Ingress Protection Rating	IP68

Features

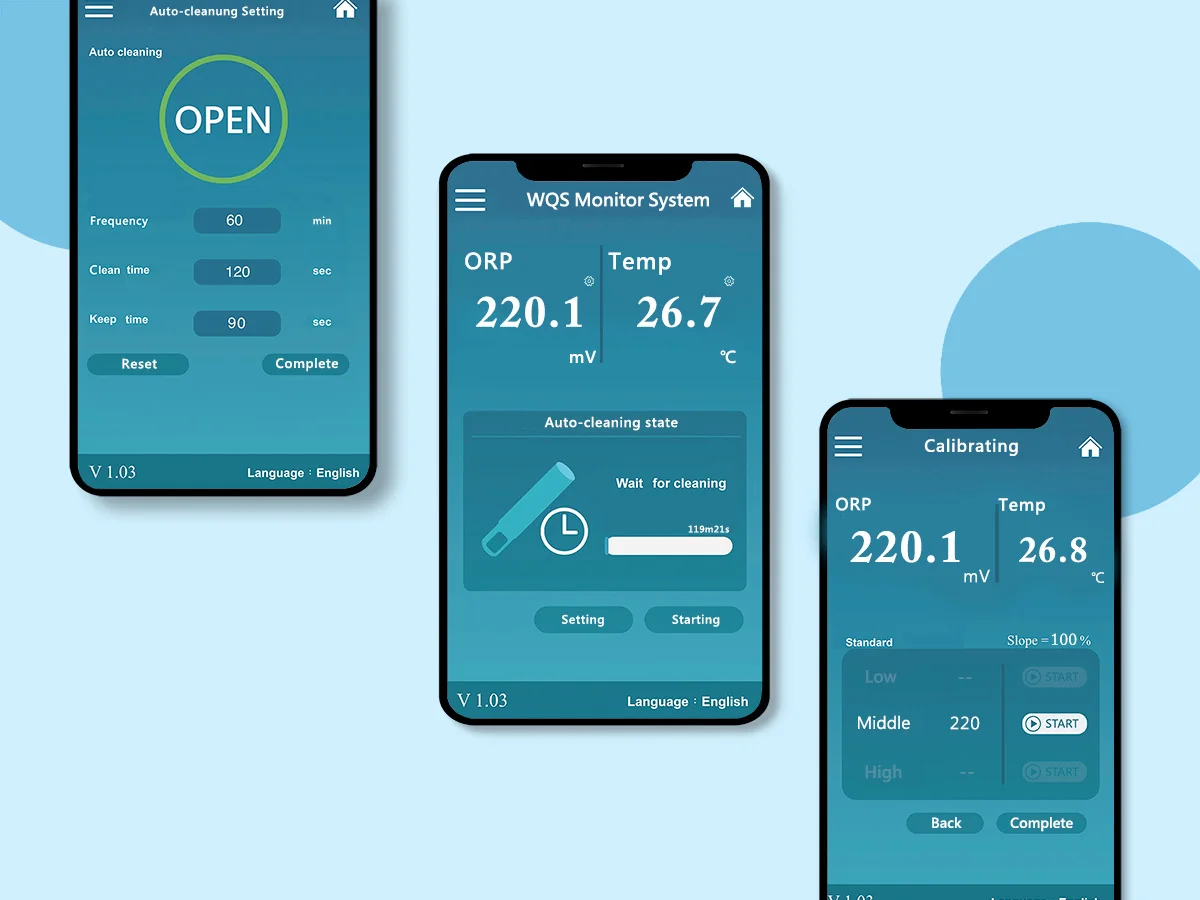

IoT ORP analyzer with RS-485 and Wi-Fi web interface, and it can monitor by remote and in-situ with mobile phone which is without meter and app.
Automatic cleaning function (optional):Including Micro air pump, cleaning scheduling(adjustable), keeping the last reading(during auto cleaning), and stabilization time(adjustable), that is able to extend maintenance period easily.
Smart calibration function: Switching protective cover to standard solution bottle, and it calibrates with phone webpages.
Smart AI function: calibration/auto-cleaning notification, self-judgment of stain and electrode degree of aging...etc.
IP68 integrated design: The ORP sensor can put into the application environment such as river/reservoir/tap water/ sewage/ seawater... etc. Accurate and durable pH value can be provided to any meter or software in the world.
