YFMD-850/1050 Automatic High-speed Pre-coating Film Laminating Machine
The latest design and operation idea are used in multifunctional automatic laminating machine by NEW STAR China manufacuturer. Call today to discuss your customization requirements. Sure you’ll find the best suitable product here.
The YFMD-A series is a high-speed pre-coating model launched by our company, which is suitable for posters, books, information albums, posters, color boxes, color box packaging, handbags, etc.
FEATURES AT A GLANCE
•High adaptability
•Non-stop feeder and stacker
•High accuracy servo control
•Easy to operate
•With UV dryer & Dust removal
•Chain knife cutting
•One year free warranty
PRODUCT SPECIFICATIONS
Item | YFMD-850 | YFMD-1050 | YFMD-1200 |
Max Laminating Paper | 850*1050mm | 1050*1050mm | 1200*1050/1450mm |
Max Laminating Paper | 290*290mm | 300*300mm | 420*420mm |
Paper weight | 80-500g/㎡ | 80-500g/㎡ | 80-500g/㎡ |
Overlap error | ±2mm | ±2mm | ±2mm |
Laminating speed | Chain knife: 0-60m/min | Chain knife: 0-60m/min | Chain knife: 0-60m/min |
Power | 35kw | 38kw | 38kw |
Electricity | 18kw/h | 20kw/h | 20kw/h |
Paper feed height | 1150mm | 1150mm | 1150mm |
Paper stack height | 1050mm | 1050mm | 1050mm |
Overall dimensions | 8600*1800*2000mm | 8600*2000*2000mm | 8600*2200*2000mm |
Total weight | 7500kg | 8000kg | 8500kg |
PRODUCT CONFIGURATION
Automatic non-stop paper feeding
Oil-free vacuum pump air suction
High-speed feeder (12000 pcs/h)
Upper and lower limit protection
Synchronous belt transmission
320mm composite heating roller
300mm pressure rubber roller
Electromagnetic heating
Film straight roller

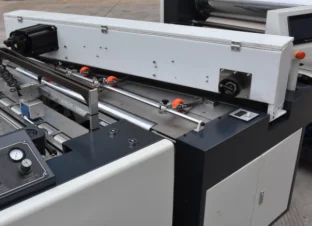

Pneumatic cutting system
Anti-curve bar

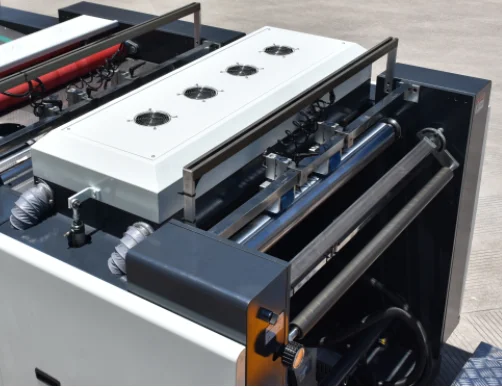

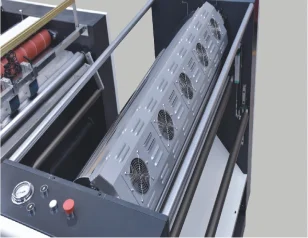

UV dryer 8-12KW
Chain knife cutting
Automatic paper stacker
Automatic paper cumulative counting
CERTIFICATE
SERVICE AND WARRANTY
•Training Content
All machines have been finished all adjustment and test in NEW STAR workshop before delivery, the mechanical structure, components adjustment, electrical operation of the switch, and the matters needing attention, day-to-day maintenance of equipment, etc., In order to ensure the normal operation of equipment, later.
•Warranty
12 months for electric parts, the service is for whole life, once you asked the spare parts, we can send immediately, customer afford the courier fee. (Since the date of purchase from delivery and on the board, within 12 months)
All machines have been finished all adjustment and test in NEW STAR workshop before delivery, the mechanical structure, components adjustment, electrical operation of the switch, and the matters needing attention, day-to-day maintenance of equipment, etc., In order to ensure the normal operation of equipment, later.
•Warranty
12 months for electric parts, the service is for whole life, once you asked the spare parts, we can send immediately, customer afford the courier fee. (Since the date of purchase from delivery and on the board, within 12 months)
FACTORY
WHY CHOOSE US?
1. With 20 years' Manufacturing Experience
2. Having ISO 9001-Certified Factory
3. Strong R&D Capability
4. High Quality & Advanced Technology
2. Having ISO 9001-Certified Factory
3. Strong R&D Capability
4. High Quality & Advanced Technology
5.Abundant Products Customized on Demand
6. Factory Direct Supply with Best Prices
6. Factory Direct Supply with Best Prices
7. Worry-free After Sales Service
8. All Machines Meet CE Standard
Wenzhou Feihua Printing Machinery Co., Ltd has more than 20 years of post-press equipment manufacturing experience, specializing in the production of laminating machines, full or spot coating machines and bopp films. A professional company integrating scientific research, design, manufacturing, sales and service!
FAQ
Q1: What it is advantage of your products?
A1: Easily operation and simply maintenance. Also coat effective in market.
Q2: How long for the guarantee?
A2: 12 month free warranty.
Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.
Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.
Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.
Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.
Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
A1: Easily operation and simply maintenance. Also coat effective in market.
Q2: How long for the guarantee?
A2: 12 month free warranty.
Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.
Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.
Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.
Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.
Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.
Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
