Taiwan Insulated VDE Screwdriver & Pliers & Adjustable Wrench Electrician Combined Tool Set
- Category: >>>
- Supplier: SERGIA INDUSTRIAL CO. LTD.
Share on (10000011560683):
Product Overview
Description
Product Description
Taiwan Insulated VDE Electrician Tool Set
Feature :
• 2-material Bi-Color Injection molding ergonomic handle.
• Screwdrivers made of high quality alloy tool steel material, featured Anti-Slippery Diamond Coated Tip.
• Hexagon Allen Wrench made of high quality S2 Alloy Steel.
• Nut driver made of 50BV alloy tool steel by cold forging process.
• Adjustable wrench made of high quality 50CRV material by forging process.
• Combination pliers made of 60CRV high quality alloy steel material by forging process, and is designed for holding, gripping, bending and cutting work.
• Multiple Slip Joint Pliers feature self-locking on pipes and nuts, no slipping on the workpiece and low handforce required. 9-Notch adjustment positioning for more gripping capacity.
• Wire Stripping Pliers feature easy adjustment to the required diameter of solid or stranded wire with a knurled screw and lock nut.
• Hook blade cable knife made of high quality 5Gr13 stainless steel.
• Tested at 10,000V high voltage by an internationally accredited institute and proved to meet the DIN EN IEC 60900:2018 standard.
• Screwdrivers made of high quality alloy tool steel material, featured Anti-Slippery Diamond Coated Tip.
• Hexagon Allen Wrench made of high quality S2 Alloy Steel.
• Nut driver made of 50BV alloy tool steel by cold forging process.
• Adjustable wrench made of high quality 50CRV material by forging process.
• Combination pliers made of 60CRV high quality alloy steel material by forging process, and is designed for holding, gripping, bending and cutting work.
• Multiple Slip Joint Pliers feature self-locking on pipes and nuts, no slipping on the workpiece and low handforce required. 9-Notch adjustment positioning for more gripping capacity.
• Wire Stripping Pliers feature easy adjustment to the required diameter of solid or stranded wire with a knurled screw and lock nut.
• Hook blade cable knife made of high quality 5Gr13 stainless steel.
• Tested at 10,000V high voltage by an internationally accredited institute and proved to meet the DIN EN IEC 60900:2018 standard.
248100M6

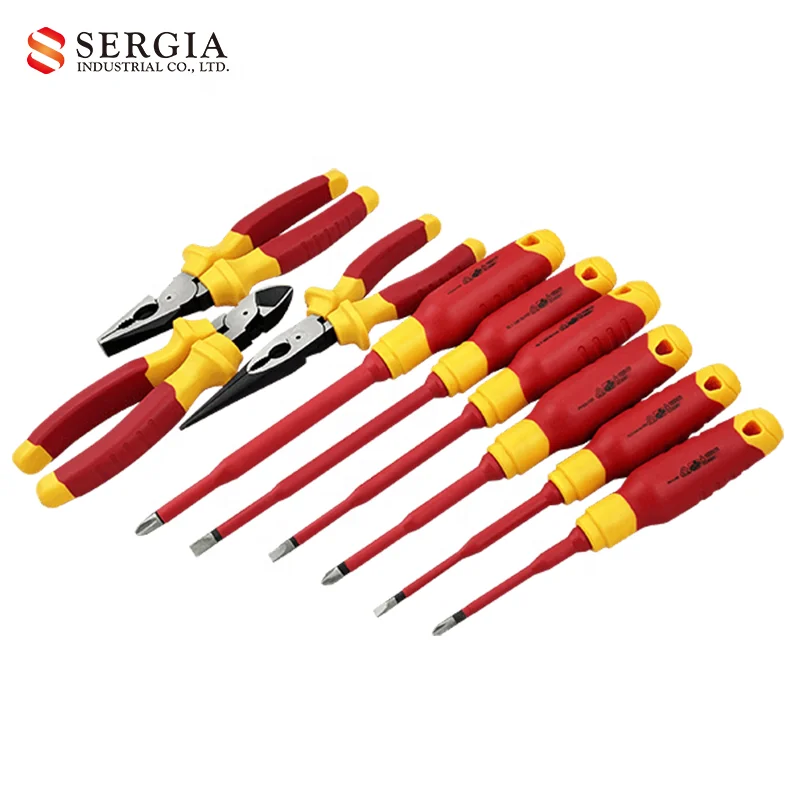

9pcs VDE Screwdriver & Pliers Tool Set
1pc - 8" Combination Pliers
1pc - 6" Snipe Nose Pliers
1pc - 6" Diagonal Cutting Nippers
3pcs - Slotted Screwdriver : SL2.5 x 75 mm
SL4.0 x 100 mm
SL5.5 x 125 mm
3pcs - Phillips Screwdriver : PH0 x 60 mm
PH1 x 80 mm
PH2 x 100 mm
1pc - 6" Snipe Nose Pliers
1pc - 6" Diagonal Cutting Nippers
3pcs - Slotted Screwdriver : SL2.5 x 75 mm
SL4.0 x 100 mm
SL5.5 x 125 mm
3pcs - Phillips Screwdriver : PH0 x 60 mm
PH1 x 80 mm
PH2 x 100 mm
248111M6

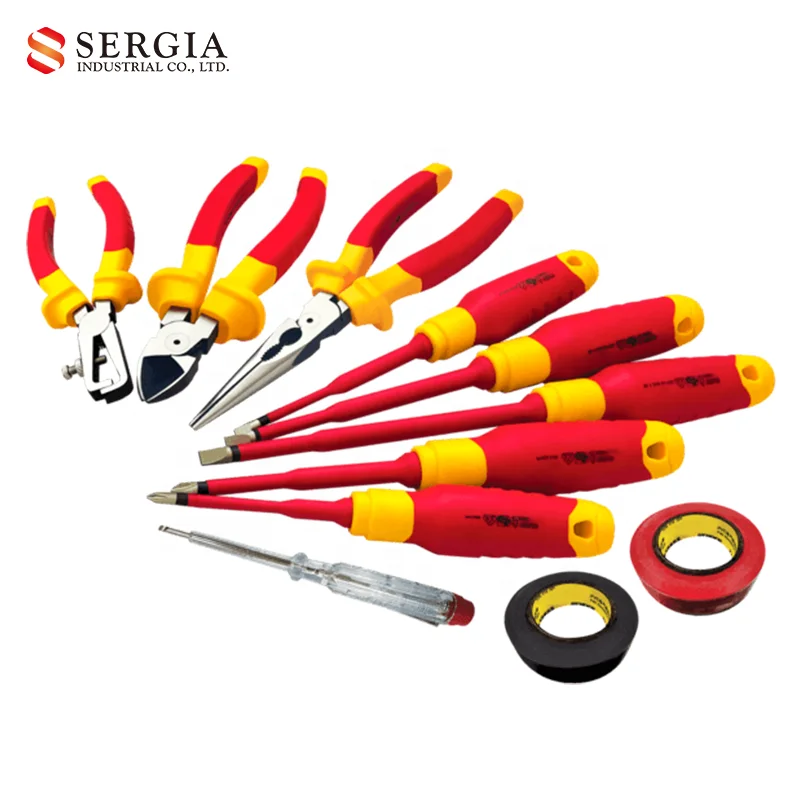

11pcs Electrician Combined Tool Set
1pc - 6" Snipe Nose Pliers
1pc - 6" Diagonal Cutting Nippers
1pc - 6" Wire Stripping Pliers
1pc - Electrical Test Pen : 3 x 125 mm
1pc - Red Insulation Tape : 16 x 0.15mm x 10Y
1pc - Black Insulation Tape : 16 x 0.15mm x 10Y
1pc - 6" Diagonal Cutting Nippers
1pc - 6" Wire Stripping Pliers
1pc - Electrical Test Pen : 3 x 125 mm
1pc - Red Insulation Tape : 16 x 0.15mm x 10Y
1pc - Black Insulation Tape : 16 x 0.15mm x 10Y
3pcs - Slotted Screwdriver : SL2.5 x 75 mm
SL4.0 x 100 mm
SL5.5 x 125 mm
2pcs - Phillips Screwdriver : PH1 x 80 mm
PH2 x 100 mm
SL4.0 x 100 mm
SL5.5 x 125 mm
2pcs - Phillips Screwdriver : PH1 x 80 mm
PH2 x 100 mm
248113M6

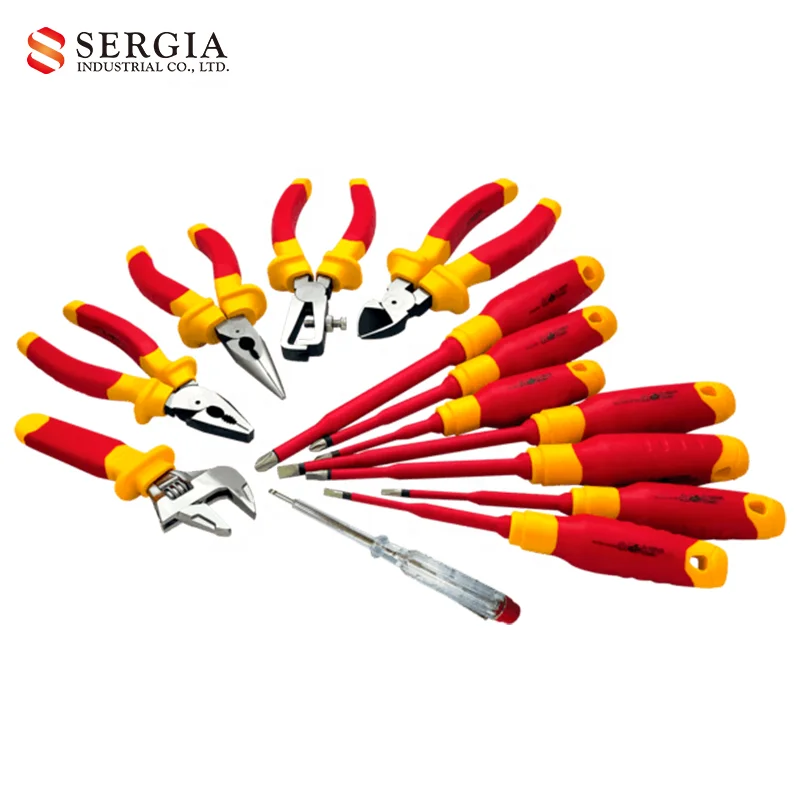

13pcs Electrician Combined Tool Set
1pc - 6" Combination Pliers
1pc - 6" Snipe Nose Pliers
1pc - 6" Diagonal Cutting Nippers
1pc - 6" Wire Stripping Pliers
1pc - 6" Adjustable Wrench
1pc - Electrical Test Pen : 3 x 125 mm
4pcs - Slotted Screwdriver : SL2.5 x 75 mm
SL4.0 x 100 mm
SL5.5 x 125 mm
SL6.5 x 150 mm
3pcs - Phillips Screwdriver : PH1 x 80 mm
PH2 x 100 mm
PH3 x 150 mm
1pc - 6" Snipe Nose Pliers
1pc - 6" Diagonal Cutting Nippers
1pc - 6" Wire Stripping Pliers
1pc - 6" Adjustable Wrench
1pc - Electrical Test Pen : 3 x 125 mm
4pcs - Slotted Screwdriver : SL2.5 x 75 mm
SL4.0 x 100 mm
SL5.5 x 125 mm
SL6.5 x 150 mm
3pcs - Phillips Screwdriver : PH1 x 80 mm
PH2 x 100 mm
PH3 x 150 mm
248116M6

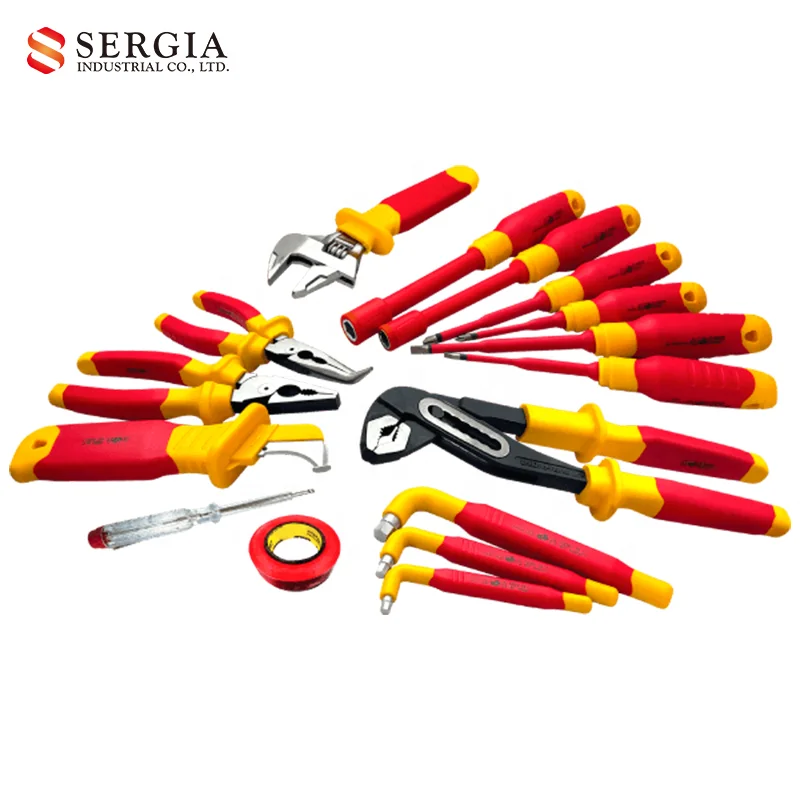

16pcs Electrician Combined Tool Set
1pc - 10" Multiple Slip Joint Pliers
2pcs - Slotted Screwdriver : SL4.0 x 100 mm
1pc - 8" Combination Pliers
1pc - 6" Snipe Nose Bent Pliers1pc - 10" Multiple Slip Joint Pliers
2pcs - Slotted Screwdriver : SL4.0 x 100 mm
SL5.5 x 125 mm
2pcs - Phillips Screwdriver : PH1 x 80 mm
PH2 x 100 mm
2pcs - Nut Driver : Nut 10.0 x 125 mm
Nut 12.0 x 125 mm
3pcs - Hex Allen Wrench : 5, 6, 10 mm
2pcs - Phillips Screwdriver : PH1 x 80 mm
PH2 x 100 mm
2pcs - Nut Driver : Nut 10.0 x 125 mm
Nut 12.0 x 125 mm
3pcs - Hex Allen Wrench : 5, 6, 10 mm
1pc - 8" Adjustable Wrench
1pc - Hook Blade Cable Knife : 50 x 180 mm
1pc - Electrical Test Pen : 3 x 125 mm
1pc - Red Insulation Tape : 16 x 0.15mm x 10Y
1pc - Hook Blade Cable Knife : 50 x 180 mm
1pc - Electrical Test Pen : 3 x 125 mm
1pc - Red Insulation Tape : 16 x 0.15mm x 10Y
*All the prices are only for reference. Exact price will be based on the latest quotation.
Details Images
In-House Quality Control
Shock Test
Test height according to the sample weight (kg), impact test done at room/ low temperature. No damage, fall off appear on the insulating layer.
Pressure Test
After being subject to a pressure of 20N, a temperature of +70°C and current at 5,000 volts for 3 minutes, no pressure marks of lift-off must appear on the insulation.
Adhesion Test
After a temperature of (70±3°C) and subject to a specific force and duration in room temperature. There must be no displacement or damage to the insulation.
High & Low Temperature Test
The insulation shall stays firm and remain snug against the tool body between temperature of -40°C to 70°C for further test requirements.
Dielectric Test - Steel Ball or Water Bath
Subject to 10KV Voltage in Water Bath/ or Steel Ball for 180 seconds. There must be no holes, sparks, flashes on the insulation, and the current in the circuit shall not exceed 1mA.
Combustion Test
2cm away from the burner, burn vertically for 10 seconds. The flame height on insulation shall not exceed 12cm within 20 seconds of continuous burning.
In-House Quality Control
Confirmed Product Quality
The quality, construction and even ergonomics meet with the protective requirements of the applicable European Union Directive.
Clear Marking on Products
Clear VDE marking set up by International accredited VDE Certification institute are shown on an easily recognized location of
every single piece of hand tools.
every single piece of hand tools.
Absolute Work Safety
Absolute protection for electricians that often work in an energised environment. For example: Distribution box circuit repair
work or Car repair work etc.
work or Car repair work etc.
