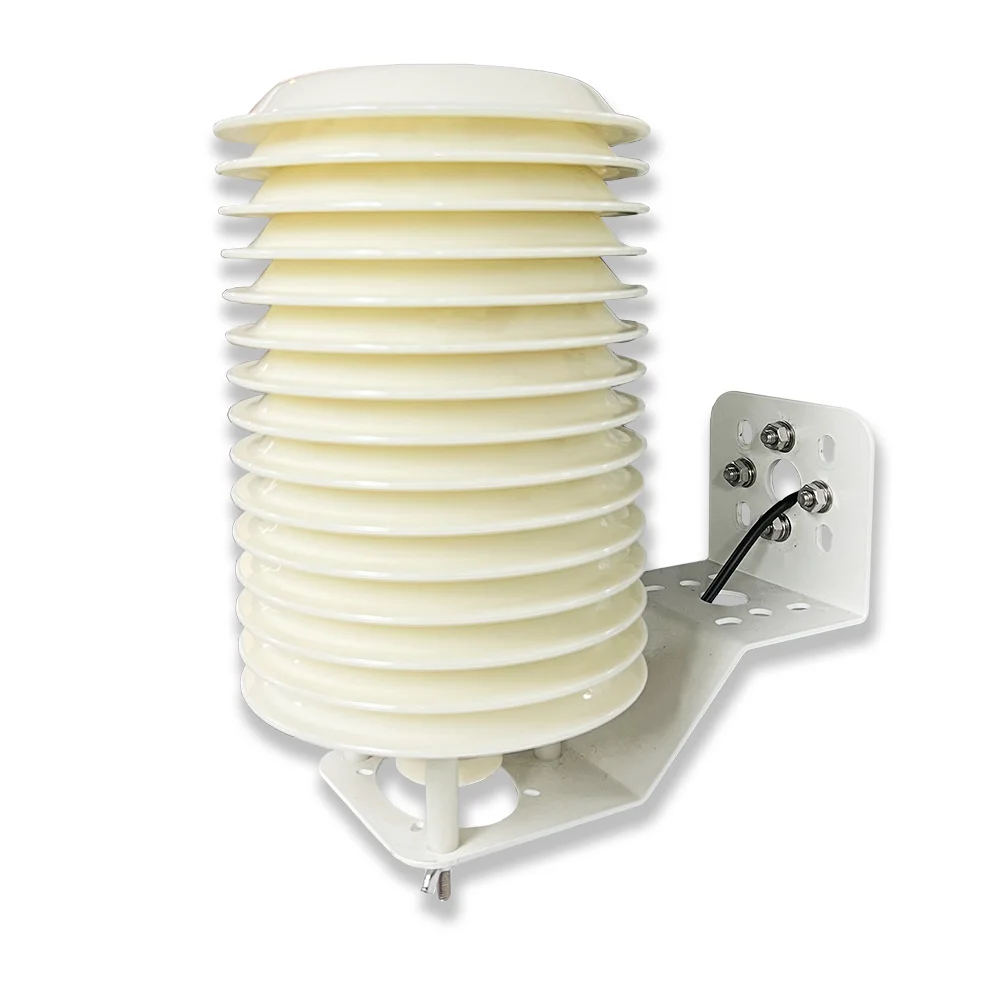

pm2.5 Noise Sensor For Factory Self Management
- Category: >>>
- Supplier: JNC TECHNOLOGY CO. LTD.
Share on (10000011574412):
Product Overview
Description
Power | ◆DC input：9～36V ◆Power consumption：1.8W | ||||
Environment | -10℃~60℃，0~100%(non-condensing) | ||||
Communication | RS-485 Modbus RTU (optional Bluetooth) | ||||
Housing Material | ABS anti-UV | ||||
Installation | Louver wall mounting type | Certificate | CE,FCC | ||

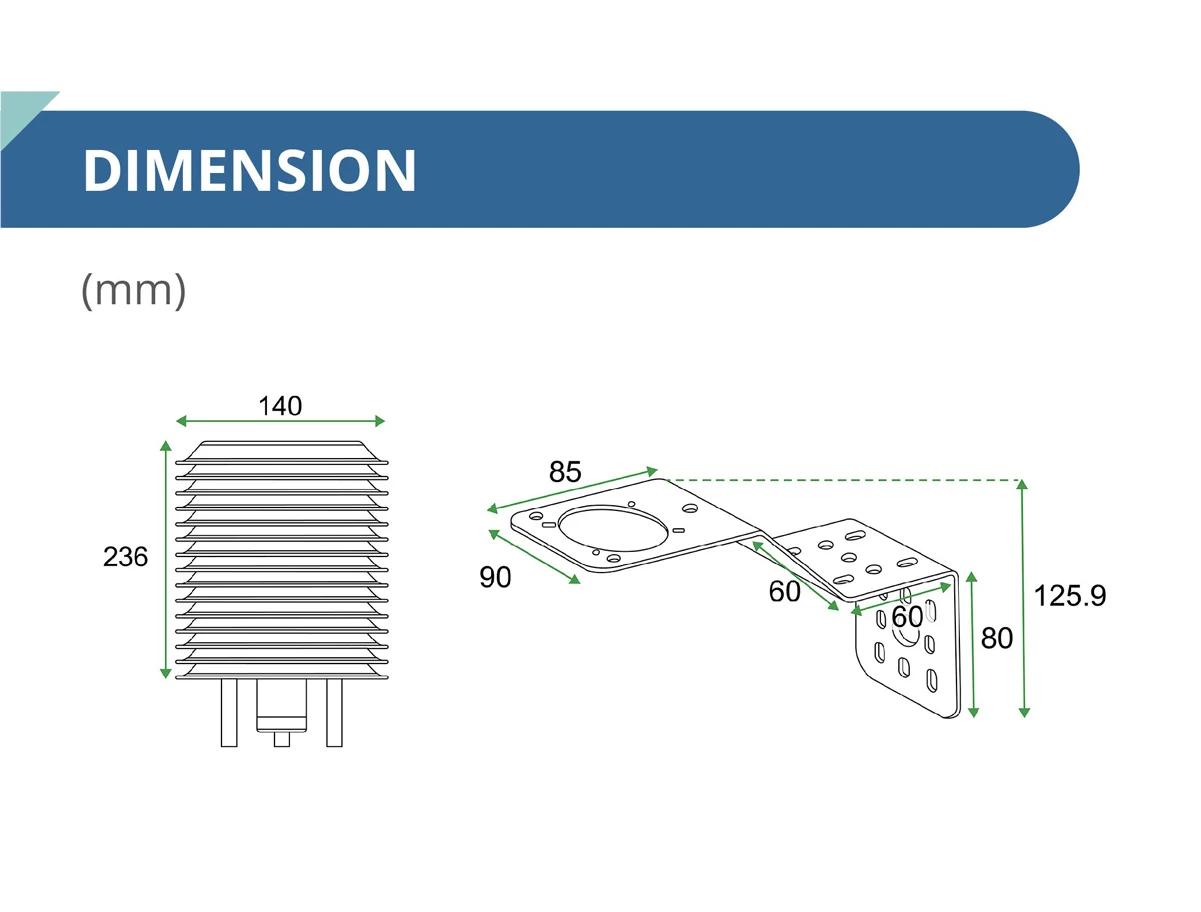

Dimension (mm) | 236X140/mm | Mounting bracket dimension | 195x90x125.9mm | ||
Weight | ≦2 kg | Wire length | 3 meter | ||
Sensors Principle | Range | T90 | Operating temperature | Resolution | Accuracy | Environmental equilibrium time |
PM2.5 (IR LED) | 0~1,000μg / m 3 | <90 S | -10℃~65℃ | 0.1 μg/ m 3 | ±10μg/ m 3±5% of Reading | 5min |
Noise Measurement Range | Frequency Range | Resolution | Accuracy | Operate Temperature |
30~130dB | 20~20K Hz | 0.1dB | 3%Fs | -20-60℃ |
Features
Small size, light in weight, and waterproof quick connector, it’s easy to install.
With Automatic Temperature Compensation(ATC).
RS-485 communication.
It has software utility which can set ID/ Baud rate/ calibration and other functions.
Outdoor louver shell design, accurate sensing, fast response and data transmission high efficiency.
Can be measured simultaneously measurement simultaneously : PM2.5/ Noise.
CW9 passed ITRI certification, and it obtained the highest level (Level 1 )
FAQ
Q1 : What is your products of packing?
A1 : Pack the goods in cartons with buffer material.
Q2 : Can you provide samples?
A2 : Sorry, we will not have samples.
Q3 : Is your company a manufacturer?
A3 : Yes, we are ISO9001 factory which engaged in R&D and manufacture for 18 years.
Q4 : What are parameters required for product selection?
A4 : Application, range, power and output signal.
Q5 : How is the quality of the manager?
A5 : We have a complete quality control system. We will comprehensive pre-check before shipping to
you.We are able to send our company verification test to you.
Q6 : Could you provide the OEM service?
A6 : Sure, we will according to your request to support OEM and ODM product.
Q7 : How long is your lead time?
A7 : Generally, we will arrange the shipment after the payment in 15 days.
Q8 : What is the warranty?
A8 : 12 months.
Q9 : What can we buy from your company?
A9 : PH sensor, EC sensor, Turbidimeter, COD sensor, ORP sensor ,NH4 sensor ,NO3 sensor, DO sensor
and air quality monitor.
Q10 : What services do we offer?
A10 : Trade term: FOB, CFR Currency: USD,CNY Payment method: T/T, credit card, escrow. Language :
English, Chinese.
Q11 : Can I print my logo on the product?
A11 : Of course you can. You can design it by yourself.
