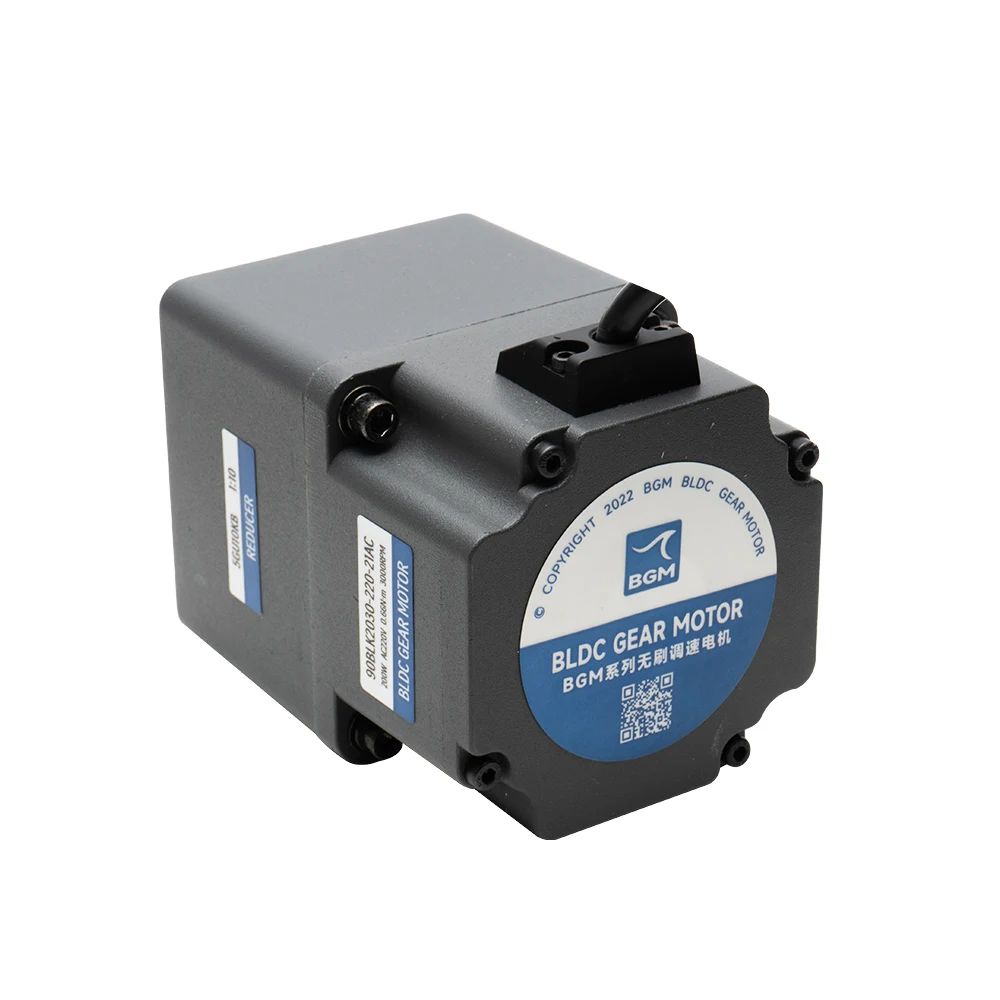

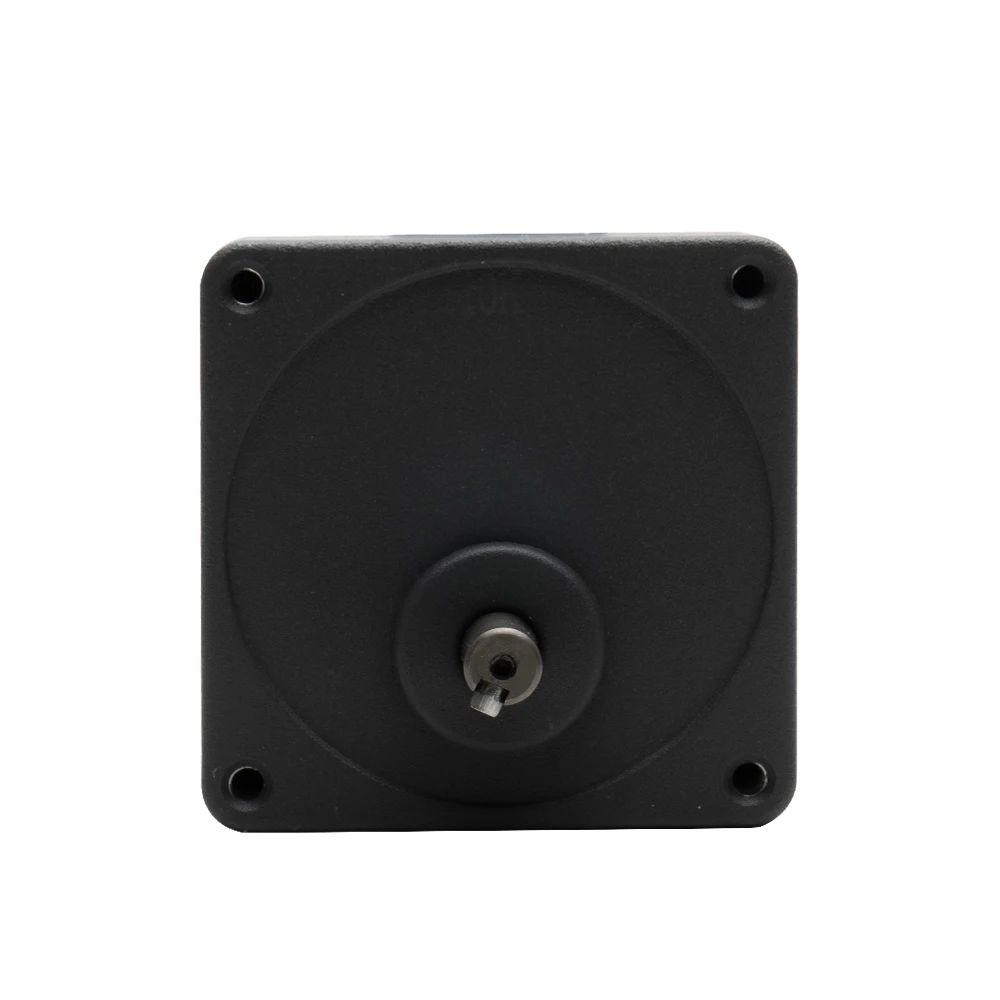

BLDC With Gear Box 60mm 80mm 90mm 104mm 24V 220VAC 60W 120W 200W BLDC Brushless DC Gear Motor With Speed Controller
- Category: >>>
- Supplier: Dongguan ICAN Technology Co. Ltd.
Share on (10000011646121):
Product Overview
Description
60mm 80mm 90mm 104mm 24V 110VAC 220VAC 60W 120W 200W High Torque Electric BLDC Brushless DC Gear Motor With Speed Controller
Product Description
Parameters:
Brand Name | ican |
Model Number | BGM60H32-G,BGM120H34-G,BGM120H35-G,BGM200H35-G |
Usage | BOAT, Car, Home Appliance, Cosmetic instrument, SMART HOME |
Certification | CE, RoHS |
Commutation | Brushless |
Protect Feature | Explosion-proof |
Rated Speed(RPM) | 3000rpm |
Continuous Current(A) | less than 8A/ 12A |
Efficiency | IE 1 |
Type | brushless dc motor with gearbox |
Rated torque | 0.4/0.6N.m |
Rated power | 60W/120W/200W |
Rated Voltage | 220Vac |
Advantages of BLDC Motor:

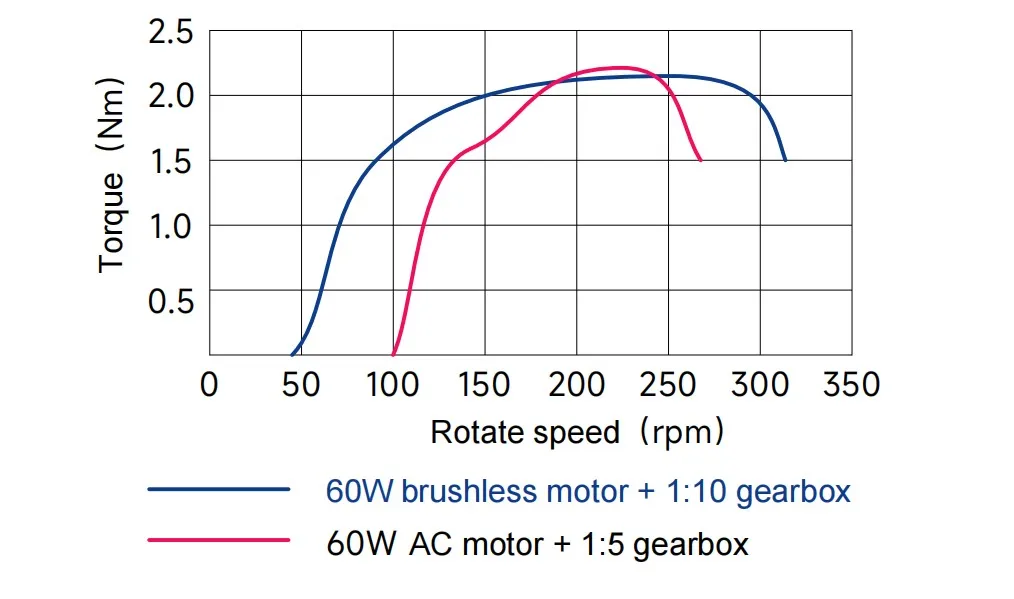

1. Low Speed and High Torque performance
DC brushless motor have a steady big torque when running at low speed.

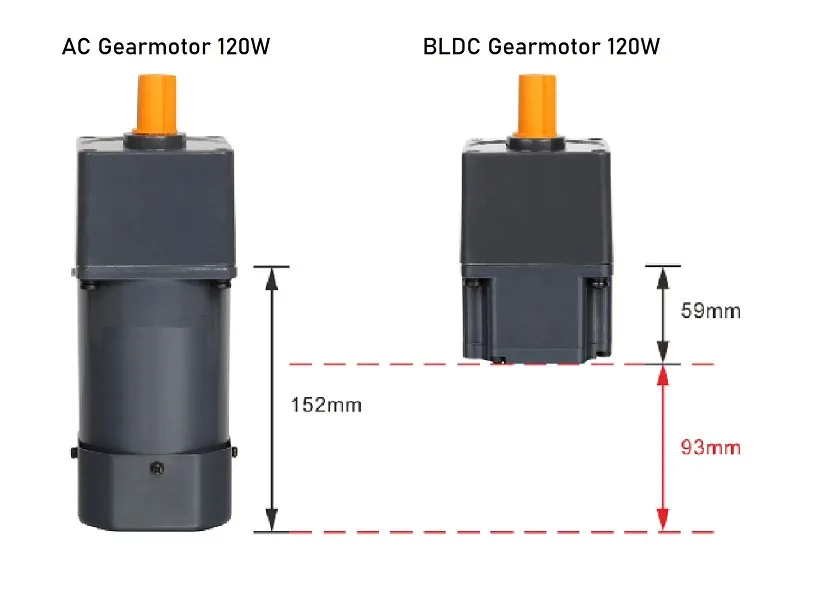

2. Saving Space
DC brushless motor have a slim body and provide high power due to permanent magnets being used in the rotor.

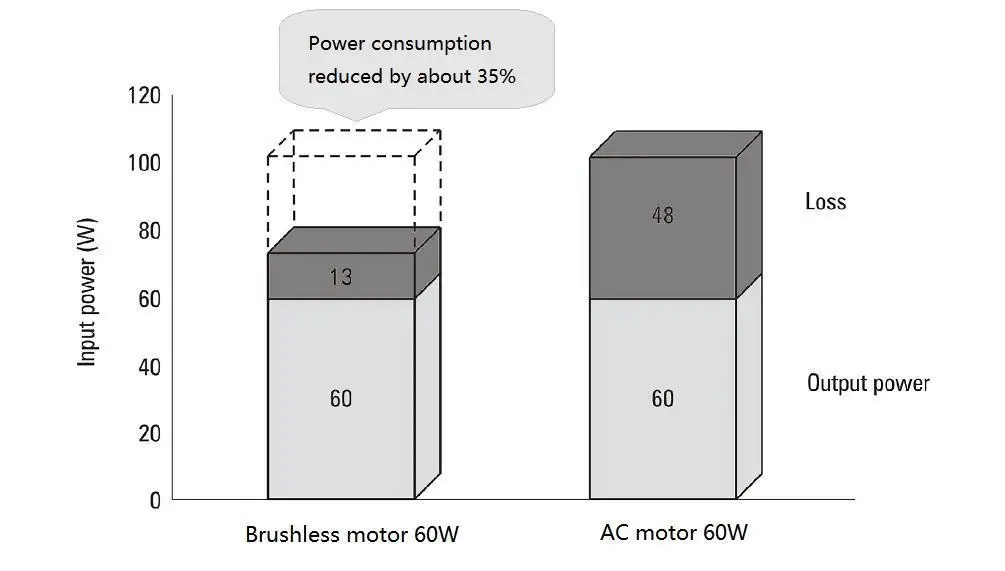

3. Saving Energy
DC brushless motor use permanent magnets, it can reduce the secondary loss of rotor, so compared with adopts frequency conversion control of three-induction motor, the prowe reduce 35%, this is in favour of saving energy.

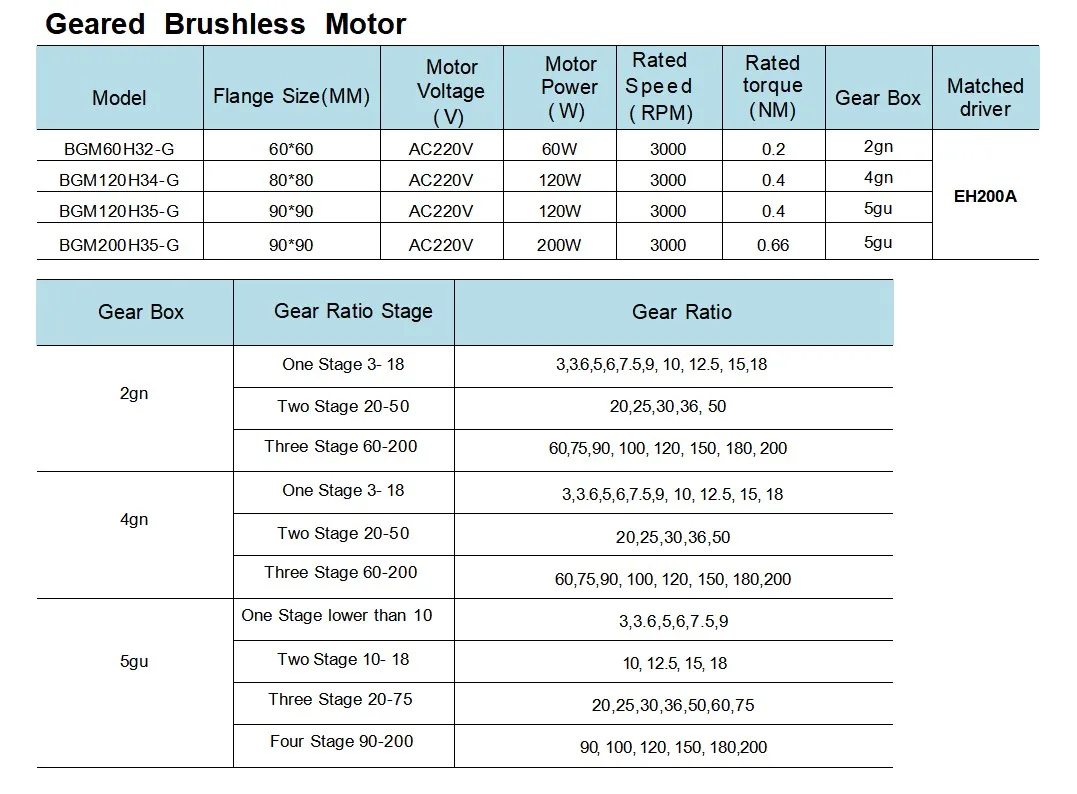

Gear motor parameters :

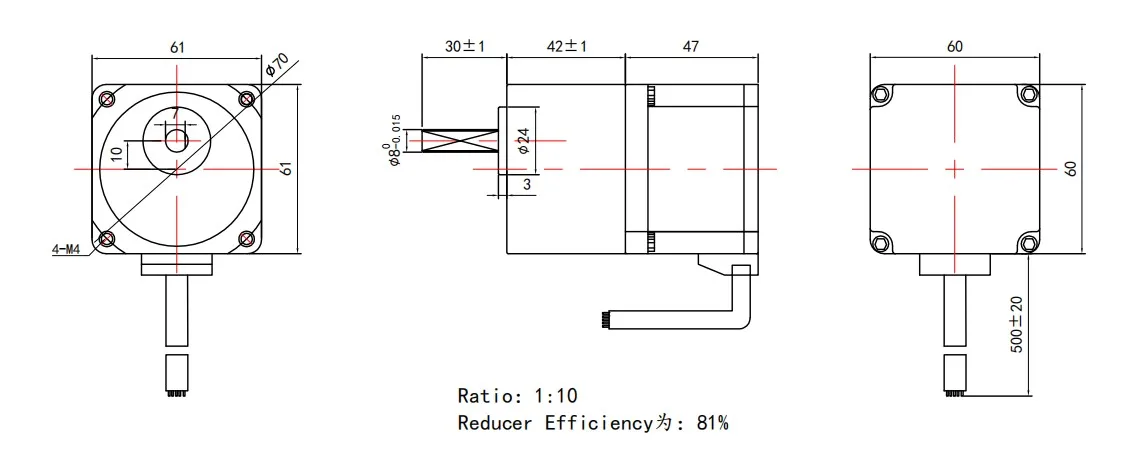

BGM60H32-G10

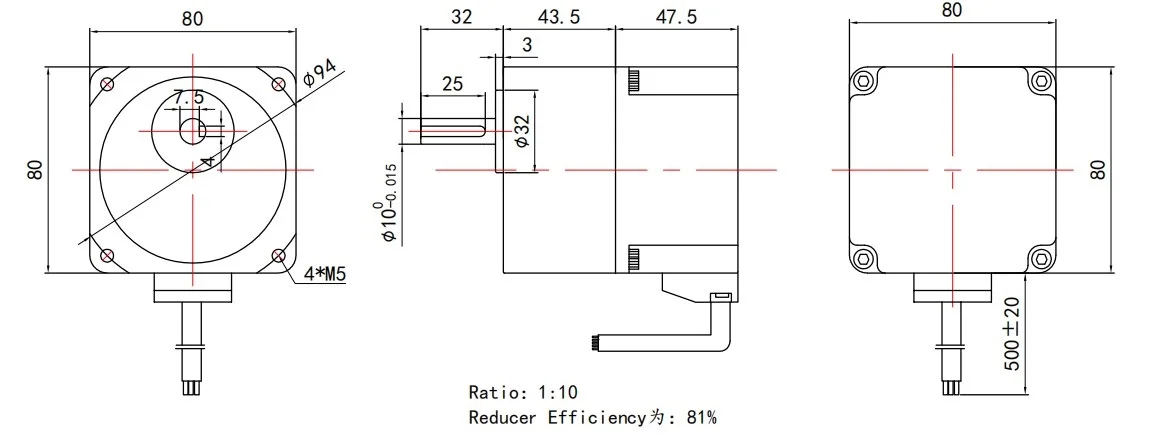

BGM120H34-G10

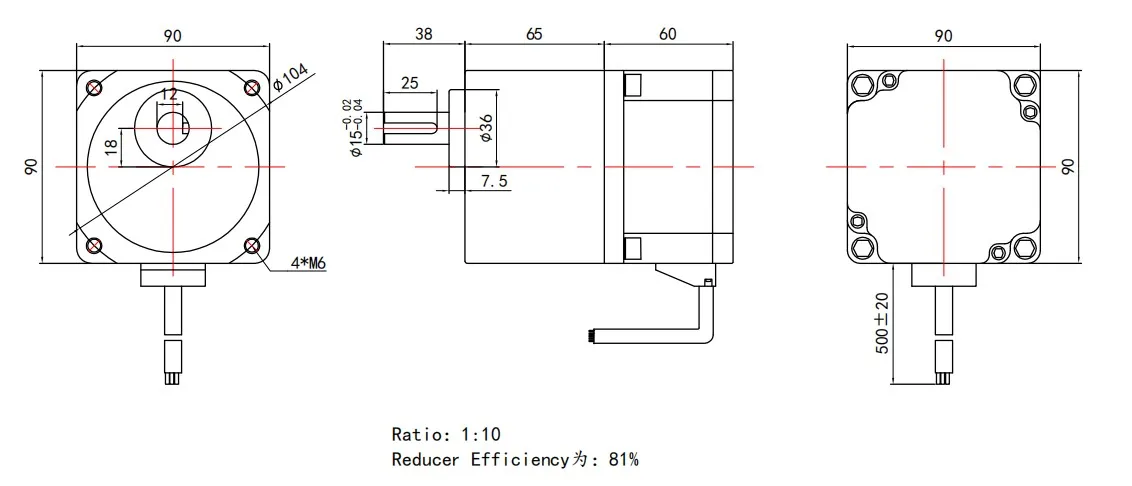

BGM120H35-G10
BGM200H35-G10

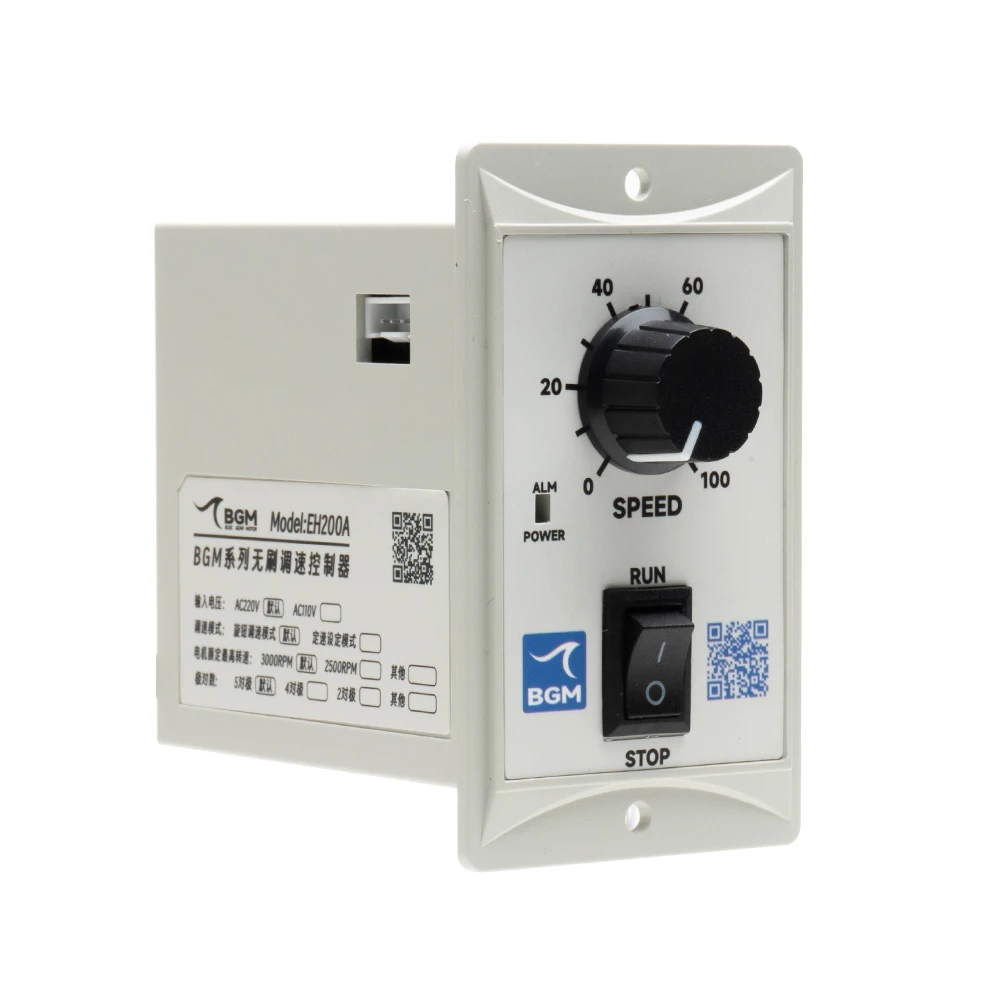

Matched driver:
EH200A is a high cost performance AC brushless speed controller newly developed by BGM company. It is for brushless motors 200W and lower power. Motor speed can be regulated by the rotary knob of the controller easily.
Electrical parameters:
| Parameters | Typical 1 | Typical 2 |
| Input Voltage | 220VAC | 110VAC |
| Rated Current (Bus Input) | 2A(MAX) | 2A(MAX) |
| Peak Current (Bus Input) | 4A(MAX) | 4A(MAX) |
| Matched Brushless Motor Power | MAX 200W | MAX 110W |
| Motor Speed Control Mode | 1. Speed regulated by knob 2. Speed set by serial port | 1. Speed regulated by knob 2. Speed set by serial port |
Advantages:
- High torque at low speed
- Simple operation
- Wide speed setting range
- Quick start & response
- High efficiency and AC input

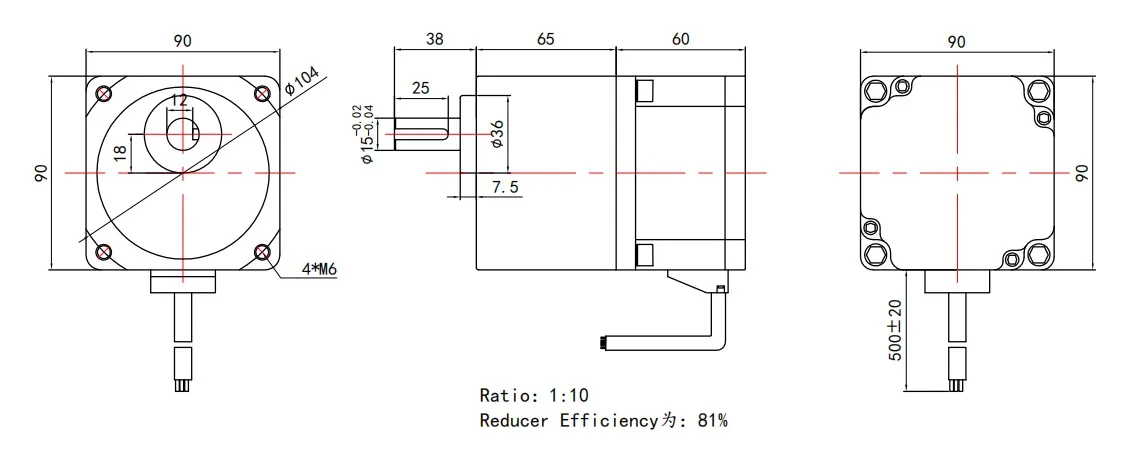

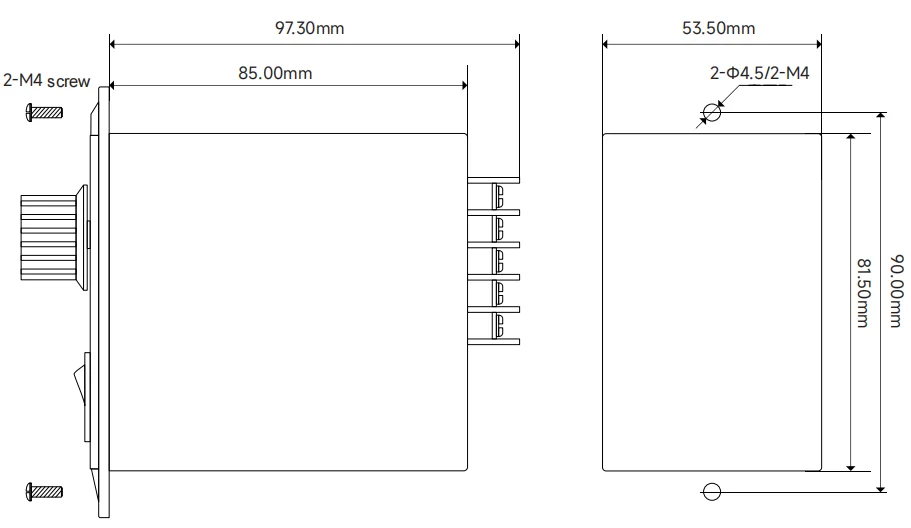

Dimensions:
Other products:
Our advantages
1. Can you make the gearbox or gearmotor with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2. Do you provide the samples?
YES. Our company can provide the samples to you.
3. Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
4. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
5. How long is your delivery time?
Normally 3~5 working days after payment. Special requiment orders are negotiable according to actual situation.
