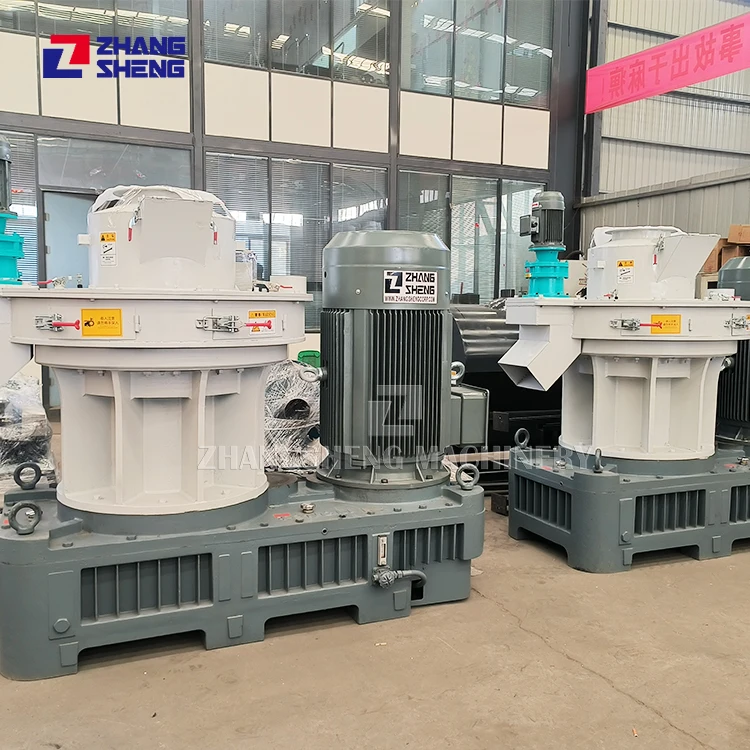

high output 1 10t/h kl 300 oak sawdust wood pellets machinery cyprus 6mm wood pellet making machine
- Category: >>>
- Supplier: Henan Zhangsheng Environmental Protection Equipment Co. Ltd.
Share on (10000011998182):
Product Overview
Description
The biomass pellet production line from ZHANGSHENG MACHINERY can recycle wood waste, corn stalk, coconut shell, and waste materials from saw mills. Pellets from ZHANGSHENG MACHINERY can totally meet ENplus standard, and have a high flammability value, which can be used in small home/commercial furnaces and in industry as a climate-neutral alternative to crude oil or natural gas. The pellets are small in size and low in transportation costs, and the raw materials is renewable.
Application
With more than 80% lower greenhouse gas emissions than coal, wood pellets are one of the most effective ways to meet renewable energy and carbon reduction goals. Between 2020 and 2022, global industrial pellet demand increased by 18.4%, while production increased by only 8.4%. The EU region and the UK, in particular, often run into pellet shortages under high energy costs. Therefore, the wood pellet production line is a promising and lucrative project.
Model | 450A | 450B | 560A | 560B | 560C | 700 | 850 | ||||||
Main Motor power(kw) | 55 | 75 | 90 | 110 | 132 | 160 | 220 | ||||||
capacity(t/h) | 0.6-0.8 | 0.8-1 | 1-1.3 | 1.5 | 2-2.5 | 2.5-3 | 3-4 | ||||||
Pellets size(mm) | 6-12mm | ||||||||||||
Material Pulling Motor power(kw) | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | 2.2 | 3 | ||||||
fan powerr(kw) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||||||
conveyor power(kw) | 2.2 | 2.2 | 3 | 3 | 3 | 3 | 3 | ||||||
Automatic oiling(kw) | 0.37+0.55 | ||||||||||||
weight(t) | 3 | 3 | 4.5 | 5 | 5.5t | 8 | 13 | ||||||
Product Advantage

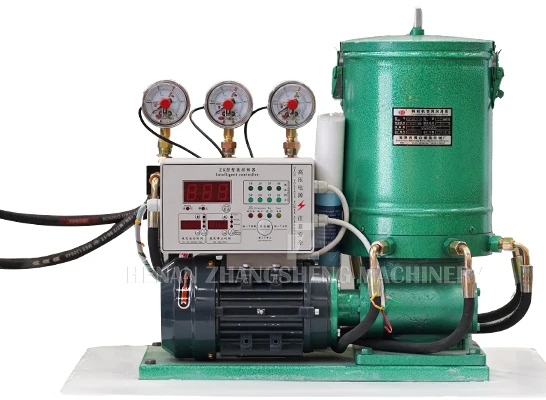

Automatic lubrication
Lubricating equipment friction can effectively reduce friction, greatly reduce bearing wear and performance consumption, improve equipment operation efficiency, and extend the life of the equipment.

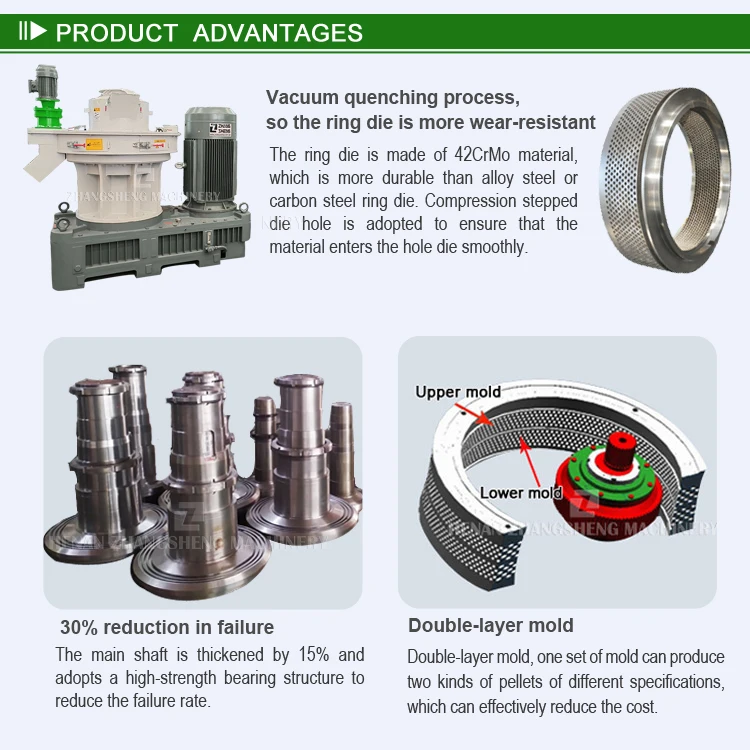

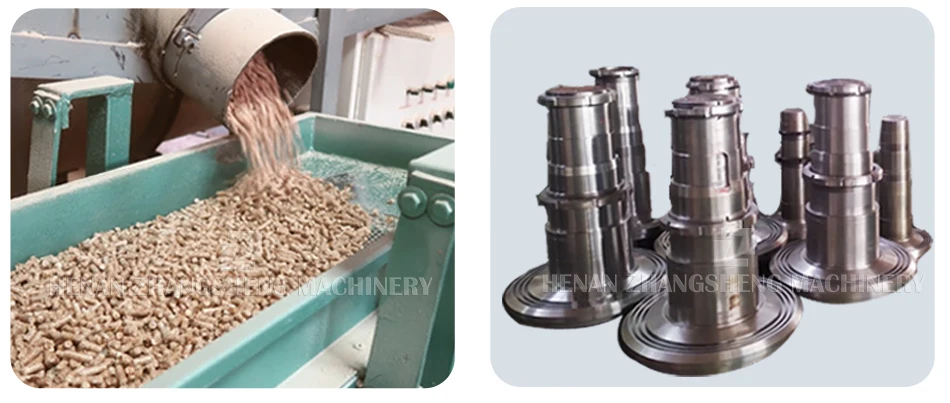

Vacuum quenching process, ring mold more wear-resistant

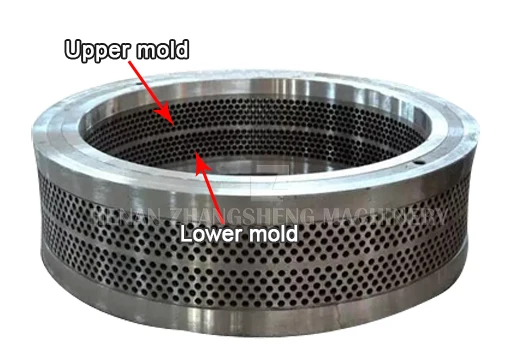

Double-layer mold, one set of mold can produce two kinds of pellets of different specifications, which can effectively reduce the cost. The ring die is made of 42CrMo material, which is more durable than alloy steel or carbon steel ring die.
304 stainless steel shell
Prevent the water vapor corroded machine shell due to the high temperature evaporate of raw materials during the pellets making process. ZHANGSHENG, choose 304 stainless steel to make the shell, to protect machine for long service life.
24 hours continuous work
Automatic lubrication system to ensure 24-hour uninterrupted work, thereby increasing production
30% reduction in failure
The main shaft is thickened by 15% and adopts a high-strength bearing structure to reduce the failure rate.
According to different raw materials's charactoristic, Zhangsheng Machinery shall design the reasonable and reliable production line for you.
The final pellets size is usually as Dia.: 8mm; Other diameters are also available.

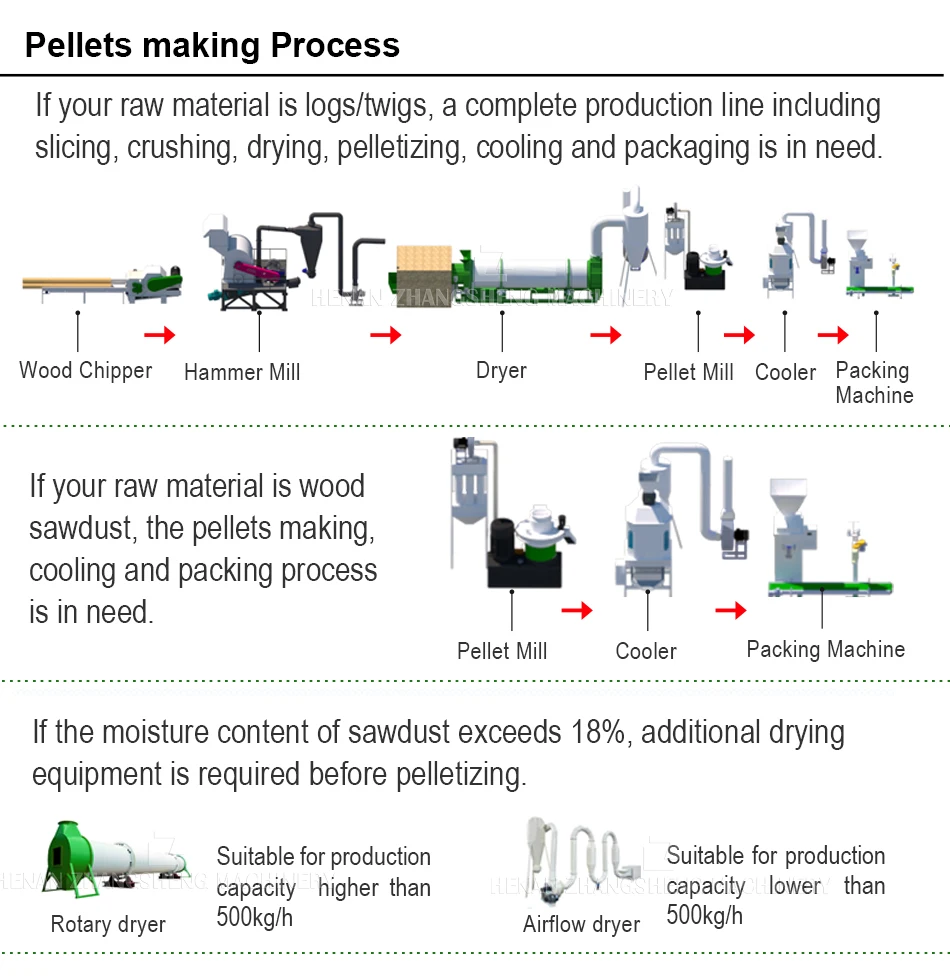

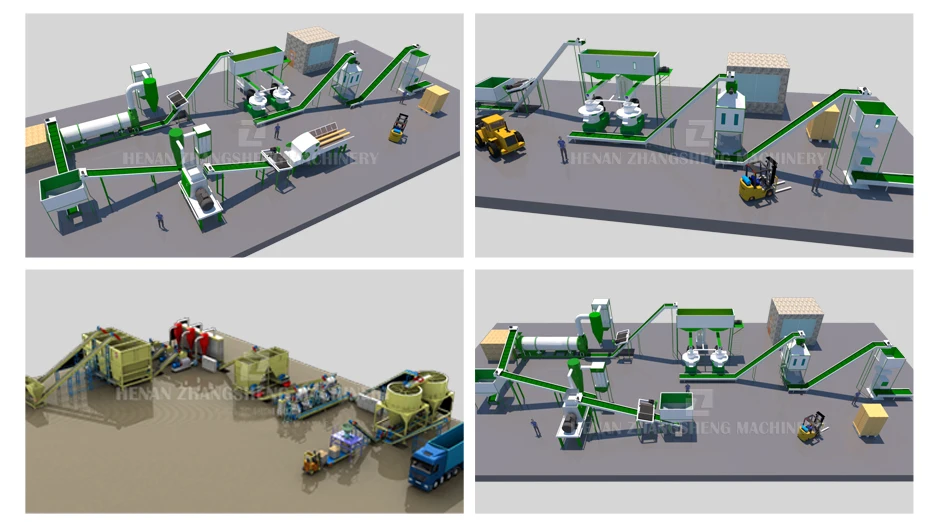

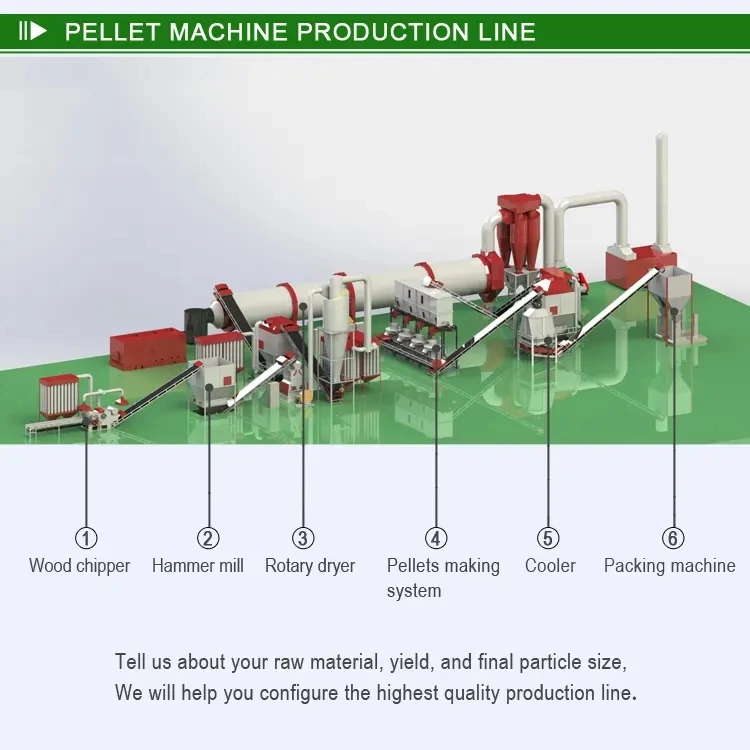

Process Flow
Wood Drum Chipper
(optional)Primary crushing stage process tree trunks and logs with a diameter of less than 50cm, into small wood chips within 20mm.
Hammer Mill
(optional)Hammer mill process small wood chips with a diameter of less than 20mm into sawdust with a diameter of less than 8mm.

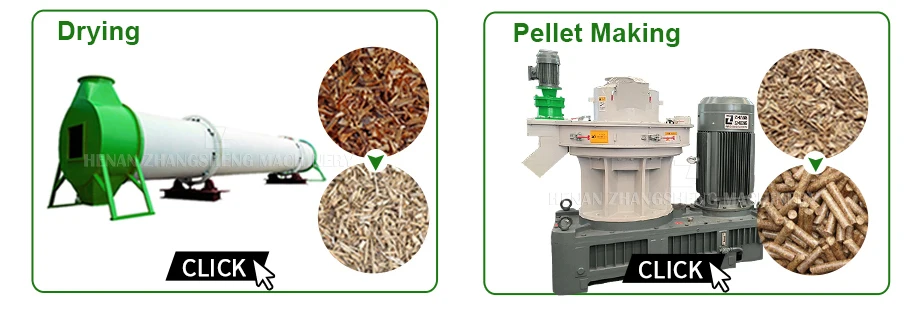

Dryer
(optional)The optimum moisture content for granulation is 12-18%. The dryer reduces the wood sawdust moisture from 20%-60% to 12-18%.

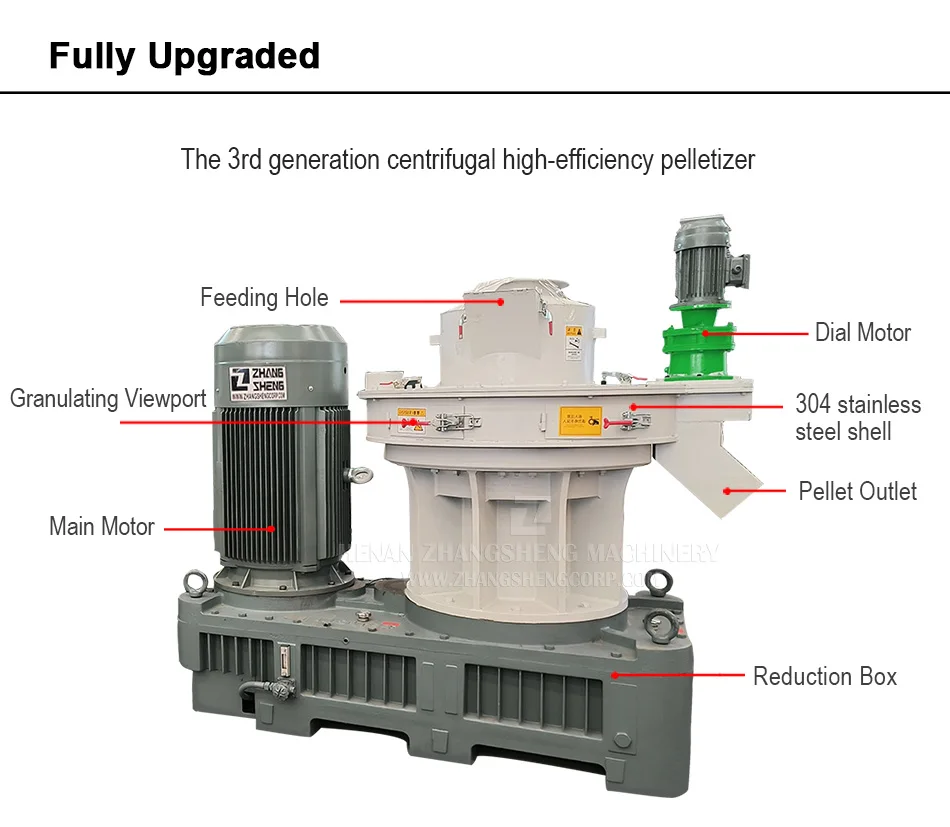

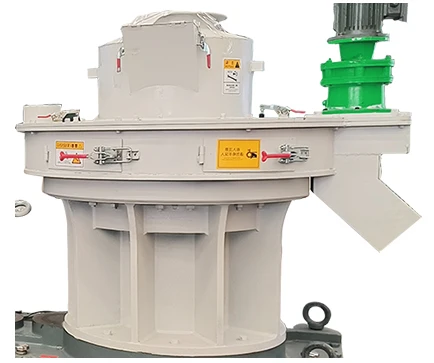

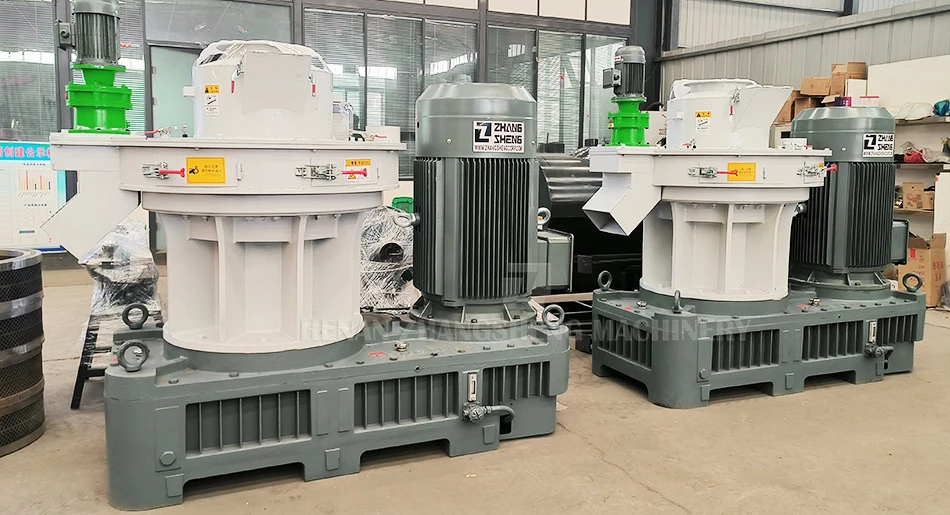

Pellet Mill
The pellet mill makes dry sawdust into pellets, and the output of a single machine can reach 3t/h.
Cooler
The cooling system cools the pellets from 70-90 ℃ to room temperature, and the hardness of the pellets will become stronger.
Packing Machine
Pack the qualified pellets from 10kg, 20kg or 1 ton into a plastic bag, and then sew with a thermoplastic sealing machine to make the pellets dry and waterproof.
Note: This is a conventional simple biomass pellet production line, we can customize different pellet production plans for you according to different sites, raw materials, output and budget. As a leading pellet machine manufacturer in China, ZhangSheng has rich experience in pellet machine manufacturing, and can build a unique pellet mill for you according to the actual situation.
About US

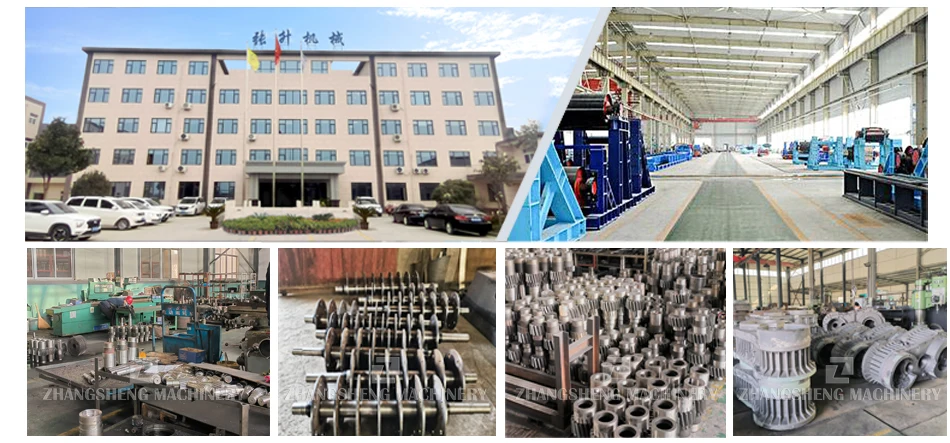

Henan Zhangsheng Environmental Protection Equipment Co., Ltd. was established in 2005, and has passed ISO and CE certification. The products have been widely exported to more than 60 countries and have been well received by customers. As a professional supplier of wood pellet mills and whole plant project solutions, Zhang Sheng can always meet the needs of different customers. We understand the importance of quality and the importance of timely delivery. We know how to survive and thrive because we always focus on long-term development.

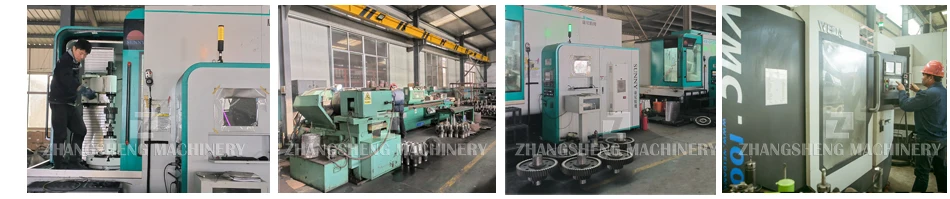

80% of the company's raw materials/accessories are produced independently, with the highest cost performance in the industry.
Our products meet 26 kinds of testing standards in 180 countries and have been the supplier of European/American distribution companies for many years.
Certifications
As a professional OEM and exporter of wood chippers, Zhangsheng has exported to more than 45 countries. We have the entire series of Diesel Powered wood drum chippers. From the feeding mode, we have self-feeding wood chipper and hydraulic feeding wood chipper. All wood chippers have CE certification of TUV-SUD and TUV-Rheinland. The total number of wood chippers exported to Europe and North America each year is more than 1000
FAQ
Q1: Where is your factory? Can I visit?
Of course, you are welcome to visit our factory. It is in Zhengzhou City, Henan Province, China. We have more than 15 years of experience in the pellet manufacturing industry, and all common types of equipment are in stock and ready to ship.
Q2: What is the use of biomass wood pellets?
As a new source of energy, biomass pellets are mainly used for combustion to provide heat energy. It has the characteristics of high calorific value, low ash content and environmental friendliness.
Q3: Which raw materials can be made into biomass pellets?
The line can handle large quantities of raw materials, forestry wastes such as logs, branches, trunks, planks, roots and other types of wood. Wooden pallets, formwork, wooden frames and other construction waste. Agricultural wastes such as straw and forage.
Q4: I know very little about pellet production line, how to choose the most suitable machine?
do not worry. We have helped a lot of beginners. Just tell us your raw material, your capacity (t/h) and the size of the final
pellet product, we will choose the machine for you according to your specific situation.
Q5: Our workers don't know how to operate the pellet mill, what should I do?
Our engineers will guide the field workers how to install the machine and arrange the workshop layout. Our engineers will then test run the live production line and train your workers how to operate it.

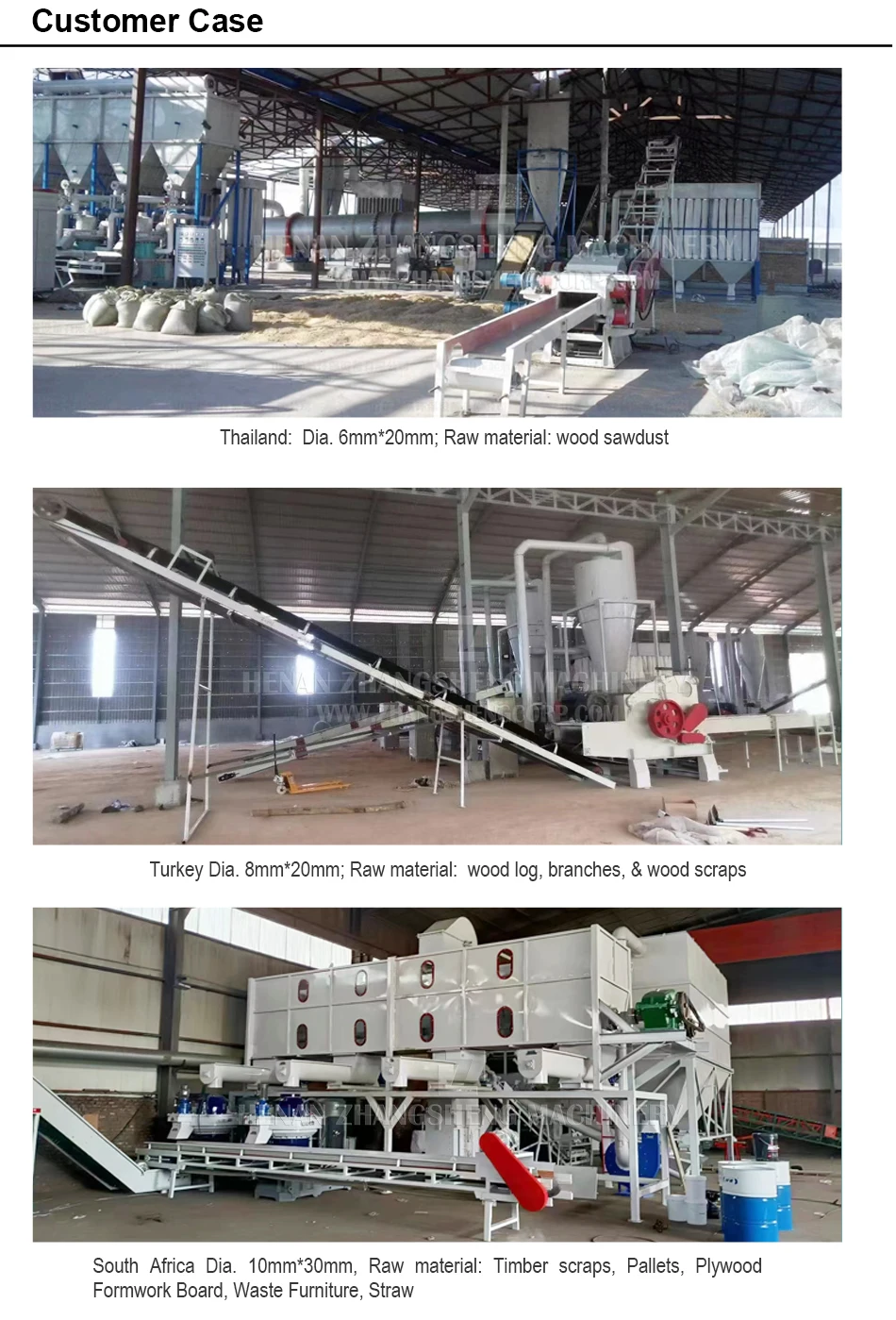

Q6: In which countries do you have projects?
Products are exported to more than 40 countries such as the United States, Canada, Australia, Africa, Kenya, Tanzania, Algeria, Morocco, Sudan, Australia, Malaysia, and the Philippines.We have machines in many countries, if you have machines in your country, we can contact customers to arrange a visit for you
Q2: What is the use of biomass wood pellets?
As a new source of energy, biomass pellets are mainly used for combustion to provide heat energy. It has the characteristics of high calorific value, low ash content and environmental friendliness.
Q3: Which raw materials can be made into biomass pellets?
The line can handle large quantities of raw materials, forestry wastes such as logs, branches, trunks, planks, roots and other types of wood. Wooden pallets, formwork, wooden frames and other construction waste. Agricultural wastes such as straw and forage.
Q4: I know very little about pellet production line, how to choose the most suitable machine?
do not worry. We have helped a lot of beginners. Just tell us your raw material, your capacity (t/h) and the size of the final
pellet product, we will choose the machine for you according to your specific situation.
Q5: Our workers don't know how to operate the pellet mill, what should I do?
Our engineers will guide the field workers how to install the machine and arrange the workshop layout. Our engineers will then test run the live production line and train your workers how to operate it.
Q6: In which countries do you have projects?
Products are exported to more than 40 countries such as the United States, Canada, Australia, Africa, Kenya, Tanzania, Algeria, Morocco, Sudan, Australia, Malaysia, and the Philippines.We have machines in many countries, if you have machines in your country, we can contact customers to arrange a visit for you
