SC 9089 IP4G Voip Sip Volte Android gsm 4glte telephone with 4G SIM Card
- Category: >>>
- Supplier: SunComm Technology Co. Ltd.
Share on (10000012178262):
Product Overview
Description
Product Description
Specification

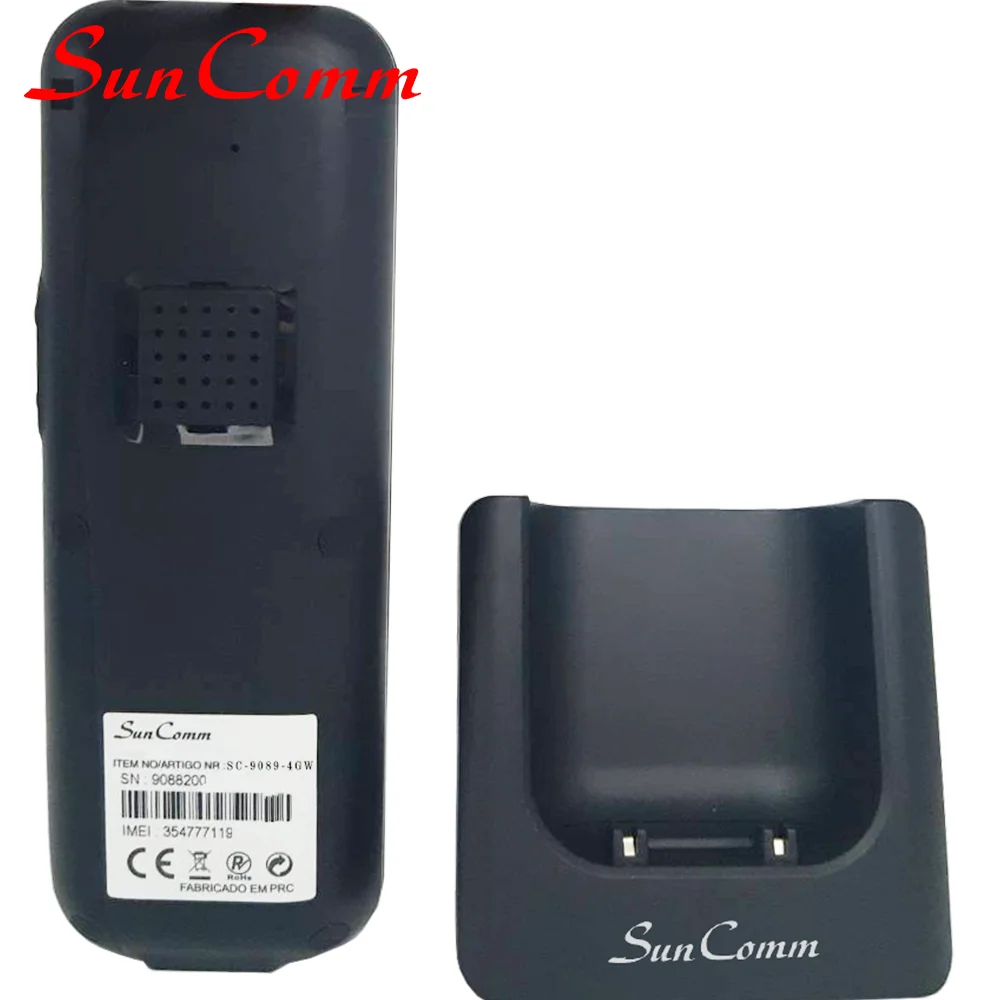

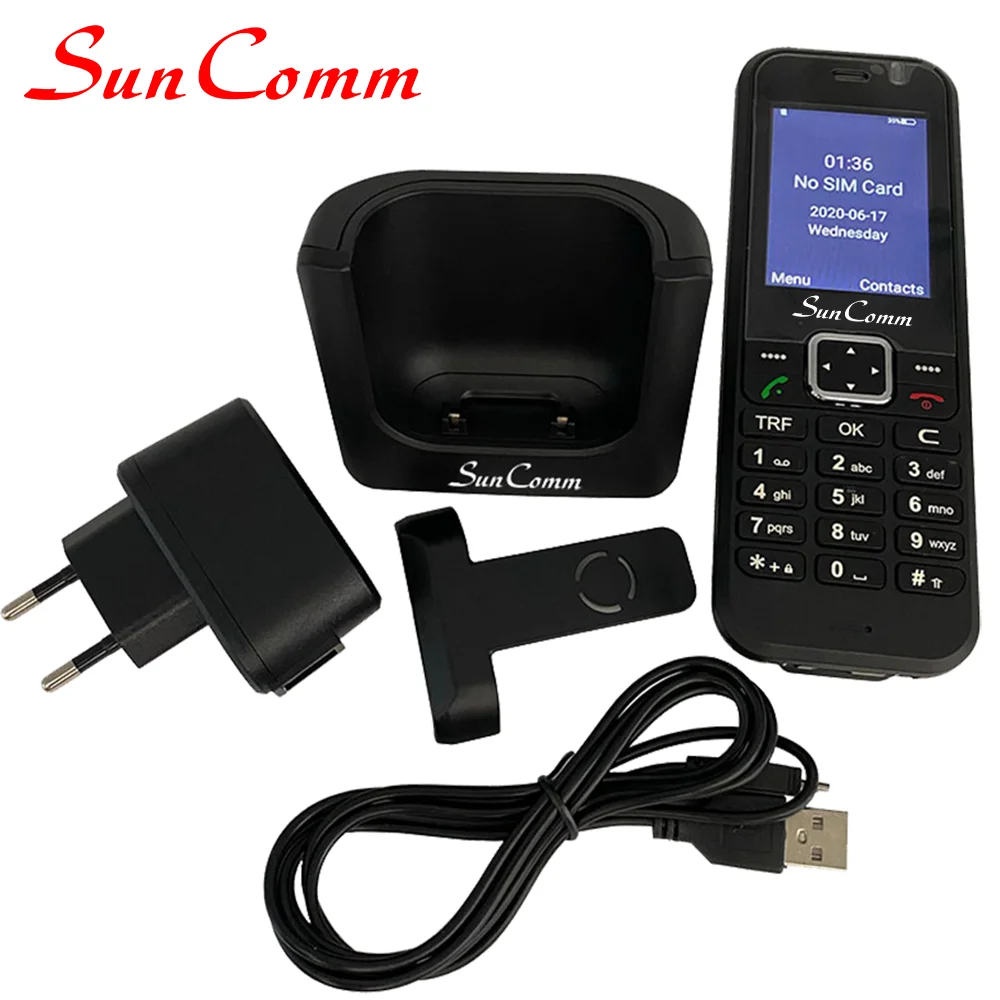

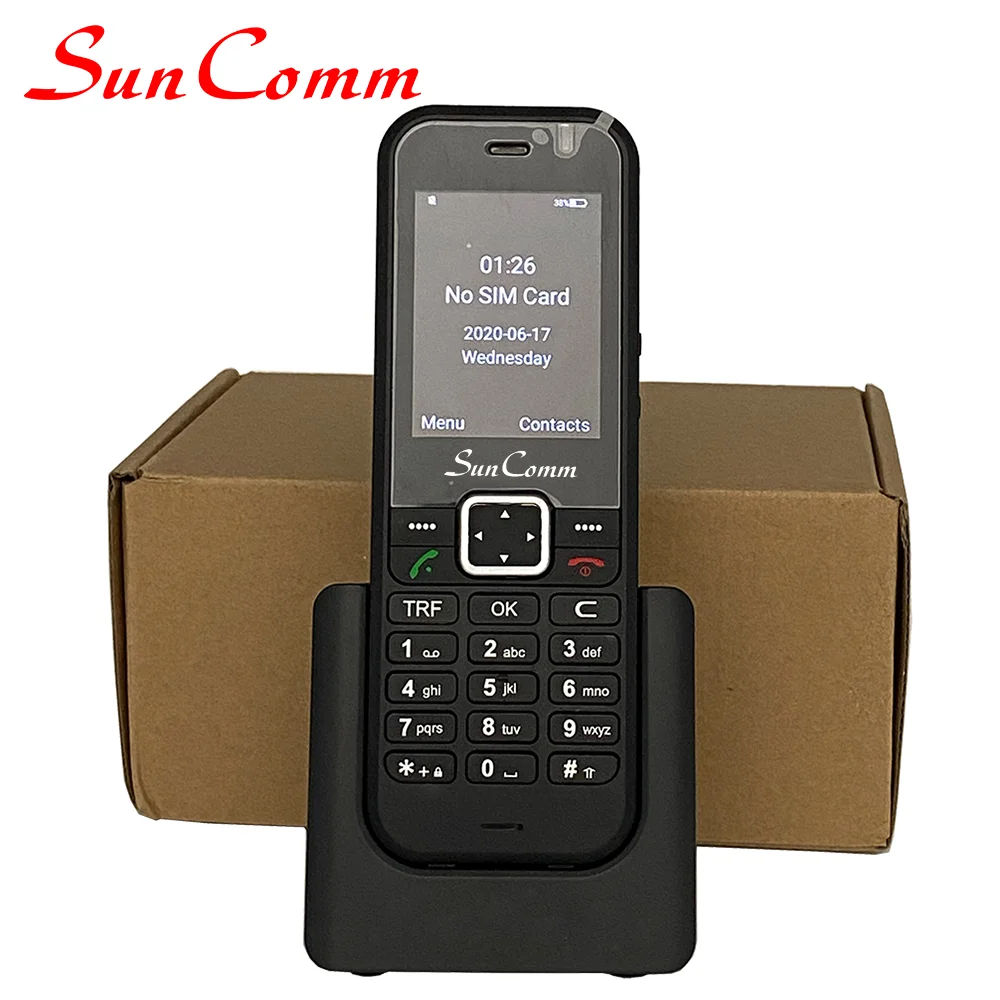

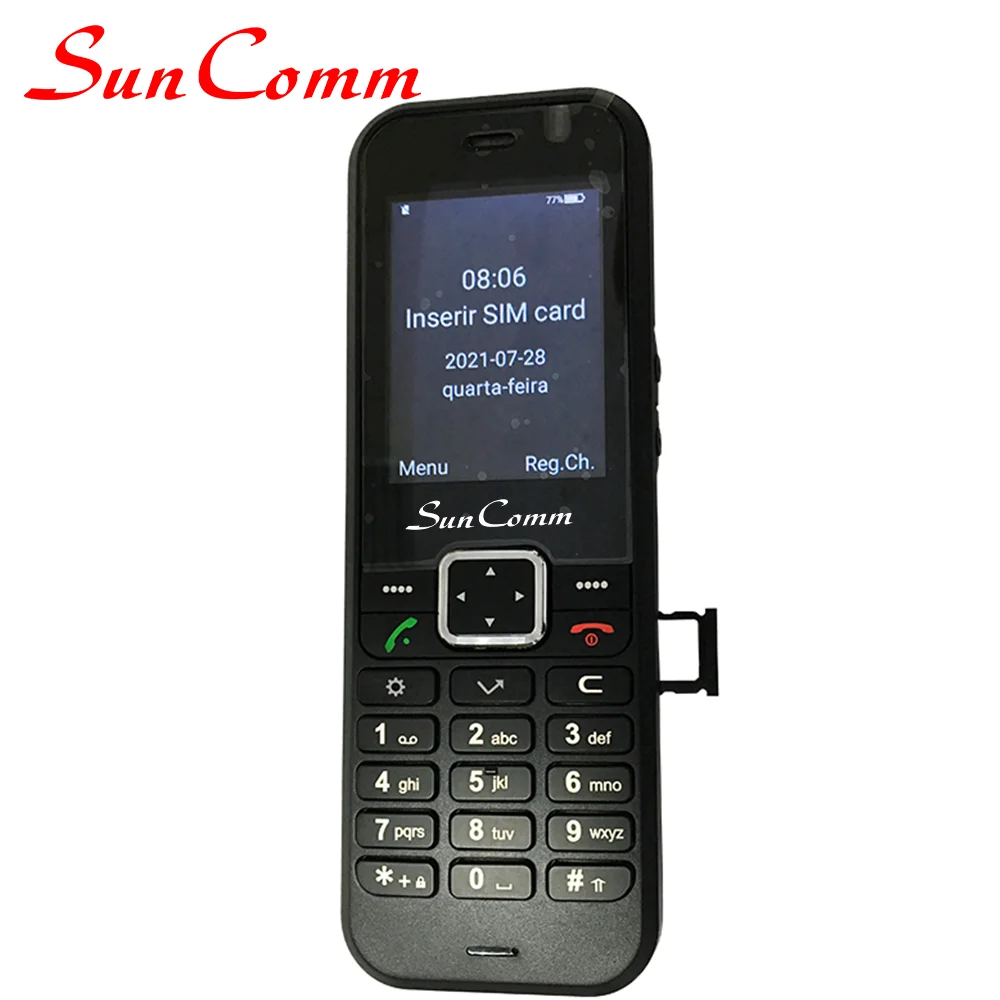

SC-9089-IP4G Voip Sip Volte Android gsm 4glte telephone with 4G SIM Card
Frequency:
FDD: B1(2100MHz)/ B3(1800MHz)/ B7(2600MHz)/ B20(800MHz)
FDD: B2/B4/B7/17 (US)
TDD: B38(2600MHz)/ B40(2300MHz)
Features:
MAIN FEATURES
2 VoIP/SIP accounts
Call hold, mute, DND
One-touch speed dial
Call forward, call waiting, call transfer
SMS, emergency call
3-way conferencing
Voice over WCDMA mobile data network
Voice over WLAN (WiFi)
Support WLAN (WiFi) roaming between multiple Access Point
Support FOTA (Firmware over the Air)
Support VPN (OpenVPN, L2TP, PPTP)
Support intercom
Support QoS
Support Enterprise-grade security and privacy protection
AUDIO FEATURES:
HD voice: HD handset, HD speaker
Codec: G.722, G.711 (A/μ), G.723, G.729AB, GSM, iLBC,
Speex-WB, OPUS
DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
Full-duplex hands-free speakerphone with AEC
VAD, CNG, AEC, PLC, AJB, AGC
NETWORK AND SECURITY:
Wi-Fi client/ WiFi Hotspot
WLAN Supports static IP, dynamic IP
NAT&NAPT with VPN pass-through Virtual Server
SIP v1 (RFC2543), v2 (RFC3261)
Automatic receipt of IP address with DHCP Server – delete
Security through WEP, WPA-PSK, WPA2-PSK, WDS
Simple handling and management over web interface
Call server redundancy supported
NAT transverse: STUN,ICE, TURN mode
HTTP/HTTPS web server
Time and date synchronization using SNTP
QoS: ToS/DSCP; Layer 3
Media protocol: RTP/SRTP
Signaling transport protocol: TCP/UDP/TLS
Digest authentication using MD5/MD5-sess
VPN type: OpenVPN, L2TP, PPTP, L2TP/IPSec PSK,
L2TP/IPSec RSK, IPSec Xauth PSK, IPSec Xauth RSA, IPSec
Hybrid RSA
MANAGEMENT:
Configuration: browser/phone/auto-provisioning/
FOTA (Firmware over the Air)
Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
Phone lock for personal privacy protection
Reset to factory, reboot
System log
Wi-Fi :
Wi-Fi 2.4G, Support 802.11 b/g/n, Wi-Fi 5GHz (Option),
Support 802.11 a/ac/n
Frequency from 2.4GHz to 2.483GHz; 5.15GHz to
5.825GHz(option)
Data rate Speed up to 300Mbps via 2.4G, 600Mbps via 5G
Channel bandwidth: 20MHz/40MHz via 2.4G,40MHz/80MHz
via 5G (Option)
Power:
Operating voltage: 100 to 240V AC 50/60Hz
Adapter: CBS03-0010002/100-240V AC / 5V DC 1A
Battery: chargeable battery 2000mAh, 3.7V standby time
144-168 hours; Talking Time 8~10 hours.
Physical & Environmental:
Desktop Power Input: 100V-240V AC / Output: 5V DC 1A
Ambience temperature: 0℃~ 40℃
Relative humidity: 10% ~ 90%
Air pressure: 86 ~ 106kPa
Dimensions: 150X55X22mm
Weight (handset & charger): 180G
Collective package (capacity/size): 20 Gift box / CTN
FDD: B1(2100MHz)/ B3(1800MHz)/ B7(2600MHz)/ B20(800MHz)
FDD: B2/B4/B7/17 (US)
TDD: B38(2600MHz)/ B40(2300MHz)
Features:
MAIN FEATURES
2 VoIP/SIP accounts
Call hold, mute, DND
One-touch speed dial
Call forward, call waiting, call transfer
SMS, emergency call
3-way conferencing
Voice over WCDMA mobile data network
Voice over WLAN (WiFi)
Support WLAN (WiFi) roaming between multiple Access Point
Support FOTA (Firmware over the Air)
Support VPN (OpenVPN, L2TP, PPTP)
Support intercom
Support QoS
Support Enterprise-grade security and privacy protection
AUDIO FEATURES:
HD voice: HD handset, HD speaker
Codec: G.722, G.711 (A/μ), G.723, G.729AB, GSM, iLBC,
Speex-WB, OPUS
DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
Full-duplex hands-free speakerphone with AEC
VAD, CNG, AEC, PLC, AJB, AGC
NETWORK AND SECURITY:
Wi-Fi client/ WiFi Hotspot
WLAN Supports static IP, dynamic IP
NAT&NAPT with VPN pass-through Virtual Server
SIP v1 (RFC2543), v2 (RFC3261)
Automatic receipt of IP address with DHCP Server – delete
Security through WEP, WPA-PSK, WPA2-PSK, WDS
Simple handling and management over web interface
Call server redundancy supported
NAT transverse: STUN,ICE, TURN mode
HTTP/HTTPS web server
Time and date synchronization using SNTP
QoS: ToS/DSCP; Layer 3
Media protocol: RTP/SRTP
Signaling transport protocol: TCP/UDP/TLS
Digest authentication using MD5/MD5-sess
VPN type: OpenVPN, L2TP, PPTP, L2TP/IPSec PSK,
L2TP/IPSec RSK, IPSec Xauth PSK, IPSec Xauth RSA, IPSec
Hybrid RSA
MANAGEMENT:
Configuration: browser/phone/auto-provisioning/
FOTA (Firmware over the Air)
Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
Phone lock for personal privacy protection
Reset to factory, reboot
System log
Wi-Fi :
Wi-Fi 2.4G, Support 802.11 b/g/n, Wi-Fi 5GHz (Option),
Support 802.11 a/ac/n
Frequency from 2.4GHz to 2.483GHz; 5.15GHz to
5.825GHz(option)
Data rate Speed up to 300Mbps via 2.4G, 600Mbps via 5G
Channel bandwidth: 20MHz/40MHz via 2.4G,40MHz/80MHz
via 5G (Option)
Power:
Operating voltage: 100 to 240V AC 50/60Hz
Adapter: CBS03-0010002/100-240V AC / 5V DC 1A
Battery: chargeable battery 2000mAh, 3.7V standby time
144-168 hours; Talking Time 8~10 hours.
Physical & Environmental:
Desktop Power Input: 100V-240V AC / Output: 5V DC 1A
Ambience temperature: 0℃~ 40℃
Relative humidity: 10% ~ 90%
Air pressure: 86 ~ 106kPa
Dimensions: 150X55X22mm
Weight (handset & charger): 180G
Collective package (capacity/size): 20 Gift box / CTN
Company Profile
Packing & Delivery
Packing information: LxHxW(cm)/ ctn: 48.5 x 43 x 19 cm/ ctn
3000 units / 150 ctns / 1260 KG/ 6.12 CBM (One carton 20 unit)
