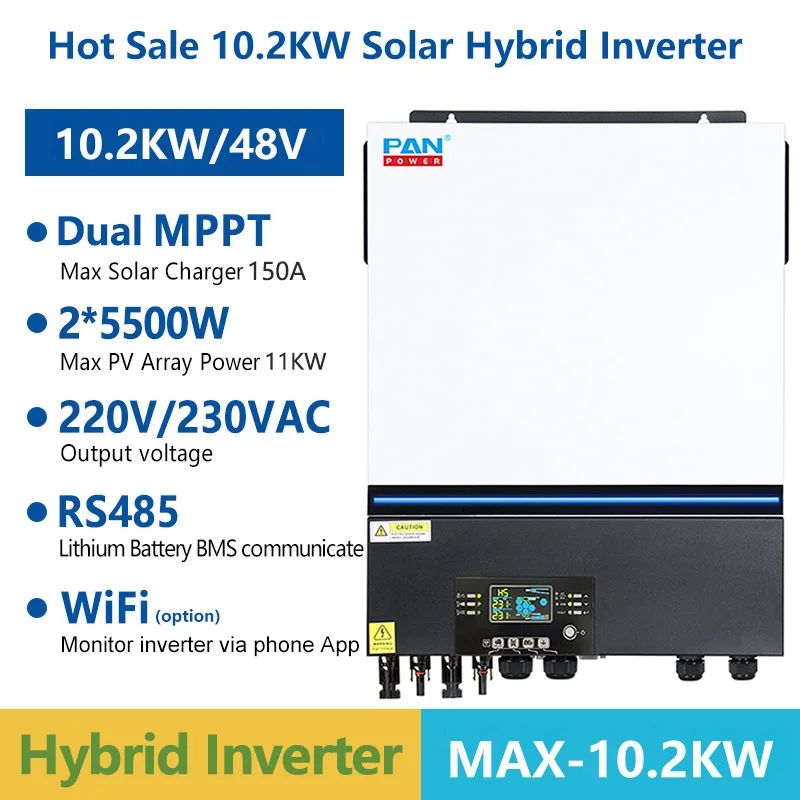

New Arrival 48v 220v 230v 10kw 10.2kw hybrid solar inverter
- Category: >>>
- Supplier: Guangdong Panpower Power Supply Co. Ltd.
Share on (10000012479504):
Product Overview
Description
Main Features
*Rated power 10.2KW
*Pure sine wave solar inverter;*Output power factory 1.0;
*One-key restoration to factory settings；
*Built-in Lithium battery automatic activation；
*Built-in max 2*150A MPPT solar controller；
*One-key restoration to factory settings；
*Built-in Lithium battery automatic activation；
*Built-in max 2*150A MPPT solar controller；
*Max solar power 11KW(2*5500W)；
*High PV input voltage range(90~450VDC)；
*Built-in anti-dusk kit for harsh environment；
*Inverter can running without battery;
*Configurable AC/Solar input priority via LCD setting;
*Smart battery charge design to optimize battery life;
*High PV input voltage range(90~450VDC)；
*Built-in anti-dusk kit for harsh environment；
*Inverter can running without battery;
*Configurable AC/Solar input priority via LCD setting;
*Smart battery charge design to optimize battery life;
*Can work as off grid, can also work as on/off grid；
*WIFI available for IOS and Andriod；(option);
*Selectable input voltage(90V~280V) range for home appliances and personal computers.
*Selectable input voltage(90V~280V) range for home appliances and personal computers.
Technical Parameters
MODEL | MAX-10.2KW | AK-10.2KW | ||
PHASE | 1—phase | |||
Rated Output Power | 10200W | 10200W | ||
Maximum PV Input Power | 11KW | 10200W | ||
Maximum Solar Charging Current | 2*150A MPPT | 180A | ||
OFF-GRID OPERATION | ||||
AC INPUT | ||||
AC Start-up Voltage/Auto Restart Voltage | 120~140VAC/180VAC | |||
Acceptable Input Voltage Range | 90~280VAC or 170~280VAC | |||
Maximum AC Input Current | 50A | 50A | ||
Nominal operating frequency | 50/60Hz | |||
Surge power | 20400W | 20400W | ||
BATTERY MODE OUTPUT(AC) | ||||
Nominal Output Voltage | 220/230/240VAC | |||
Output Waveform | Pure sine wave | |||
Efficiency (DC to AC) | 94% | |||
BATTERY & CHARGER | ||||
Battery Type | Lead acid/Gel/Lithium | |||
Nominal DC Voltage | 48VDC | 48VDC | ||
Maximum Charging Current (Solar to AC) | 150A | |||
Maximum AC Charging Current | 150A | |||
GRID-TIE OPERATION | ||||
PV INPUT(DC) | ||||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | |||
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | |||
MPPT Range@Operating Voltage | 90VDC~450VDC | |||
Number of MPPT Tracker/Max Input Current | 2/27A(Max 40A) | |||
GRID OUTPUT(AC) | ||||
Nominal Output Voltage | 220/230/240VAC | |||
Output Voltage Range | 195V~253VAC | |||
Nominal Output Current | 44.3A | |||
Power Factor | >0.99 | |||
Feed-in Grid Frequency Range | 49-51±1Hz | |||
GENERAL | ||||
Dimension, D*W*H (MM) | 148*433*554 | |||
Net Weight(KGS) | 17.3 | |||

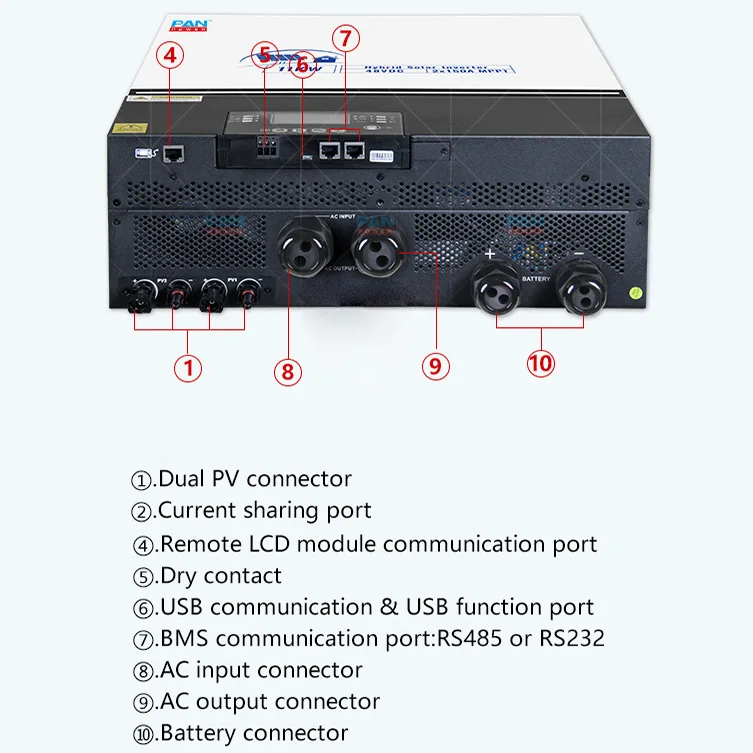

Communication Port | RS485/RS232/USB/Dry-contact | |||
Operating Temperature | -10~50℃ | |||

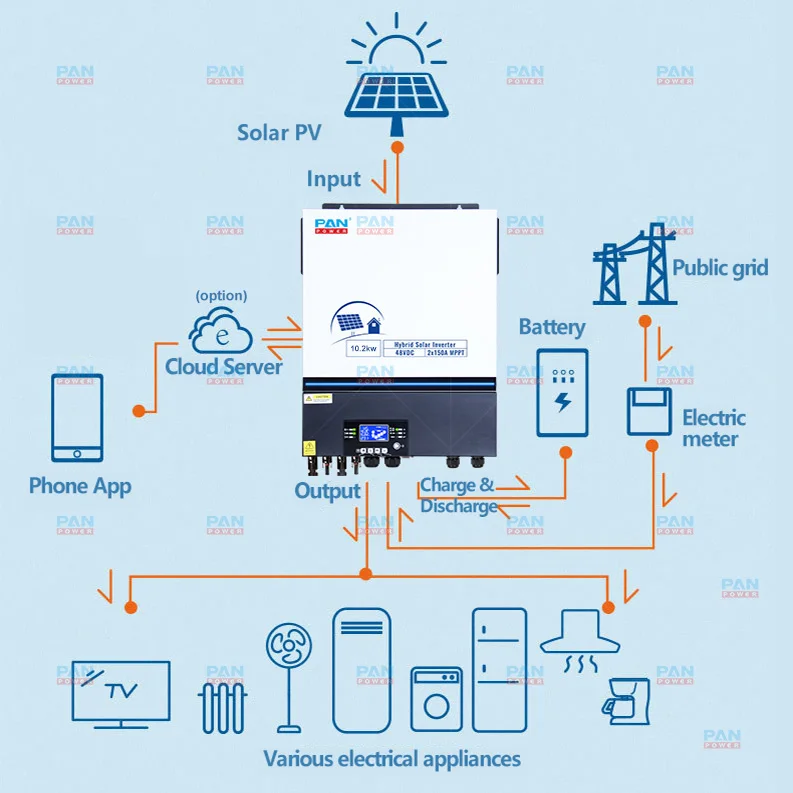

Solar System Diagram
This 10.2kw inverter is a hybrid inverter.
This inverter can work with battery, can also work without battery.
Product Details

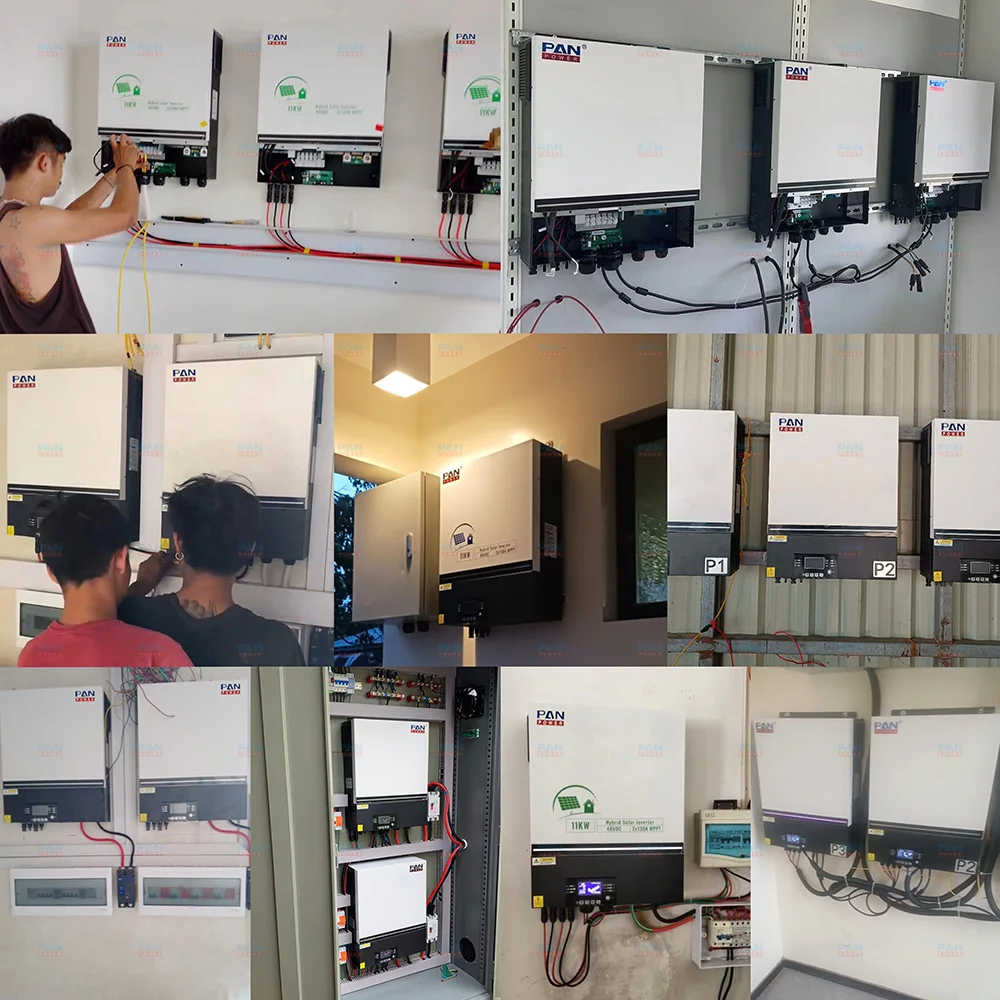

Application
Company Introduction
Panpower Co.,Ltd is the earliest manufacturer in China, producing power supply products. We have independent intellectual property and strong design and development capability. Our products include UPS, Inverter, EPS, voltage stabilizer, maintenance-free sealed lead acid battery. Our products are applied to many industries, such as aviation,railway, bank, security, electric power, road, national defense, insurance, electrical power and others. The customs, hospitals and governments give us a good evaluation due to our competitive price, high quality and complete service. Our advantages, which include up-to-date technology, 20 years rich production experience, first rate production equipment, strong R&D capacity, quick response to the market and new design concept. These foundations so allow us to continually develop new high quality products in compliance with the application of electrical grid of both China and foreign countries.
FAQ
Q: What’s the payment term?
Q: What is the delivery time?
A: Inverter in stock. Can delivery immediately.
Q: What is the shipping way?
A: By Air, by Sea or by Express.
Q: What is the warranty of inverter?
A: One year warranty on PAN-Solar product.
Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
A: Credit card, T/T, Alibaba Trade Assurance, Western Union, Paypal, L/C.
Q: Are your inverter pure sine wave output?
A: Yes, all are true pure sine wave.
Q: Is this hybrid inverter?
A: yes. off gird hybrid, on/off grid hybrid.
Q: Are your inverter pure sine wave output?
A: Yes, all are true pure sine wave.
Q: Is this hybrid inverter?
A: yes. off gird hybrid, on/off grid hybrid.
Q: What is the delivery time?
A: Inverter in stock. Can delivery immediately.
Q: What is the shipping way?
A: By Air, by Sea or by Express.
Q: What is the warranty of inverter?
A: One year warranty on PAN-Solar product.
Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
