face recognition detection AI vision 4K/25fps 1/2.7 RGB industrial grade WDR sensor 100dB WDR mipi 8Mega Pixel HD Camera module
- Category: >>>
- Supplier: Shenzhen Jinshikang Technology Co. Ltd.
Share on (10000012600522):
Product Overview
Description

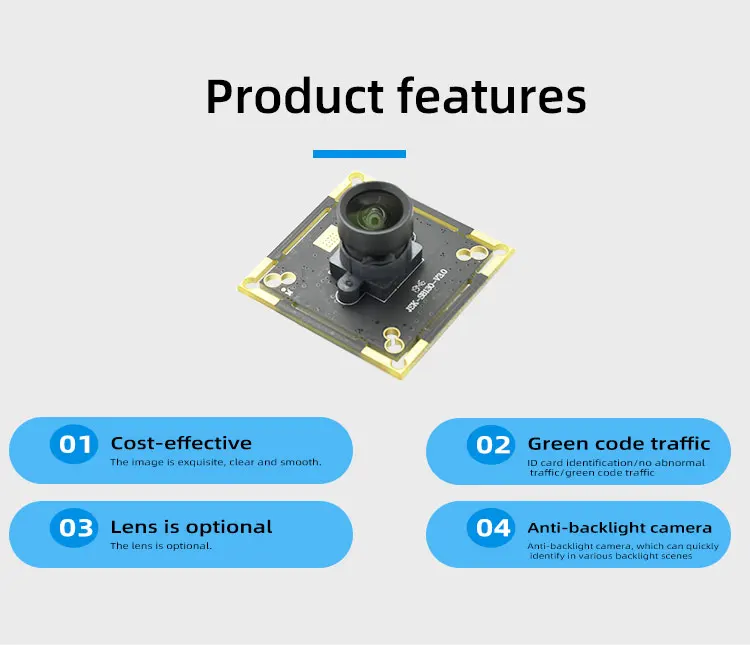

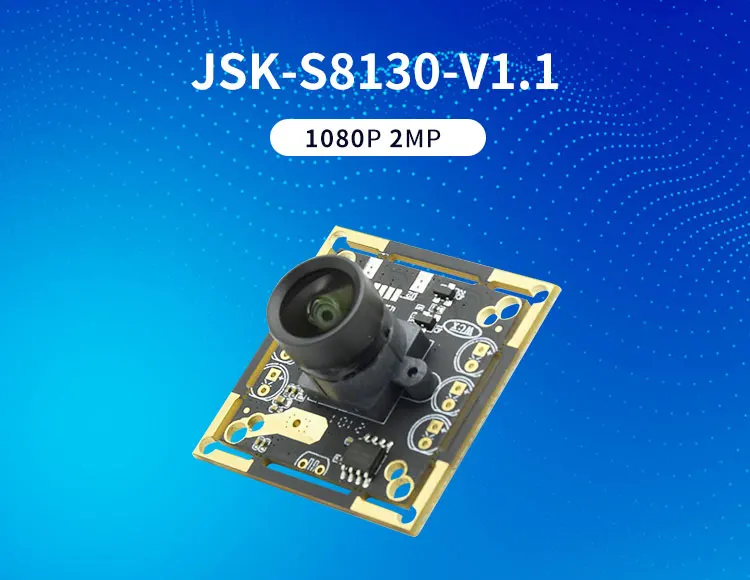

JSK-S8130-V1.1 2MP USB Specification
Product name | JSK-S8130-V1.1 |
Image Sensor | AR0230(1/2.7” CMOS) |

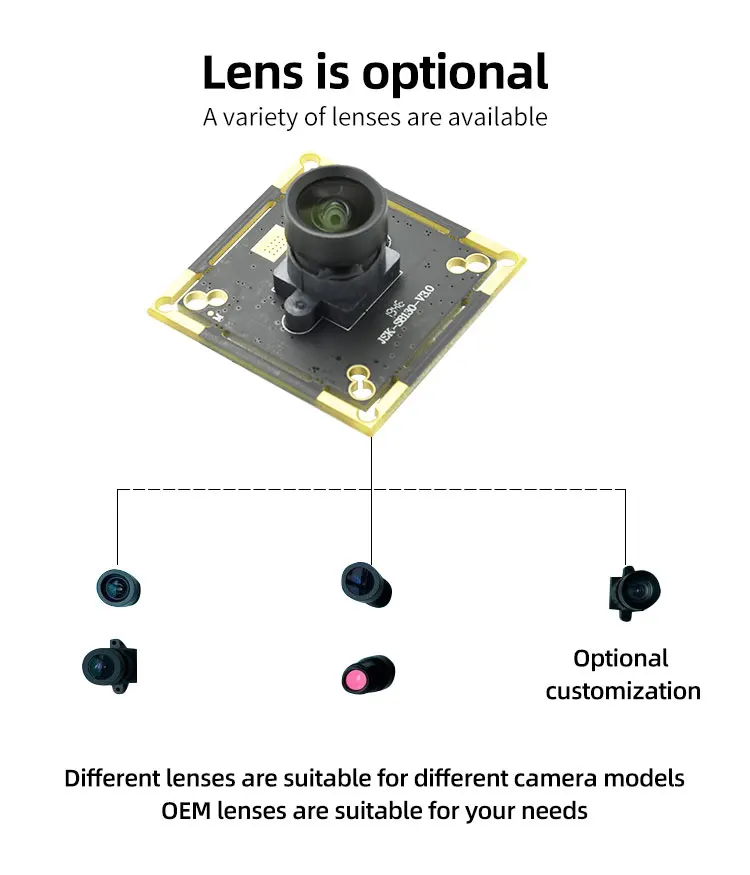

Focal length | 2.88mm(optional) |
Aperture Range | 2.7 |
Angle of View | 86° |
Object distance | 50-150cm |
White Balance | Auto |
Max Frame Rate | 30fps@1080P |
Shutter Type | Electronic Rolling Shutter |
Image Resolution | 1920 (H) x 1080 (V) |
Protocols | UVC |
Video Output | MJPG/YUY2 |
Interface | USB1.1/USB2.0 |

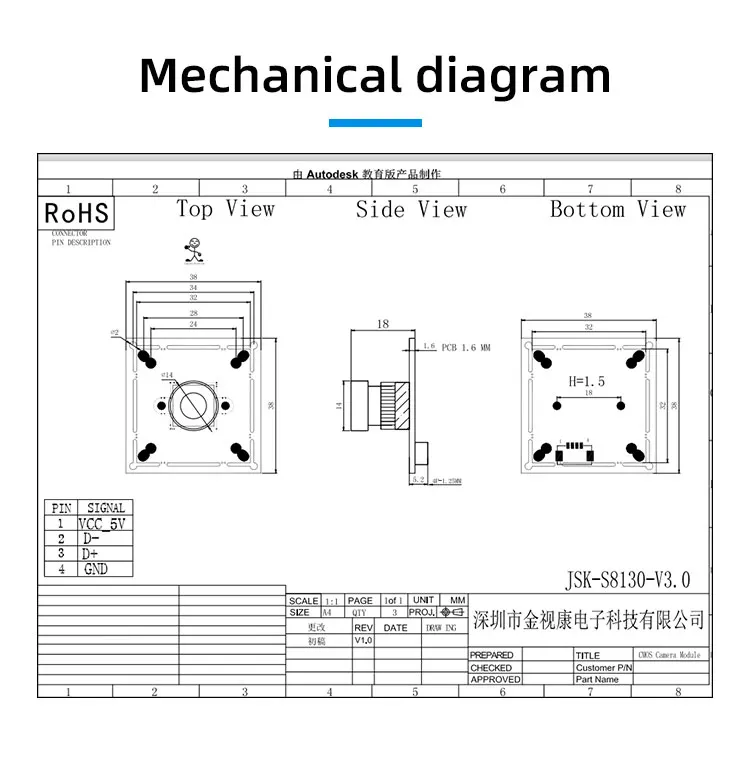

Dimensions(PCB) | 38mm*38mm*18mm± 0.3mm |
Power Supply | 5V±5% |
Temperature(Operation) | 20~70 ℃ |

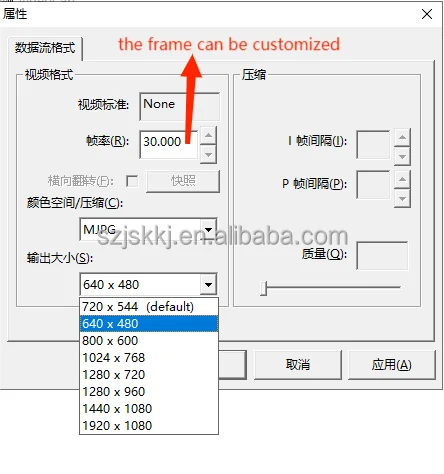

As the left pircutre:
1.the frame is 30fps,but it can be customized according to your requirement.
2.The Max-megapiexl is 1920*1080P, but the default piexl can be choosed by yourself
2.The Max-megapiexl is 1920*1080P, but the default piexl can be choosed by yourself

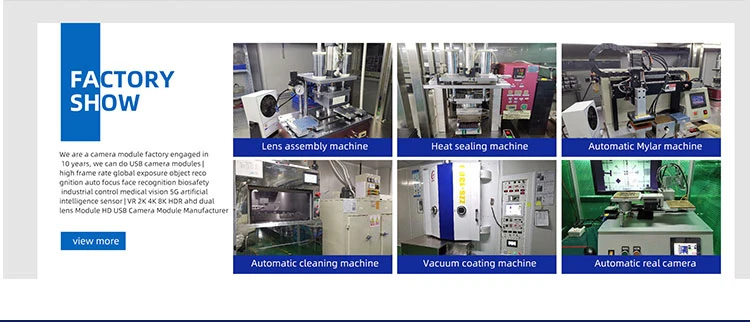

Shenzhen Jinshikang Technology Co.,Ltd
Shenzhen Jinshikang
Technology Co.,Ltd was established in 2015,which manufacture professionally camera module are used widely people's life and industrial system, especially in face recognition, intelligent monitoring, industrial applications and various imaging system
solution.we can also do OEM and ODM to satisfy customers' requirements.
Technology Co.,Ltd was established in 2015,which manufacture professionally camera module are used widely people's life and industrial system, especially in face recognition, intelligent monitoring, industrial applications and various imaging system
solution.we can also do OEM and ODM to satisfy customers' requirements.
