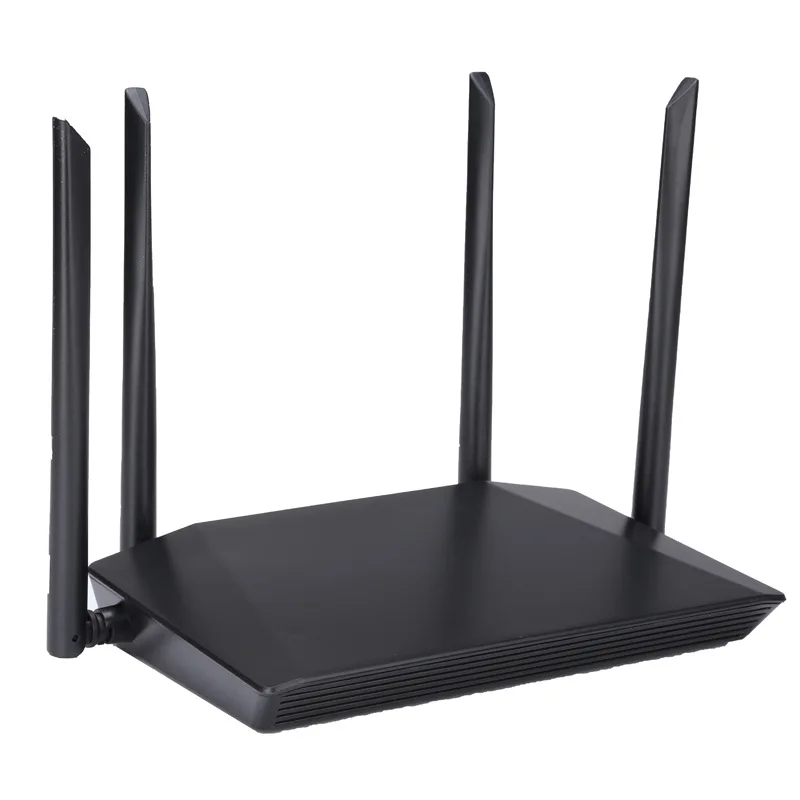

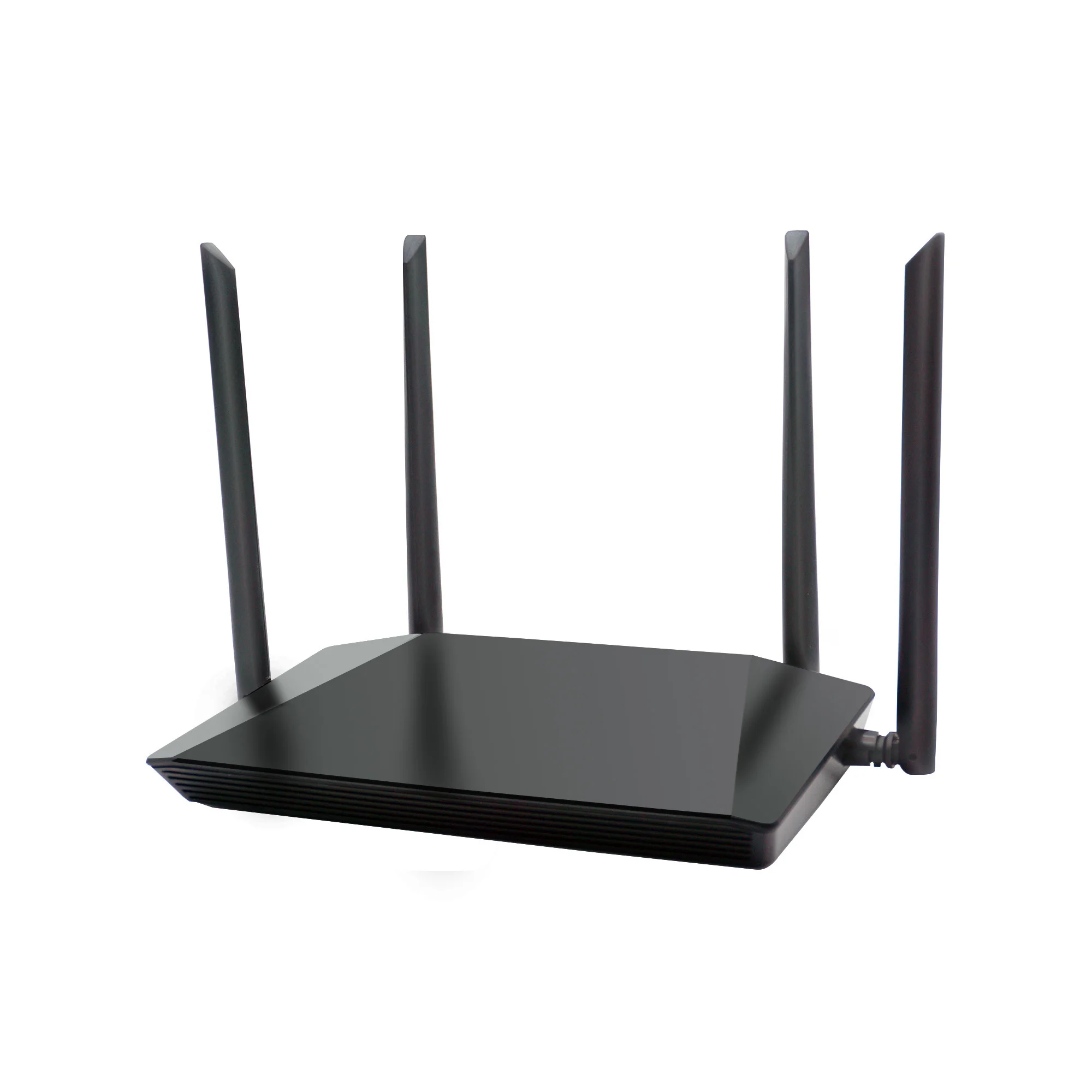

MKR-12 is a 4G wireless router that can realize WiFi coverage for regular mobile office networking, engineering project office networking, family, rental houses, dormitories, etc. without pulling broadband and complex network deployment . The device supports TDD, FDD, WCDMA network standards, SIM card standard big card, domestic full Netcom, mobile card, telecom card, Unicom card without binding card, free to change, the system automatically recognizes, you can easily access the Internet without complicated settings, and it is also available for foreign users It can be matched with modules suitable for the country and region where you are (foreign users need to inform before placing an order); plug in a SIM card with traffic and it can be converted into a WiFi signal, so that your mobile phone, laptop, and Pad can all enjoy wireless Internet In the world , it can also be transformed into a wired network, providing network for desktop computers, Internet TV, wired smart home and so on . The theoretical speed can reach up to 150Mbps, making it easy to play games, watch ultra-high-definition videos without stuttering , and live broadcast smoothly with less delay.
• The 4G network can be converted into a wireless and wired network, and can also be connected to a broadband network to be converted into a wireless wired network . When both are connected at the same time, the wired network is given priority.
• Wireless rate 300Mbps.
• 3 10/100Mbps adaptive network ports.
• Support WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK encryption. protocol
• Comply with IEEE 802.11b/g/n 2.4GHz standard protocol, IEEE802.3, IEEE802.3u standard protocol.
Hardware Specification |
|
|
CPU |
| MT7628 |
storage |
| Flash: 8MB; DDR: 64MB |
Wired standard |
| IEEE802.3, IEEE802.3u |

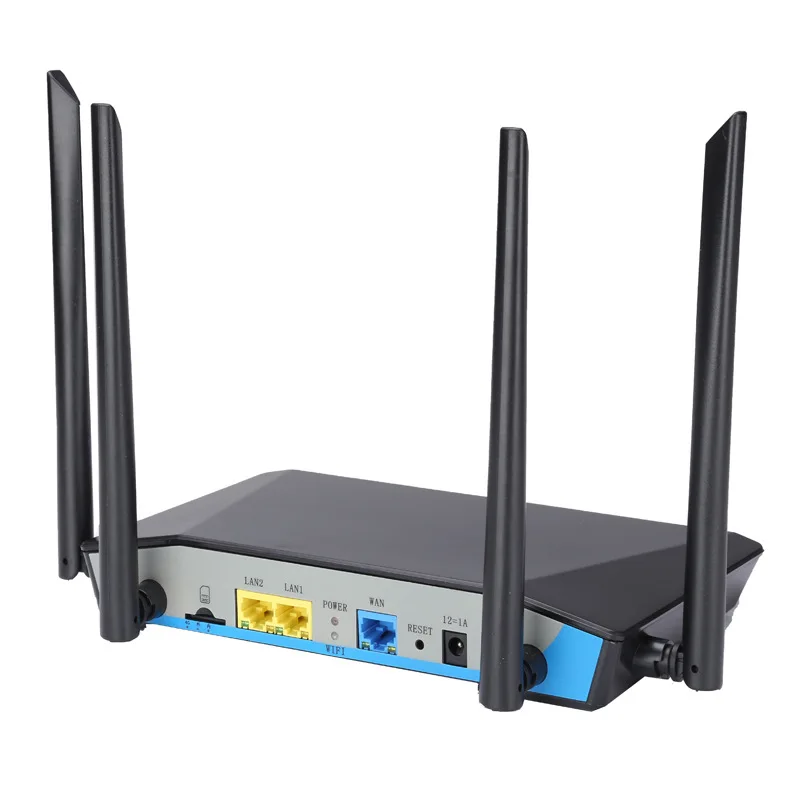

Ethernet interface |
| 10/100Mbps WAN port*1, 10/100Mbps LAN port*2 |
Antenna |
| 2.4GHz: 5dbi external omnidirectional antenna*2; 5.8GHz: 5dbi external omnidirectional antenna*2 |
4G module |
| CAT4, support downlink rate 150Mbps and uplink maximum rate 50Mbps LTE TDD:B34/B38/B39/B40/B41;LTE FDD:B1/B3/B5/B8; GSM:900/1800MHz |
SIM card |
| Support standard SIM card 25*15mm |
Button |
| Reset Button *1 |
Power supply |
| DC input 12V/1A |
Panel indicator light |
| LED*2 (POWER, WIFI) |
Software Specification |
|
|
Operating mode |
| WAN mode: DHCP, PPPoE, static (fixed IP); wireless relay mode |
Network |
| LAN/WAN replacement, LAN, DHCP server, VLAN, QoS, DDNS |
| VPN: PPTP client/L2TP client, static routing, network detection | |
| Virtual Server: Port Forwarding, Virtual Server: DMZ | |
Safety |
| MAC address filtering, IP address filtering, domain name filtering, WPS, WiFi plan, remote management |
Other |
| Time Zone, Firmware Upgrade, Backup/Restore, Admin Password, WatchCat, Scheduled Reboot/Restart |
Diagnostic tools |
| PING network continuity detection, TRACEROUTE route tracking, NSLOOKUP |
Factory default |
| IP address: 192.168.1.254, login username/password: admin |
Wireless Specifications |
|
|
Wireless standard |
| IEEE 802.11b/g/n |
Wireless rate |
| 300Mbps |
Wireless power |
| 20dBm |
Wireless receiving sensitivity |
| -92dBm |
Wireless band |
| 2.4GHz |
Wireless encryption |
| WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK |
Other Specifications |
|
|
Application Environment |
| Working temperature: -10℃~55℃ |
|
| Working humidity: 10%~90% RH non-condensing |
|
| Storage temperature: -40℃~80℃ |
|
| Storage humidity: 5%~90% RH non-condensing |
Product Size |
| 265*160*36mm |
Installation Method |
| desktop, wall hanging |

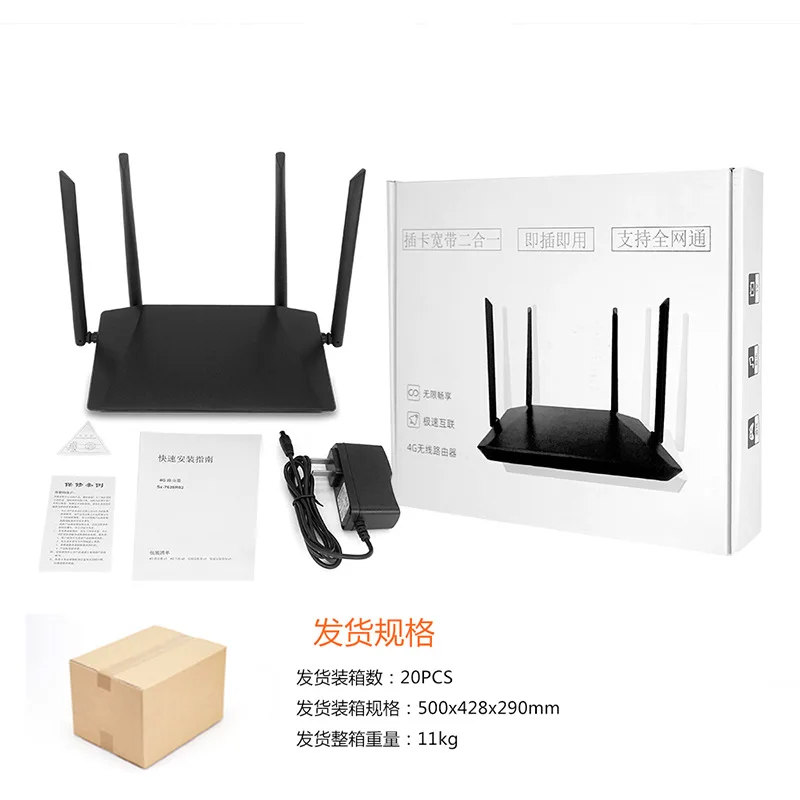

Package Contents |
| One MKR12 router |
|
| One power adapter |
|
| Instruction manual, certificate of conformity, warranty card |
